Whirlpool MW3500XM1 microwave Parts
Here are the diagrams and repair parts for Whirlpool MW3500XM1 microwave, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for MW3500XM1 Microwaves

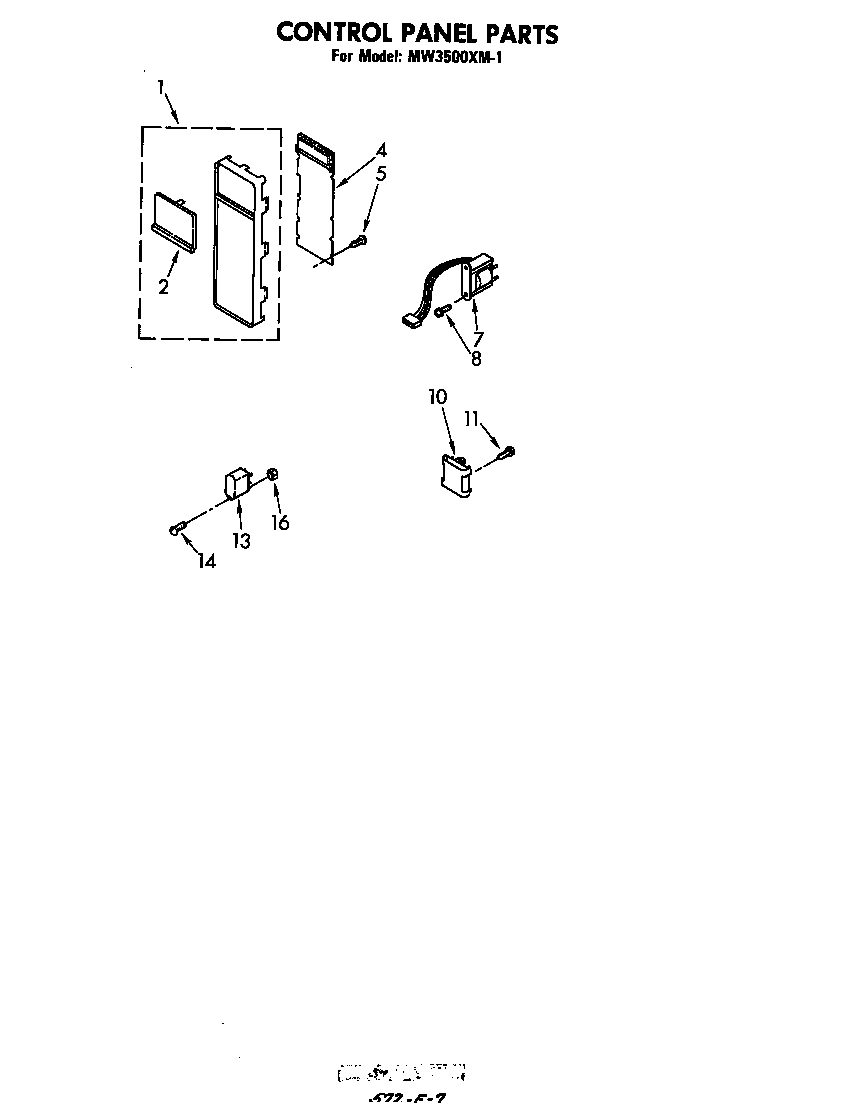

Control panel diagram
Triac
Part #788035
The manufacturer no longer makes this part, and there's no substitute part

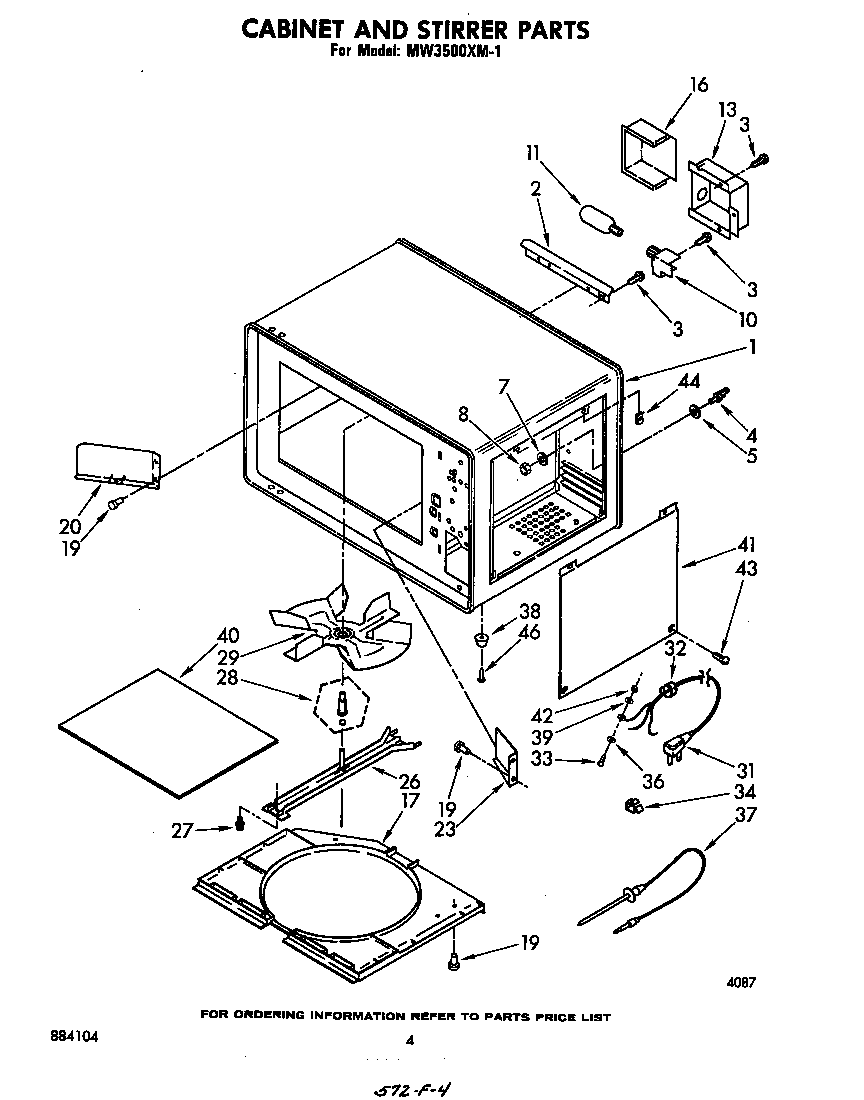

Cabinet and stirrer diagram
Lamp Socket
Part #788077
The manufacturer no longer makes this part, and there's no substitute part
Cabinet and stirrer diagram
Temperature Probe
Part #788081
The manufacturer no longer makes this part, and there's no substitute part
Cabinet and stirrer diagram
Lock Washer
Part #788127
The manufacturer no longer makes this part, and there's no substitute part

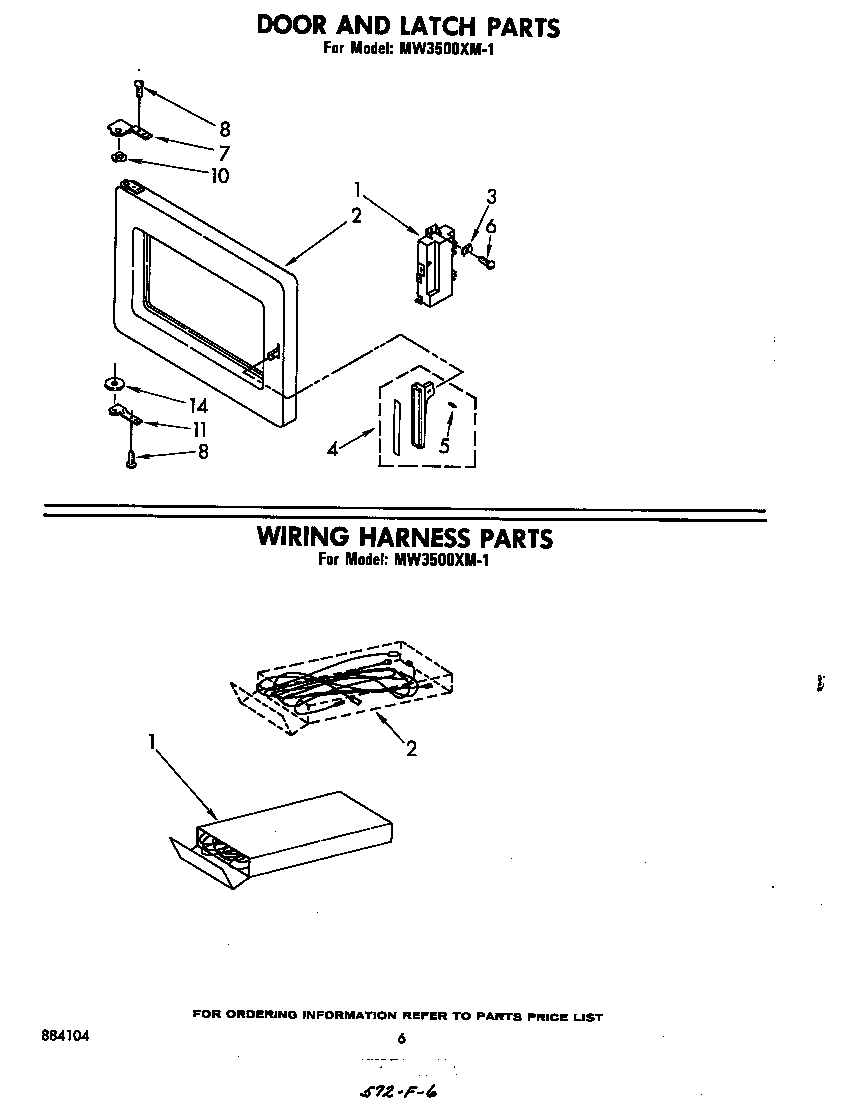

Door and latch diagram
Door Hinge
Part #788061
The manufacturer no longer makes this part, and there's no substitute part
Control panel diagram
Screw
Part #788128
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Repair Parts List
Part #884104
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Guide, Cooking
Part #788018
The manufacturer no longer makes this part, and there's no substitute part
Cabinet and stirrer diagram
Lock Washer
Part #788097
The manufacturer no longer makes this part, and there's no substitute part

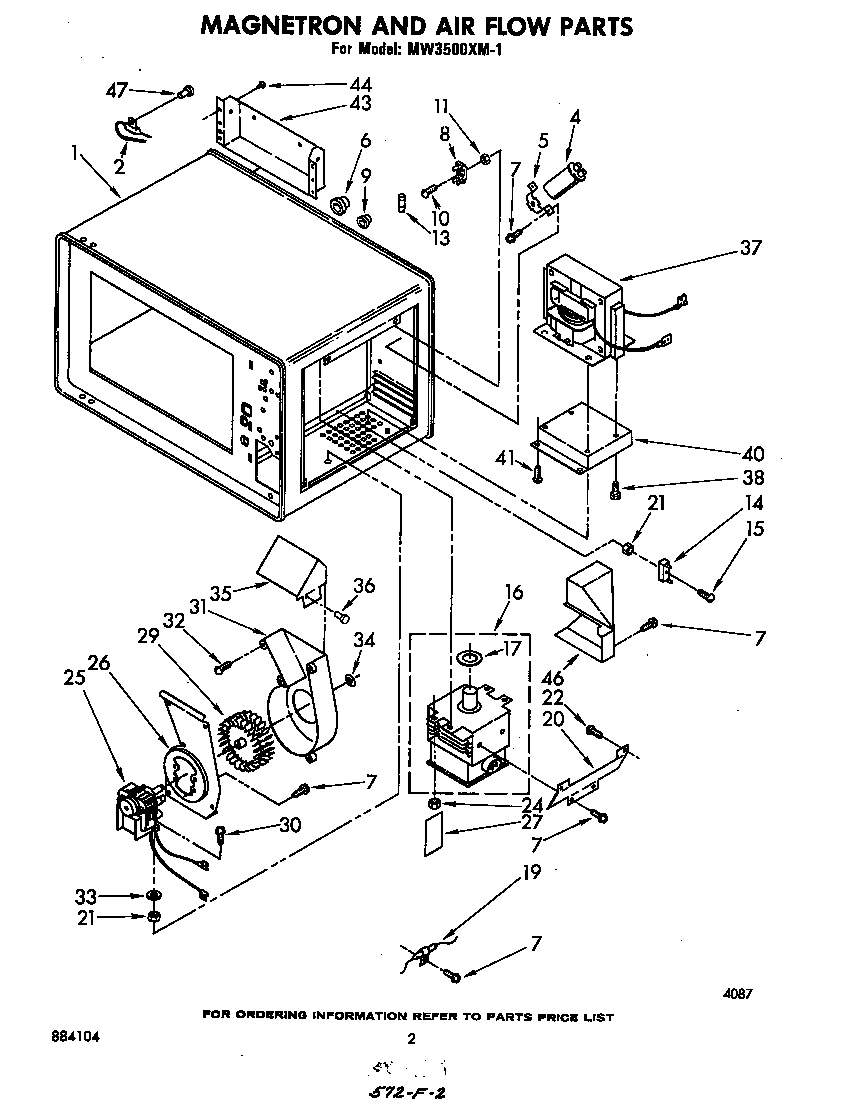

Magnetron and airflow diagram
Aluminum Tape
Part #788064
The manufacturer no longer makes this part, and there's no substitute part
