Reverse Osmosis System

Model # PNRQ20FCC00 Official GE reverse osmosis water system

Here are the diagrams and repair parts for Official GE PNRQ20FCC00 reverse osmosis water system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

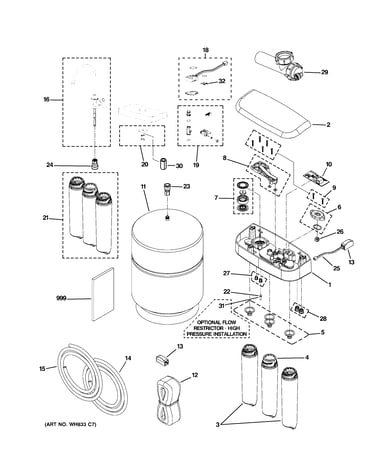

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |

Reverse Osmosis System Filter, 2-pack FQROPF
#3

Water filtration system diagram

Reverse osmosis system filter, 2-pack

Part #FQROPF

Get free shipping with Automatic Reorder

$74.51
6% OFF Phone Price : $79.51
In Stock
Reverse Osmosis System Filter FQROMF
#4

Water filtration system diagram

Reverse osmosis system filter

Part #FQROMF

Get free shipping with Automatic Reorder

$99.26
9% OFF Phone Price : $109.26
In Stock
Tubing -1/4 X 33'-white WS07X10018
#14

Water filtration system diagram

Tubing -1/4 x 33'-white

Part #WS07X10018

In Stock
Faucet Base,w/wire Chrom WS10X10031
#18

Water filtration system diagram

Faucet base,w/wire chrom

Part #WS10X10031

Replaced by #WS15X10076

?
Manufacturer substitution
This part replaces WS10X10031. Substitute parts can look different from the original.
In Stock
Circuit Board WS06X10005
#10

Water filtration system diagram

Circuit board

Part #WS06X10005

The manufacturer no longer makes this part, and there's no substitute part

Faucet Base,w/wire Bisqu WS10X10034
#18

Water filtration system diagram

Faucet base,w/wire bisqu

Part #WS10X10034

The manufacturer no longer makes this part, and there's no substitute part

Faucet Base WS10X10032
#18

Water filtration system diagram

Faucet base

Part #WS10X10032

The manufacturer no longer makes this part, and there's no substitute part

Faucet-white-high Arc WS15X10044
#16

Water filtration system diagram

Faucet-white-high arc

Part #WS15X10044

The manufacturer no longer makes this part, and there's no substitute part

6 Pin Phone Cord-25 Ft. WS60X10009
#12

Water filtration system diagram

6 pin phone cord-25 ft.

Part #WS60X10009

The manufacturer no longer makes this part, and there's no substitute part

Adapter WS18X10009
#19

Water filtration system diagram

Adapter

Part #WS18X10009

The manufacturer no longer makes this part, and there's no substitute part
