Model # DSC-H90/R Official Sony digital camera

Here are the diagrams and repair parts for Official Sony DSC-H90-R digital camera, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Sy324 Pcb, A1861459A
#105

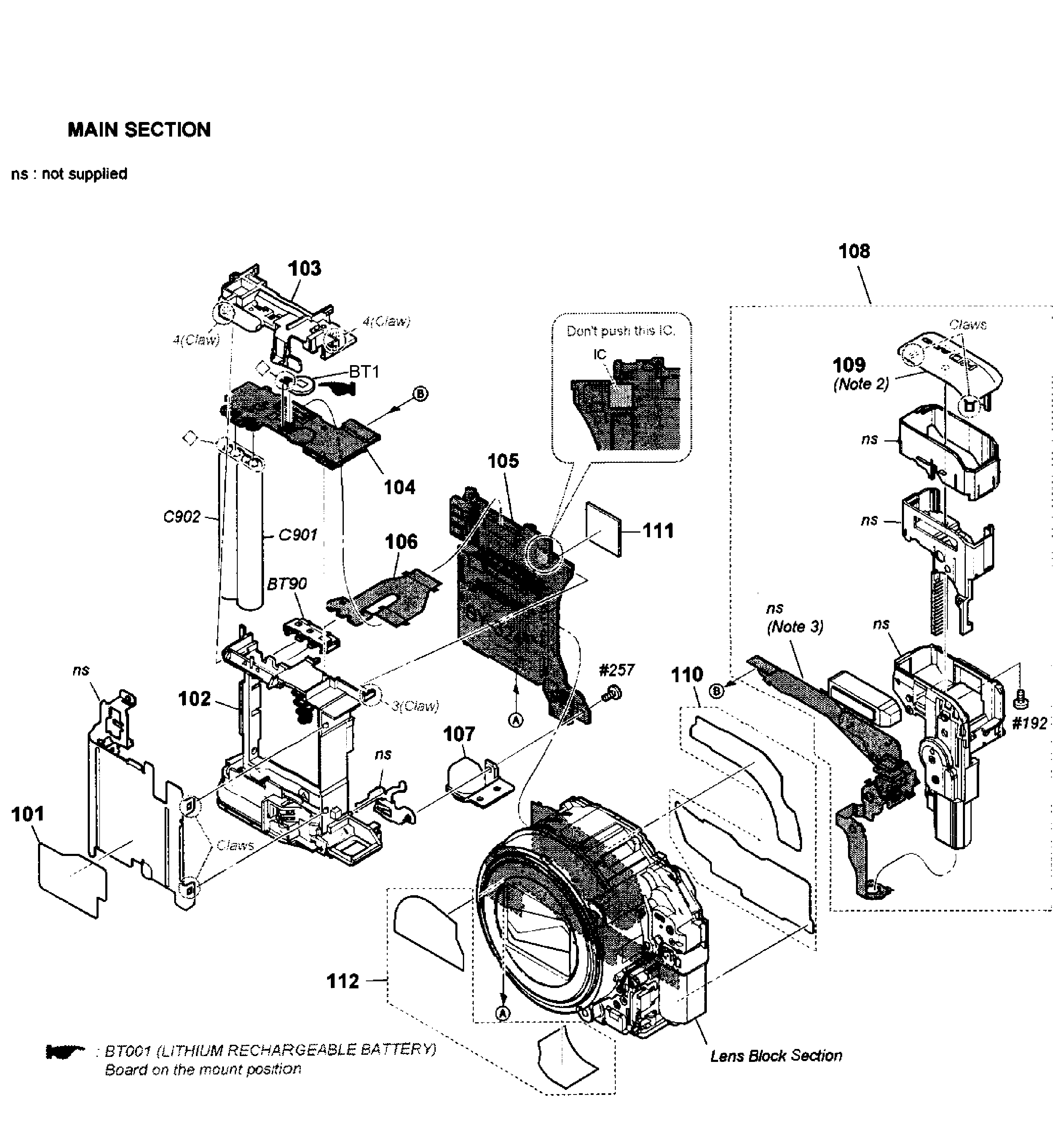

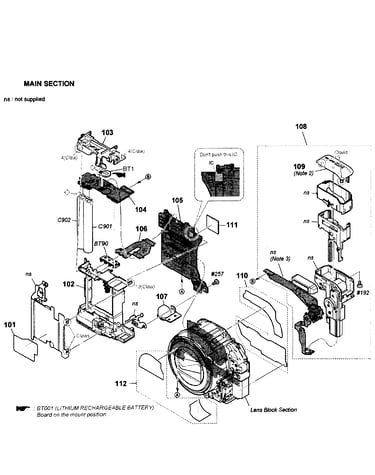

Main section diagram

Sy324 pcb,

Part #A1861459A

$153.54
In Stock
Insulation Sheet 441663101
#6

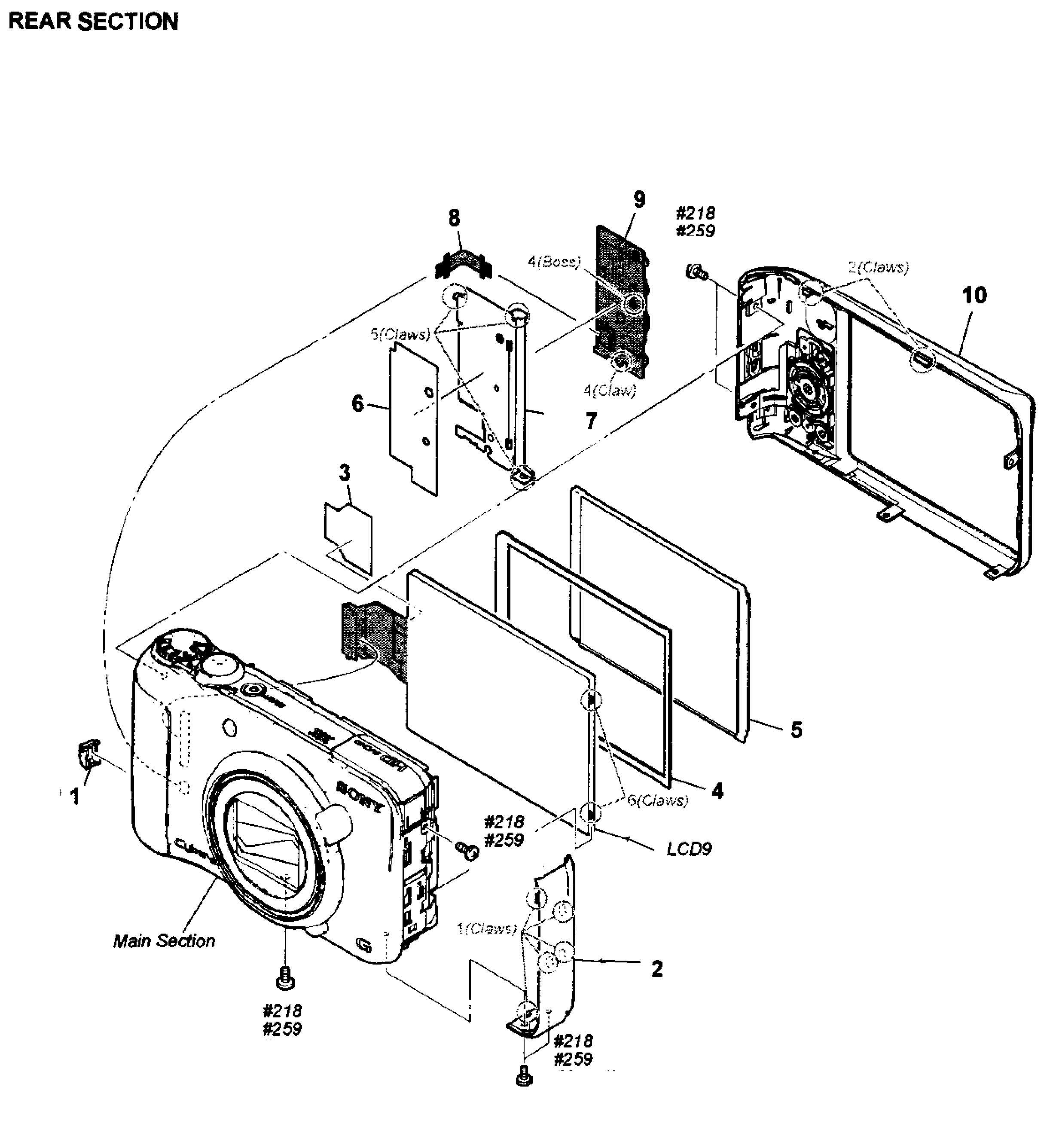

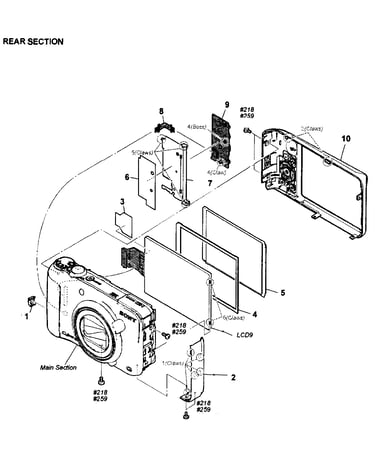

Rear section diagram

Insulation sheet

Part #441663101

This item is not returnable
$2.25
In Stock
Cabinet, St (red) 441660851
#109

Main section diagram

Cabinet, st (red)

Part #441660851

$10.83
In Stock
Tape, Barrier 420813202
#153

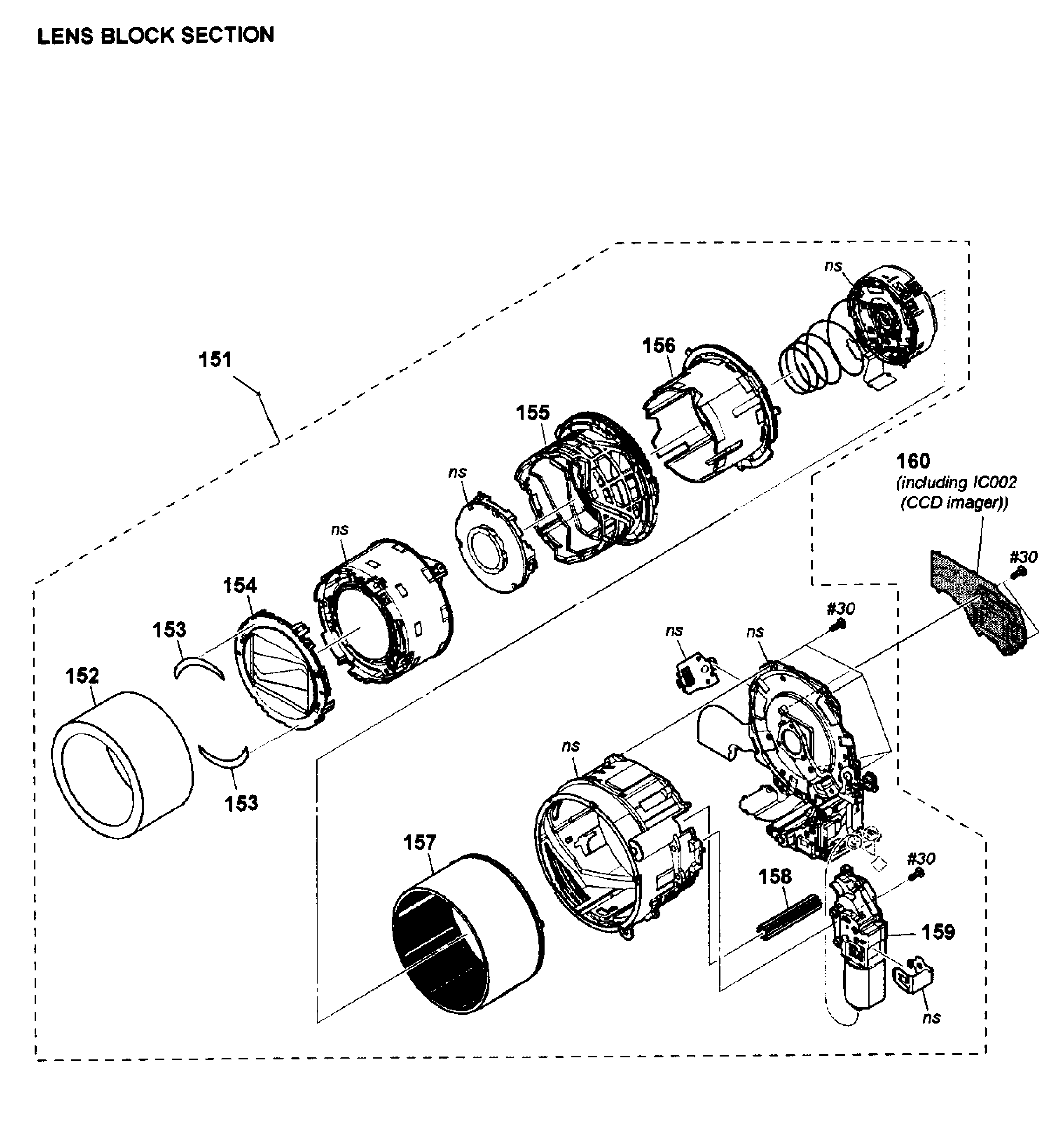

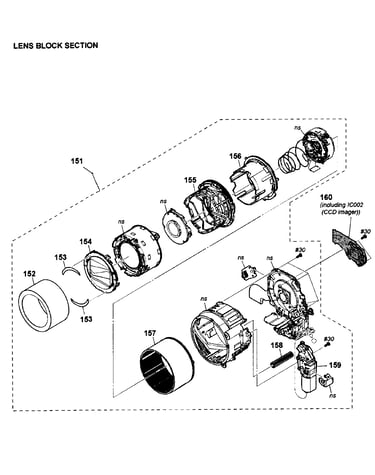

Lens block diagram

Tape, barrier

Part #420813202

This item is not returnable
$4.83
In Stock
Speaker 185834351
#SP90

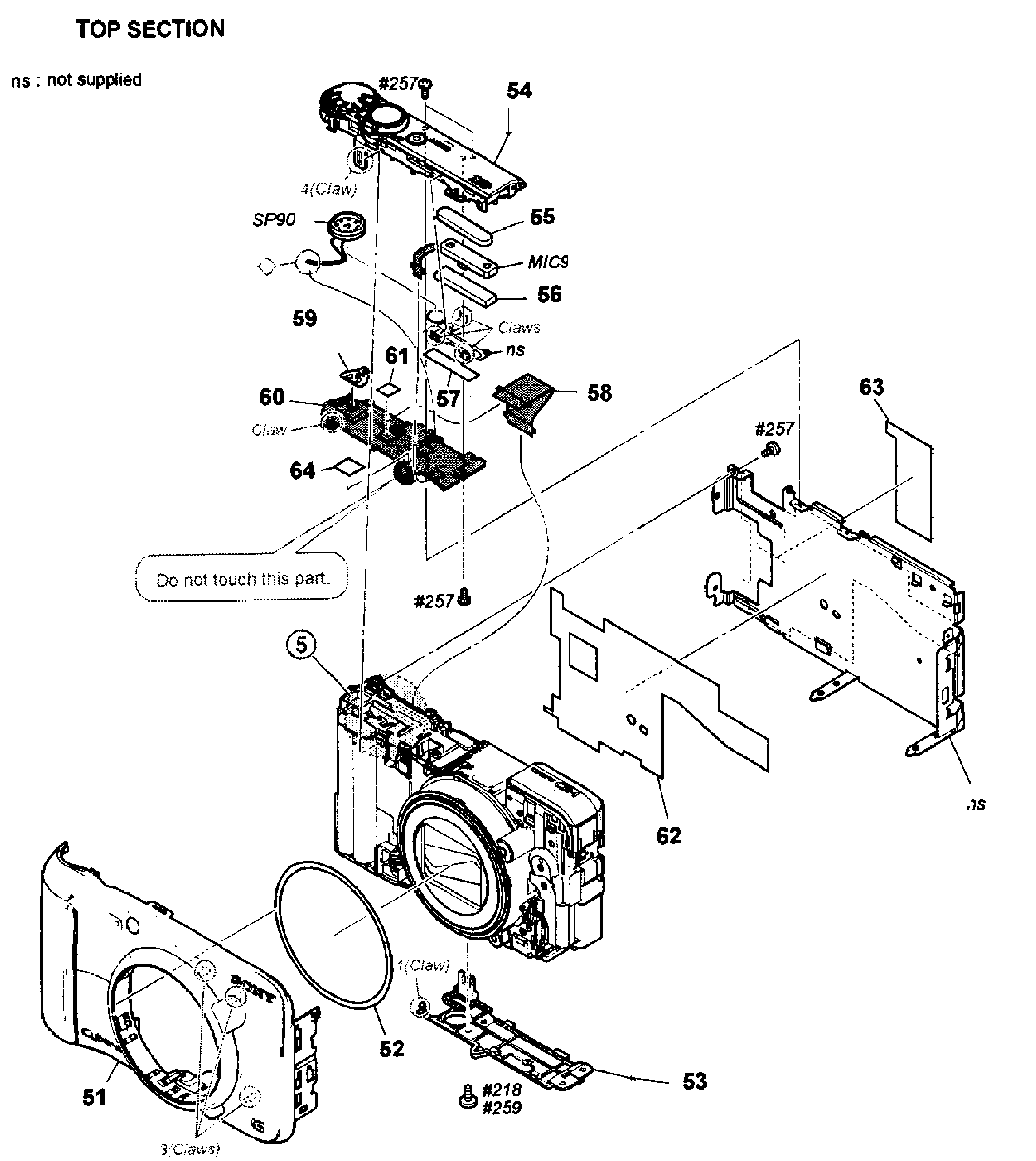

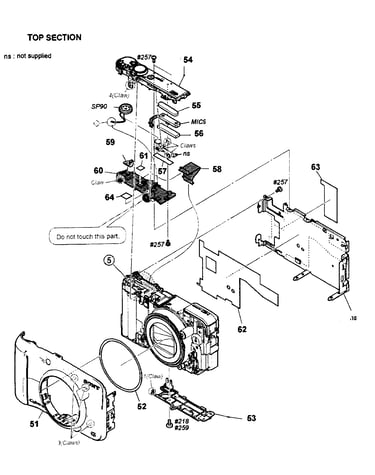

Top section diagram

Speaker

Part #185834351

$15.95
In Stock
Window Lcd 441662601
#5

Rear section diagram

Window lcd

Part #441662601

$21.83
In Stock
Sheet , Release Muffle 441938701
#61

Top section diagram

Sheet , release muffle

Part #441938701

This item is not returnable
$2.28
In Stock
Screw,silv 426475151
Screw,silv

Part #426475151

This item is not returnable
$5.65
In Stock
Screw (m1.4), New Trustar 441276951
Screw (m1.4), new trustar

Part #441276951

This item is not returnable
$2.28
In Stock
Battery 178082611
#BT90

Main section diagram

Battery

Part #178082611

$11.75
In Stock
