Craftsman 471261401 25-gallon trailer sprayer Parts
Here are the diagrams and repair parts for Craftsman 471261401 25-gallon trailer sprayer, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 471261401 25-Gallon Trailer Sprayer

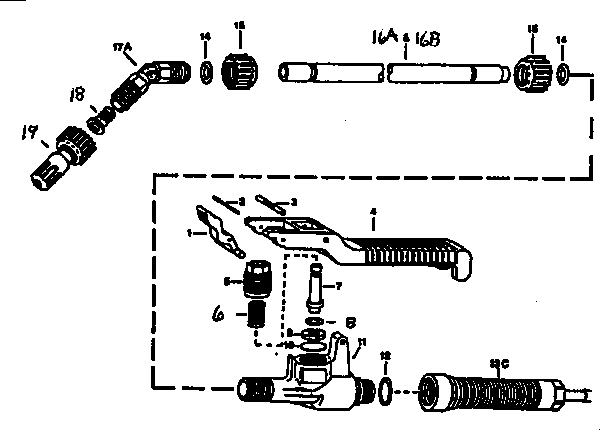

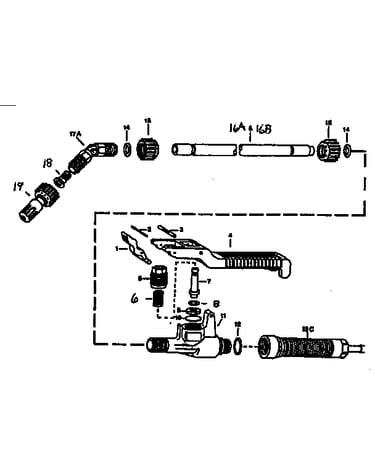

Handgun diagram
Handle
Part #5078168
The manufacturer no longer makes this part, and there's no substitute part

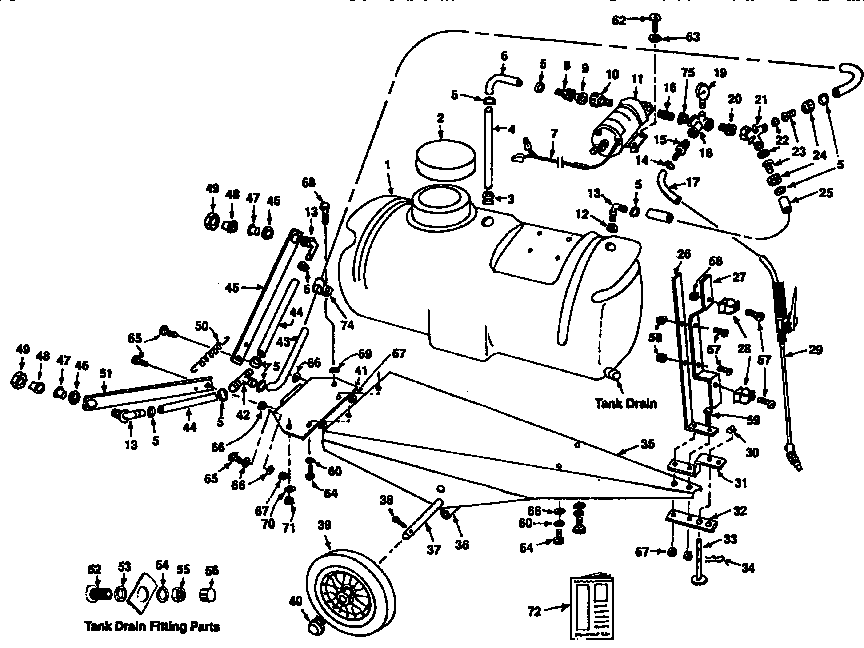

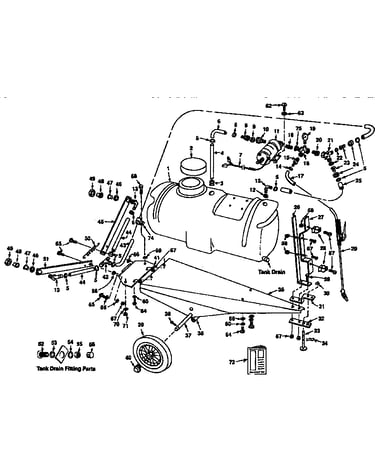

25 gallon tank assembly diagram
Bracket
Part #5038334
The manufacturer no longer makes this part, and there's no substitute part
25 gallon tank assembly diagram
Flat Washer
Part #5016176
The manufacturer no longer makes this part, and there's no substitute part
25 gallon tank assembly diagram
Lawn Tractor Lawn Sprayer Attachment Hose Tee, 1/2-in
Part #5086003
The manufacturer no longer makes this part, and there's no substitute part
25 gallon tank assembly diagram
Cap
Part #5046023
The manufacturer no longer makes this part, and there's no substitute part

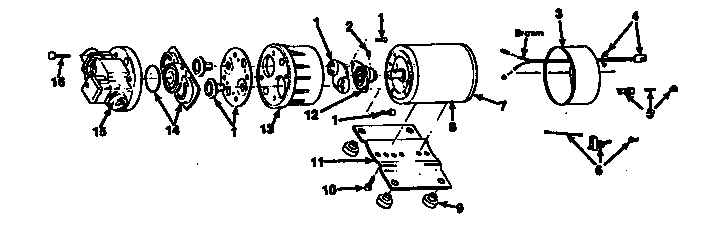

Pump assembly diagram
Motor
Part #5162014
The manufacturer no longer makes this part, and there's no substitute part
25 gallon tank assembly diagram
Gauge
Part #5167007
The manufacturer no longer makes this part, and there's no substitute part
Pump assembly diagram
Toggle Switch
Part #5157095
The manufacturer no longer makes this part, and there's no substitute part
Pump assembly diagram
Brush End Bell Assembly
Part #5162023
The manufacturer no longer makes this part, and there's no substitute part
25 gallon tank assembly diagram
Axle
Part #5024059
The manufacturer no longer makes this part, and there's no substitute part
