Exercise Cycle

Model # IMEX35080 Official Image 3.2ce

Here are the diagrams and repair parts for Official Image IMEX35080 3.2ce, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Exercise Cycle Pedal, Left 134368
#10

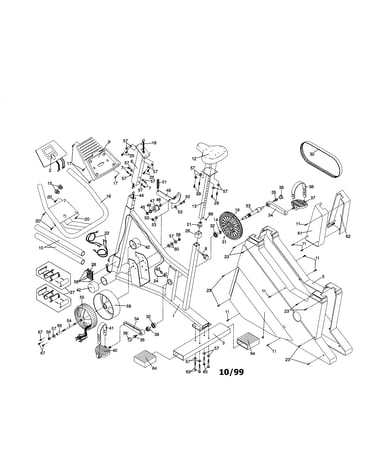

Image 3.2c diagram

Exercise cycle pedal, left

Part #134368

Replaced by #374670

?
Manufacturer substitution
This part replaces 134368. Substitute parts can look different from the original.
This item is not returnable
$17.09 |
10% OFF Phone Price : $19.09
In Stock
Elliptical Nut 012042
#56

Image 3.2c diagram

Elliptical nut

Part #012042

This item is not returnable
$2.16
In Stock
Elliptical Washer 014132
#53

Image 3.2c diagram

Elliptical washer

Part #014132

This item is not returnable
$2.16
In Stock
Left Pedal Strap 153334
#41

Image 3.2c diagram

Left pedal strap

Part #153334

This item is not returnable
$4.99
In Stock
Button Screw, M8 X 15 128548
#7

Image 3.2c diagram

Button screw, m8 x 15

Part #128548

This item is not returnable
$2.16
In Stock
Exercise Equipment Screw 013540
#11

Image 3.2c diagram

Exercise equipment screw

Part #013540

This item is not returnable
$2.16
In Stock
Right Pedal 153335
#37

Image 3.2c diagram

Right pedal

Part #153335

$13.99
In Stock
Elliptical Drive Belt 119199
#30

Image 3.2c diagram

Elliptical drive belt

Part #119199

$19.09 |
9% OFF Phone Price : $21.09
In Stock
Screw 013549
#23

Image 3.2c diagram

Screw

Part #013549

This item is not returnable
$2.16
In Stock
Exercise Equipment Screw 013468
#29

Image 3.2c diagram

Exercise equipment screw

Part #013468

This item is not returnable
$2.16
In Stock
