Model # BN200 Official Porter Cable nailer

Here are the diagrams and repair parts for Official Porter Cable BN200 nailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 80 parts |

#99

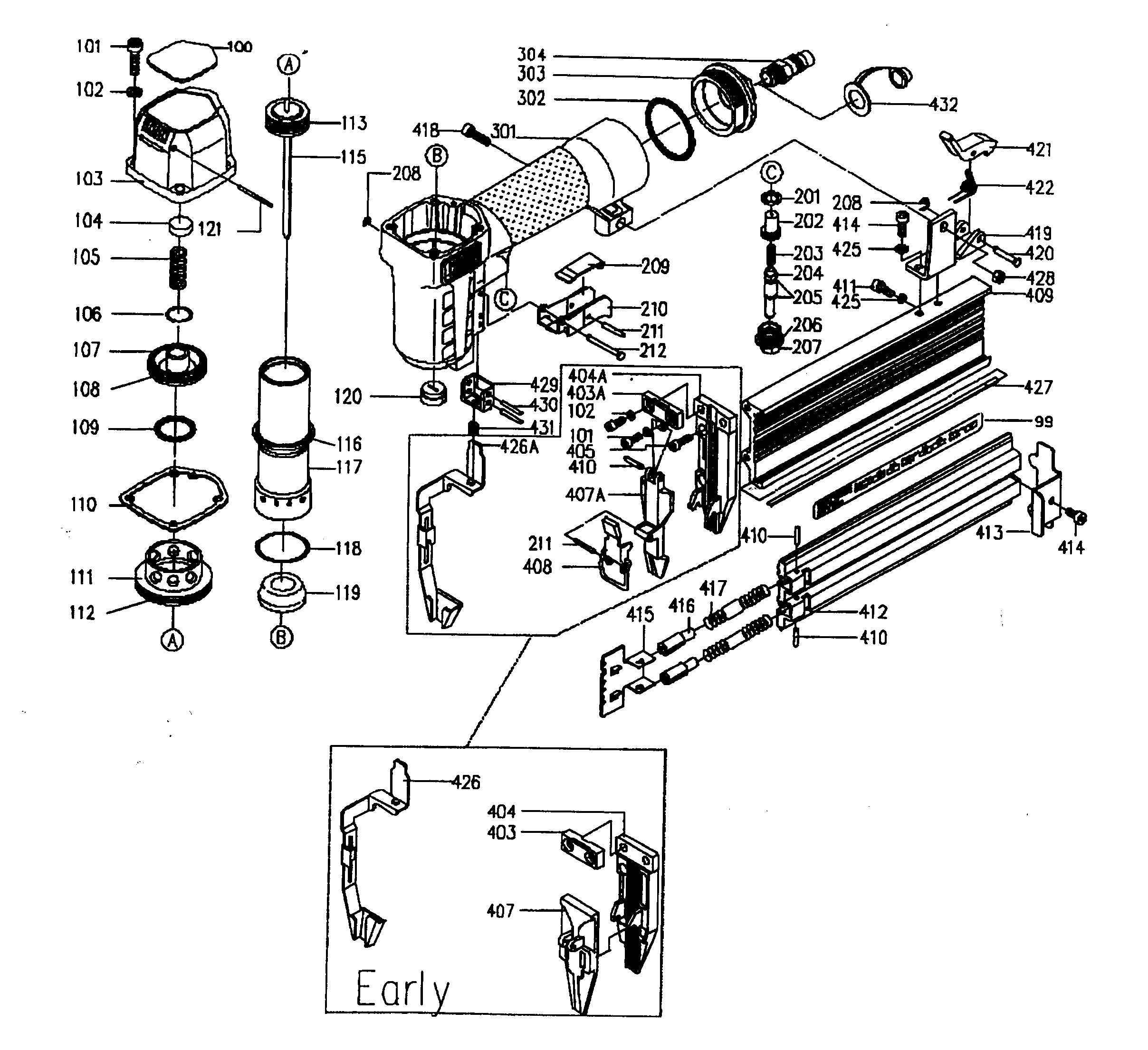

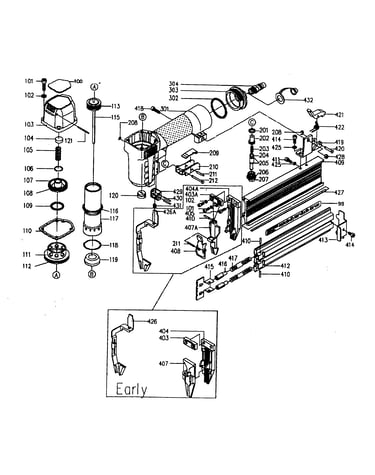

Nailer diagram

Porter cable info plate

Part #883591

The manufacturer no longer makes this part, and there's no substitute part

#421

Nailer diagram

Latch

Part #883906

The manufacturer no longer makes this part, and there's no substitute part

#404

Nailer diagram

Porter cable guide

Part #883893

The manufacturer no longer makes this part, and there's no substitute part

#404A

Nailer diagram

Porter cable guide

Part #884576

The manufacturer no longer makes this part, and there's no substitute part

#415

Nailer diagram

Porter cable pusher

Part #883902

The manufacturer no longer makes this part, and there's no substitute part

#410

Nailer diagram

Porter cable spring pin

Part #883897

The manufacturer no longer makes this part, and there's no substitute part

#110

Nailer diagram

Gasket

Part #883835

The manufacturer no longer makes this part, and there's no substitute part

#111

Nailer diagram

Collar

Part #883836

The manufacturer no longer makes this part, and there's no substitute part

#NI

Nailer diagram

Porter latch

Part #887712

The manufacturer no longer makes this part, and there's no substitute part

#205

Nailer diagram

Porter o-ring

Part #883848

The manufacturer no longer makes this part, and there's no substitute part
