Craftsman 247370280 electric mulching mower Parts
Here are the diagrams and repair parts for Craftsman 247370280 electric mulching mower, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 247370280 Walk-Behind Mowers

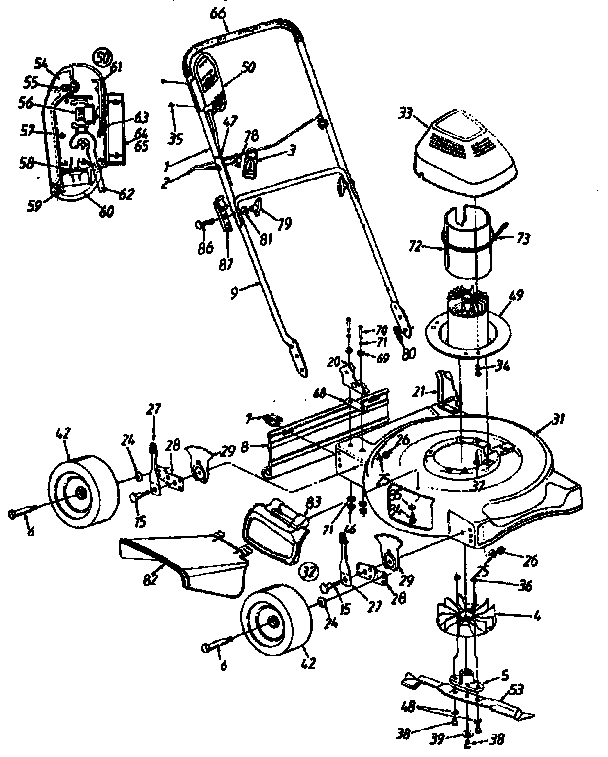

Handle assembly diagram
Insulated Strip
Part #721-0309
The manufacturer no longer makes this part, and there's no substitute part
Handle assembly diagram
Bell Washer
Part #736-0356
The manufacturer no longer makes this part, and there's no substitute part
Handle assembly diagram
Switch
Part #731-1210
The manufacturer no longer makes this part, and there's no substitute part
Armature assembly diagram
Armature Assembly
Part #624-0029
The manufacturer no longer makes this part, and there's no substitute part
Handle assembly diagram
Insulator-hb
Part #731-1219
The manufacturer no longer makes this part, and there's no substitute part
Handle assembly diagram
Housing
Part #731-1208
The manufacturer no longer makes this part, and there's no substitute part
Handle assembly diagram
Motor Cover
Part #731-1264
The manufacturer no longer makes this part, and there's no substitute part
Handle assembly diagram
Control Rod
Part #747-0790
The manufacturer no longer makes this part, and there's no substitute part
Handle assembly diagram
Self Tap Screw
Part #710-1150
The manufacturer no longer makes this part, and there's no substitute part
Handle assembly diagram
Upper Handle
Part #749-0884
The manufacturer no longer makes this part, and there's no substitute part
