Model # DA250B TYPE 1 Official Porter Cable finish nailer

Here are the diagrams and repair parts for Official Porter Cable DA250B-TYPE-1 finish nailer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 84 parts |

#427

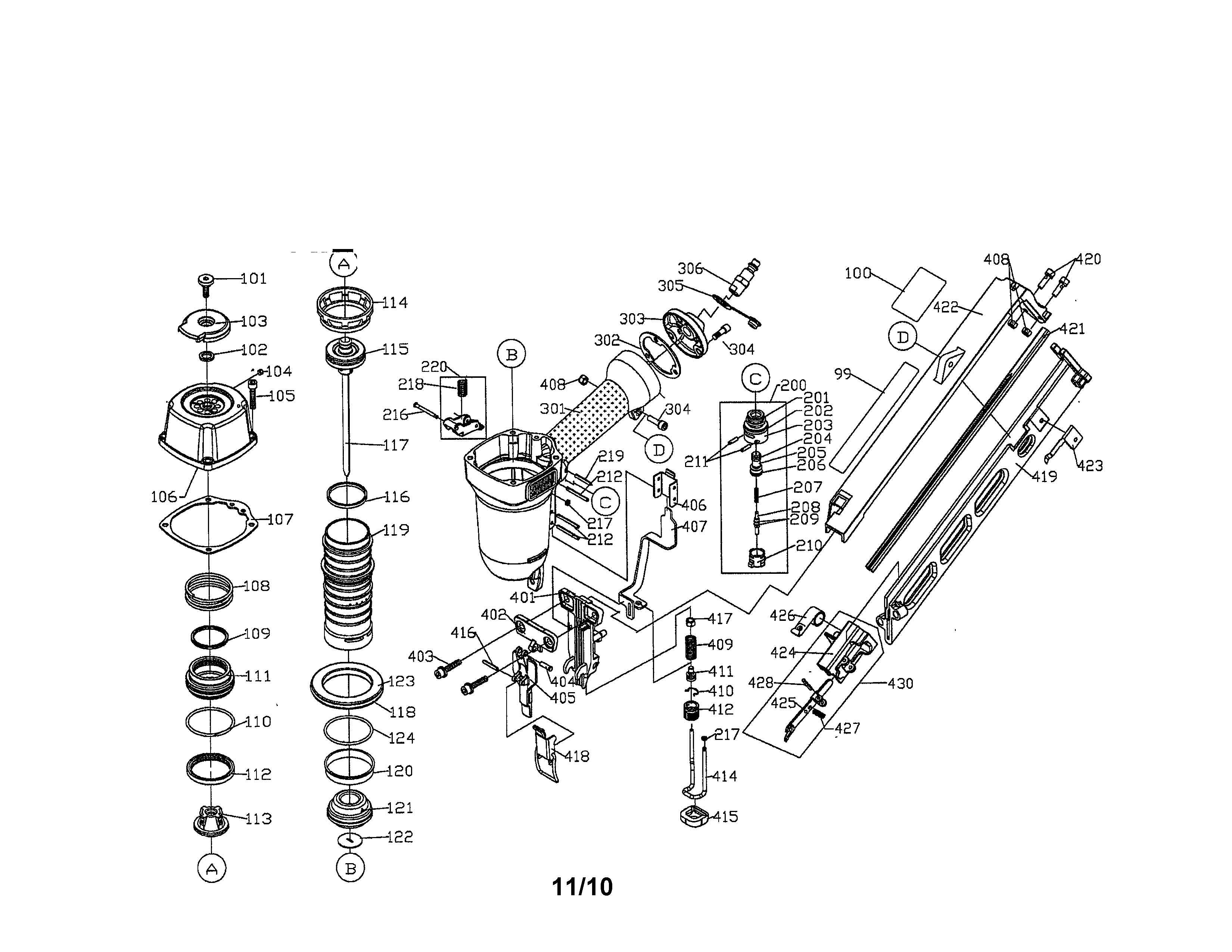

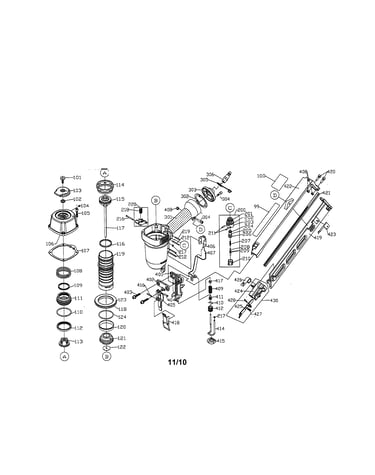

Finish nailer diagram

Spring iro

Part #904787

The manufacturer no longer makes this part, and there's no substitute part

#114

Finish nailer diagram

Press ring

Part #904751

The manufacturer no longer makes this part, and there's no substitute part

#119

Finish nailer diagram

Cylinder

Part #904756

The manufacturer no longer makes this part, and there's no substitute part

#103

Finish nailer diagram

Deflector

Part #904741

The manufacturer no longer makes this part, and there's no substitute part

#418

Finish nailer diagram

Lock handle

Part #904777

The manufacturer no longer makes this part, and there's no substitute part

#208

Finish nailer diagram

Plunger

Part #897346

The manufacturer no longer makes this part, and there's no substitute part

#417

Finish nailer diagram

Lock nut

Part #904769

The manufacturer no longer makes this part, and there's no substitute part

#856A

Finish nailer diagram

Hex wrench

Part #884299

The manufacturer no longer makes this part, and there's no substitute part

#108

Finish nailer diagram

Spring

Part #A02164

The manufacturer no longer makes this part, and there's no substitute part

#205

Finish nailer diagram

O-ring

Part #883936

The manufacturer no longer makes this part, and there's no substitute part
