Model # 5648698510 Official Kenmore microwave/convection oven

Here are the diagrams and repair parts for Official Kenmore 5648698510 microwave/convection oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

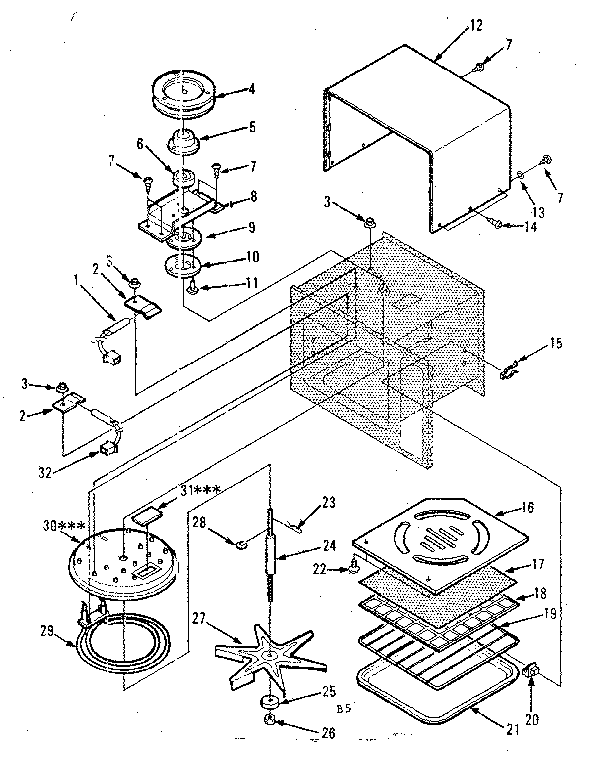

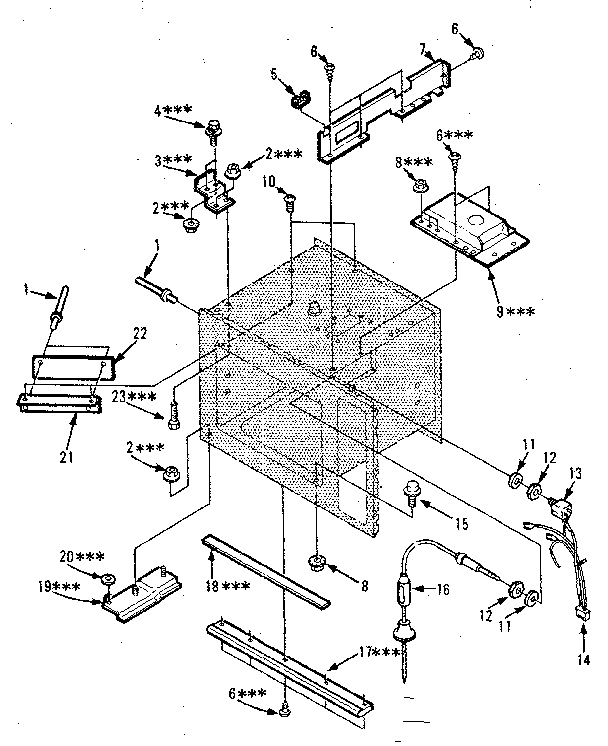

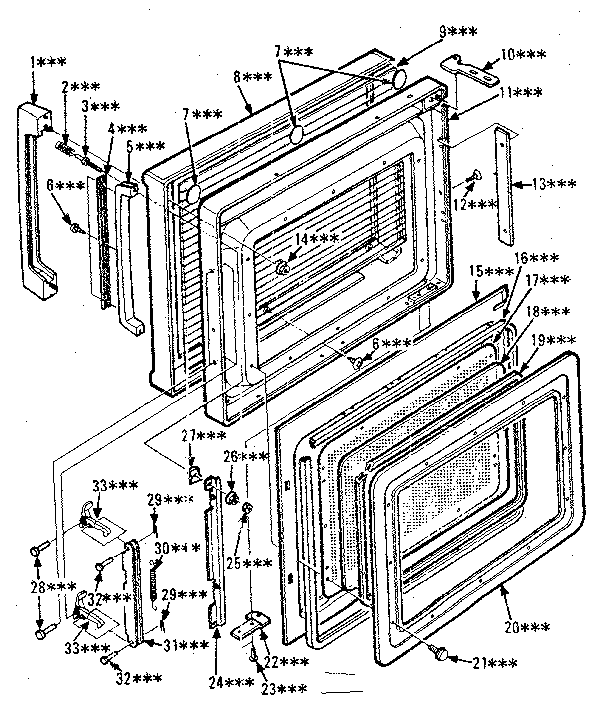

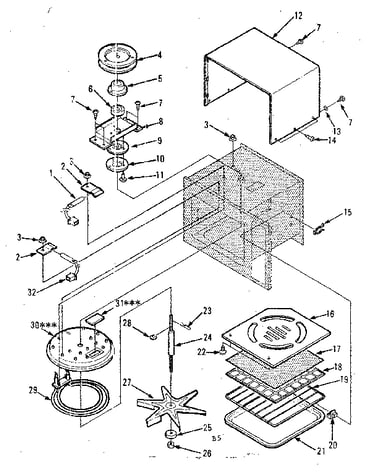

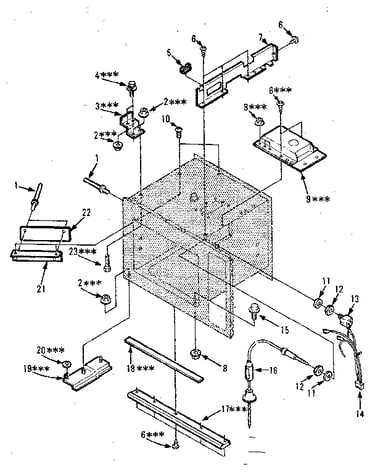

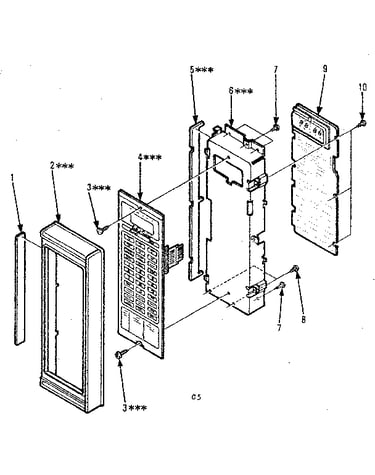

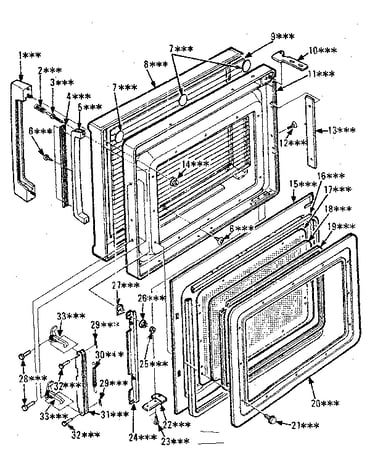

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 251 parts  |

Micro-switch 11243
#16

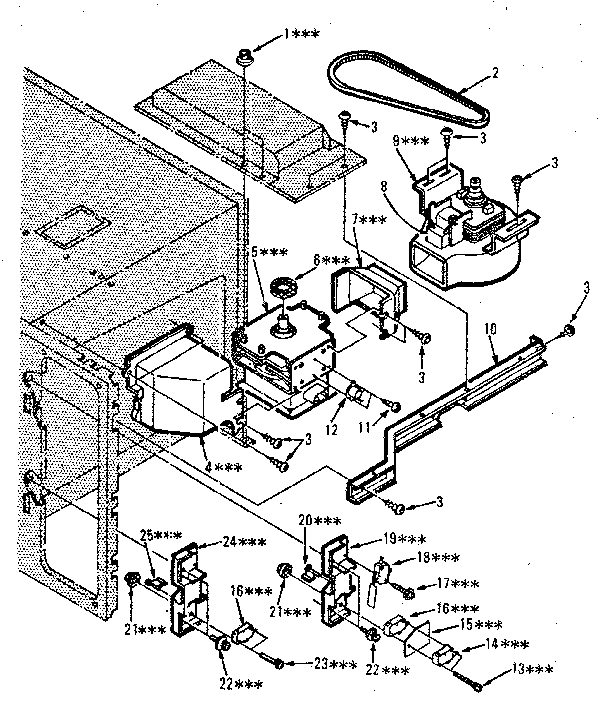

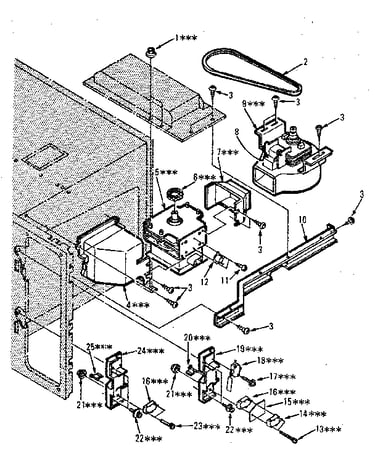

Switches and microwave parts diagram

Micro-switch

Part #11243

The manufacturer no longer makes this part, and there's no substitute part

Microwave Fuse, 15-amp 11255
#19

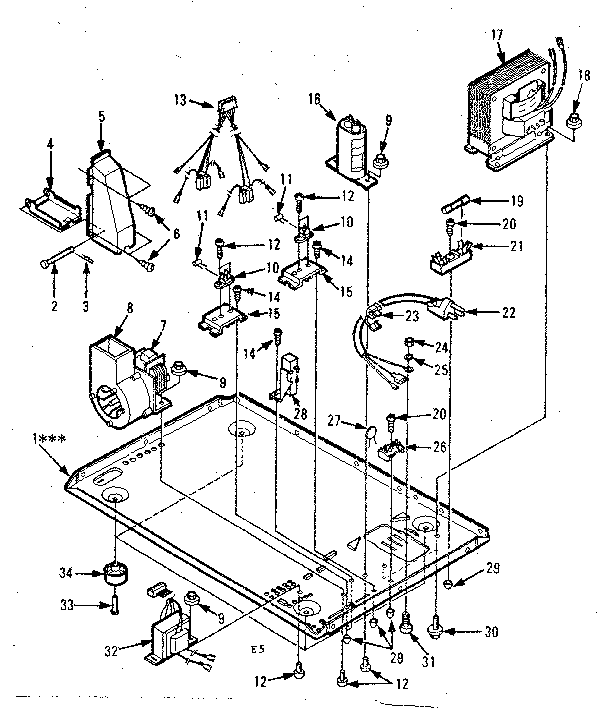

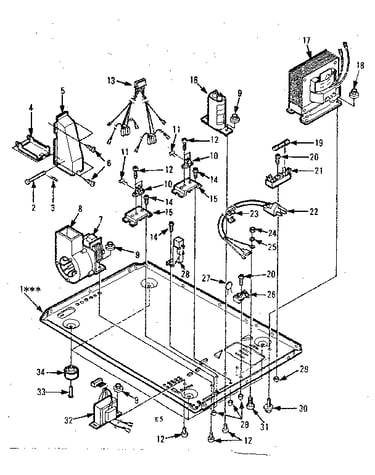

Microwave parts diagram

Microwave fuse, 15-amp

Part #11255

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Lever 11090
#25

Switches and microwave parts diagram

Microwave door latch lever

Part #11090

The manufacturer no longer makes this part, and there's no substitute part

Microwave Magnetron Thermostat 11532
#12

Switches and microwave parts diagram

Microwave magnetron thermostat

Part #11532

The manufacturer no longer makes this part, and there's no substitute part

Intg Circuit 12790
#4H

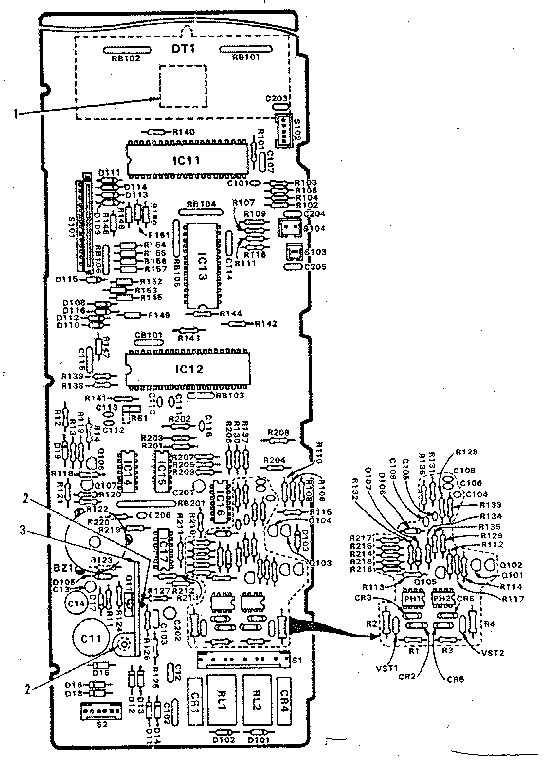

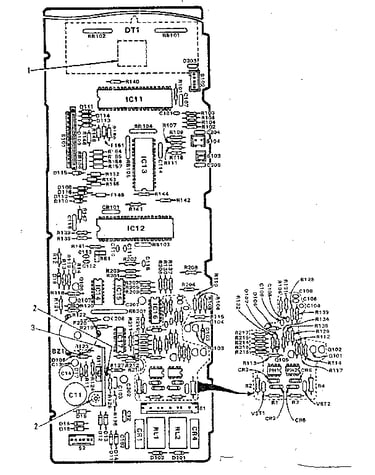

Power and control circuit board (part no. 12677)r diagram

Intg circuit

Part #12790

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11253
#16

Microwave parts diagram

Capacitor

Part #11253

The manufacturer no longer makes this part, and there's no substitute part

Resistor 12135
#9XH

Power and control circuit board (part no. 12677)r diagram

Resistor

Part #12135

The manufacturer no longer makes this part, and there's no substitute part

Thm Protectr 11494
#12

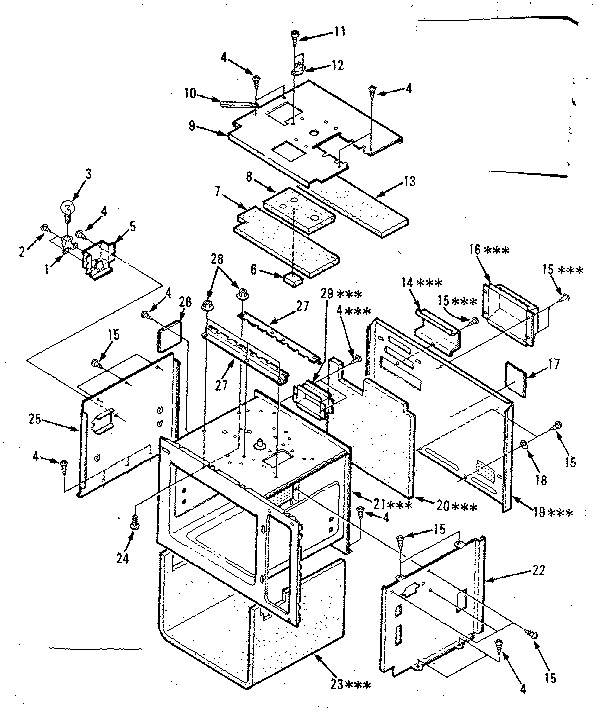

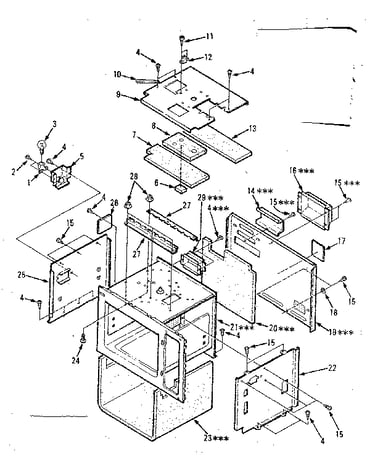

Cavity parts-a diagram

Thm protectr

Part #11494

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 12631
Capacitor

Part #12631

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11803
#7G

Power and control circuit board (part no. 12677)r diagram

Capacitor

Part #11803

The manufacturer no longer makes this part, and there's no substitute part
