Whirlpool ECKMF86 ice maker kit Parts

Here are the diagrams and repair parts for Whirlpool ECKMF86 ice maker kit, as well as links to manuals and error code tables, if available.

Whirlpool ECKMF86 ice maker kit
By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for ECKMF86 Refrigerators

  • Refrigerator Ice Maker Fill Tube for Whirlpool ECKMF86 - Part WP2196157

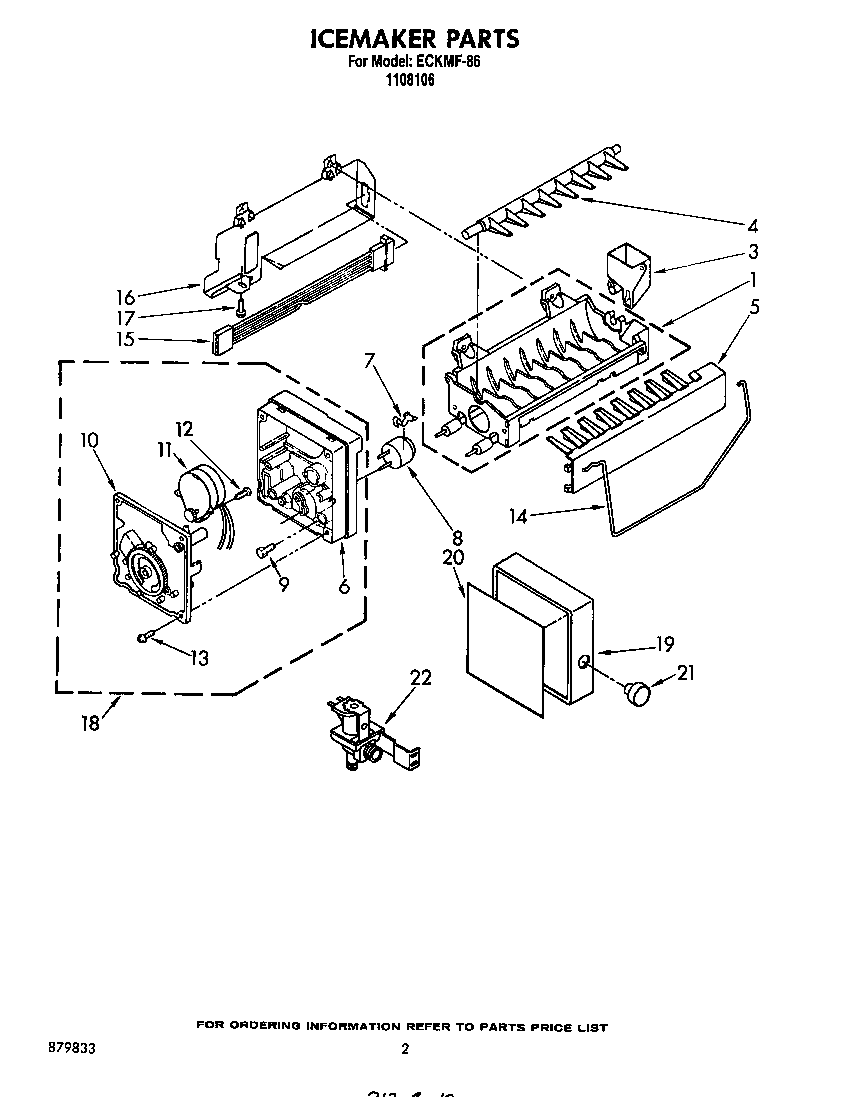

    Icemaker assembly diagram

    Fitting (almond)

    Part #836489

    Replaced by #WP2196157

    Info Icon
    Manufacturer substitution
    This part replaces 836489. Substitute parts can look different from the original.
    In Stock
    $8.43
    11% OFF Phone Price : $9.43Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Thermostat for Whirlpool ECKMF86 - Part WP627985

    Icemaker assembly diagram

    Refrigerator Ice Maker Thermostat

    Part #627985

    Replaced by #WP627985

    Info Icon
    Manufacturer substitution
    This part replaces 627985. Substitute parts can look different from the original.
    In Stock
    $56.86
    12% OFF Was : $64.52Info Icon
    Minus Item
    Qty
    Plus Item
  • Washing Machine Washer for Whirlpool ECKMF86 - Part WP16123

    Icemaker assembly diagram

    Washer

    Part #488292

    Replaced by #WP16123

    Info Icon
    Manufacturer substitution
    This part replaces 488292. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Water Inlet Valve for Whirlpool ECKMF86 - Part 4318047

    Icemaker assembly diagram

    Refrigerator Inlet Valve

    Part #627929

    Replaced by #4318047

    Info Icon
    Manufacturer substitution
    This part replaces 627929. Substitute parts can look different from the original.
    In Stock
    $48.06
    11% OFF Phone Price : $54.06Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Fill Cup for Whirlpool ECKMF86 - Part WP628356

    Icemaker assembly diagram

    Bearing

    Part #627791

    Replaced by #WP628356

    Info Icon
    Manufacturer substitution
    This part replaces 627791. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $26.74
    18% OFF Phone Price : $32.74Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Cube Ejector for Whirlpool ECKMF86 - Part WP627843

    Icemaker assembly diagram

    Refrigerator Ice Maker Cube Ejector

    Part #627843

    Replaced by #WP627843

    Info Icon
    Manufacturer substitution
    This part replaces 627843. Substitute parts can look different from the original.
    In Stock
    $46.48
    11% OFF Phone Price : $52.48Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Cube Ejector for Whirlpool ECKMF86 - Part WP2182124

    Icemaker assembly diagram

    Arm

    Part #627788

    Replaced by #WP2182124

    Info Icon
    Manufacturer substitution
    This part replaces 627788. Substitute parts can look different from the original.
    In Stock
    $42.69
    12% OFF Phone Price : $48.69Info Icon
    Minus Item
    Qty
    Plus Item
  • Clamp for Whirlpool ECKMF86 - Part 549193

    Icemaker assembly diagram

    Clamp

    Part #549193
    In Stock
    $34.53
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Motor Screw for Whirlpool ECKMF86 - Part 489136

    Icemaker assembly diagram

    Refrigerator Ice Maker Motor Screw

    Part #489136
    This item is not returnable
    In Stock
    $8.86
    10% OFF Phone Price : $9.86Info Icon
    Minus Item
    Qty
    Plus Item
  • Refrigerator Ice Maker Module Cover for Whirlpool ECKMF86 - Part WPW10289690

    Icemaker assembly diagram

    Refrigerator Cover

    Part #627993

    Replaced by #WPW10289690

    Info Icon
    Manufacturer substitution
    This part replaces 627993. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.28
    19% OFF Phone Price : $5.28Info Icon
    Minus Item
    Qty
    Plus Item
