Model # SA-WCT770 Official Sony subwoofer

Here are the diagrams and repair parts for Official Sony SA-WCT770 subwoofer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 23 parts  |
Screw 308705301
#2

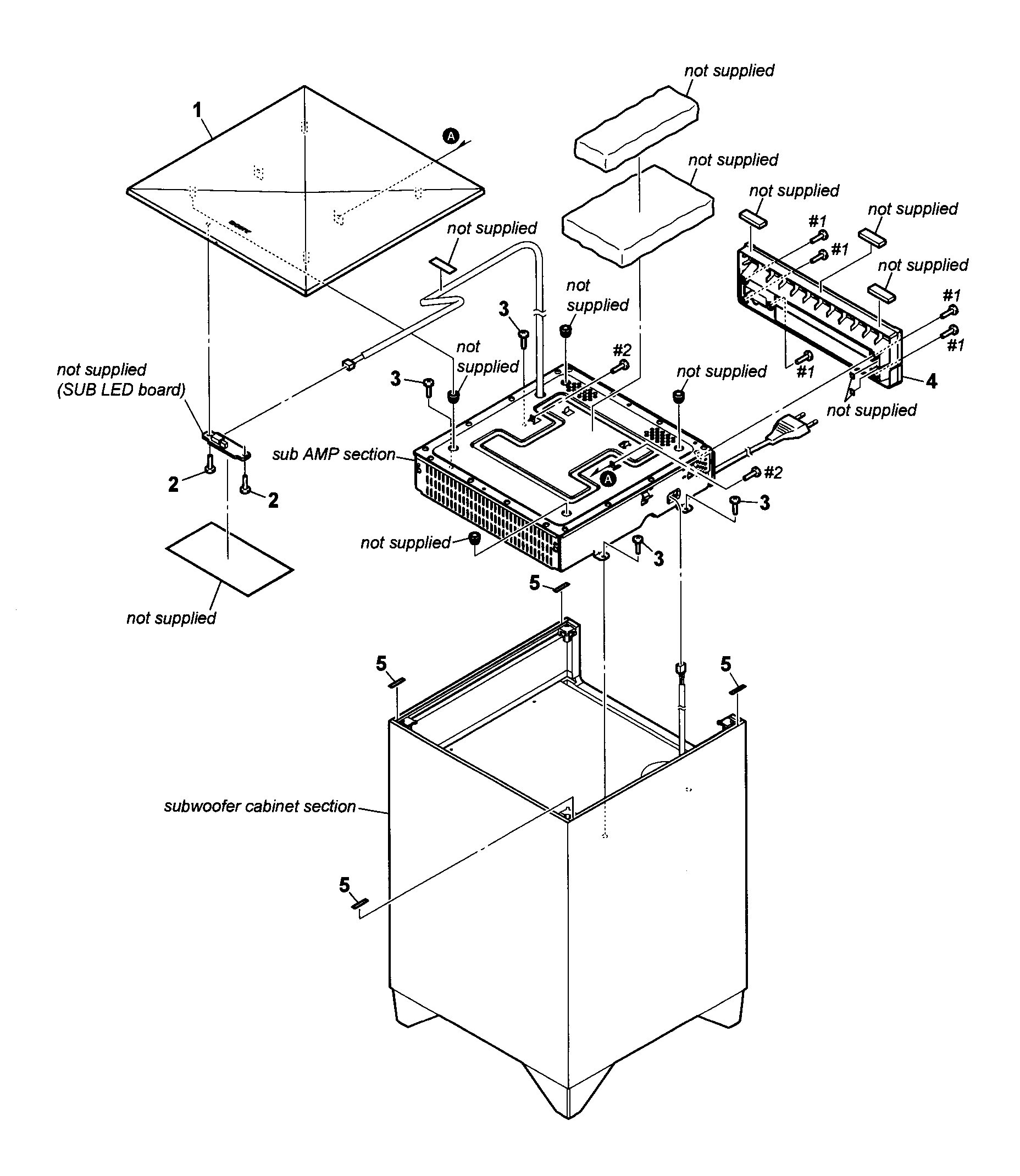

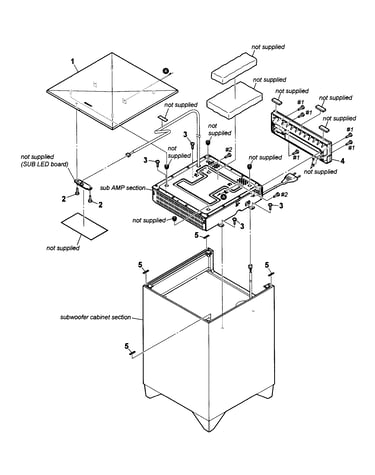

Main asy diagram

Screw

Part #308705301

Replaced by #308705301

?
Manufacturer substitution
This part replaces 308705301. Substitute parts can look different from the original.
$18.01
In Stock
Power Cord 183496522
#AC1

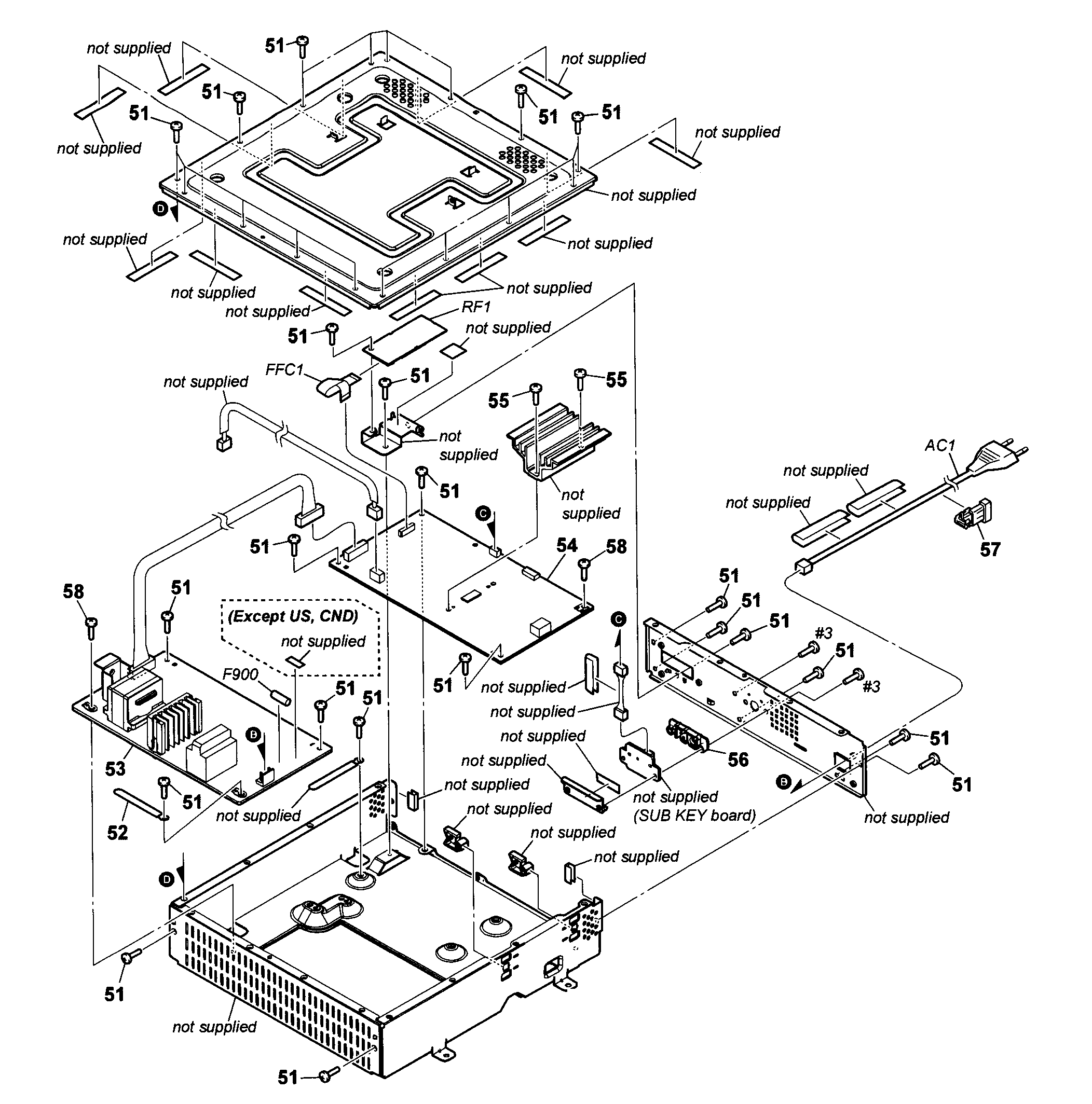

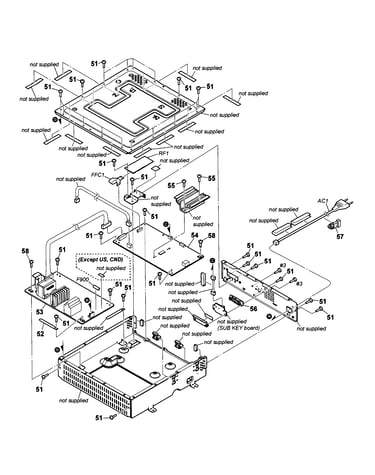

Sub amp diagram

Power cord

Part #183496522

The manufacturer no longer makes this part, and there's no substitute part

Power Pcb A1979523A
#53

Sub amp diagram

Power pcb

Part #A1979523A

Replaced by #A1979523A

?
Manufacturer substitution
This part replaces A1979523A. Substitute parts can look different from the original.
$88.10
In Stock
Screw 497451011
#58

Sub amp diagram

Screw

Part #497451011

Replaced by #497451011

?
Manufacturer substitution
This part replaces 497451011. Substitute parts can look different from the original.
This item is not returnable
$3.54
In Stock
Screw 4x16 424597601
#103

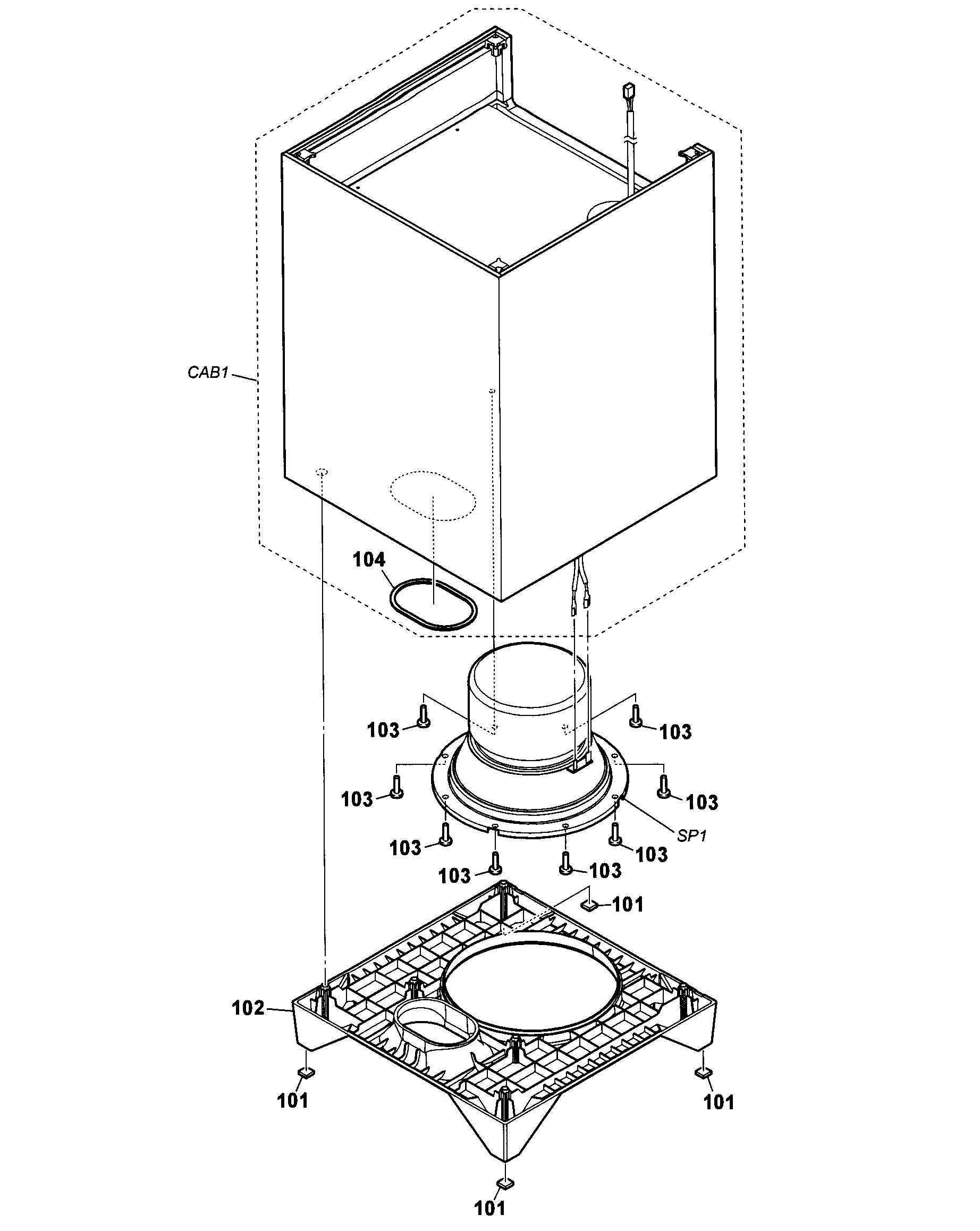

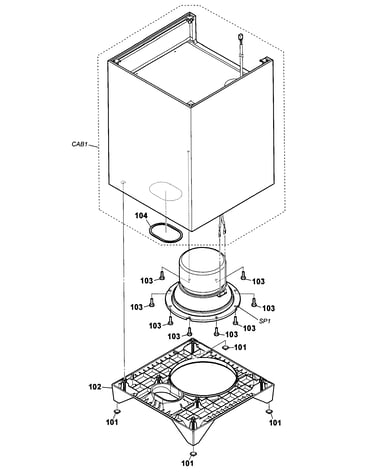

Subwoofer diagram

Screw 4x16

Part #424597601

Replaced by #424597601

?
Manufacturer substitution
This part replaces 424597601. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Pcb S-main A1979519A
#54

Sub amp diagram

Pcb s-main

Part #A1979519A

Replaced by #A1979519A

?
Manufacturer substitution
This part replaces A1979519A. Substitute parts can look different from the original.
$158.27
In Stock
Screw 307733111
#55

Sub amp diagram

Screw

Part #307733111

Replaced by #307733111

?
Manufacturer substitution
This part replaces 307733111. Substitute parts can look different from the original.
This item is not returnable
$2.57
In Stock
Screw 487461402
#3

Main asy diagram

Screw

Part #487461402

Replaced by #487461402

?
Manufacturer substitution
This part replaces 487461402. Substitute parts can look different from the original.
$10.44
In Stock
Panel 445279411
#102

Subwoofer diagram

Panel

Part #445279411

Replaced by #445279411

?
Manufacturer substitution
This part replaces 445279411. Substitute parts can look different from the original.
$106.41
In Stock
Screw 307733171
#51

Sub amp diagram

Screw

Part #307733171

Replaced by #307733171

?
Manufacturer substitution
This part replaces 307733171. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
