Whirlpool 3ECKMF87 ice maker kit Parts
Here are the diagrams and repair parts for Whirlpool 3ECKMF87 ice maker kit, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts for 3ECKMF87 Refrigerators

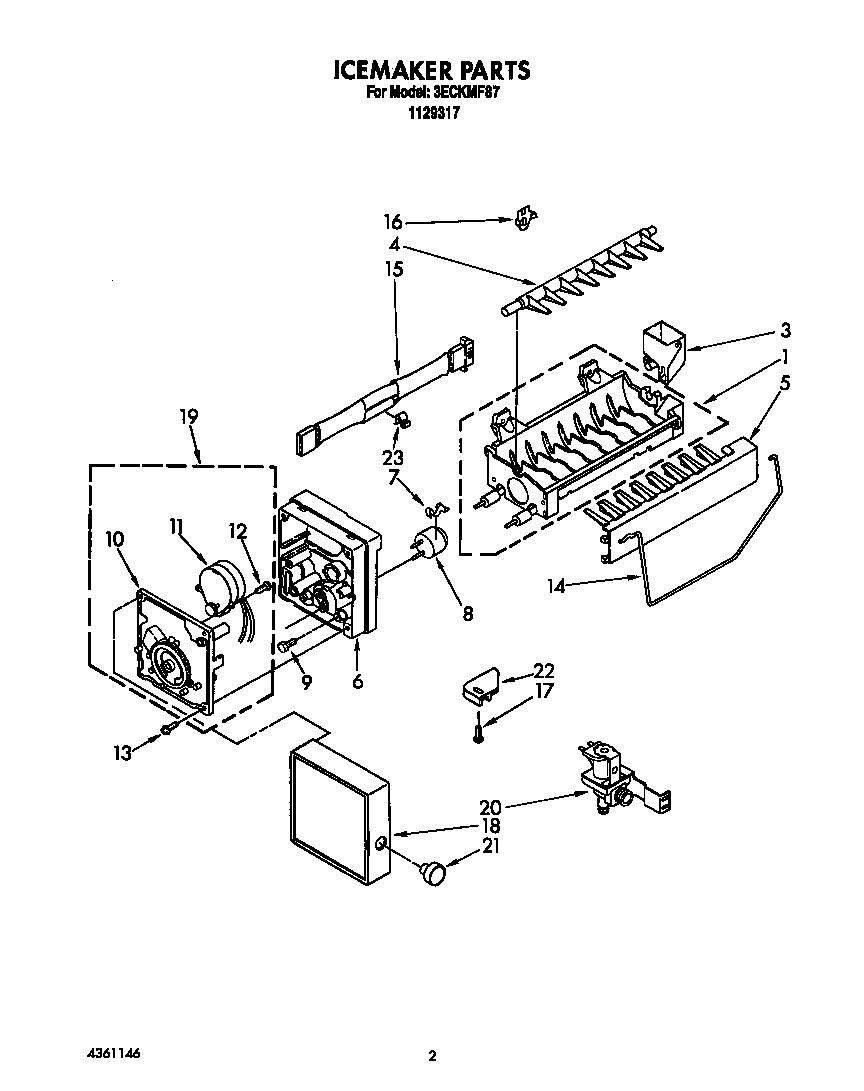

Icemaker assembly diagram
Refrigerator Tube
Part #653499Replaced by #W10823511
Manufacturer substitutionThis part replaces 653499. Substitute parts can look different from the original.In Stock$36.3914% OFF Phone Price : $42.39
Qty
Icemaker assembly diagram
Fitting (almond)
Part #836489Replaced by #WP2196157
Manufacturer substitutionThis part replaces 836489. Substitute parts can look different from the original.In Stock$8.4311% OFF Phone Price : $9.43QtyIcemaker assembly diagram
Motor Mold
Part #627811Replaced by #W10190935
Manufacturer substitutionThis part replaces 627811. Substitute parts can look different from the original.In Stock$84.937% OFF Phone Price : $90.93QtyIcemaker assembly diagram
Motor Mold
Part #628247Replaced by #W10190935
Manufacturer substitutionThis part replaces 628247. Substitute parts can look different from the original.In Stock$84.937% OFF Phone Price : $90.93QtyIcemaker assembly diagram
Housing
Part #627790Replaced by #WP2195914
Manufacturer substitutionThis part replaces 627790. Substitute parts can look different from the original.In Stock$51.6210% OFF Phone Price : $57.62QtyIcemaker assembly diagram
Refrigerator Ice Maker Thermostat
Part #627985Replaced by #WP627985
Manufacturer substitutionThis part replaces 627985. Substitute parts can look different from the original.In Stock$62.649% OFF Phone Price : $68.64QtyIcemaker assembly diagram
Bearing
Part #627791Replaced by #WP628356
Manufacturer substitutionThis part replaces 627791. Substitute parts can look different from the original.This item is not returnableIn Stock$26.7418% OFF Phone Price : $32.74QtyIcemaker assembly diagram
Refrigerator Power Cord Clamp Screw
Part #489069Replaced by #WP489069
Manufacturer substitutionThis part replaces 489069. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyIcemaker assembly diagram
Screw
Part #488645Replaced by #WP489069
Manufacturer substitutionThis part replaces 488645. Substitute parts can look different from the original.This item is not returnableIn Stock$4.9117% OFF Phone Price : $5.91QtyIcemaker assembly diagram
Screw
Part #489276Replaced by #WP681249
Manufacturer substitutionThis part replaces 489276. Substitute parts can look different from the original.This item is not returnableIn Stock$5.2116% OFF Phone Price : $6.21Qty
