Model #WOC75EC7HV01 Whirlpool wall oven/microwave combo

Here are the diagrams and repair parts for Whirlpool WOC75EC7HV01 wall oven/microwave combo, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

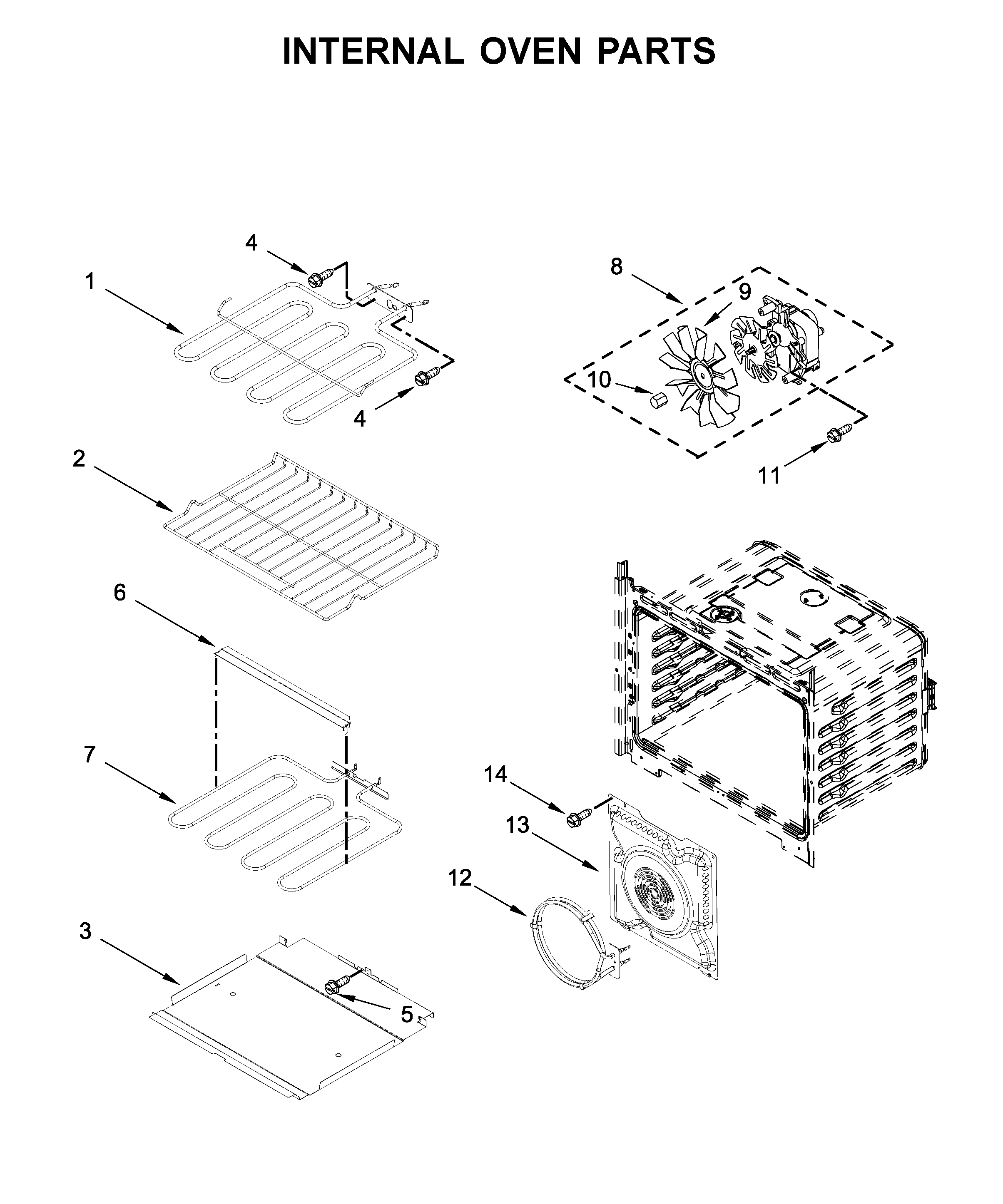

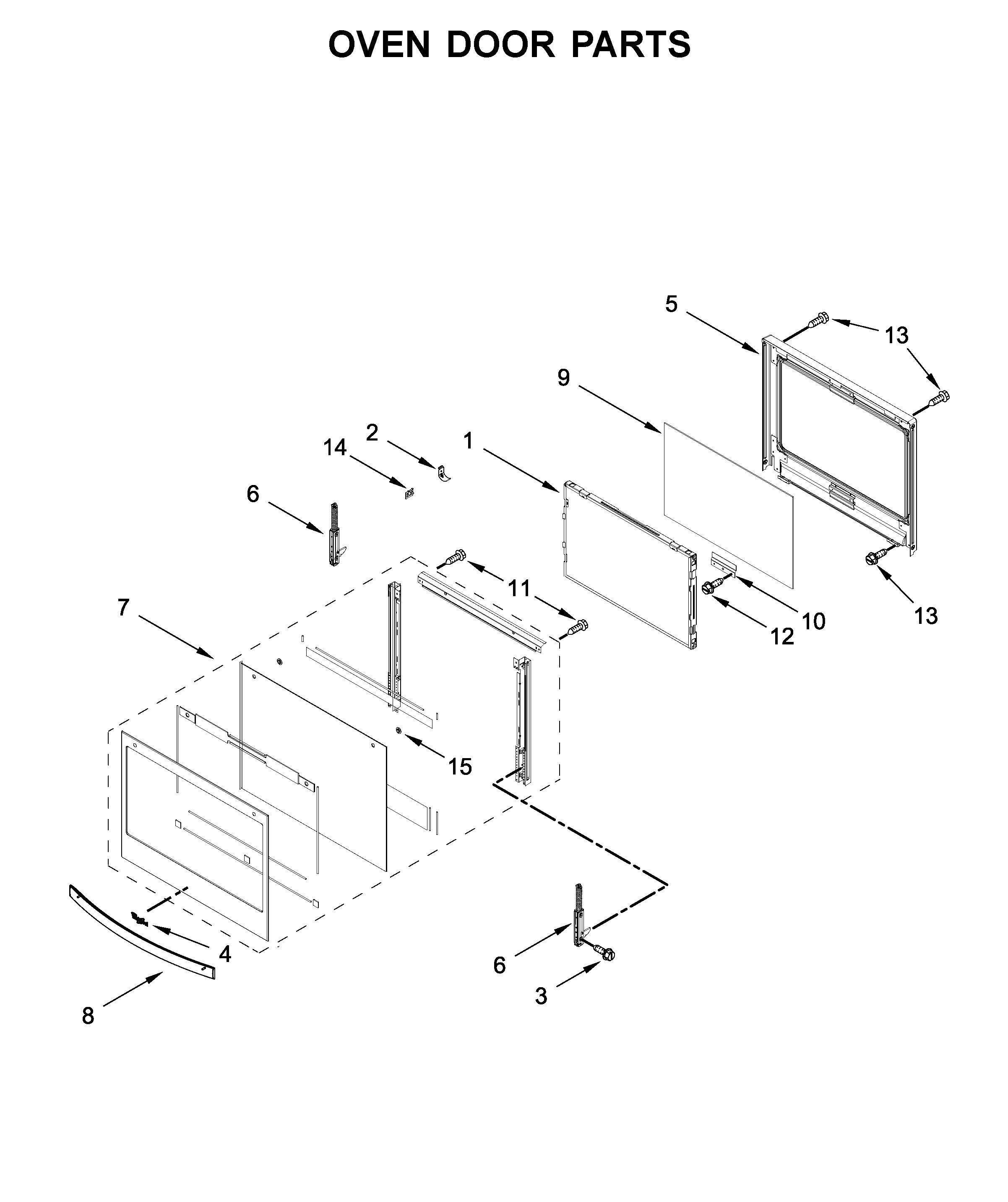

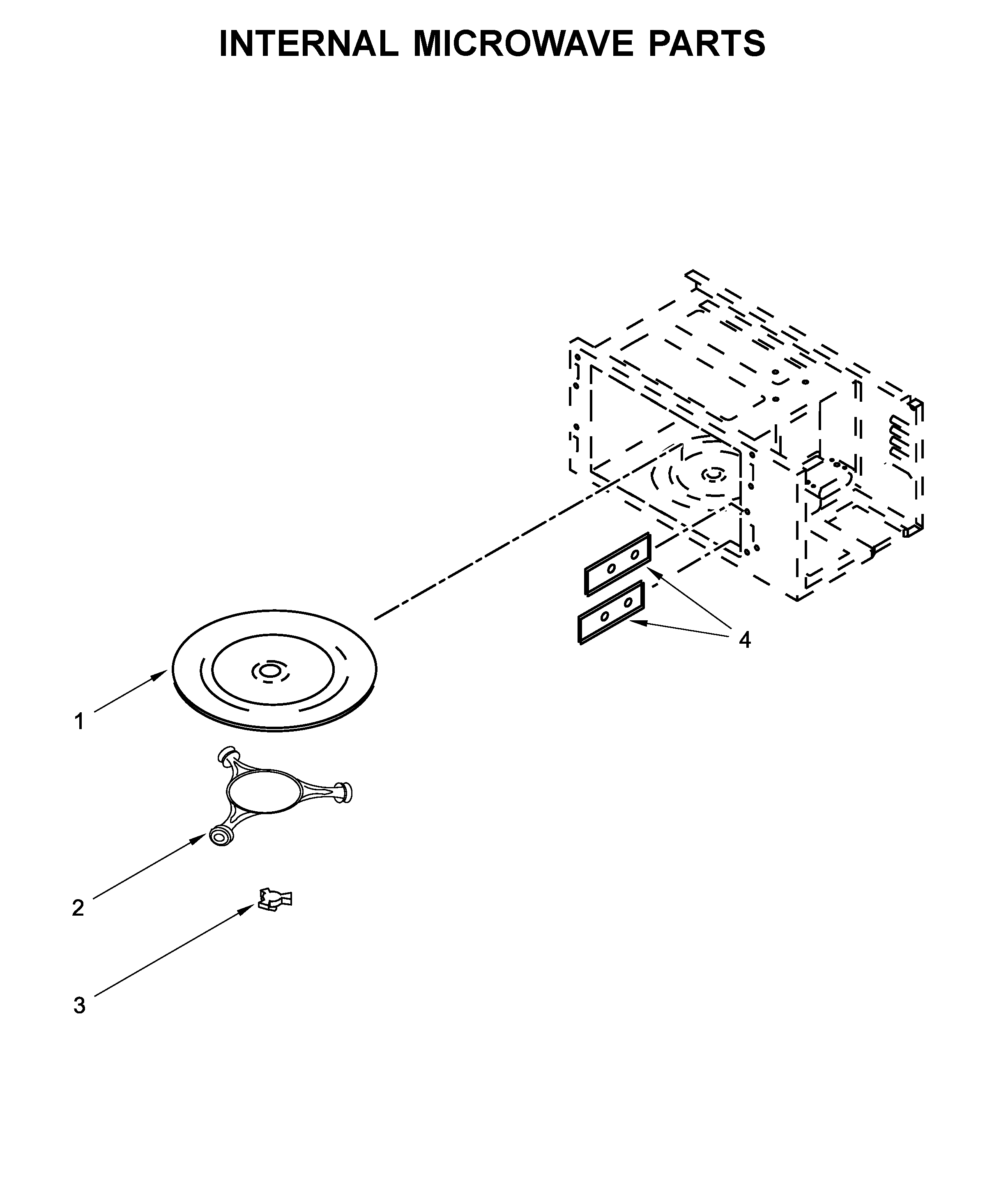

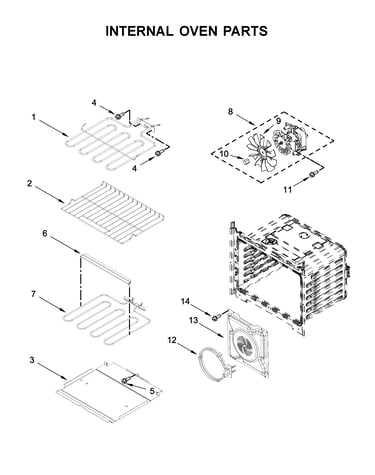

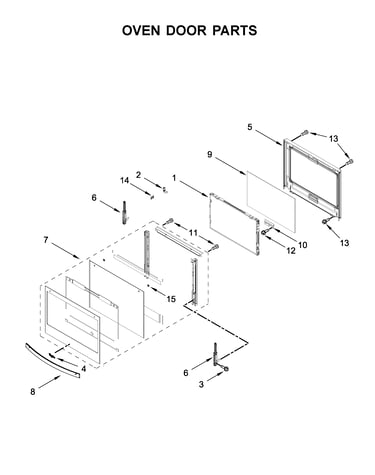

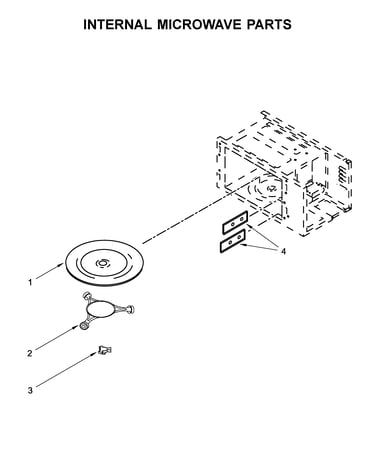

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

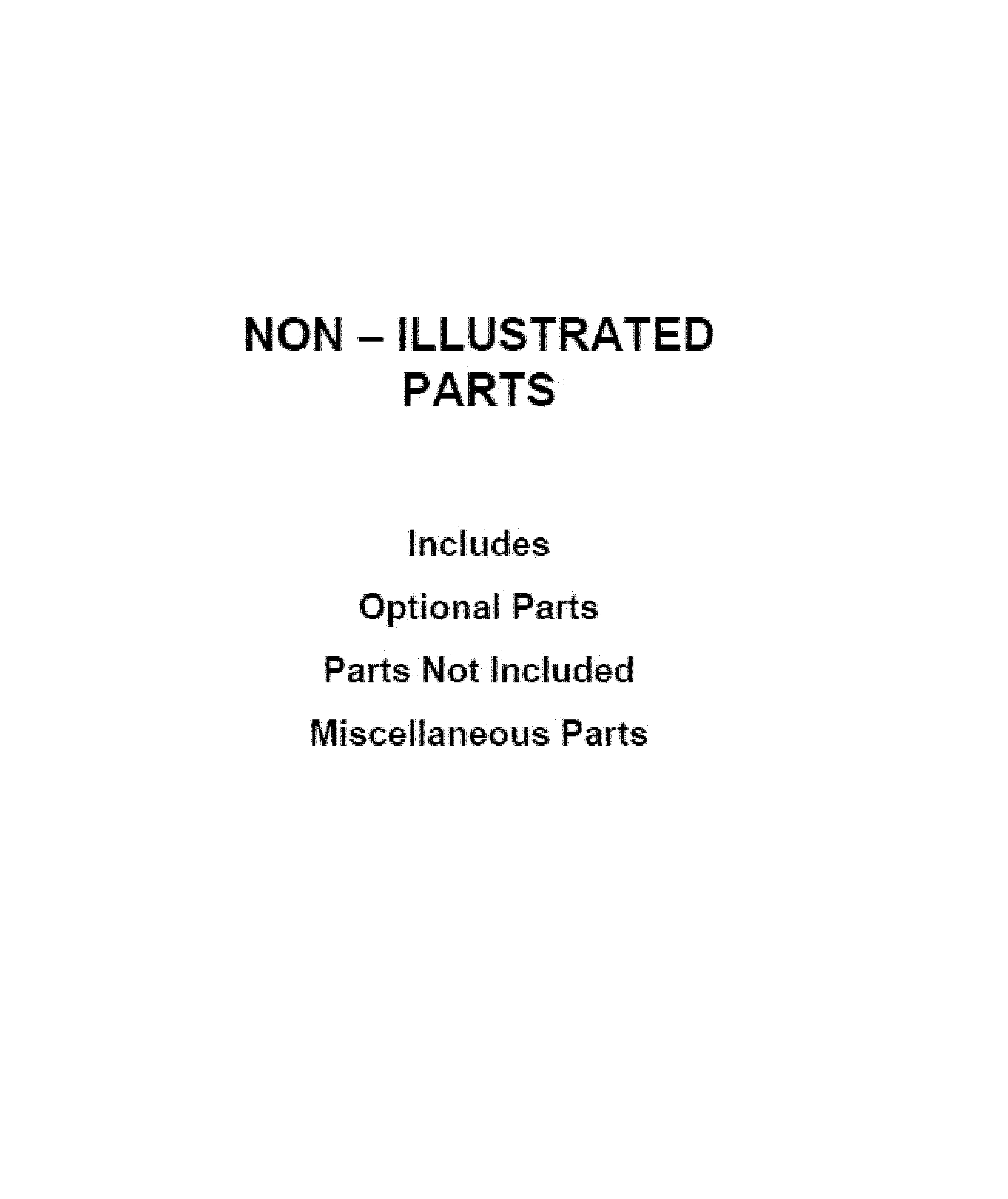

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 175 parts

Humidity Sensor

#31

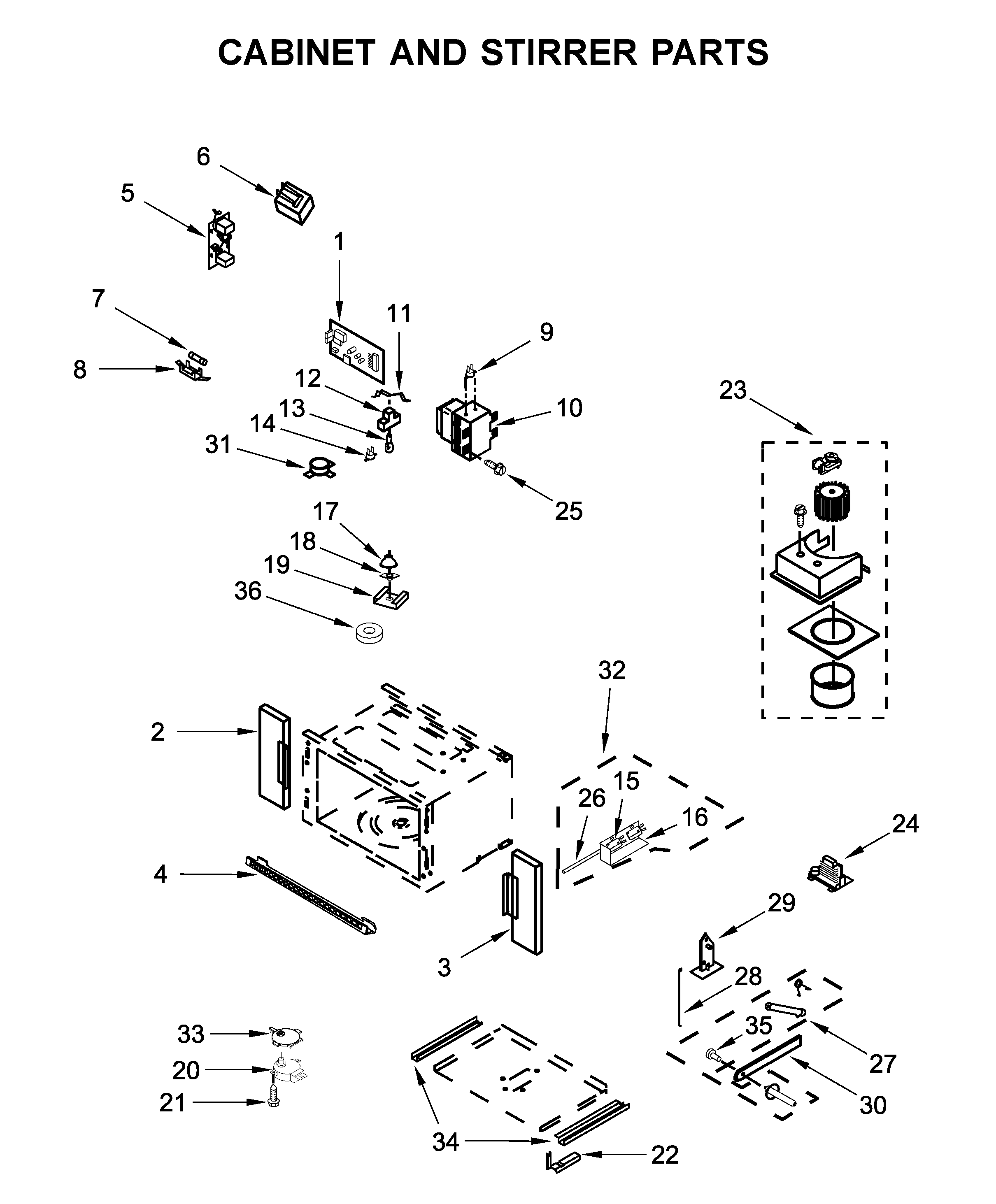

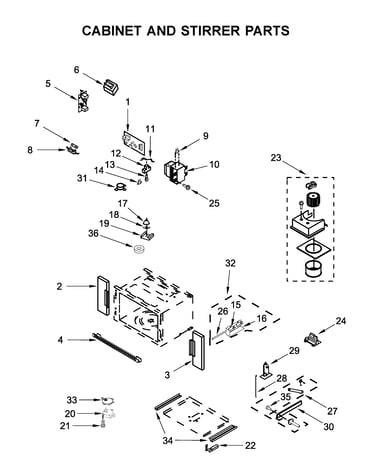

Cabinet and stirrer parts Diagram

Humidity sensor

Part #W10460457
$59.14 |
8% OFF MSRP:$64.00

In Stock

Door

#7

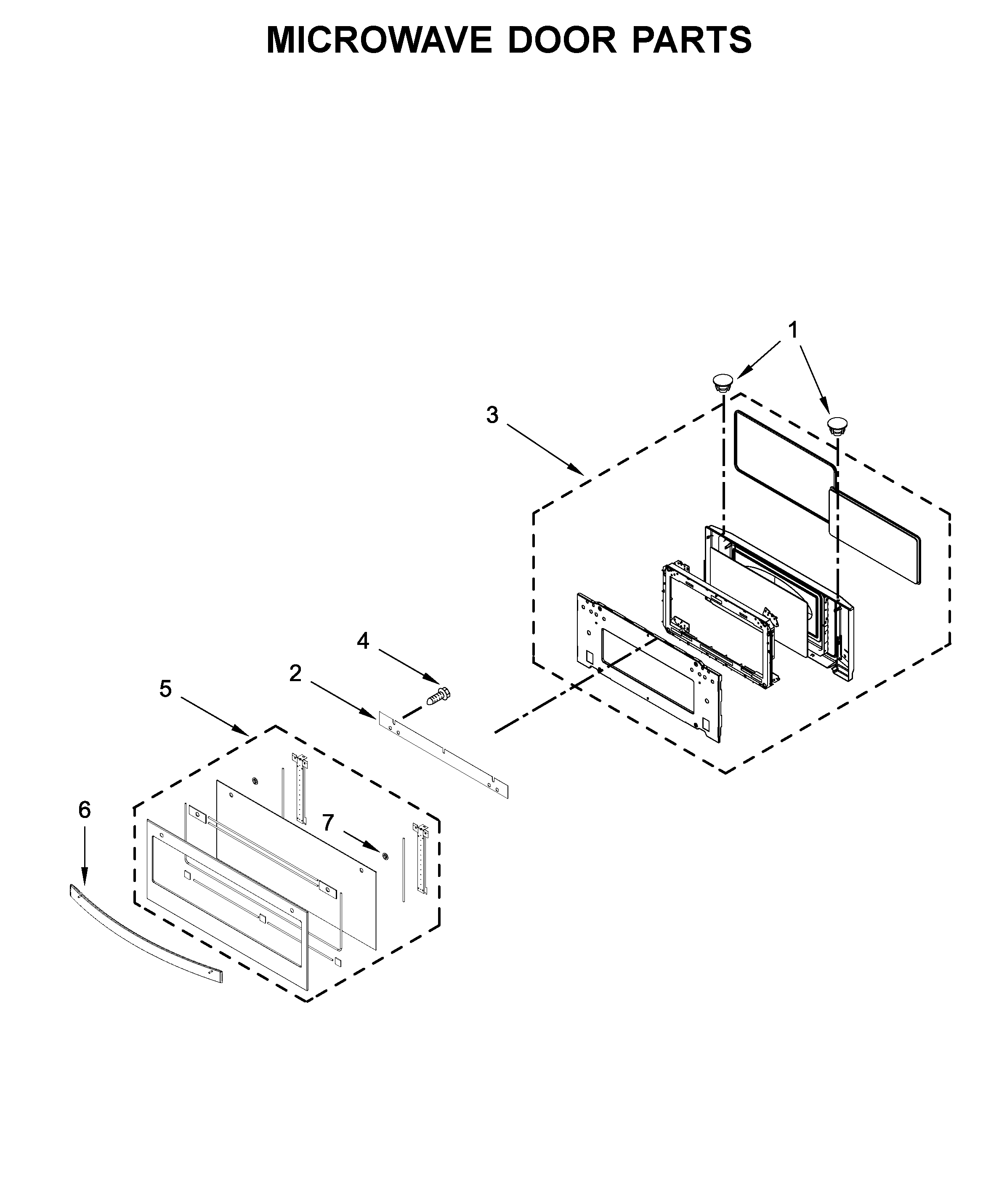

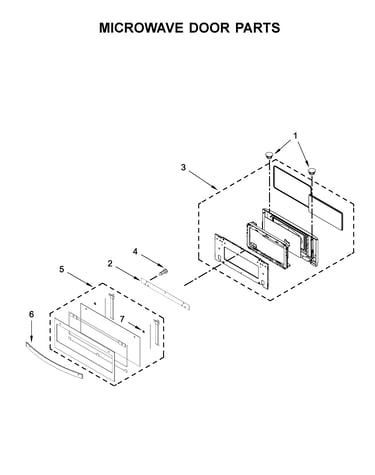

Microwave door parts Diagram

Door

Part #W10319024
$12.80

In Stock

Chassis Back

#14

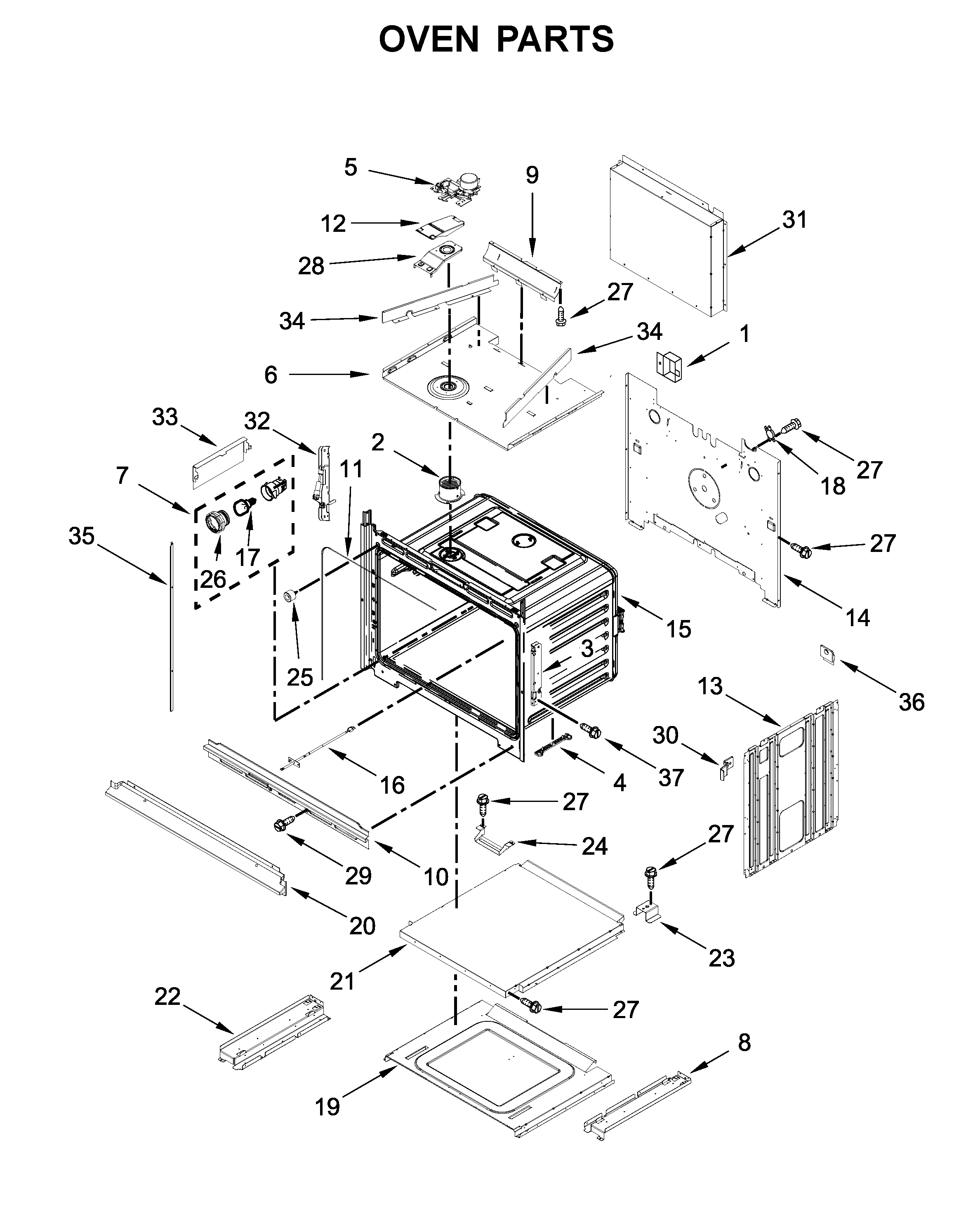

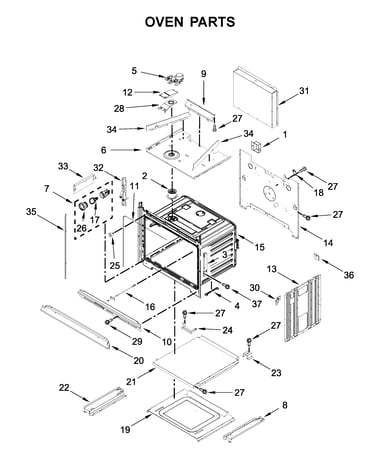

Oven parts Diagram

Chassis back

Part #W10904162
$27.21

In Stock

SHIELD, SLOW CLOSE HINGE

#33

Oven parts Diagram

Shield, slow close hinge

Part #W11034940
$32.35

In Stock

Access Cover

#13

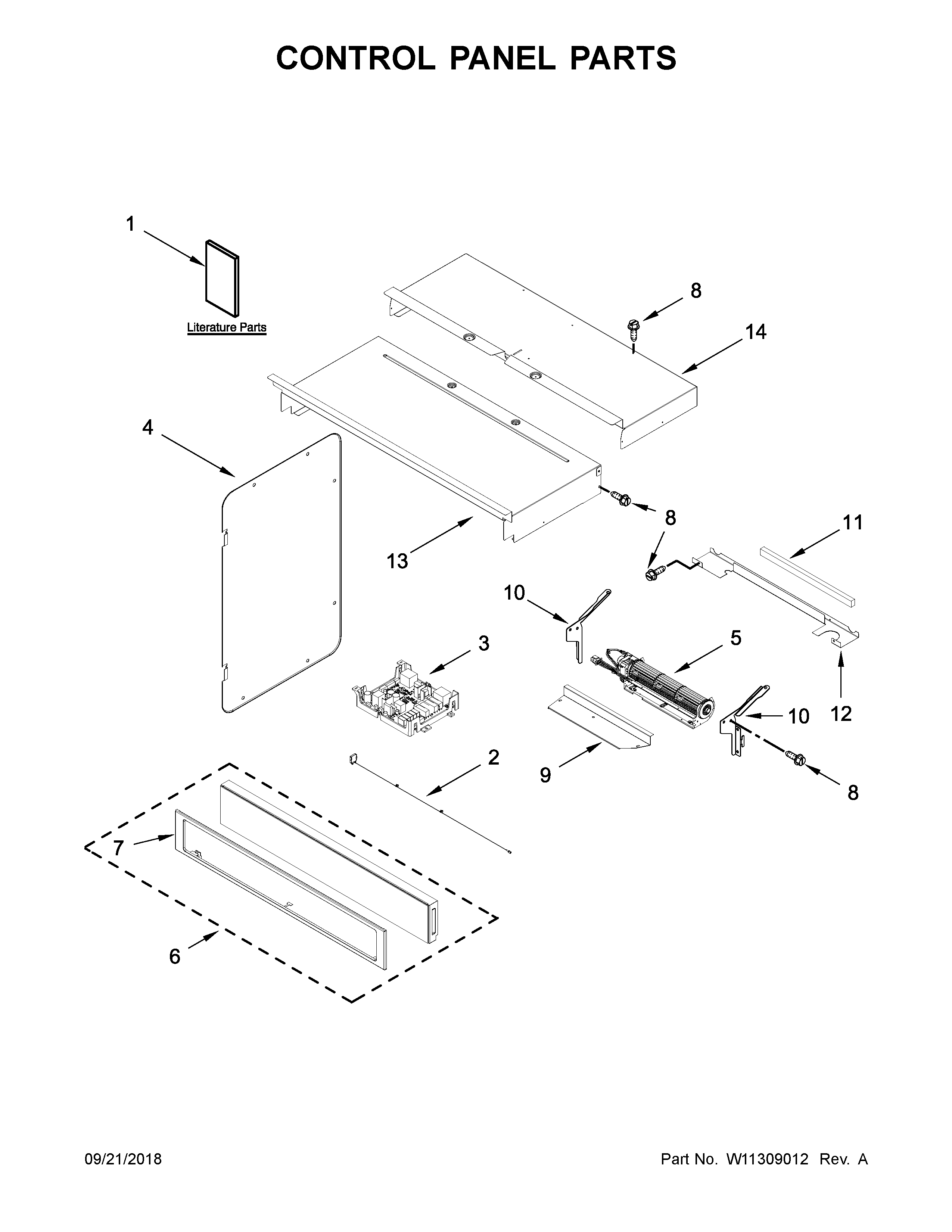

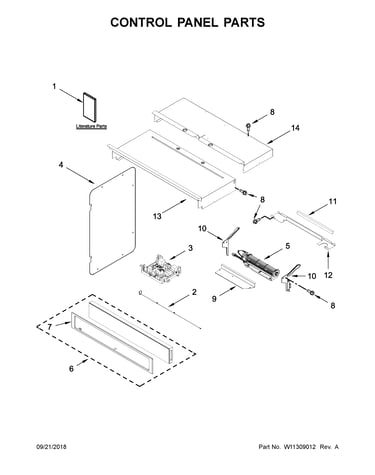

Control panel parts Diagram

Access cover

Part #W10318159
$30.01

In Stock

Support

#23

Oven parts Diagram

Support

Part #W10213759
$28.82

In Stock

Oven Mounting Bracket

#12

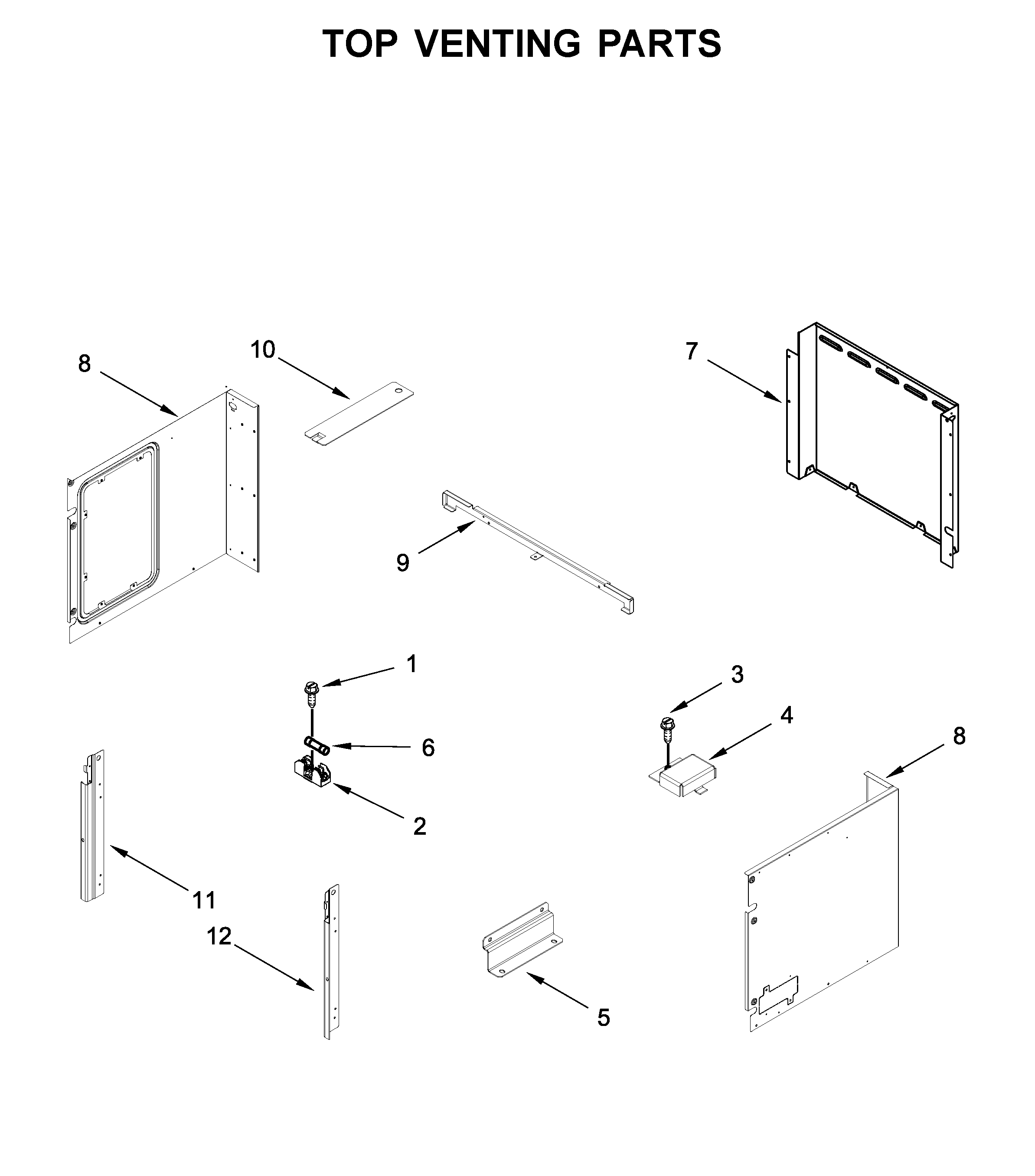

Top venting parts Diagram

Oven mounting bracket

Part #W10360518
$30.82

In Stock

JUMPER HARNESS, COMMUNICATION

#NI

Control panel parts Diagram

$73.19

In Stock

CHASSIS DEFL

#9

Oven parts Diagram

Chassis defl

Part #W10904163
$64.50

In Stock

RECEIVER, SLOW CLOSE HINGE

#32

Oven parts Diagram

$46.20

In Stock
