Model # PTC12300EC/P9811729R Official Amana packaged terminal air conditioner - ptc series

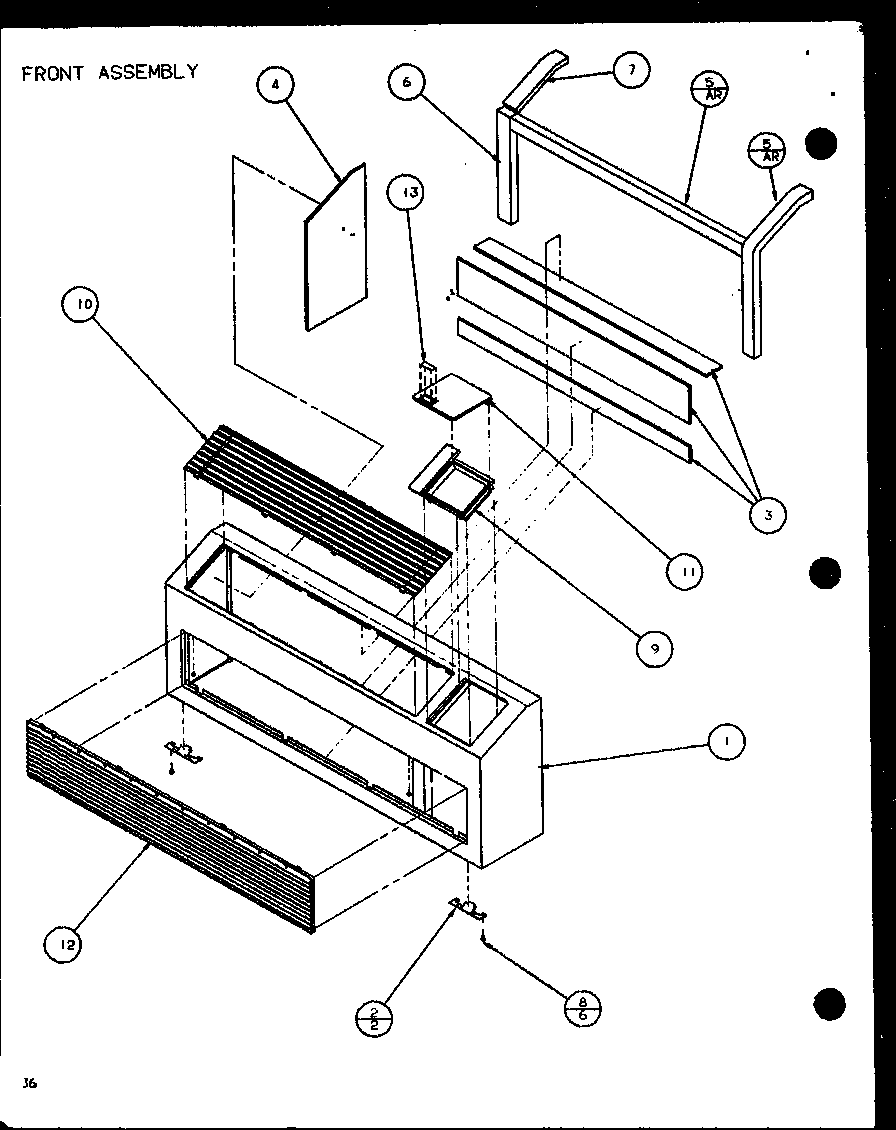

Here are the diagrams and repair parts for Official Amana PTC12300EC-P9811729R packaged terminal air conditioner - ptc series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

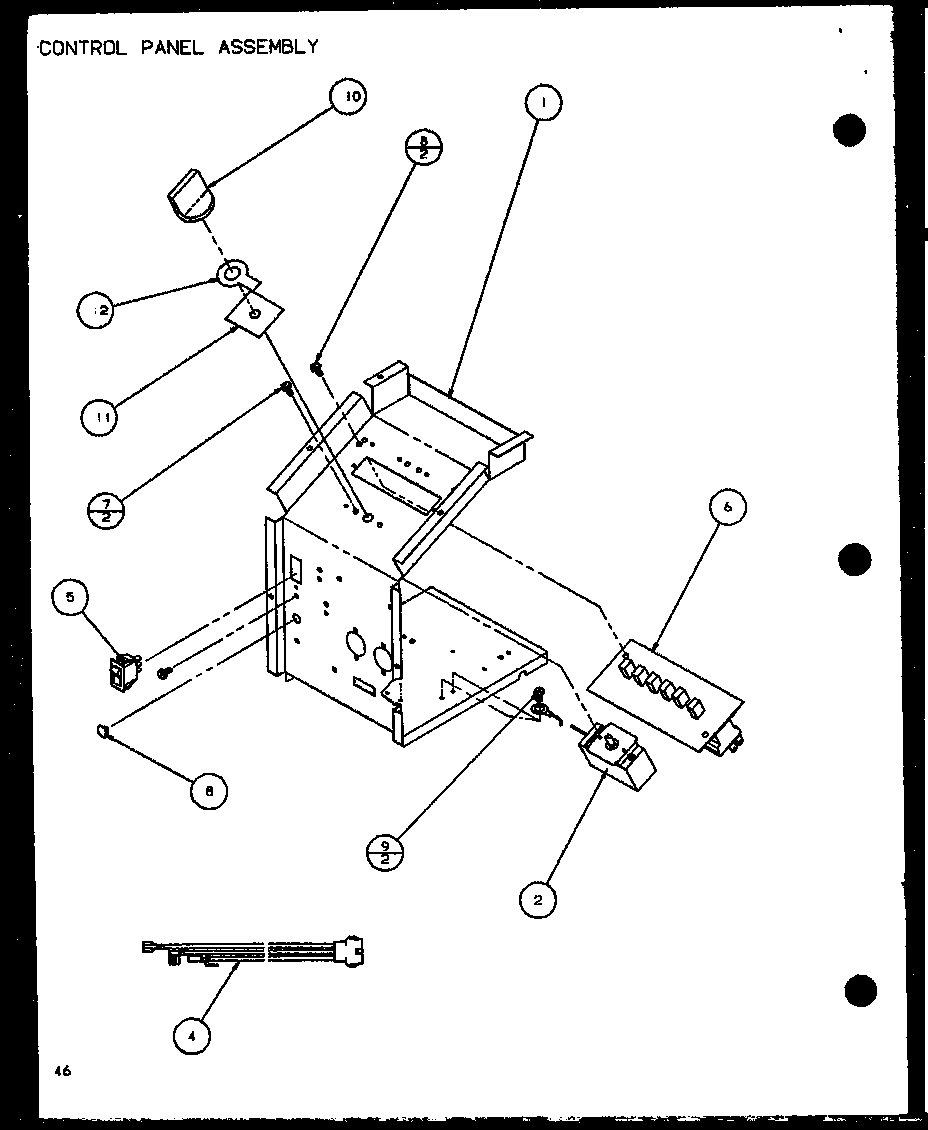

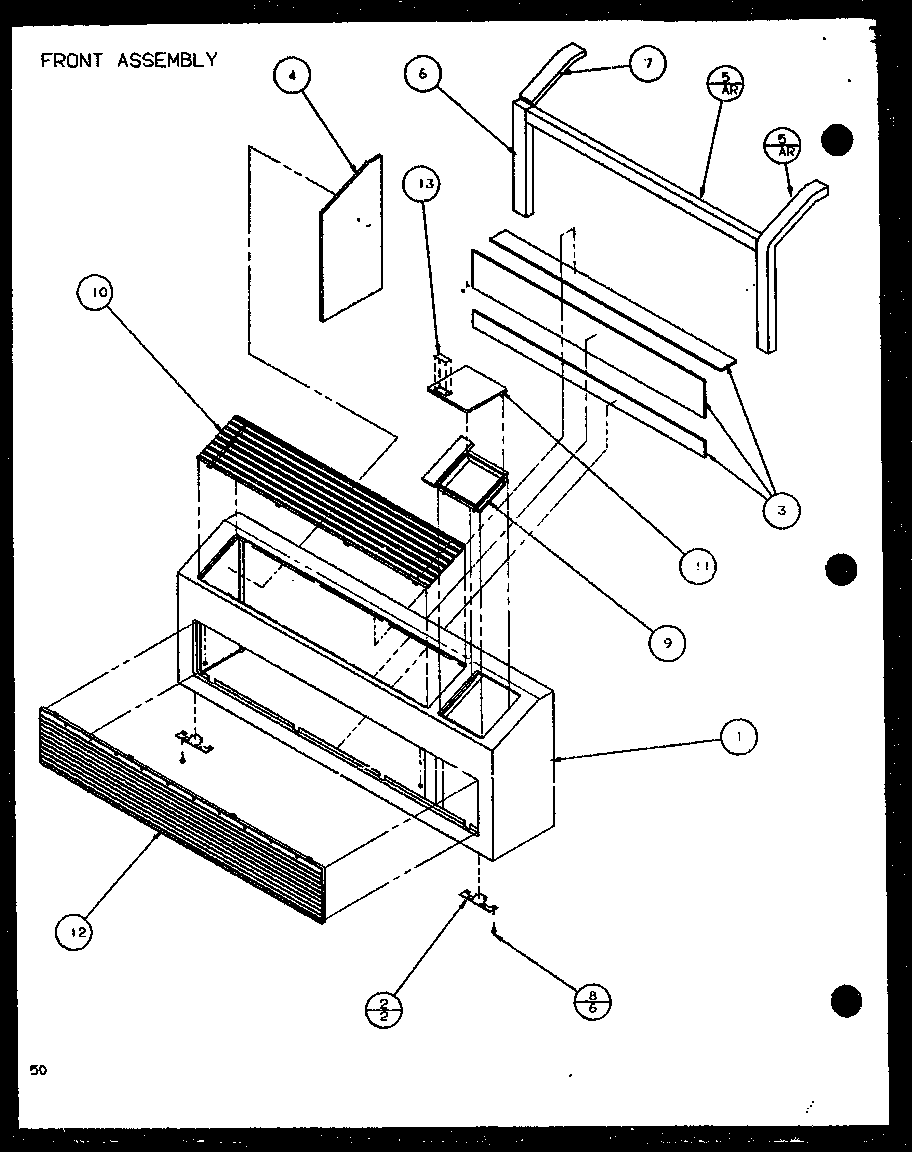

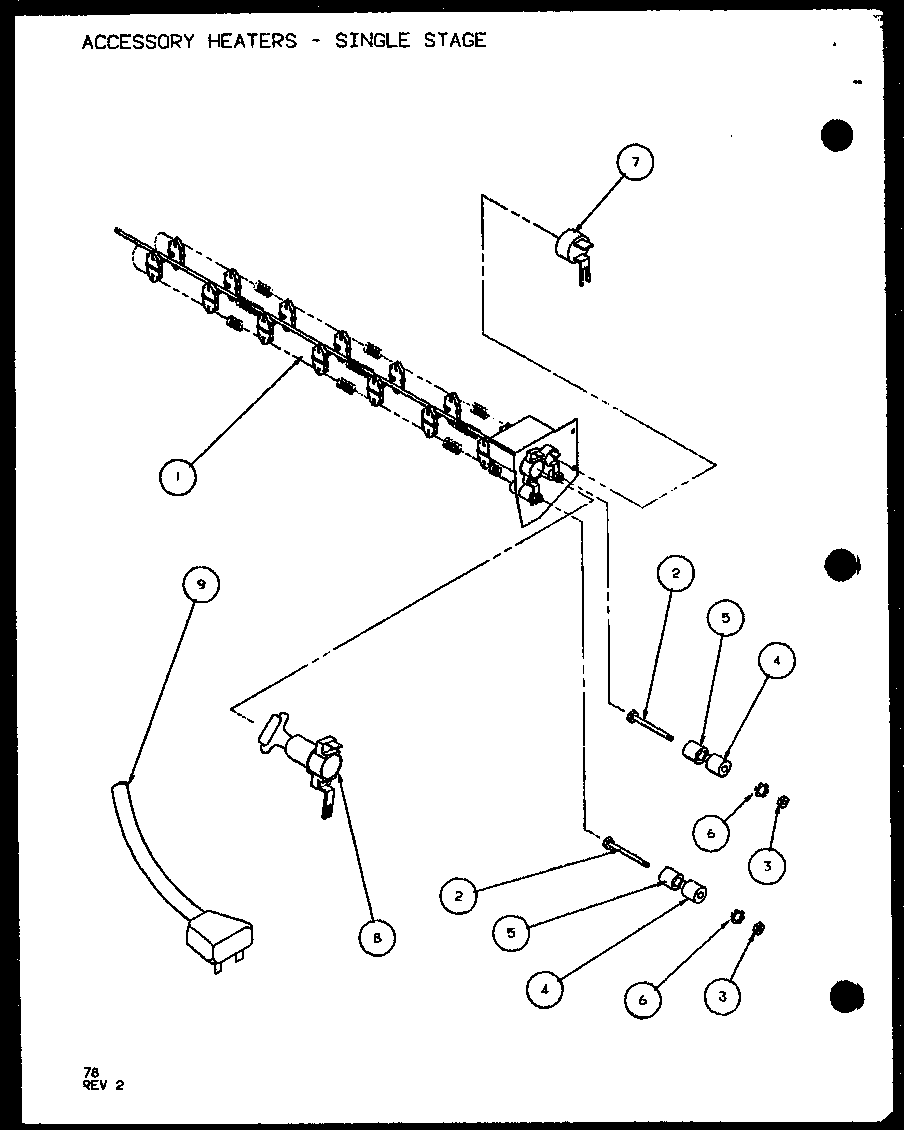

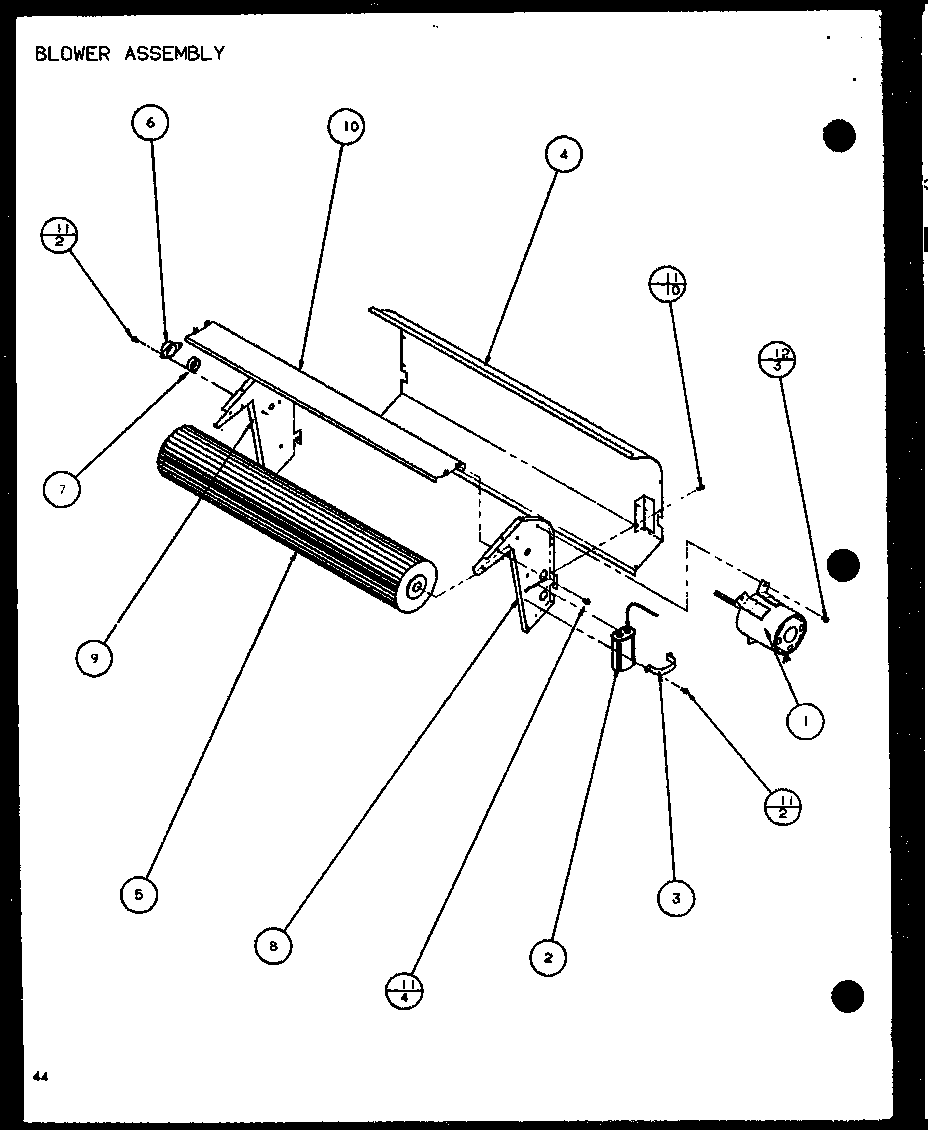

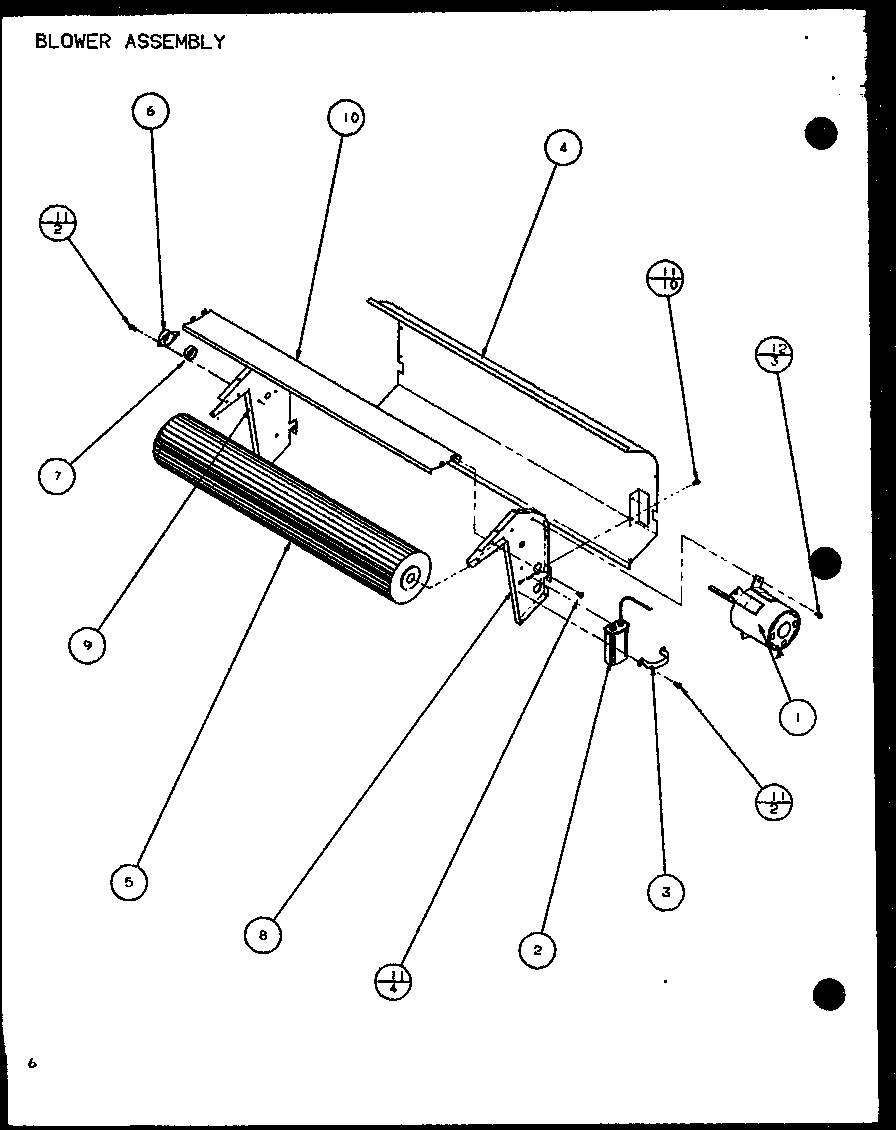

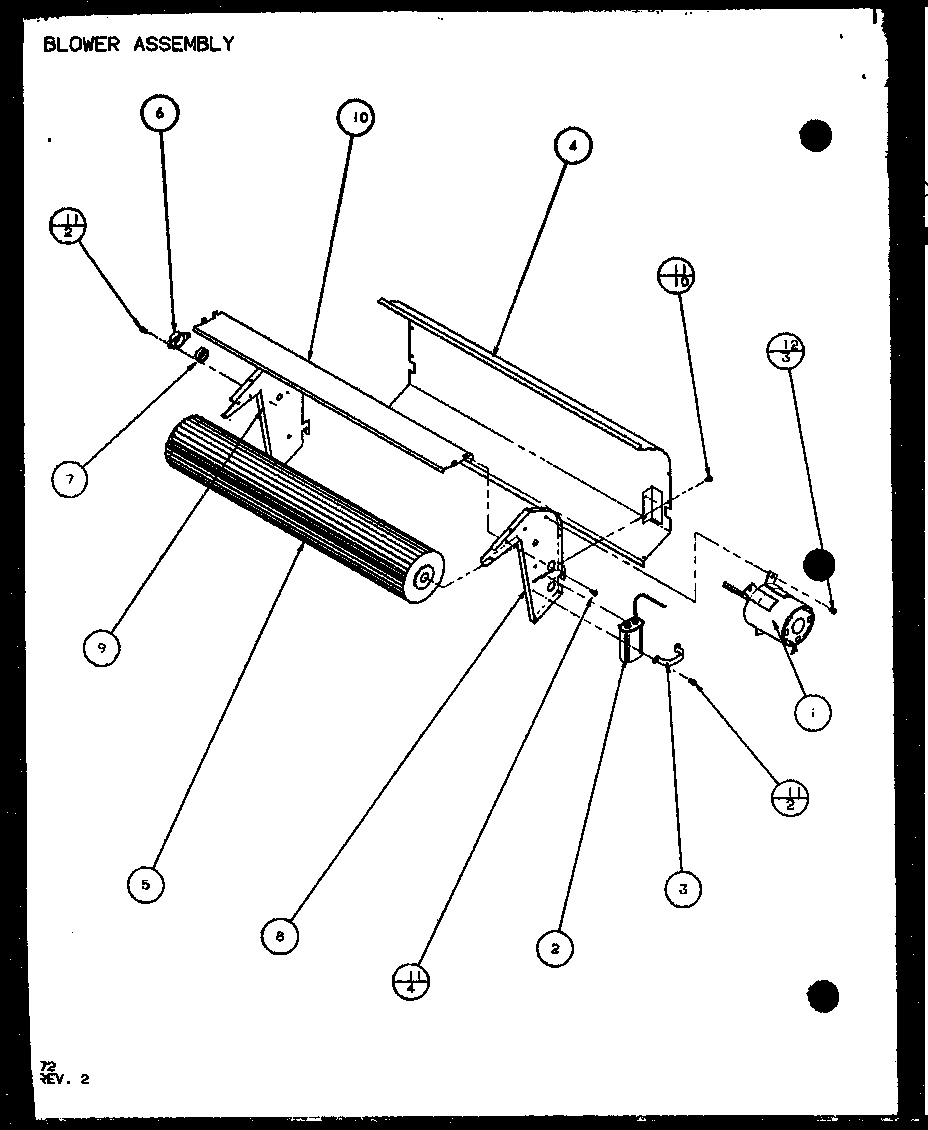

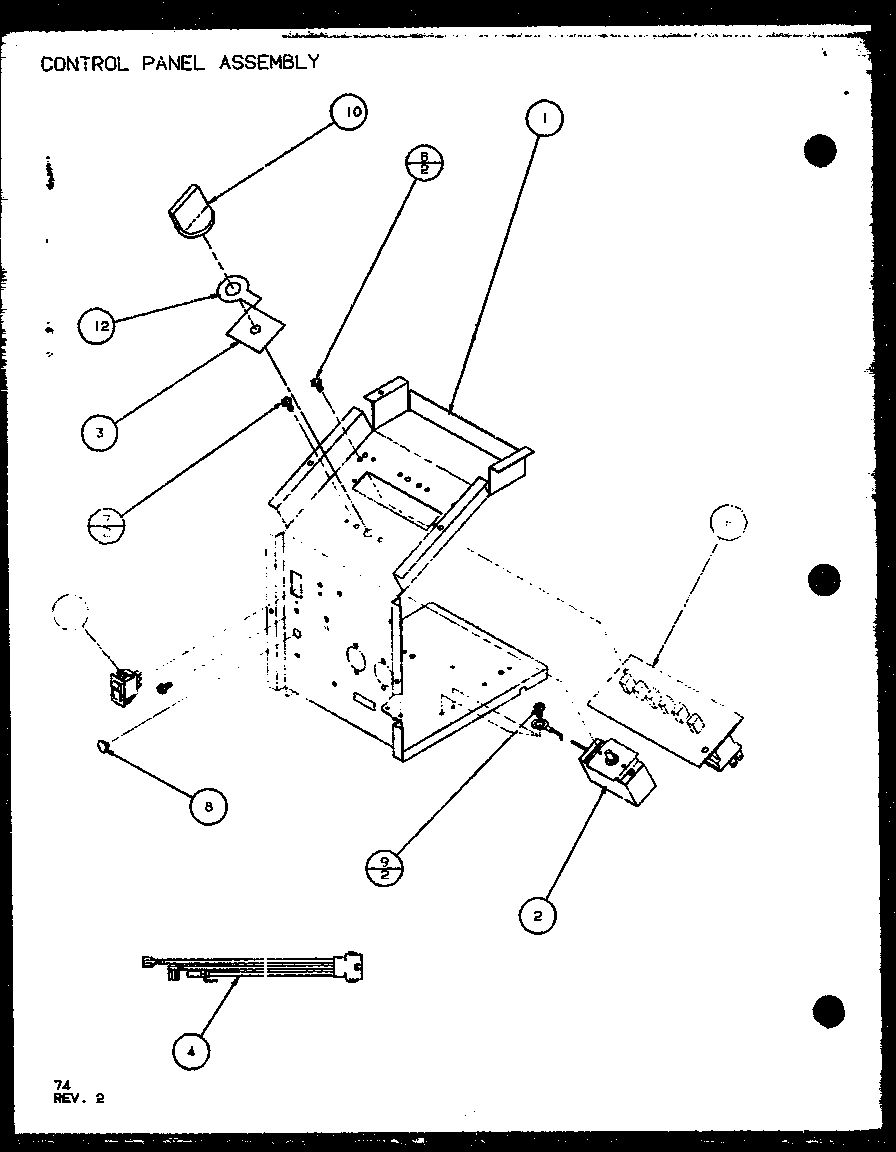

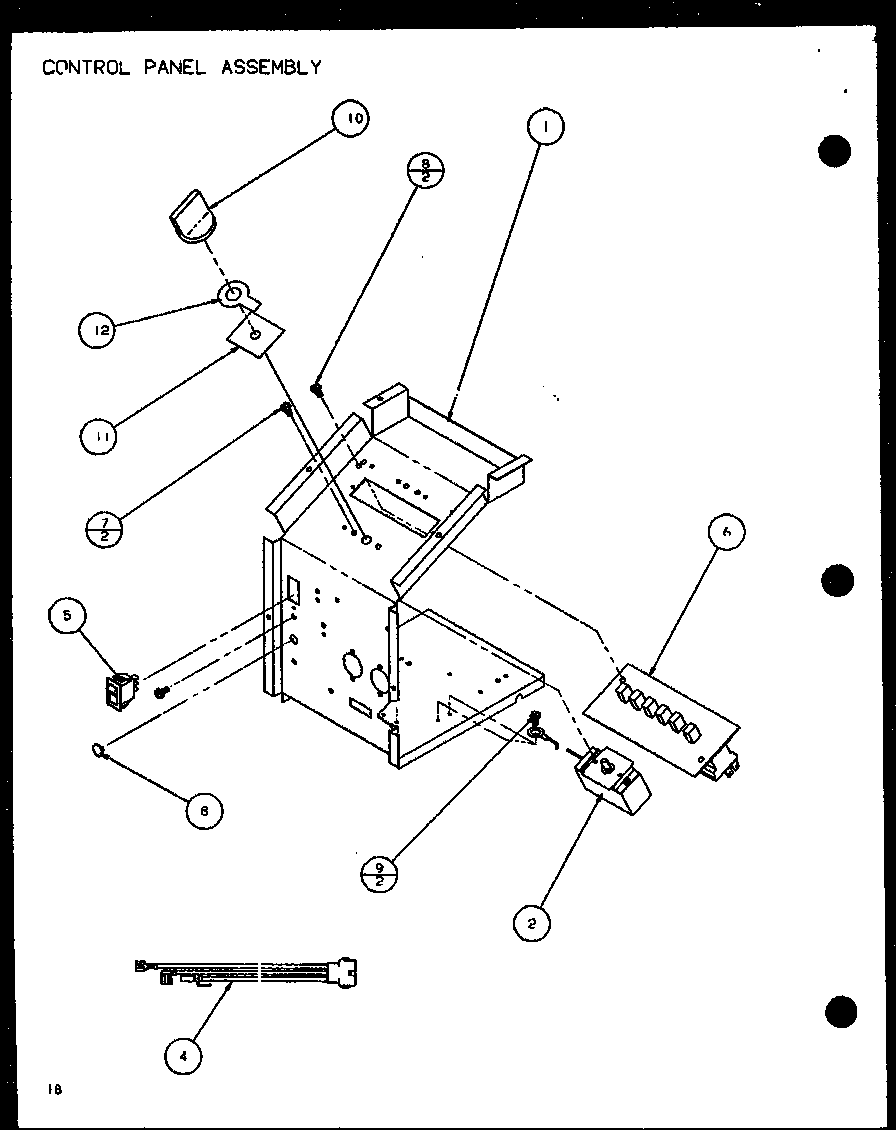

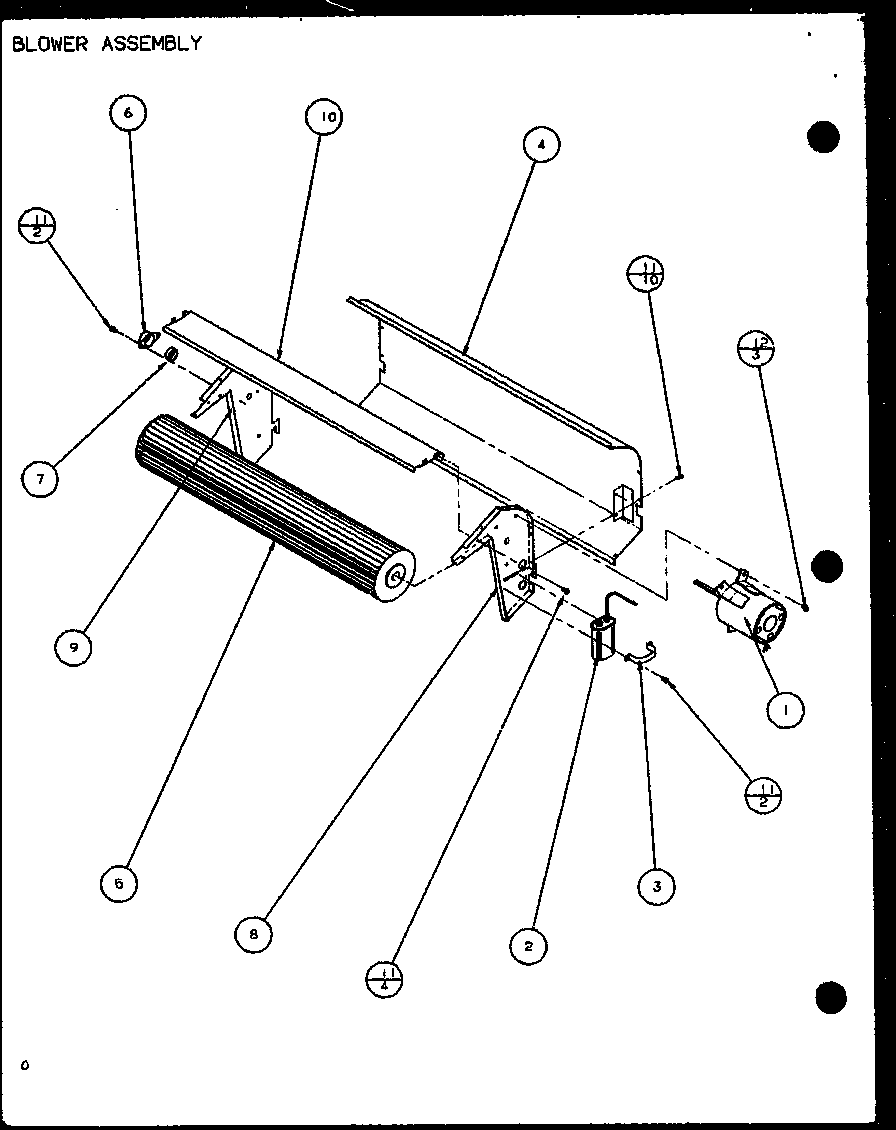

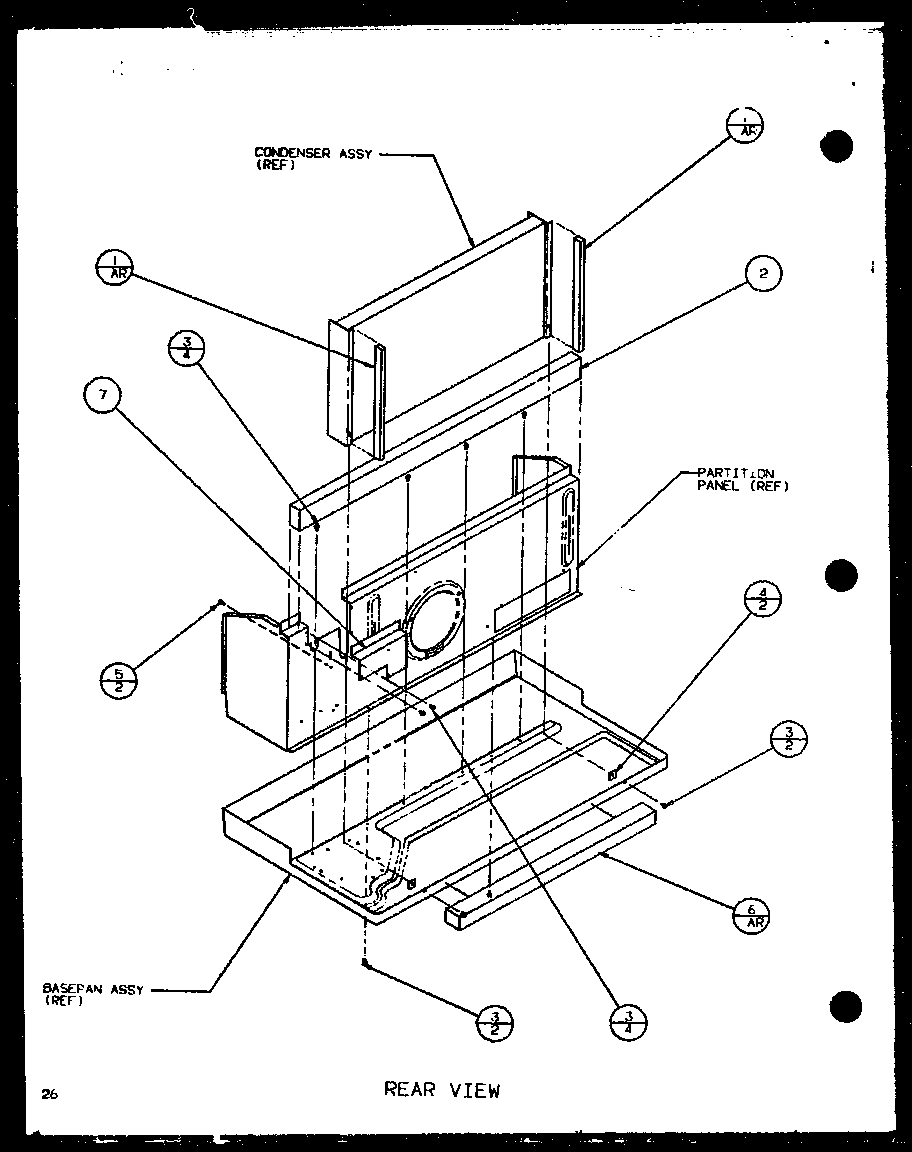

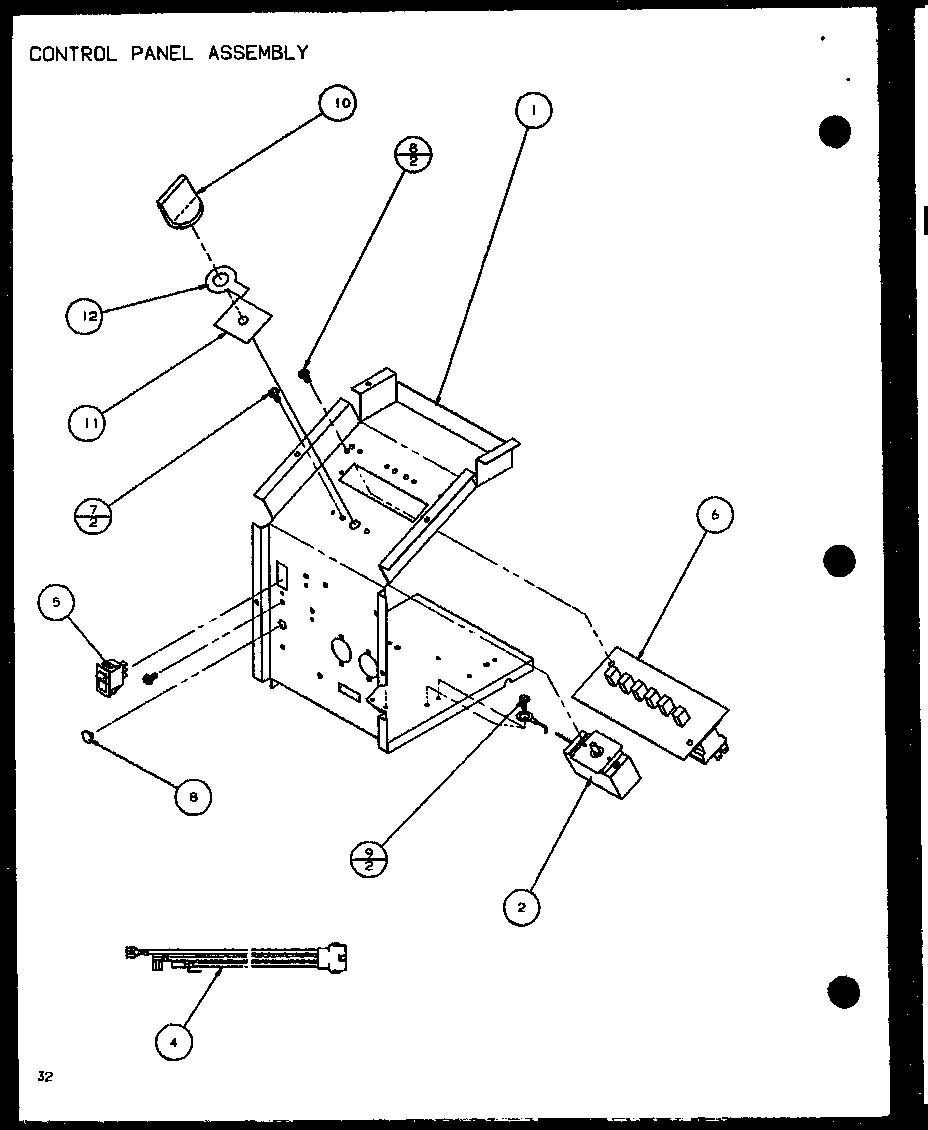

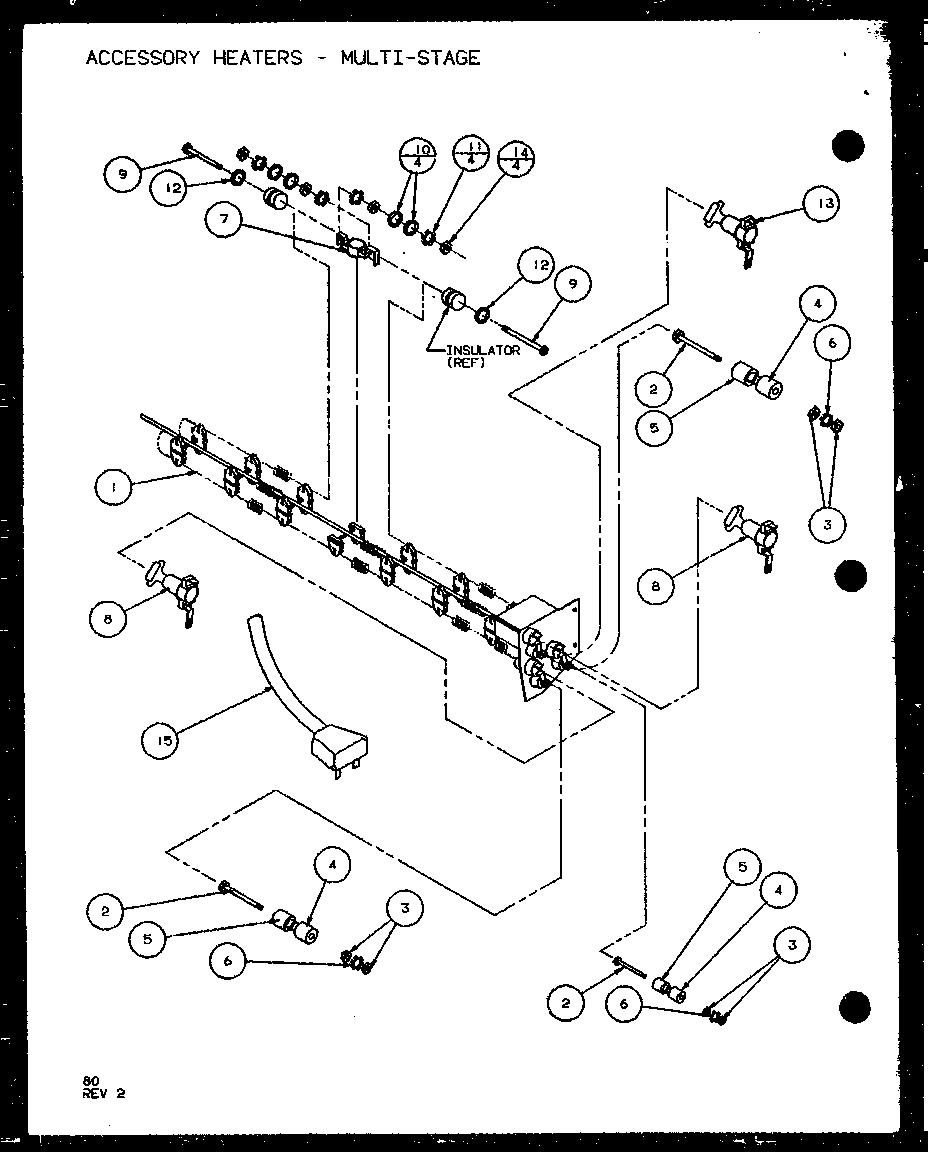

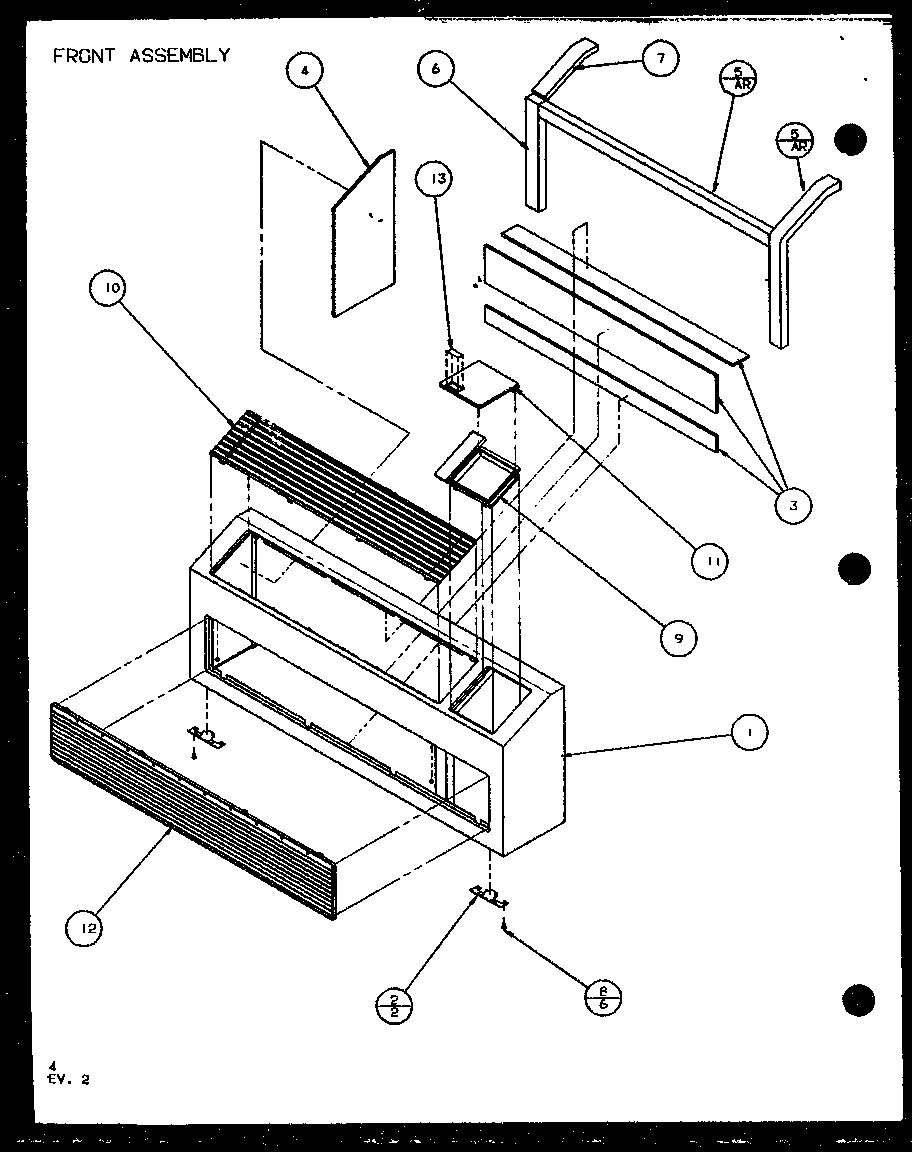

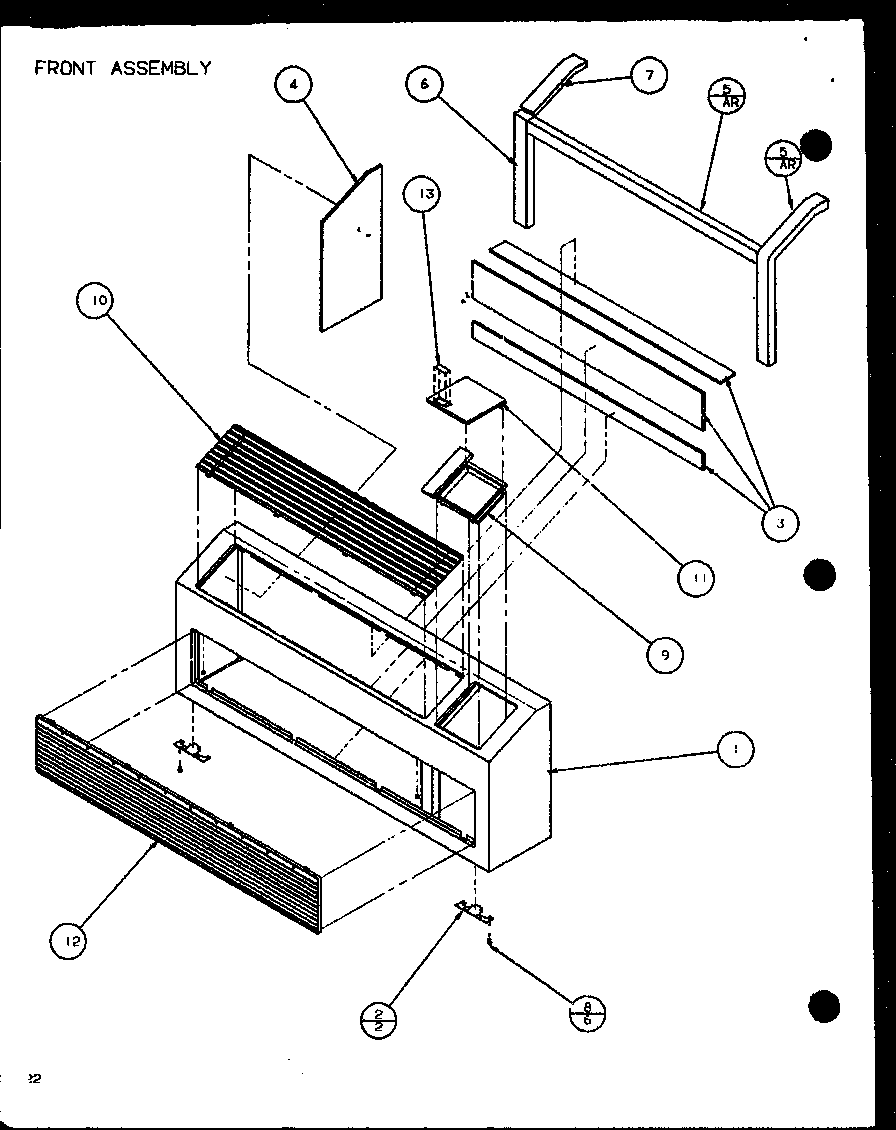

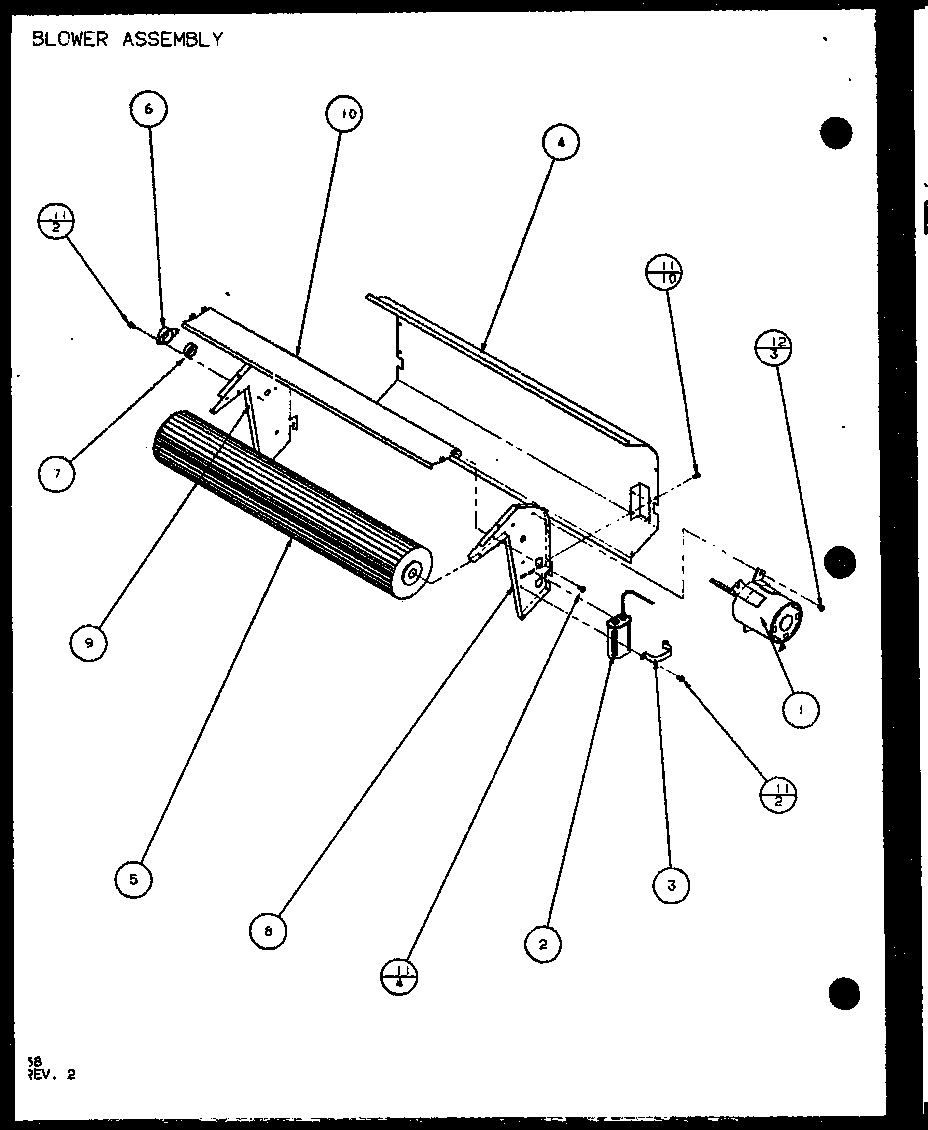

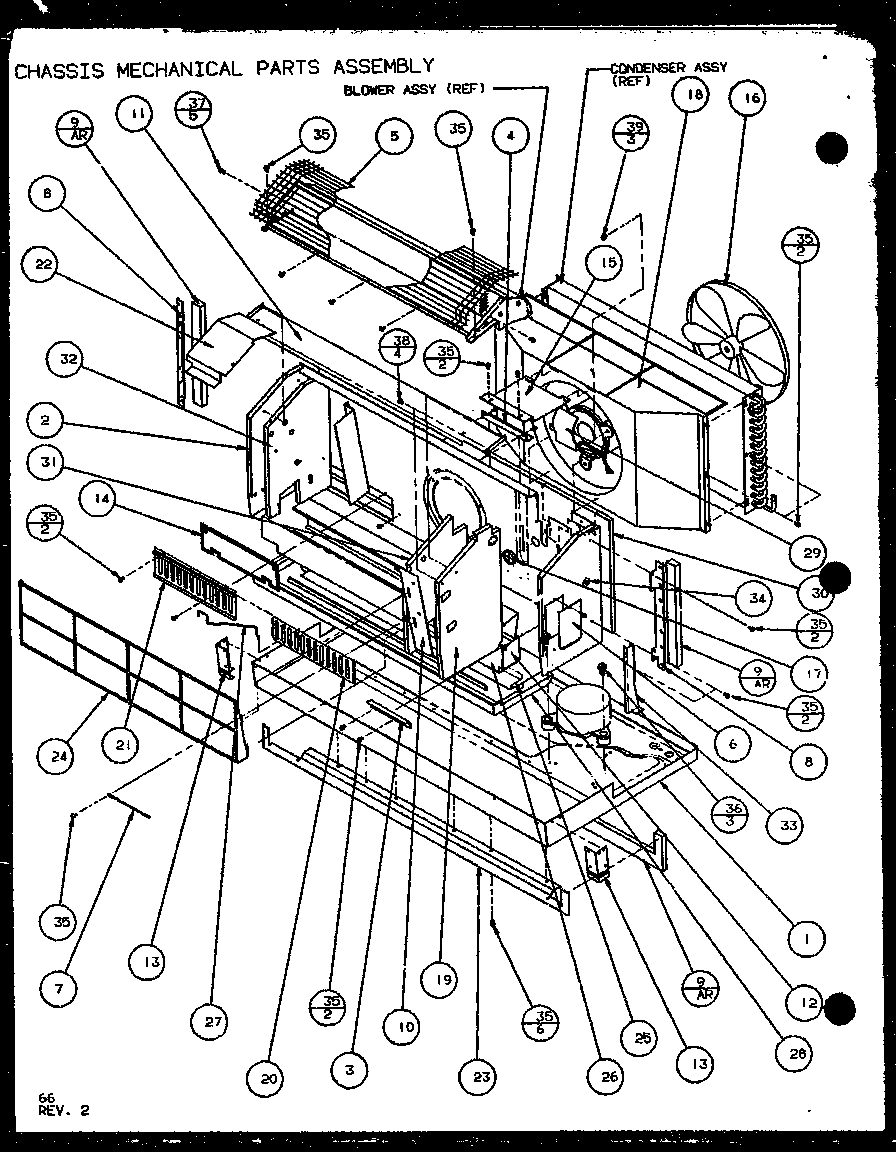

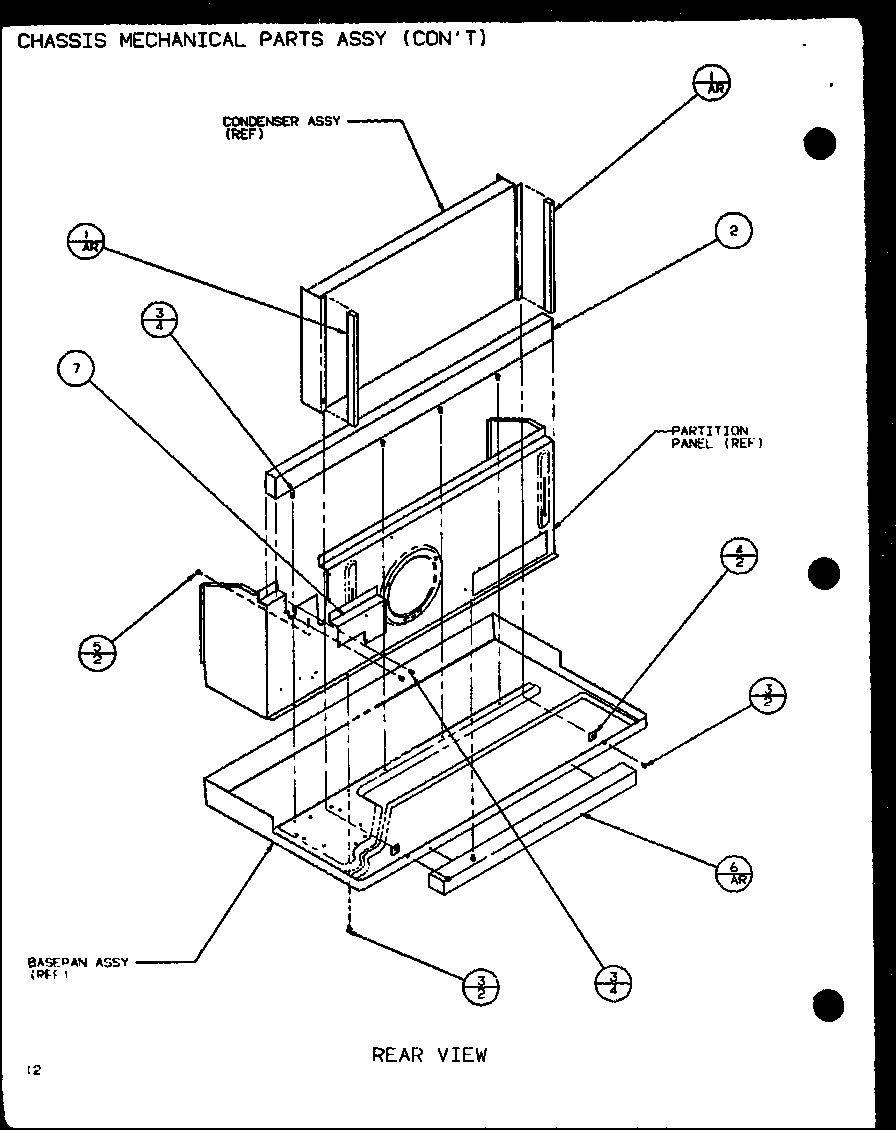

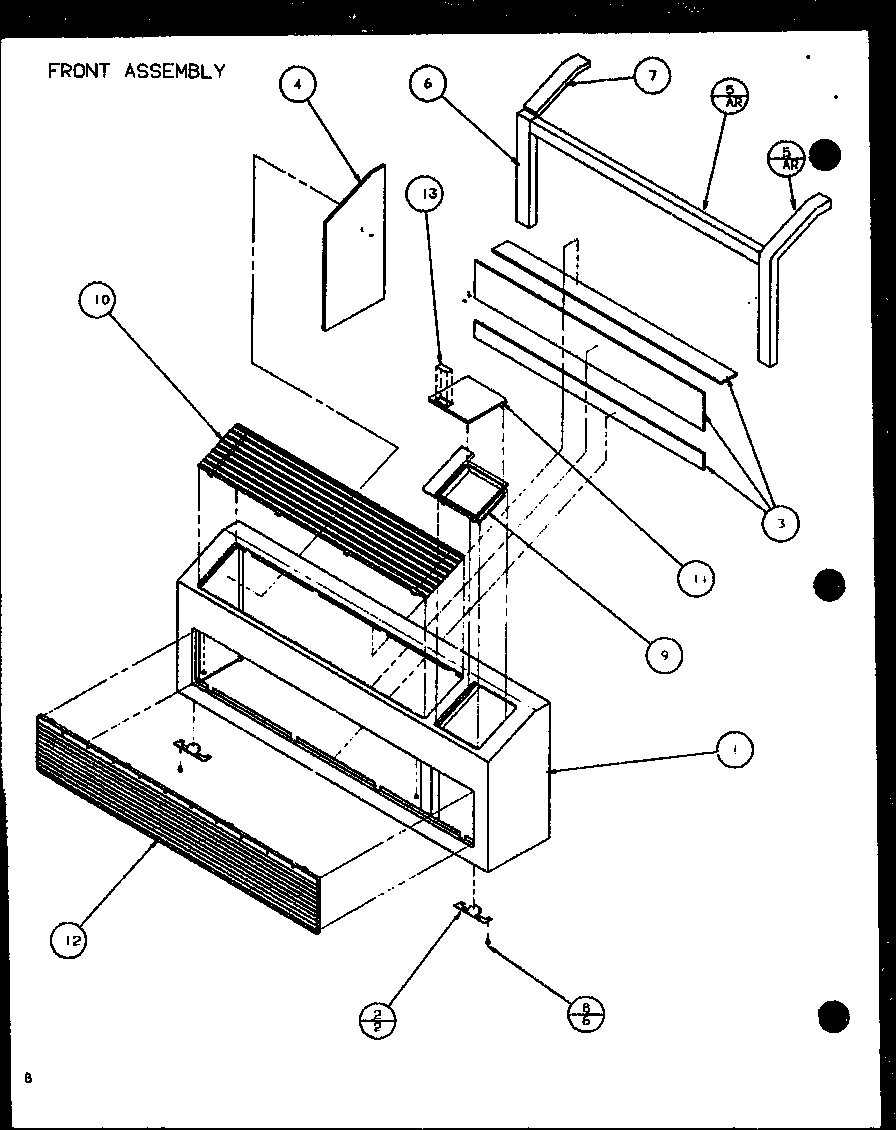

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 172 parts  |
Frame Screw M0241116
Frame screw

Part #M0241116

Replaced by #WP693995

?
Manufacturer substitution
This part replaces M0241116. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
74% OFF MSRP : $17.00
In Stock
Terminal Nut A3436601
Terminal nut

Part #A3436601

Replaced by #WP776338

?
Manufacturer substitution
This part replaces A3436601. Substitute parts can look different from the original.
$11.34
In Stock
Use R0155097 D9940207
#1B

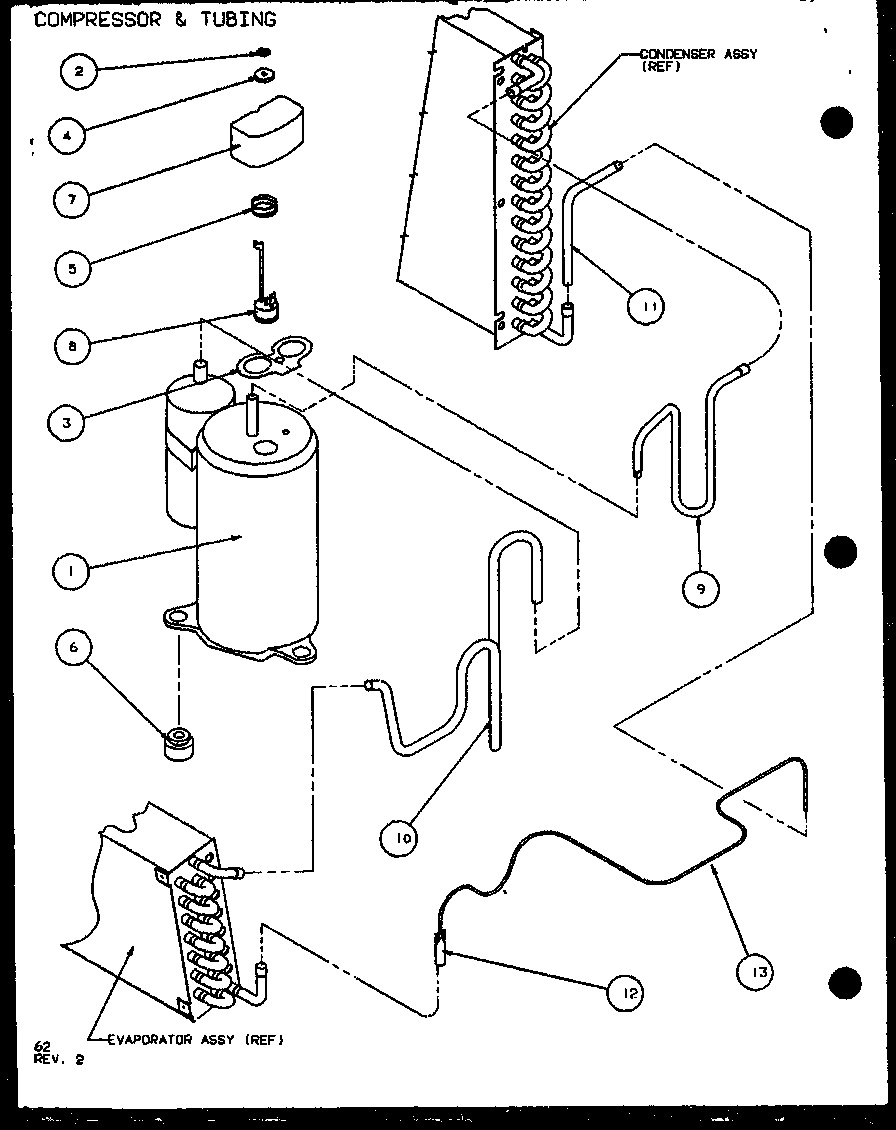

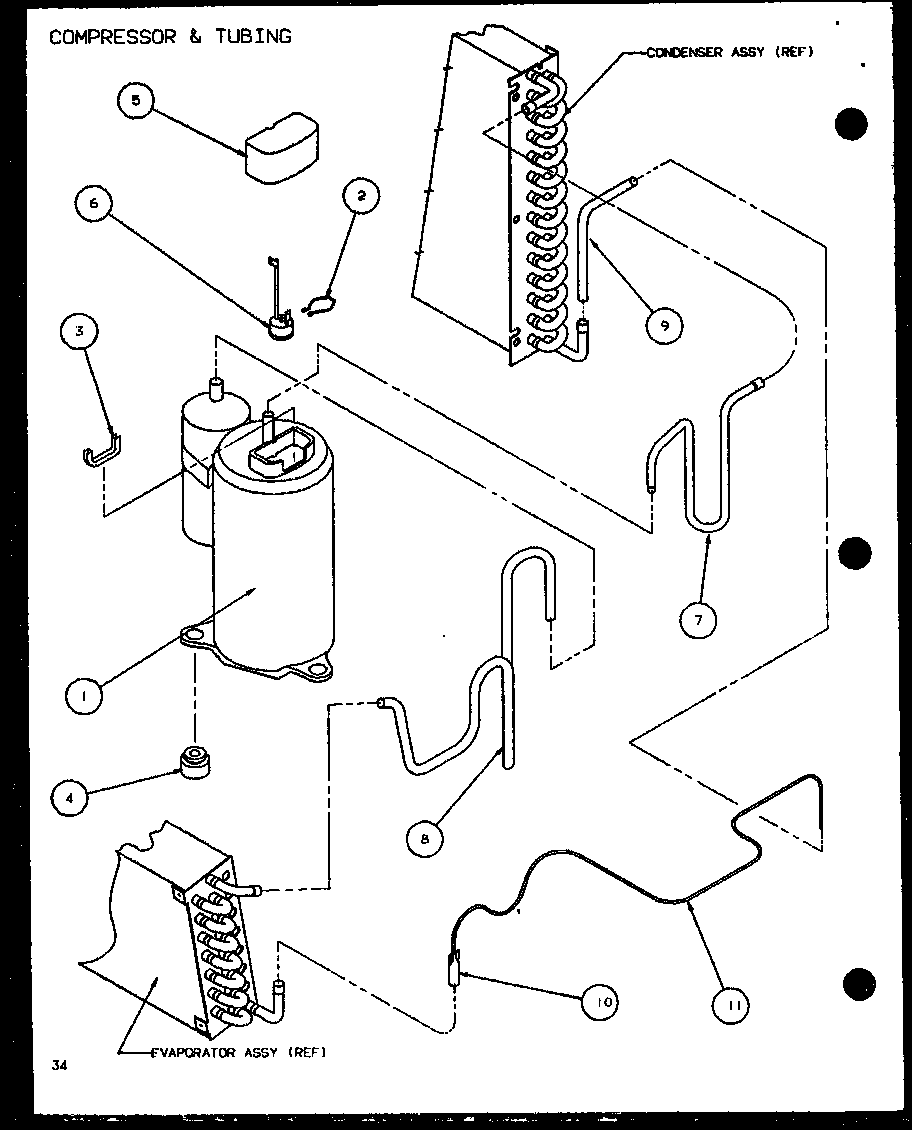

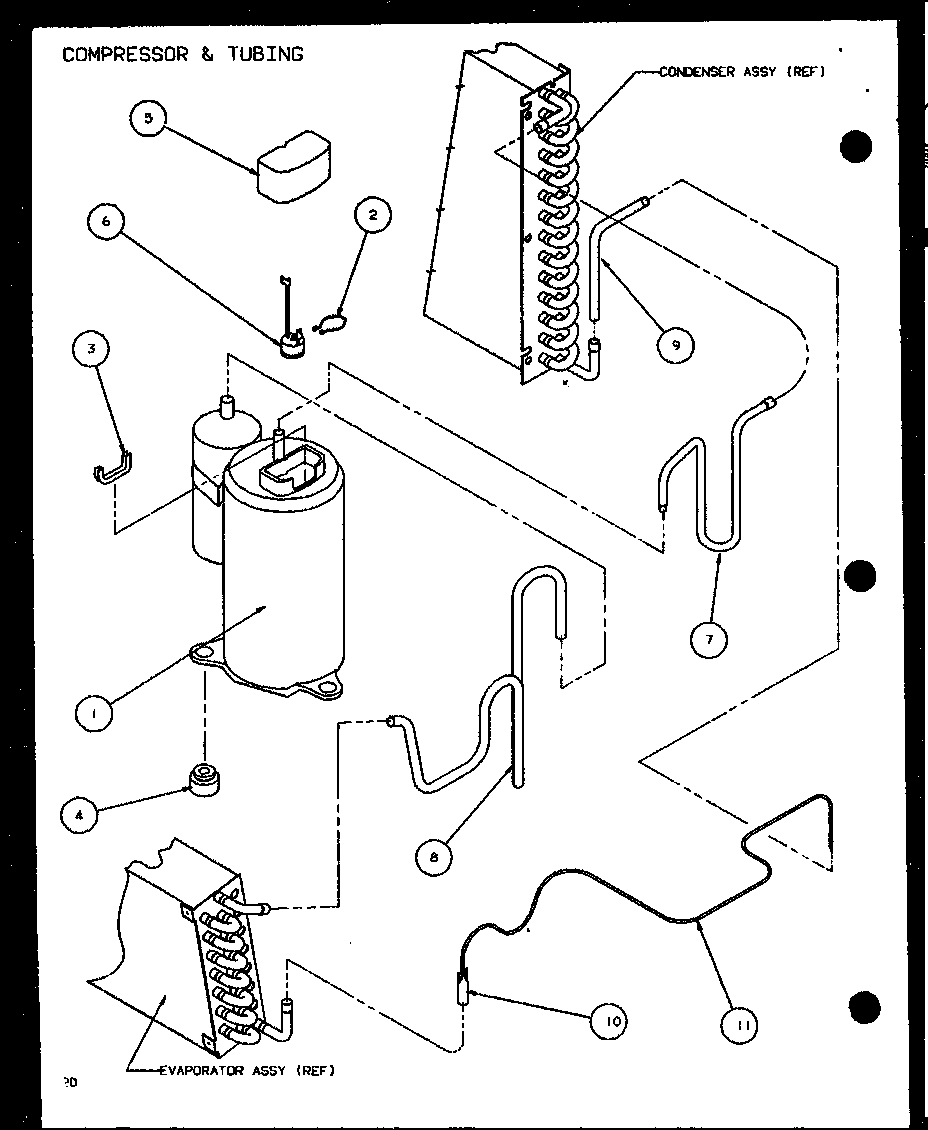

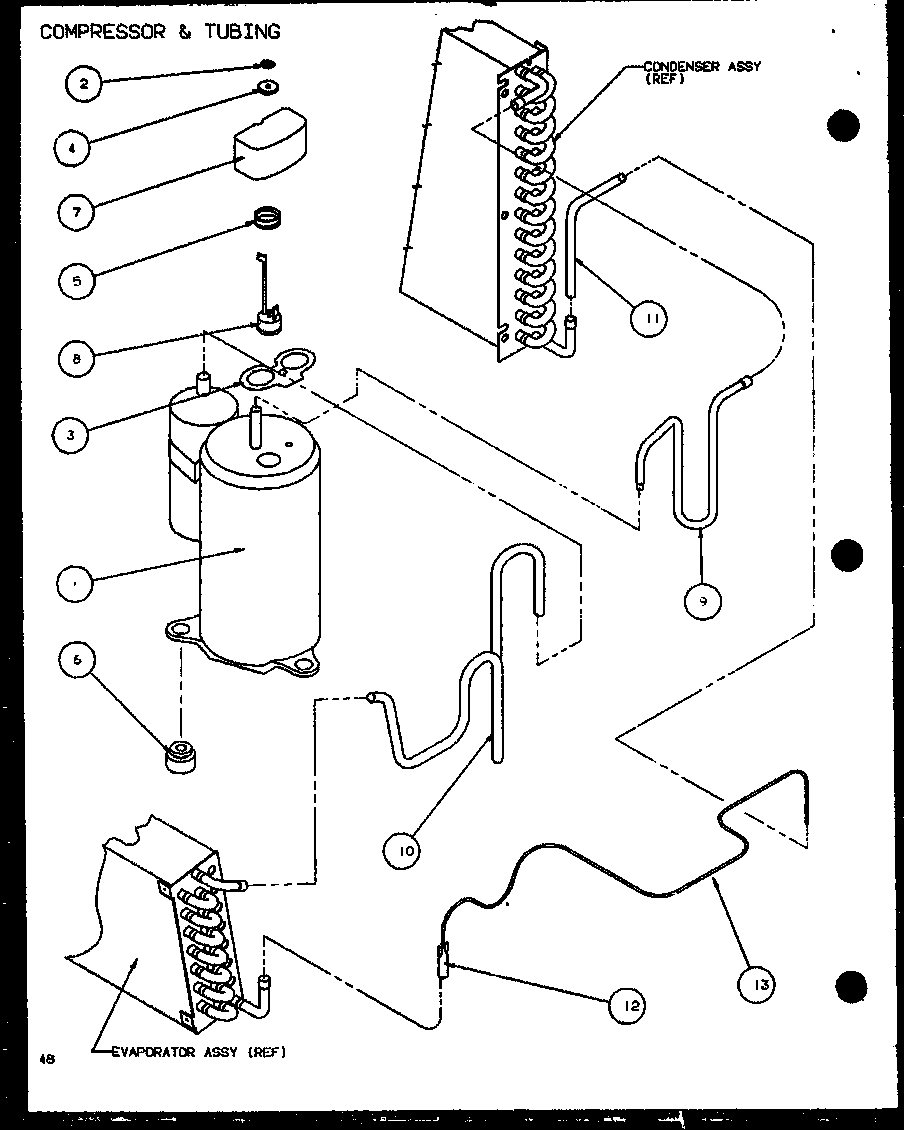

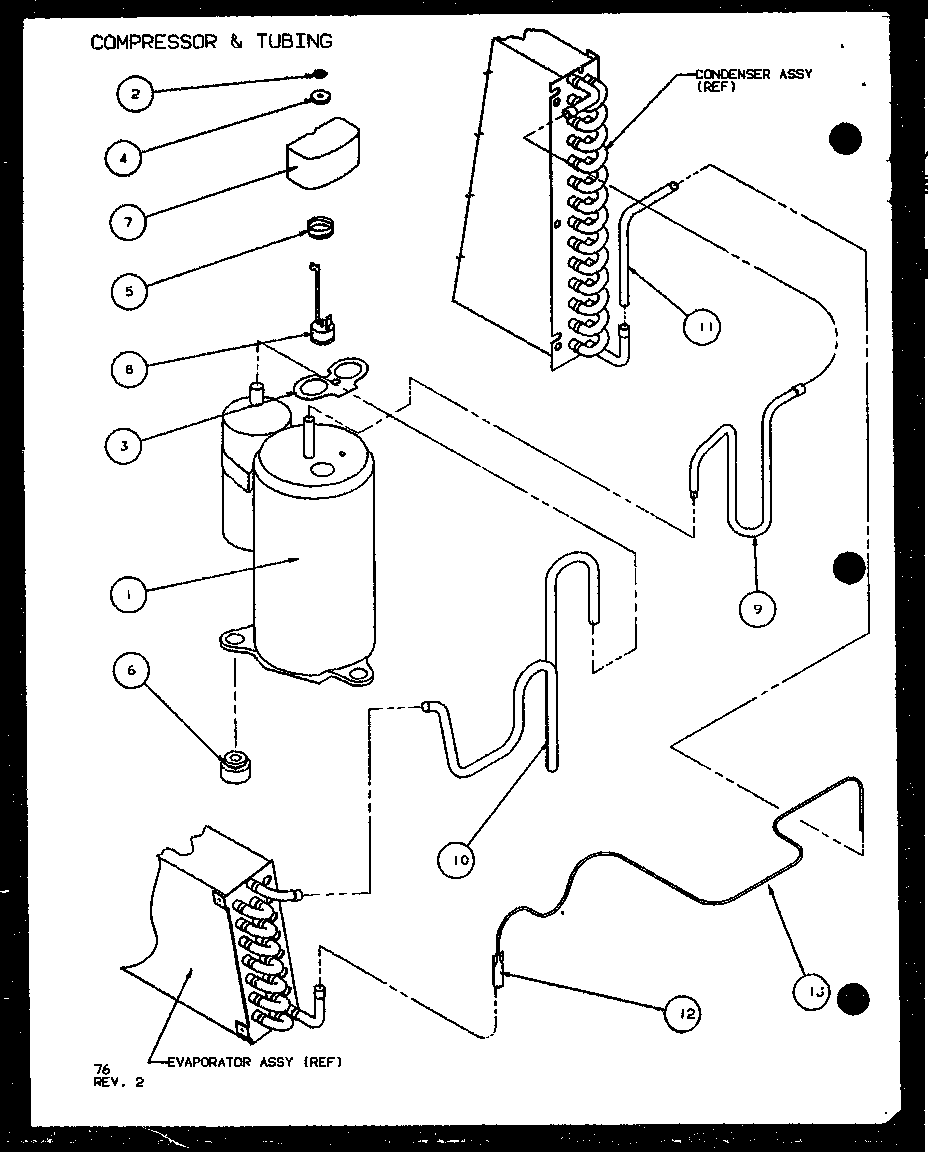

Compressor & tubing (ptc07300e/p9999701r) (ptc07400e/p9806701r) (ptc07300ec/p9811701r) (ptc07400ec/p9872401r) diagram

Use r0155097

Part #D9940207

The manufacturer no longer makes this part, and there's no substitute part

Gasket A3030333
Gasket

Part #A3030333

The manufacturer no longer makes this part, and there's no substitute part

Capacitor St C6300502
Capacitor st

Part #C6300502

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Assembly D9868602

#NI

All parts diagram

Evaporator assembly

Part #D9868602

The manufacturer no longer makes this part, and there's no substitute part

Gasekt, 24" A3030313
Gasekt, 24"

Part #A3030313

The manufacturer no longer makes this part, and there's no substitute part

Bracket C6472501
Bracket

Part #C6472501

The manufacturer no longer makes this part, and there's no substitute part

Condenser 10120202
#7A

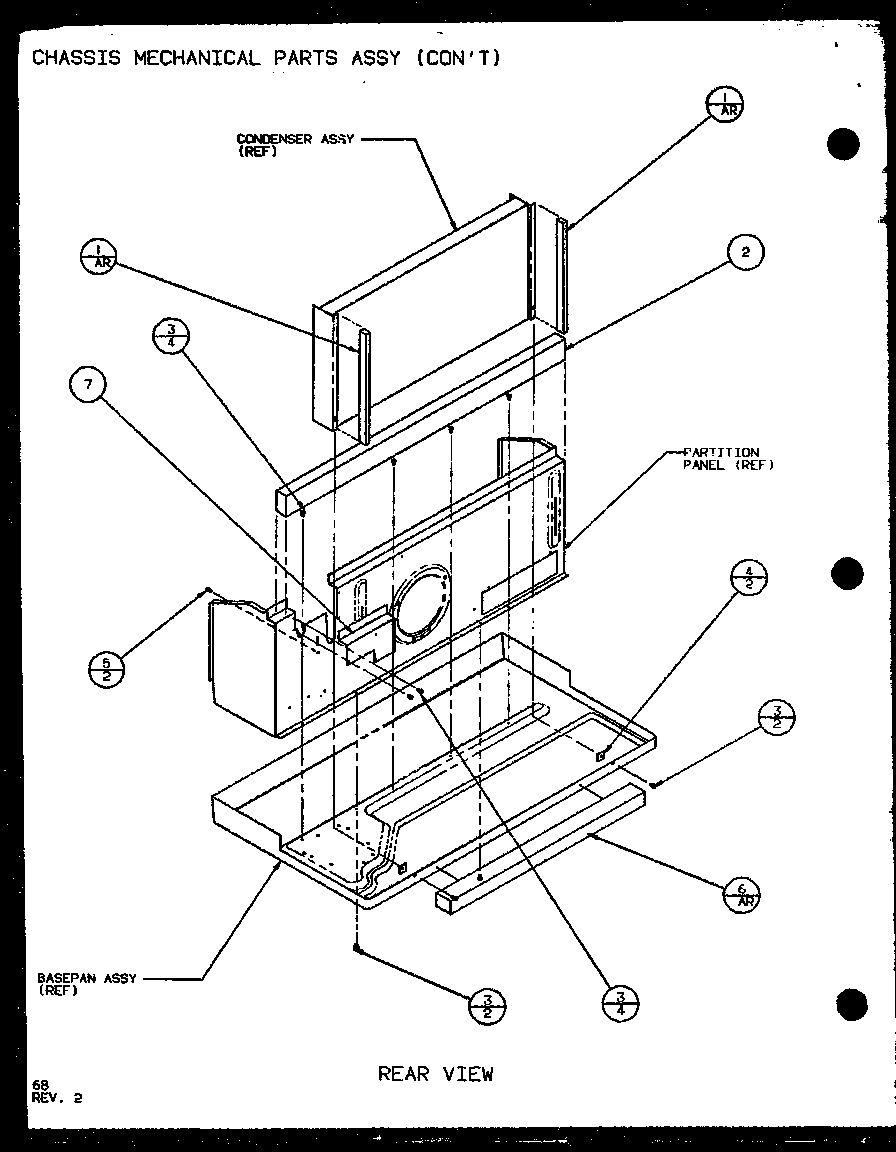

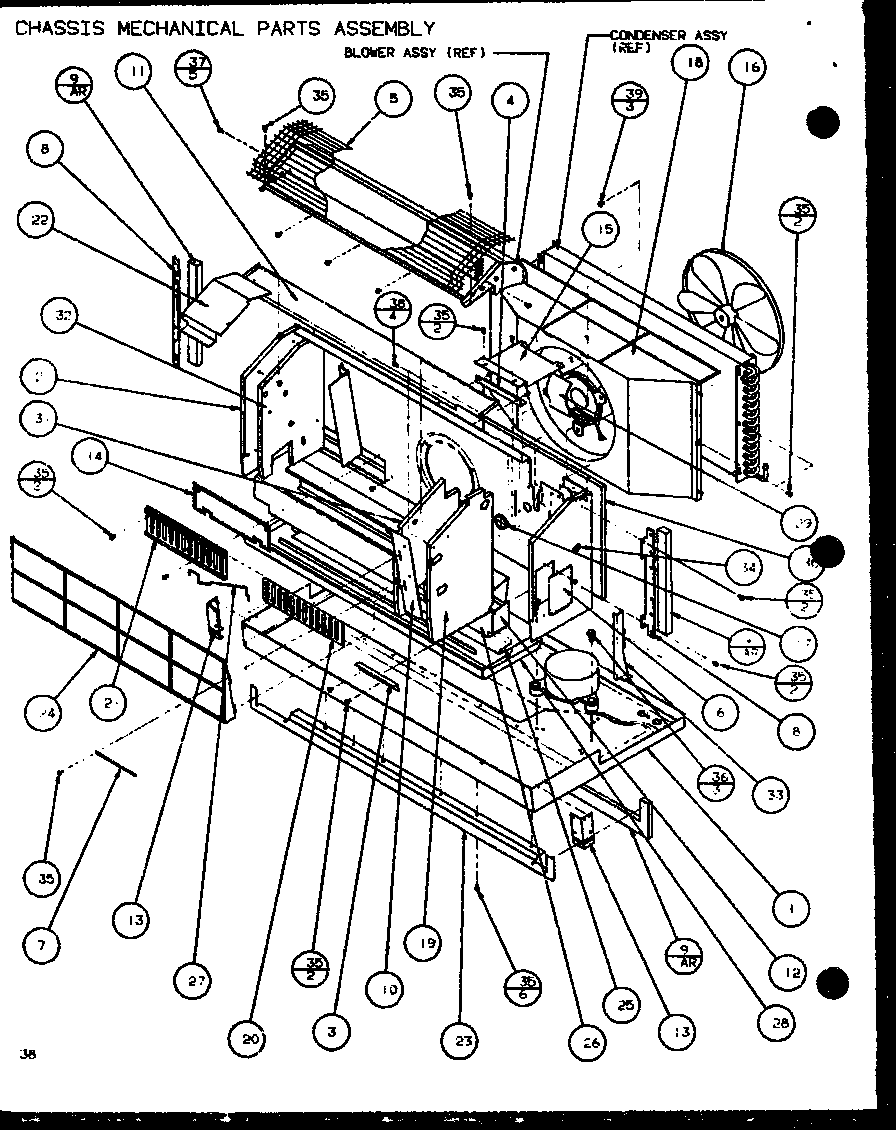

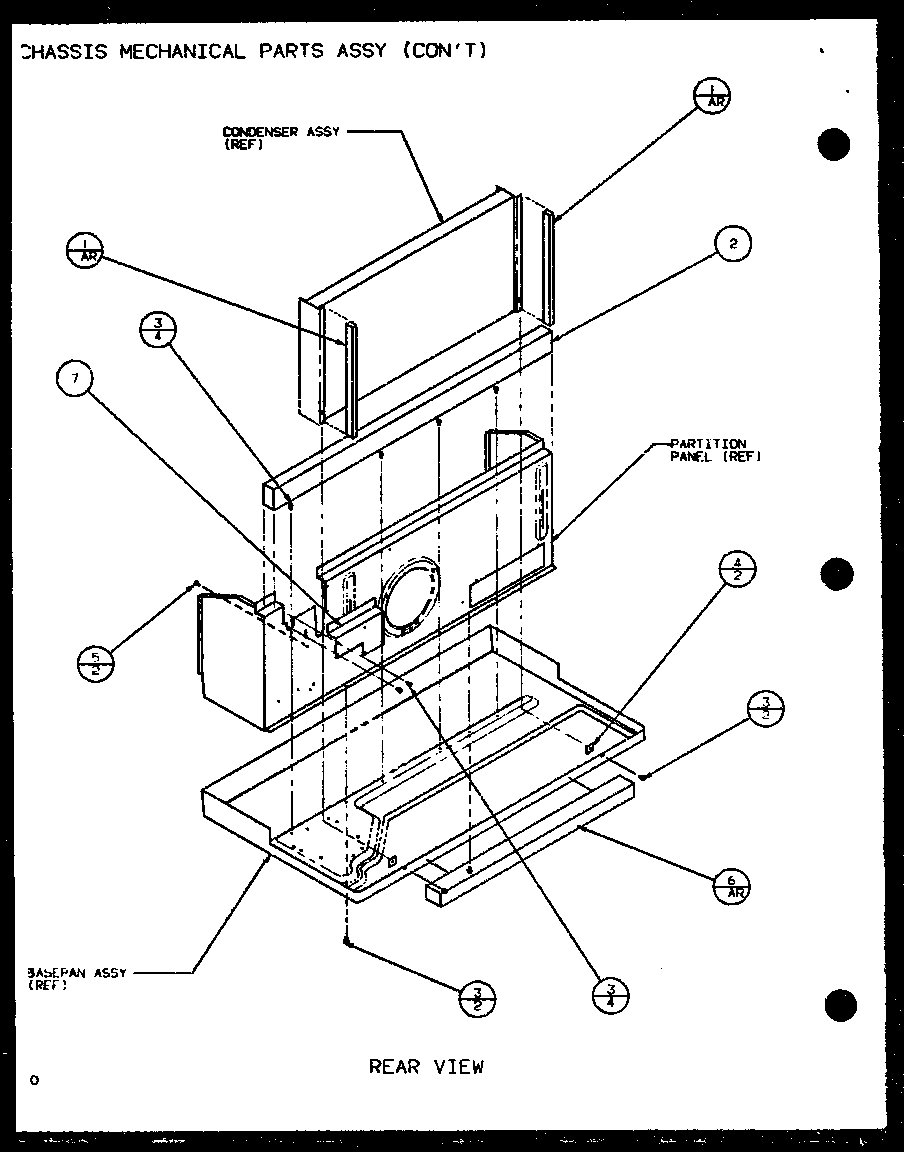

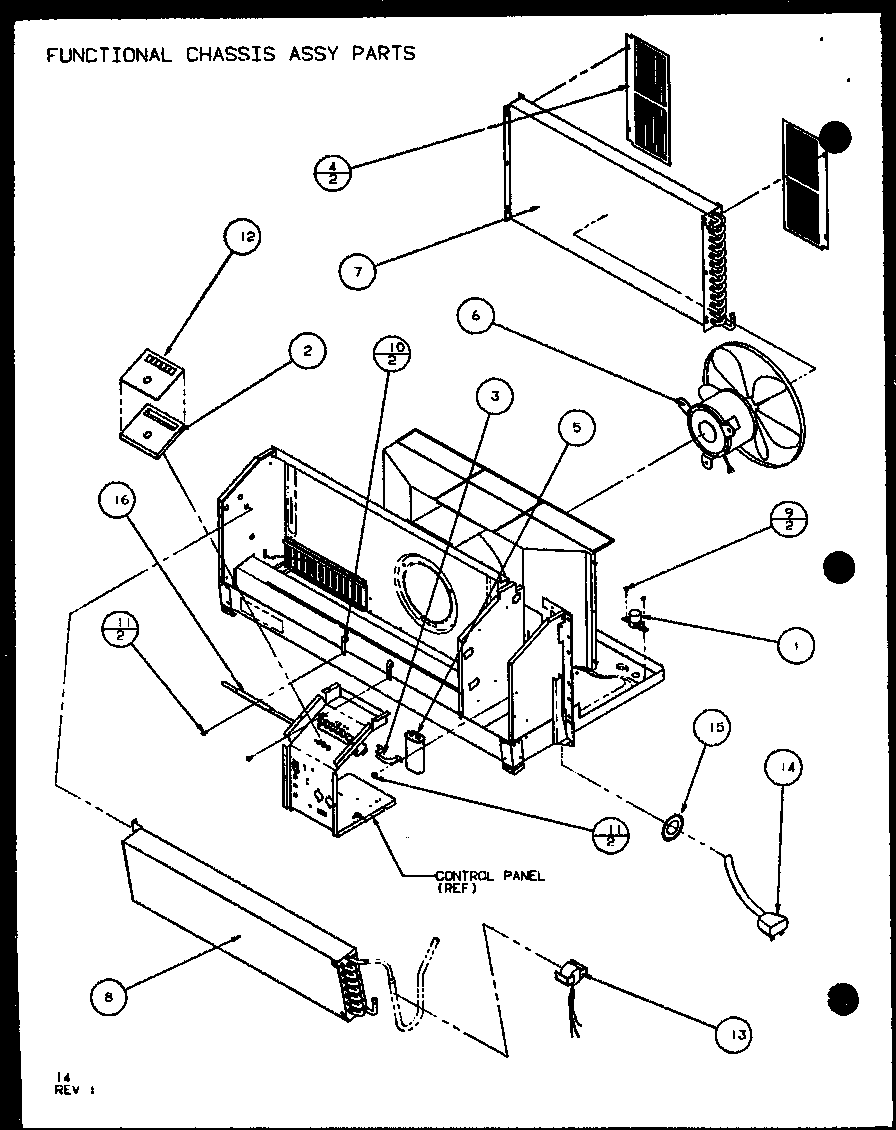

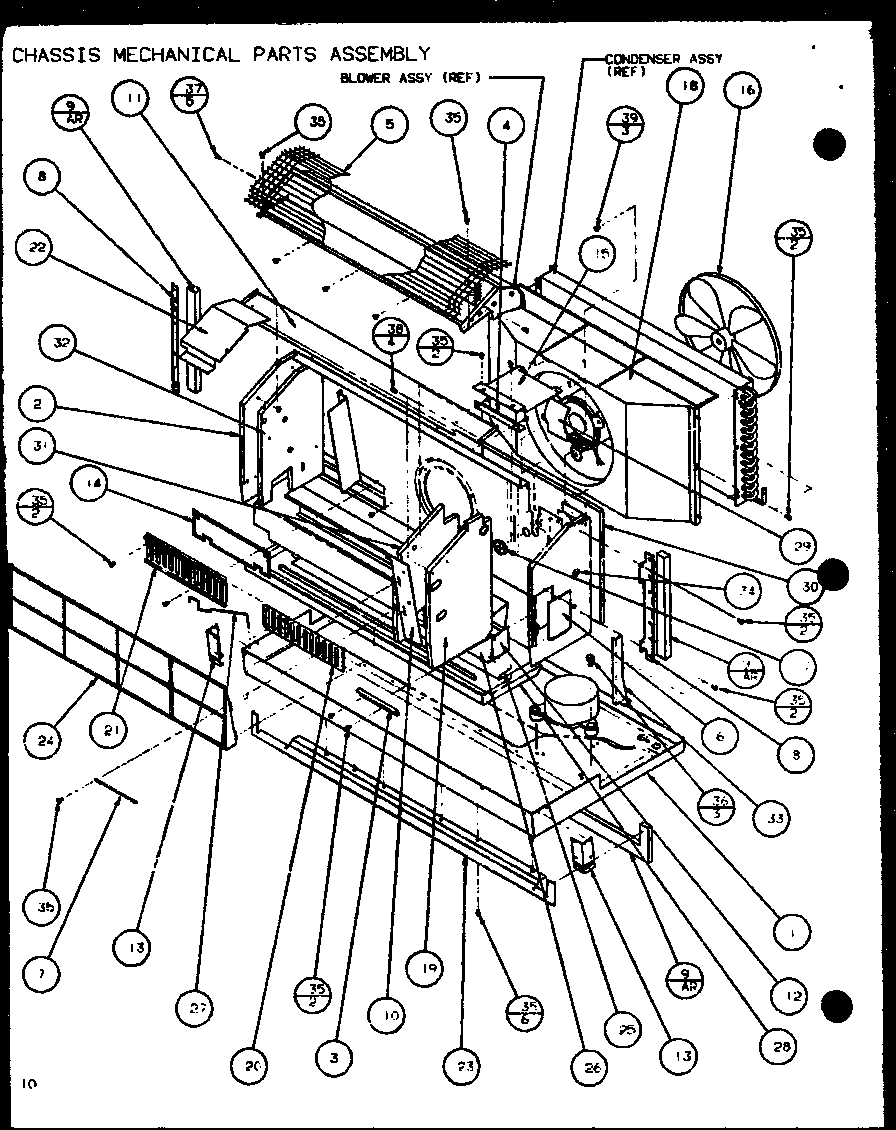

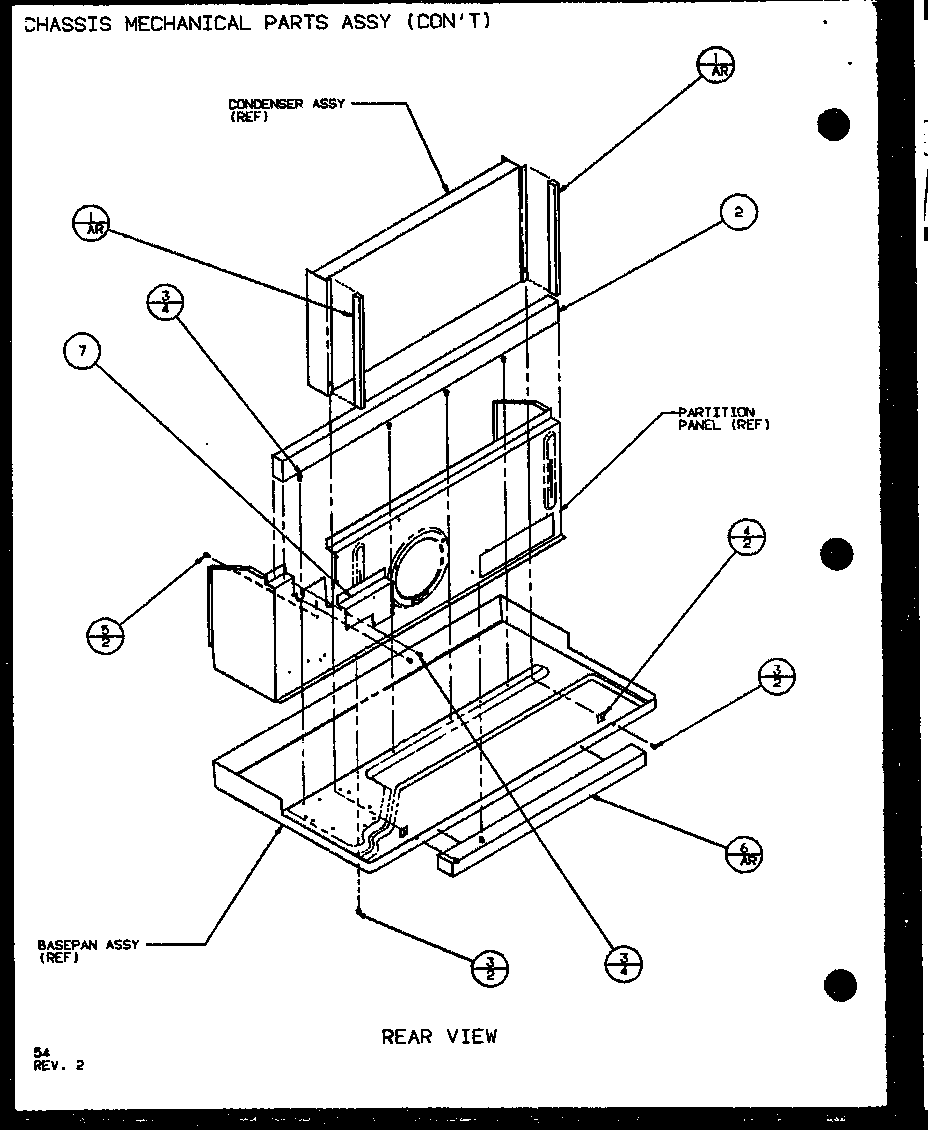

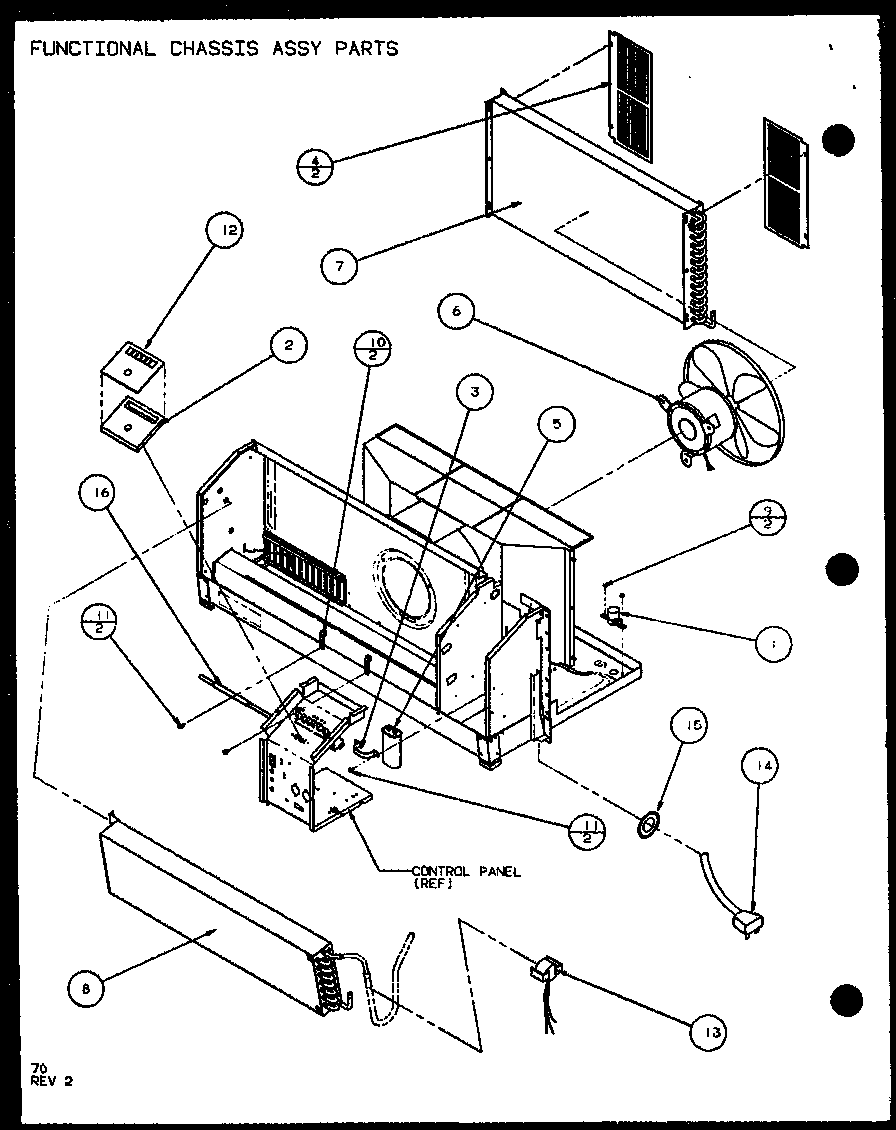

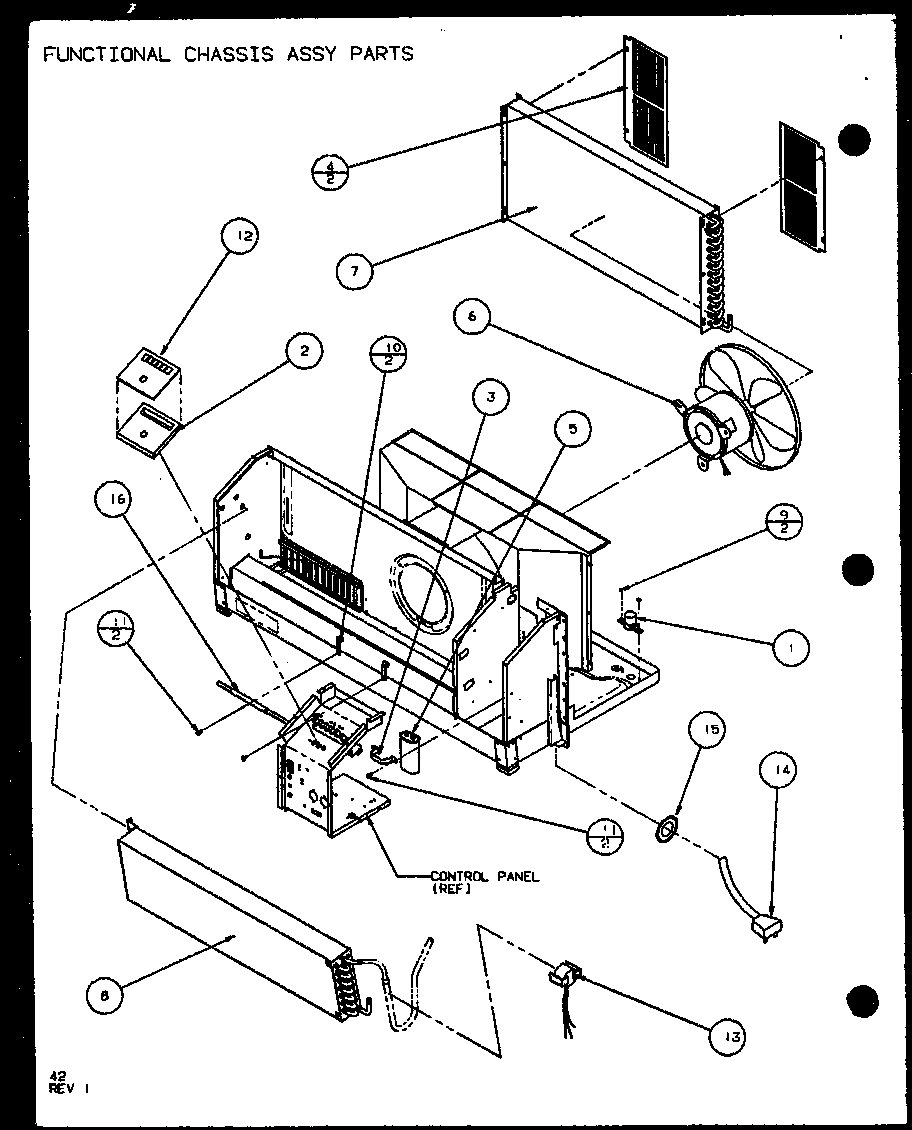

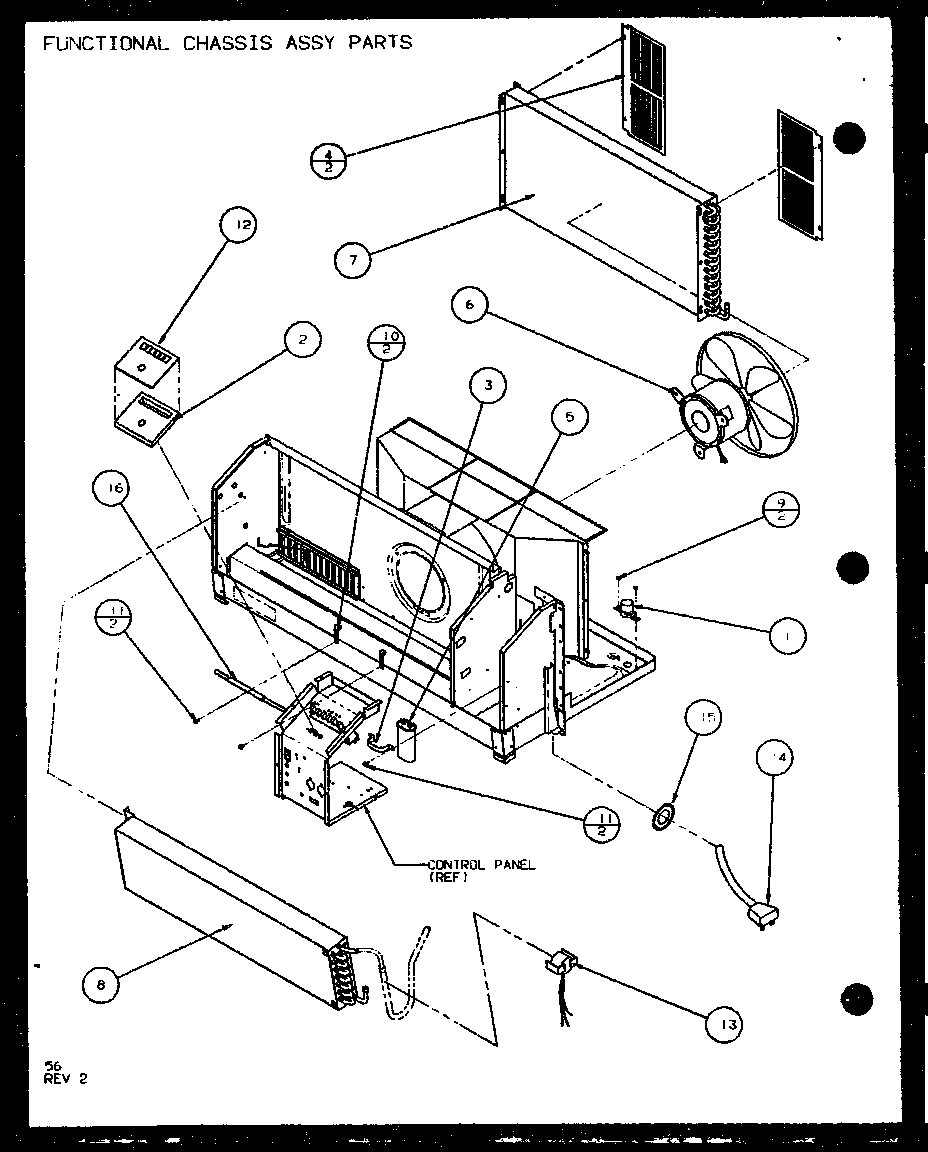

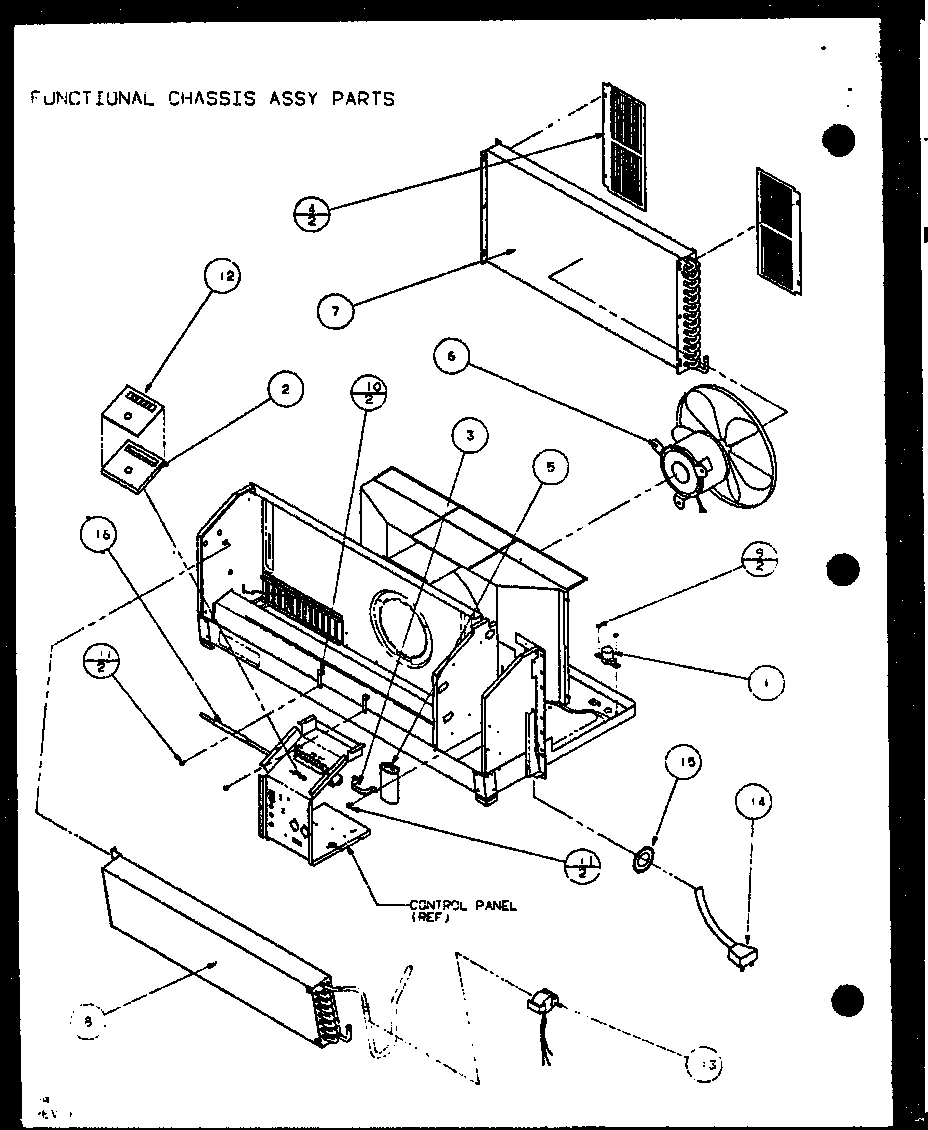

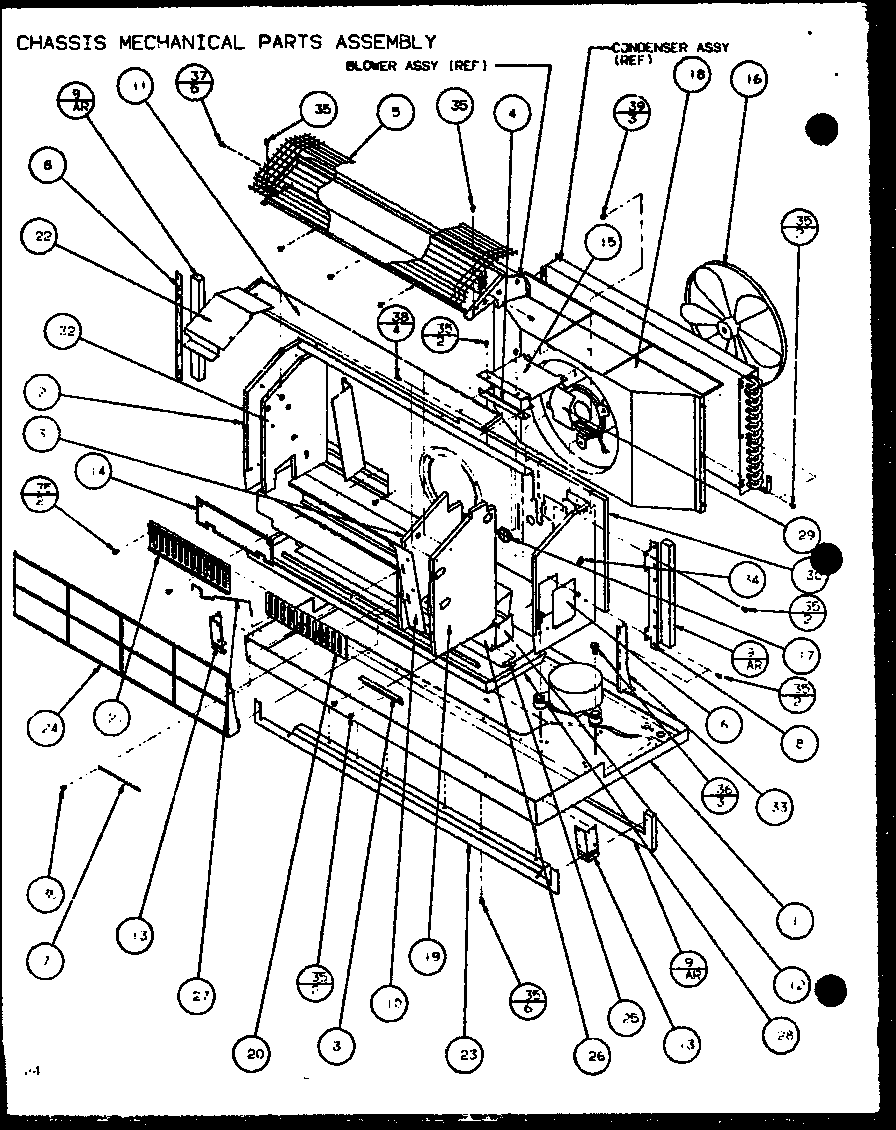

Functional chassis assy parts (ptc12300e/p9999729r) (ptc12400e/p9806729r) (ptc12300ec/p9811729r) (ptc12400ec/p9872429r) diagram

Condenser

Part #10120202

The manufacturer no longer makes this part, and there's no substitute part

Overload D6961604
Overload

Part #D6961604

The manufacturer no longer makes this part, and there's no substitute part
