Craftsman 501CV20S-65527 engine Parts

Here are the diagrams and repair parts for Craftsman 501CV20S-65527 engine, as well as links to manuals and error code tables, if available.

Craftsman 501CV20S-65527 engine

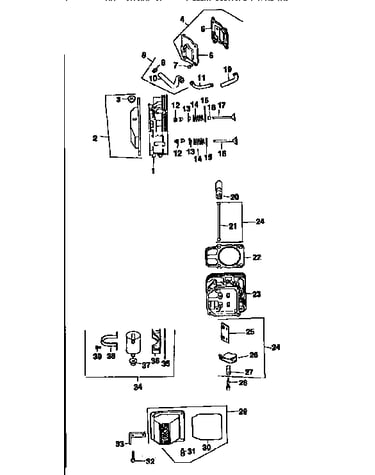

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 501CV20S-65527 Engine

  • Locating Pin for Craftsman 501CV20S-65527 - Part 24-380-16-S

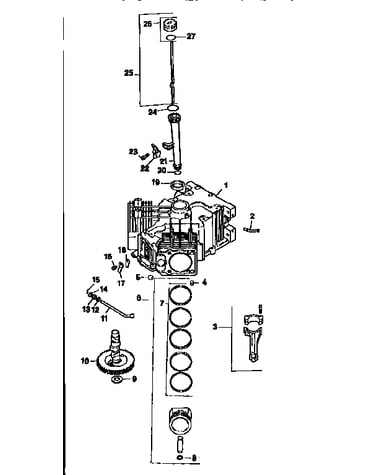

    Crankcase diagram

    Pin, Dowel Locating

    Part #1238003

    Replaced by #24-380-16-S

    Info Icon
    Manufacturer substitution
    This part replaces 1238003. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $7.14
    Minus Item
    Qty
    Plus Item
  • Craftsman Lawn & Garden Equipment Engine Washer for Craftsman 501CV20S-65527 - Part 24-468-01-S

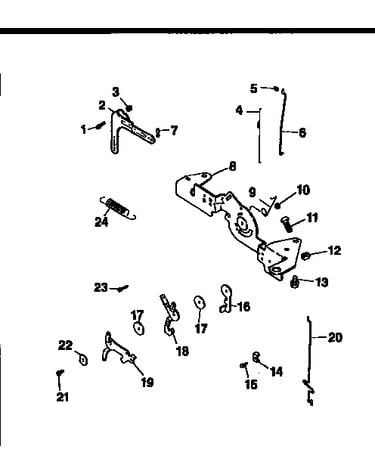

    Engine controls diagram

    Washer

    Part #2446801

    Replaced by #24-468-01-S

    Info Icon
    Manufacturer substitution
    This part replaces 2446801. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.06
    Minus Item
    Qty
    Plus Item
  • Craftsman Retainer for Craftsman 501CV20S-65527 - Part 24-018-04-S

    Crankcase diagram

    Retainer

    Part #2401804

    Replaced by #24-018-04-S

    Info Icon
    Manufacturer substitution
    This part replaces 2401804. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.24
    19% OFF Phone Price : $5.24Info Icon
    Minus Item
    Qty
    Plus Item
  • Craftsman Lawn & Garden Equipment Engine Breather Bracket for Craftsman 501CV20S-65527 - Part 24-126-44-S

    Bracket, Bre

    Part #2412644

    Replaced by #24-126-44-S

    Info Icon
    Manufacturer substitution
    This part replaces 2412644. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $31.57
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Engine Intake Manifold Gasket for Craftsman 501CV20S-65527 - Part 24-041-79-S

    Air take diagram

    Gasket

    Part #2404101

    Replaced by #24-041-79-S

    Info Icon
    Manufacturer substitution
    This part replaces 2404101. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $3.77
    Minus Item
    Qty
    Plus Item
  • Craftsman Lawn & Garden Equipment Pin for Craftsman 501CV20S-65527 - Part 12-380-01-S

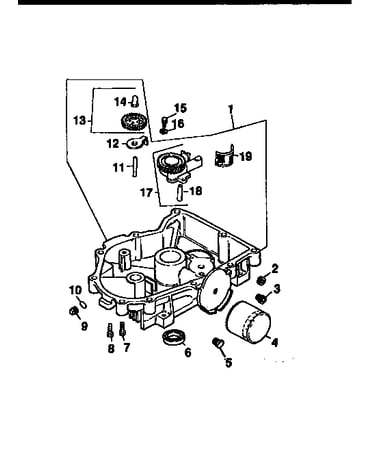

    Oil pan / lubrication diagram

    Pin

    Part #1238001

    Replaced by #12-380-01-S

    Info Icon
    Manufacturer substitution
    This part replaces 1238001. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.61
    Minus Item
    Qty
    Plus Item
  • Craftsman Camshaft for Craftsman 501CV20S-65527 - Part 24-010-06-S

    Crankcase diagram

    Camshaft

    Part #2401003

    Replaced by #24-010-06-S

    Info Icon
    Manufacturer substitution
    This part replaces 2401003. Substitute parts can look different from the original.
    In Stock
    $493.14
    $12.00 OFF Phone Price : $505.14Info Icon
    Minus Item
    Qty
    Plus Item
  • Craftsman Lawn & Garden Equipment Engine Nut for Craftsman 501CV20S-65527 - Part 24-100-02-S

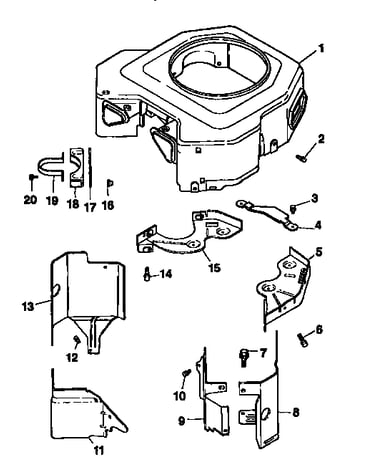

    Blower housing diagram

    Nut

    Part #2410002

    Replaced by #24-100-02-S

    Info Icon
    Manufacturer substitution
    This part replaces 2410002. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.06
    Minus Item
    Qty
    Plus Item
  • Lawn & Garden Equipment Engine Rectifier Wire Connector for Craftsman 501CV20S-65527 - Part 25-155-41-S

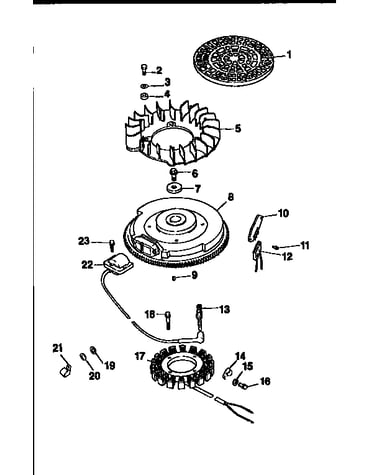

    Ignition/electrical diagram

    Connector

    Part #236602

    Replaced by #25-155-41-S

    Info Icon
    Manufacturer substitution
    This part replaces 236602. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $36.11
    14% OFF Phone Price : $42.11Info Icon
    Minus Item
    Qty
    Plus Item
  • Craftsman Lawn Tractor Engine Governor Spring for Craftsman 501CV20S-65527 - Part 24-089-18-S

    Engine controls diagram

    Governor Spring

    Part #2408918

    Replaced by #24-089-18-S

    Info Icon
    Manufacturer substitution
    This part replaces 2408918. Substitute parts can look different from the original.
    In Stock
    $39.25
    Minus Item
    Qty
    Plus Item
