Sears 867814602 residential & mobile home package heat pump Parts

Here are the diagrams and repair parts for Sears 867814602 residential & mobile home package heat pump, as well as links to manuals and error code tables, if available.

Sears 867814602 residential & mobile home package heat pump
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 867814602 Residential & Mobile Home Package Heat Pump

  • White-rodgers Central Air Conditioner Contactor for Sears 867814602 - Part 90-244

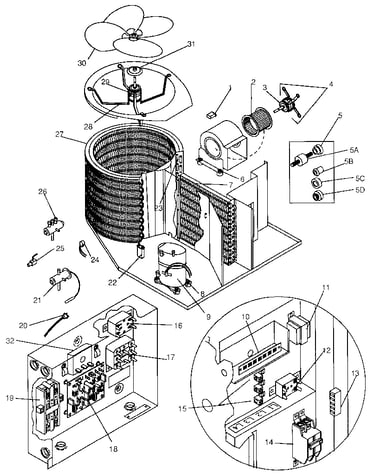

    Functional parts diagram

    Contactor

    Part #1054735

    Replaced by #90-244

    Info Icon
    Manufacturer substitution
    This part replaces 1054735. Substitute parts can look different from the original.
    In Stock
    $31.23
    16% OFF Phone Price : $37.23Info Icon
    Minus Item
    Qty
    Plus Item
  • Spst Relay for Sears 867814602 - Part 1053004

    Functional parts diagram

    Spst Relay

    Part #1053004

    The manufacturer no longer makes this part, and there's no substitute part

  • Grommet for Sears 867814602 - Part 64475

    Functional parts diagram

    Grommet

    Part #64475
    In Stock
    $370.21
    Minus Item
    Qty
    Plus Item
  • Lug for Sears 867814602 - Part 91590

    Functional parts diagram

    Lug

    Part #91590
    In Stock
    $1297.88
    Minus Item
    Qty
    Plus Item
  • Plate for Sears 867814602 - Part 709130

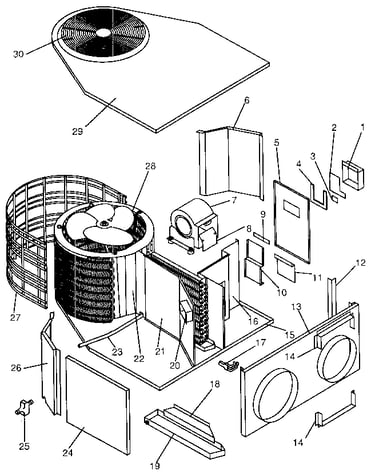

    Non functional parts diagram

    Plate

    Part #709130
    In Stock
    $107.47
    Minus Item
    Qty
    Plus Item
  • Side Panel for Sears 867814602 - Part 1057584

    Non functional parts diagram

    Side Panel

    Part #1057584
    In Stock
    $127.50
    Minus Item
    Qty
    Plus Item
  • Outlet Grille for Sears 867814602 - Part 1057353

    Non functional parts diagram

    Outlet Grille

    Part #1057353
    In Stock
    $48.84
    Minus Item
    Qty
    Plus Item
  • Transformer for Sears 867814602 - Part 1056443

    Functional parts diagram

    Transformer

    Part #1056443
    In Stock
    $43.73
    Minus Item
    Qty
    Plus Item
  • Coil for Sears 867814602 - Part 707443

    Functional parts diagram

    Coil

    Part #707443
    In Stock
    $45.71
    Minus Item
    Qty
    Plus Item
  • Box Junction for Sears 867814602 - Part 708973

    Functional parts diagram

    Box Junction

    Part #708973
    In Stock
    $96.77
    Minus Item
    Qty
    Plus Item
