Model # FEM4P2400A1 Official ICP fan coil

Here are the diagrams and repair parts for Official ICP FEM4P2400A1 fan coil, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Grommet 1172083
#K

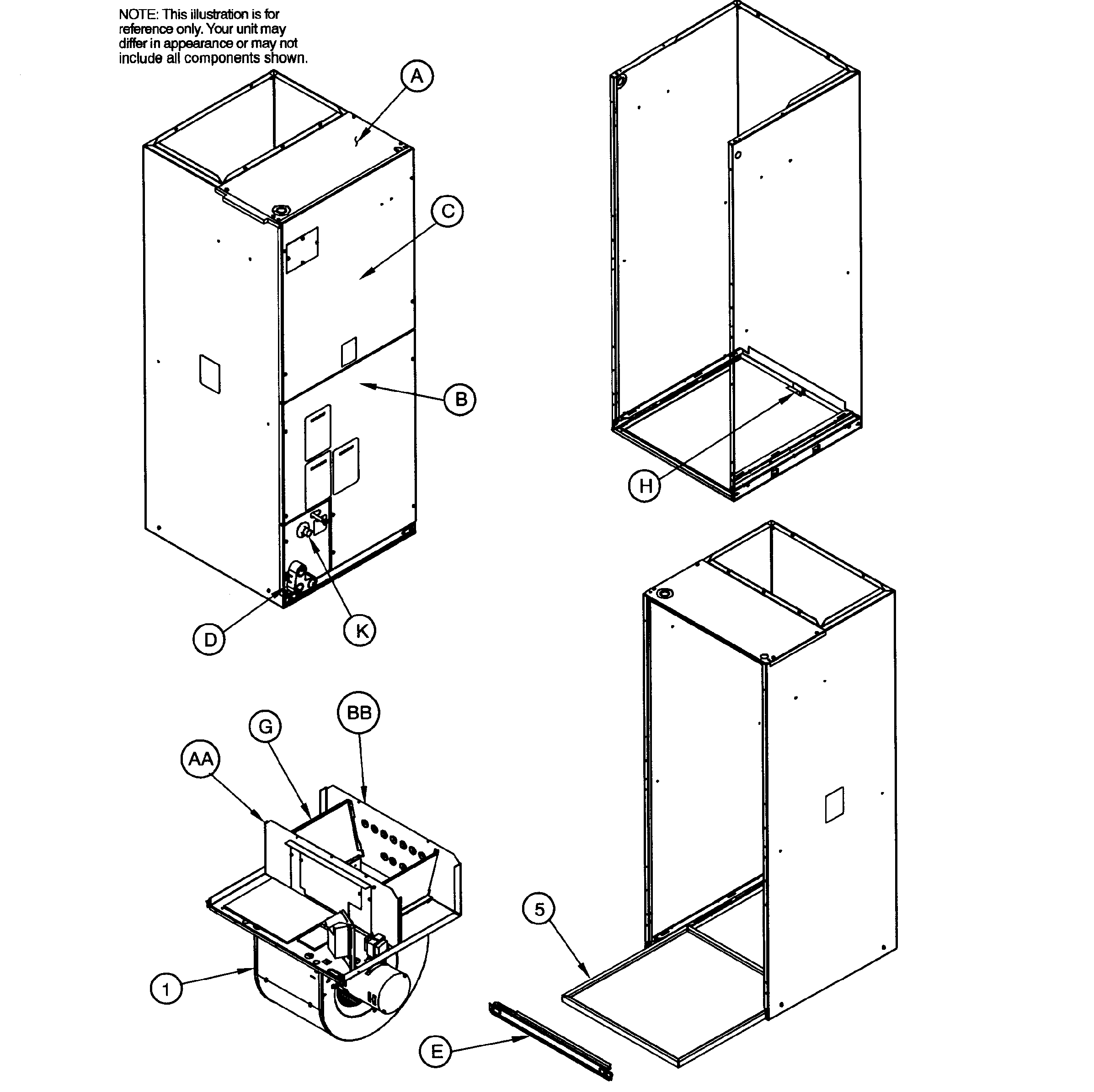

Cabinet diagram

Grommet

Part #1172083

This item is not returnable
$6.34
In Stock
Arm & Grom 1173747
#Y

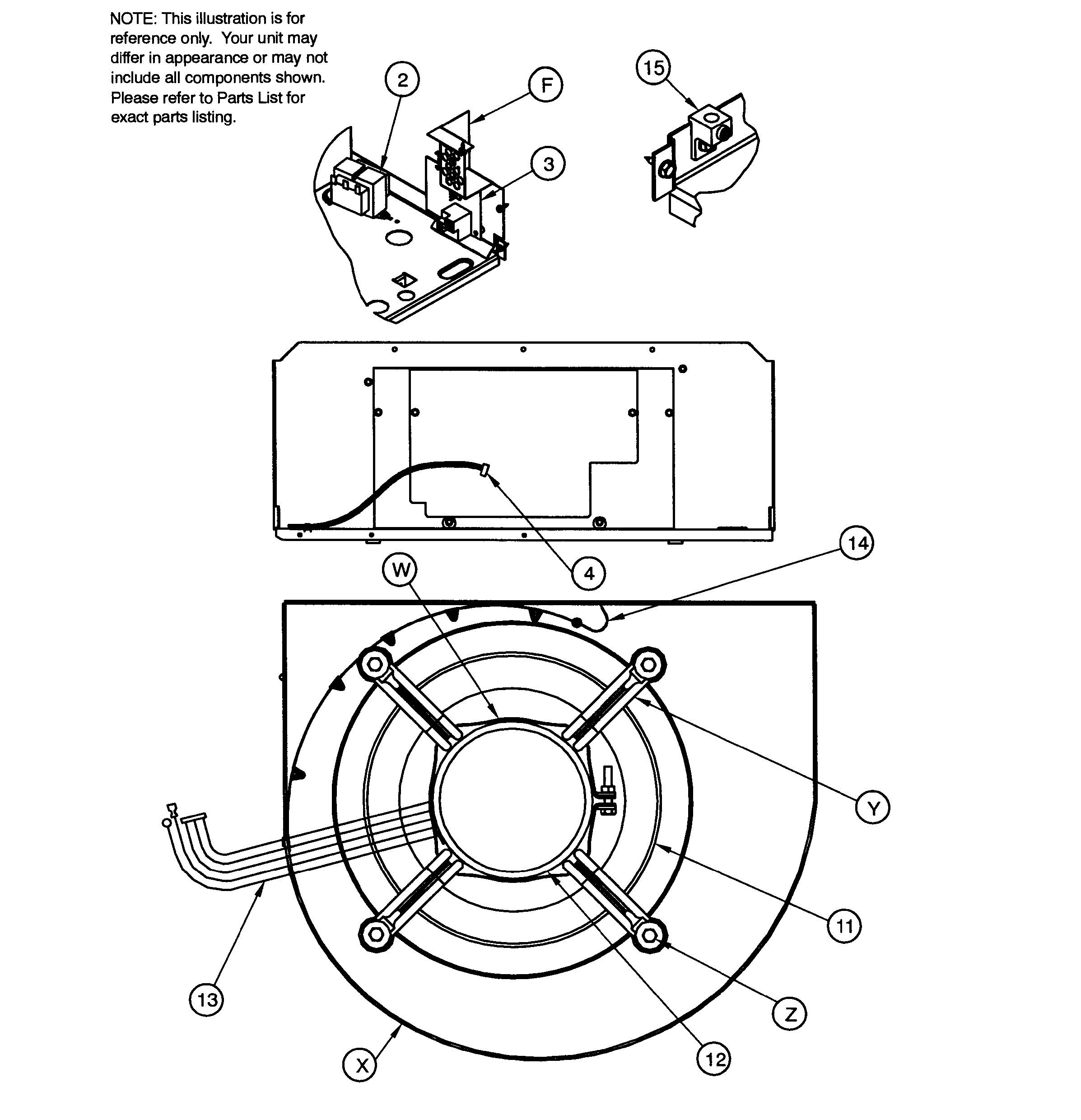

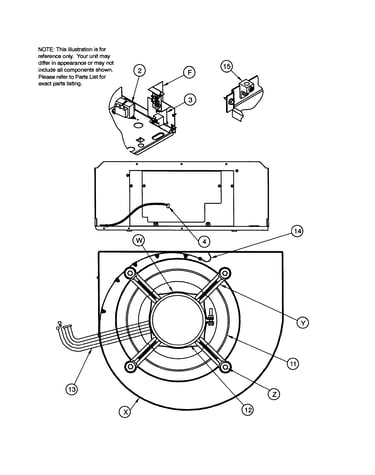

Blower diagram

Arm & grom

Part #1173747

$10.49
In Stock
Central Air Conditioner Evaporator Fan Motor Wire Harness 1171676
#4

Blower diagram

Central air conditioner evaporator fan motor wire harness

Part #1171676

$25.11
In Stock
Transformer 1172028
#2

Blower diagram

Transformer

Part #1172028

$87.40
In Stock
Band Motor 1171733
#W

Blower diagram

Band motor

Part #1171733

Replaced by #1170650

?
Manufacturer substitution
This part replaces 1171733. Substitute parts can look different from the original.
$24.51
In Stock
Wheel 1171743
#11

Blower diagram

Wheel

Part #1171743

Replaced by #1171769

?
Manufacturer substitution
This part replaces 1171743. Substitute parts can look different from the original.
$169.84
In Stock
Cnds Pan A 1179729
#10

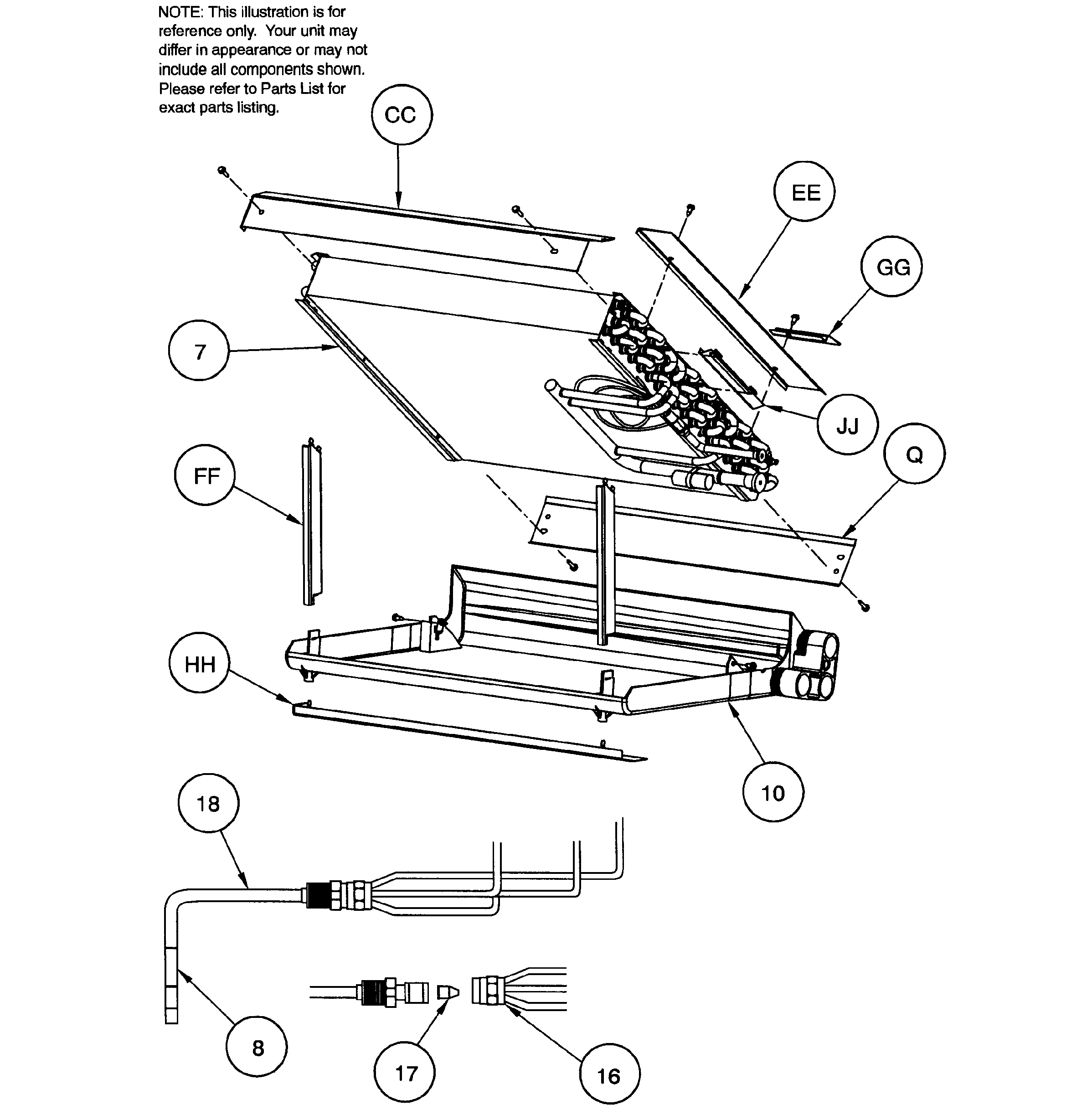

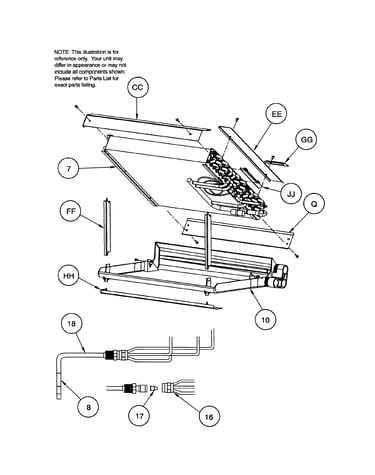

Coil assy diagram

Cnds pan a

Part #1179729

The manufacturer no longer makes this part, and there's no substitute part

Door Upper 1172373
#C

Cabinet diagram

Door upper

Part #1172373

The manufacturer no longer makes this part, and there's no substitute part

Support 1171665
#FF

Coil assy diagram

Support

Part #1171665

The manufacturer no longer makes this part, and there's no substitute part

Blower Assembly 1179653
#1

Cabinet diagram

Blower assembly

Part #1179653

The manufacturer no longer makes this part, and there's no substitute part
