Craftsman
Reel Walk-Behind Mower

Model # 13837671 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 13837671 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

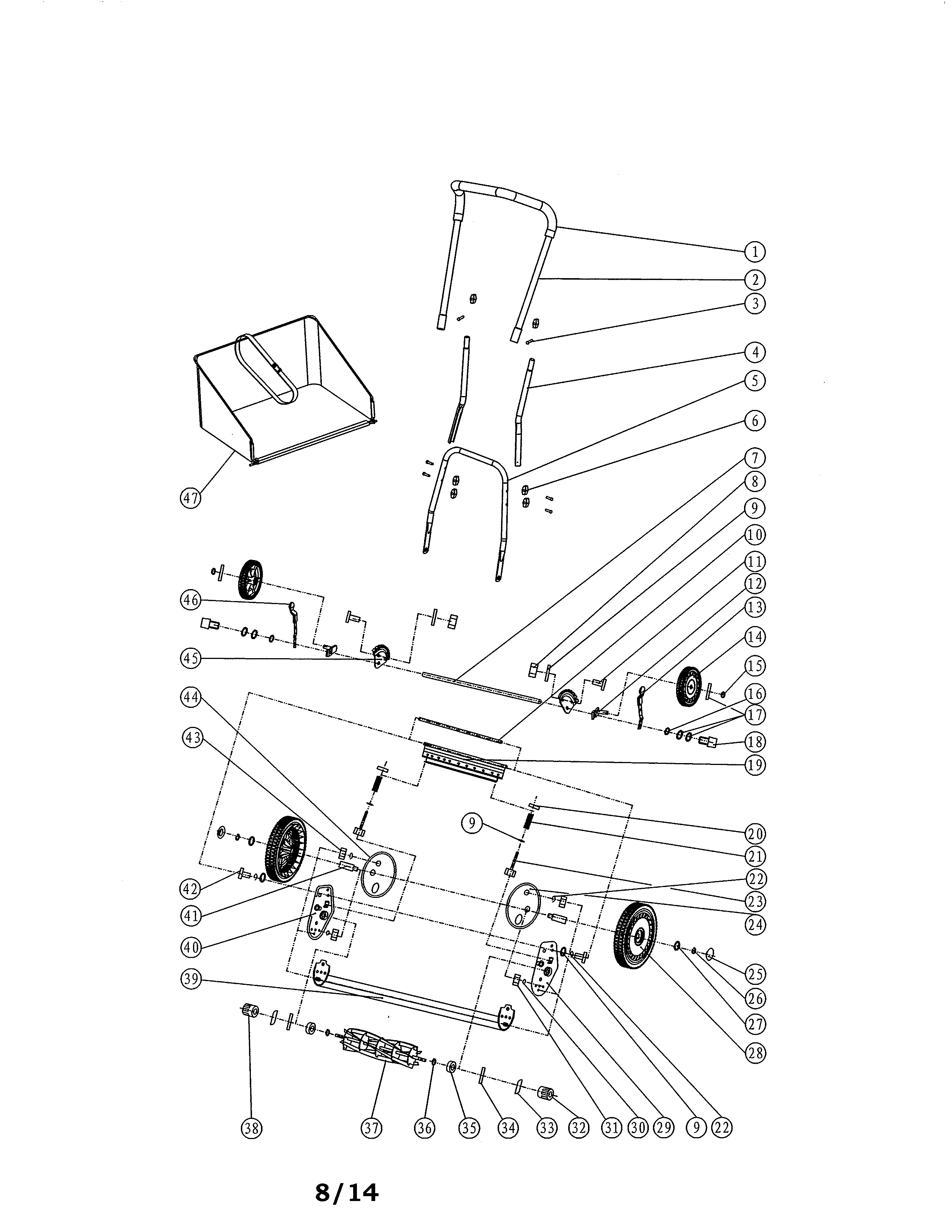

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |

Blade Adjustment Spring (2) N-19
#19

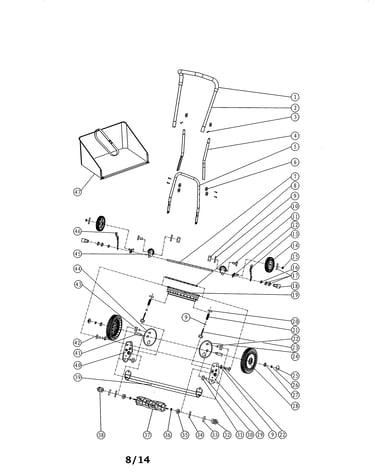

18" reel mower diagram

Blade adjustment spring (2)

Part #N-19

The manufacturer no longer makes this part, and there's no substitute part

Bottom Handle N-5
#5

18" reel mower diagram

Bottom handle

Part #N-5

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut M8 (2) N-8
#8

18" reel mower diagram

Lock nut m8 (2)

Part #N-8

The manufacturer no longer makes this part, and there's no substitute part

Soft Grip N-1
#1

18" reel mower diagram

Soft grip

Part #N-1

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Handle (l) N-13
#13

18" reel mower diagram

Adjustment handle (l)

Part #N-13

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing (2) N-24
#24

18" reel mower diagram

Ball bearing (2)

Part #N-24

The manufacturer no longer makes this part, and there's no substitute part

Supporting Assembly (r) N-40
#40

18" reel mower diagram

Supporting assembly (r)

Part #N-40

The manufacturer no longer makes this part, and there's no substitute part

Top Handle N-2
#2

18" reel mower diagram

Top handle

Part #N-2

The manufacturer no longer makes this part, and there's no substitute part

Height Adjustment Bracket (r) N-43
#43

18" reel mower diagram

Height adjustment bracket (r)

Part #N-43

The manufacturer no longer makes this part, and there's no substitute part

Knob (6) N-6
#6

18" reel mower diagram

Knob (6)

Part #N-6

The manufacturer no longer makes this part, and there's no substitute part
