Model # N2A430GKA200 Official ICP air conditioner

Here are the diagrams and repair parts for Official ICP N2A430GKA200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Fan 1173720
#3

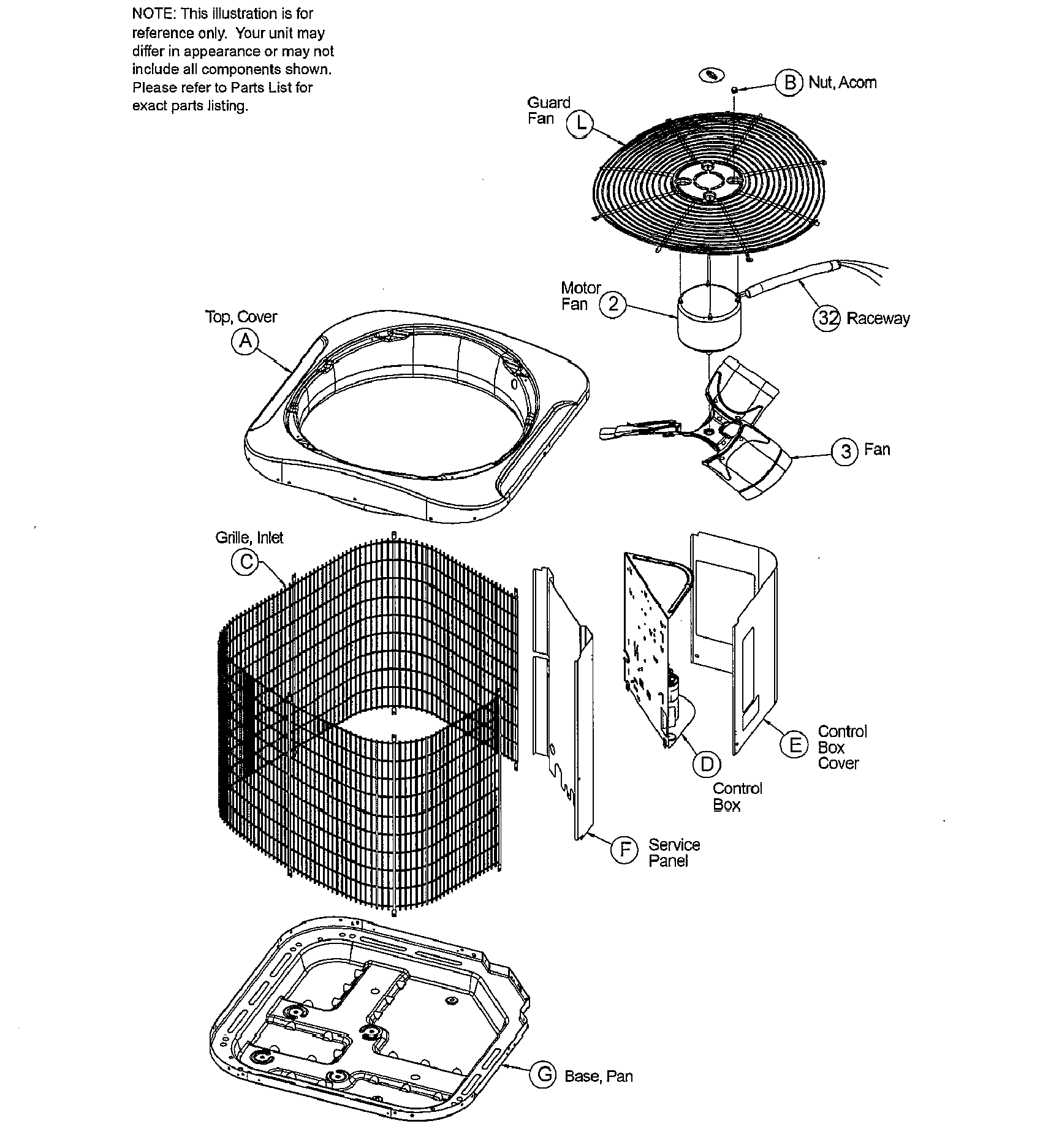

Outer parts diagram

Fan

Part #1173720

$244.95
In Stock
Heater 1174709
#35

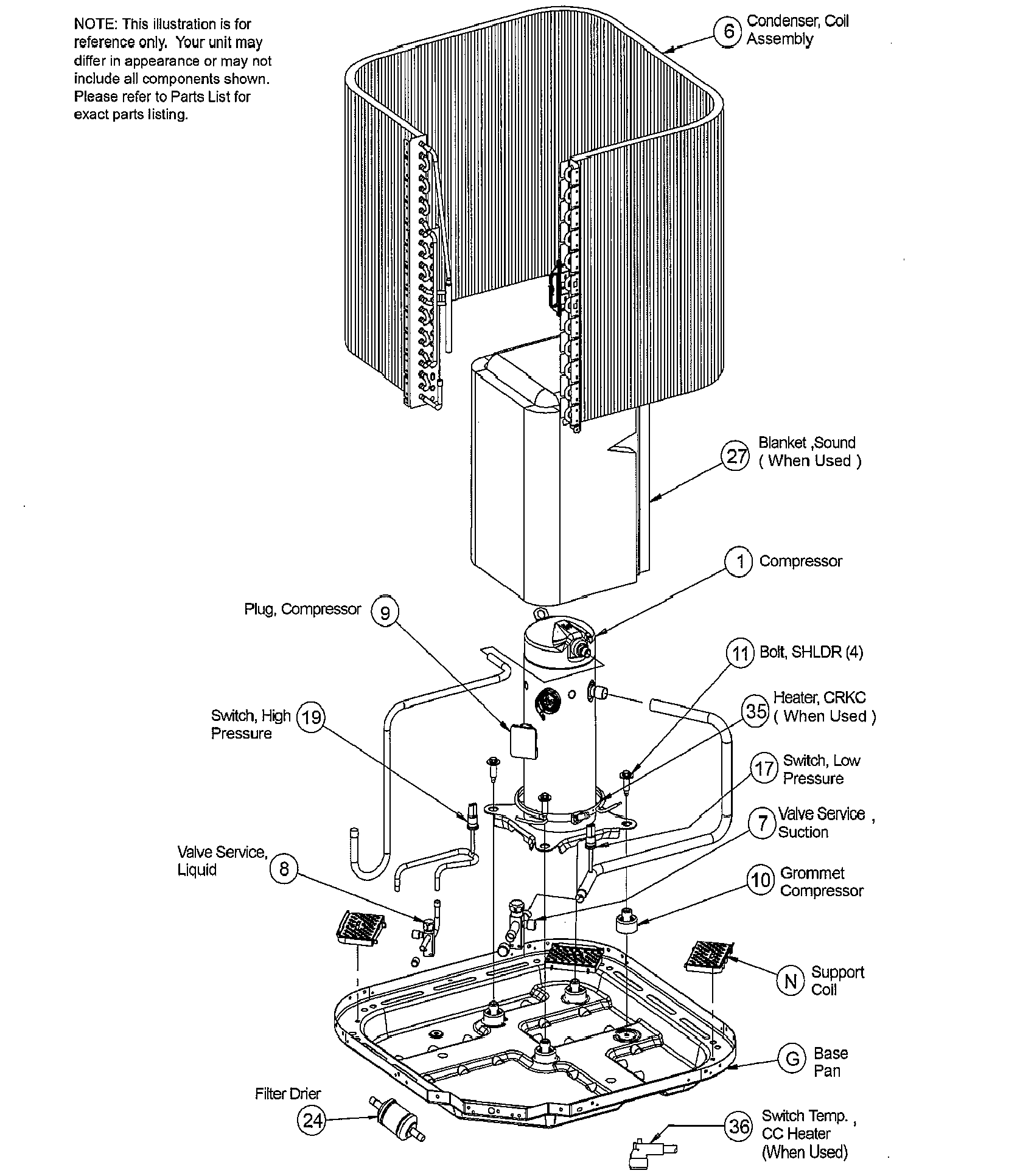

Inner parts diagram

Heater

Part #1174709

$84.91
In Stock
Central Air Conditioner Contactor 1172472
#4

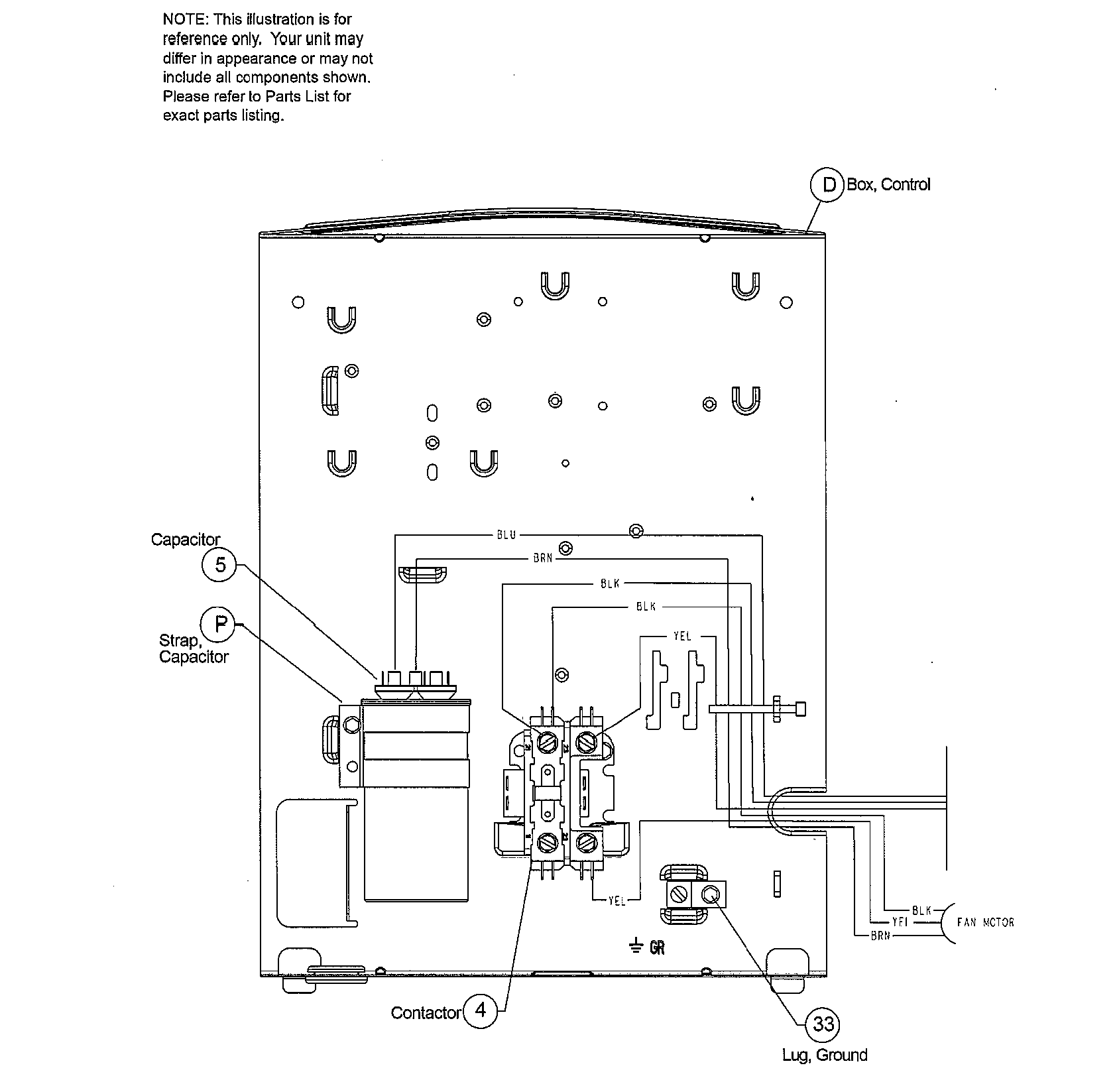

Control panel diagram

Central air conditioner contactor

Part #1172472

$61.35 |
8% OFF Phone Price : $66.35
In Stock
Cap Nut 1172740
#B

Outer parts diagram

Cap nut

Part #1172740

This item is not returnable
$2.77
In Stock
Central Air Conditioner Condenser Fan Motor 1173717
#2

Outer parts diagram

Central air conditioner condenser fan motor

Part #1173717

$331.64 |
$10.00 OFF Phone Price : $341.64
In Stock
Switch 1173669
#36

Inner parts diagram

Switch

Part #1173669

$22.24
In Stock
Valve 1172726
#7

Inner parts diagram

Valve

Part #1172726

Replaced by #1185862

?
Manufacturer substitution
This part replaces 1172726. Substitute parts can look different from the original.
$70.56
In Stock
Service Valve 1172792
#8

Inner parts diagram

Service valve

Part #1172792

Replaced by #1185864

?
Manufacturer substitution
This part replaces 1172792. Substitute parts can look different from the original.
$50.73
In Stock
Top Panel 1176412
#A

Outer parts diagram

Top panel

Part #1176412

The manufacturer no longer makes this part, and there's no substitute part

Inst Manual 42101500200
#NI

Outer parts diagram

Inst manual

Part #42101500200

The manufacturer no longer makes this part, and there's no substitute part
