KitchenAid KBDS250V1 garbage disposal Parts
Here are the diagrams and repair parts for KitchenAid KBDS250V1 garbage disposal, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for KBDS250V1 Garbage Disposal

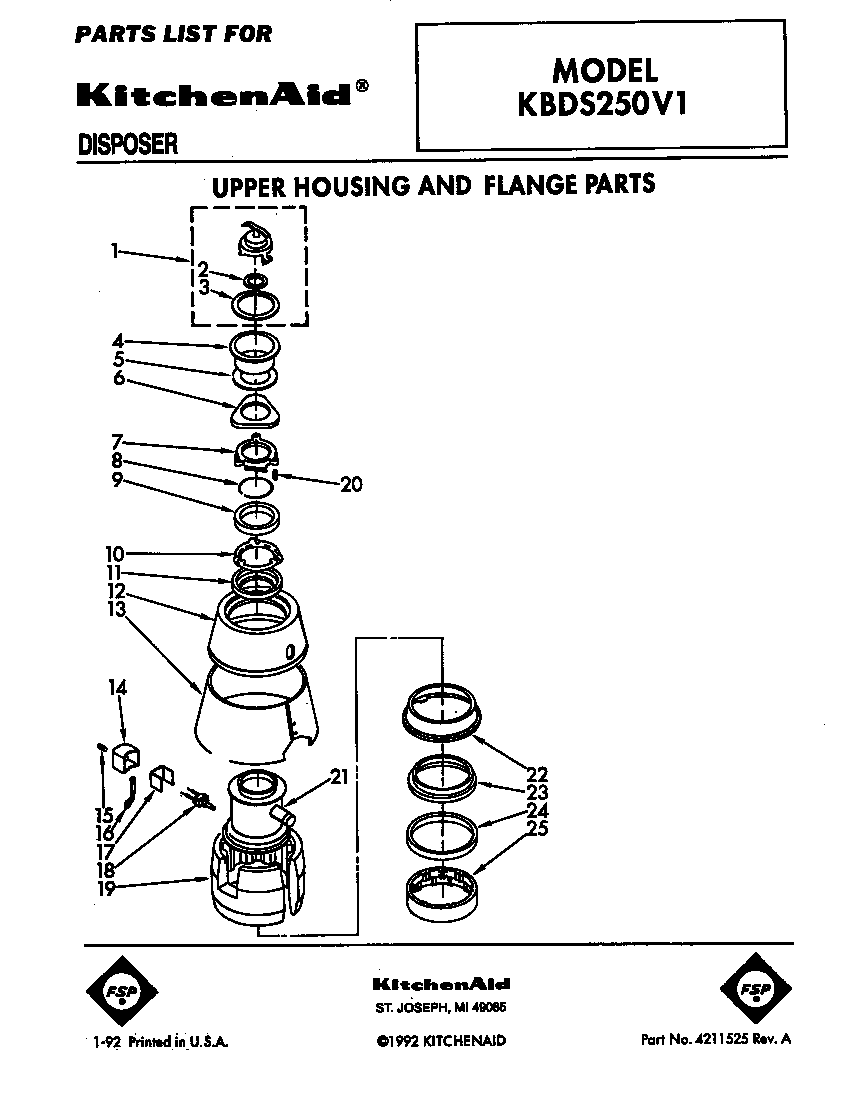

Upper housing and flange diagram
Flange
Part #4211308
The manufacturer no longer makes this part, and there's no substitute part

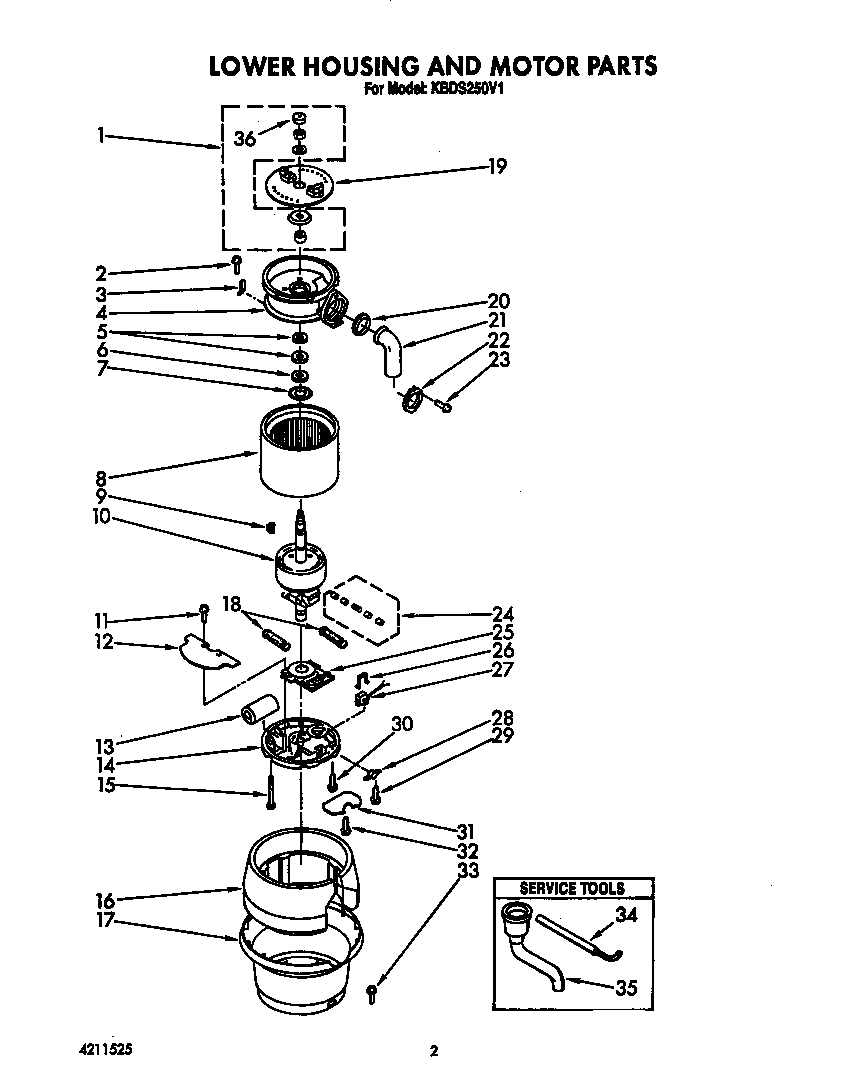

Lower housing and motor diagram
Bx Clamp
Part #4211387
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Spring
Part #4211378
The manufacturer no longer makes this part, and there's no substitute part
Upper housing and flange diagram
Insul-sond
Part #4211366
The manufacturer no longer makes this part, and there's no substitute part
Upper housing and flange diagram
Switch
Part #4211415
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Ring C
Part #4211376
The manufacturer no longer makes this part, and there's no substitute part
Upper housing and flange diagram
Installation Instructions
Part #LIT4211452
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Shell
Part #4211486
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Washer
Part #4211405
The manufacturer no longer makes this part, and there's no substitute part
Lower housing and motor diagram
Shield
Part #4211422
The manufacturer no longer makes this part, and there's no substitute part
