Kenmore 769811190 air conditioner condensing unit Parts
Here are the diagrams and repair parts for Kenmore 769811190 air conditioner condensing unit, as well as links to manuals and error code tables, if available.
By Schematic
SELECT DIAGRAM
Browse Parts for 769811190 Air Conditioner Condensing Unit

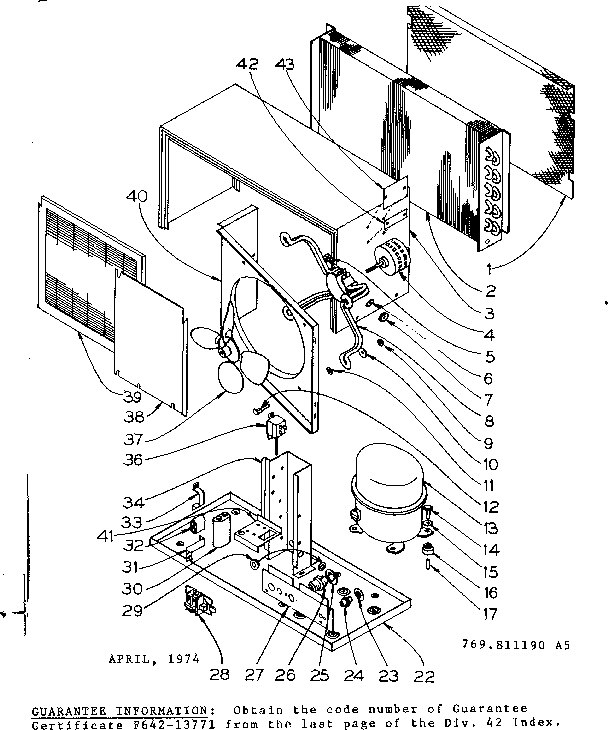

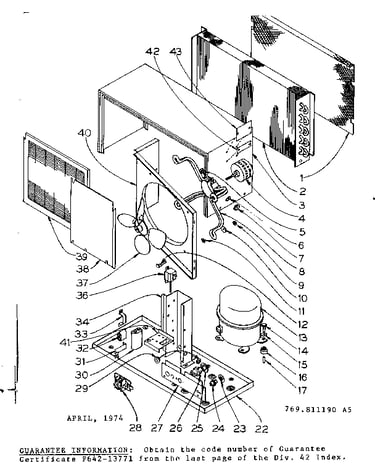

Functional replacement parts diagram
Contactor
Part #8401-261Replaced by #90-170
Manufacturer substitutionThis part replaces 8401-261. Substitute parts can look different from the original.In Stock$55.0310% OFF Phone Price : $61.03
Qty
#NI
All parts diagram
Start Kit
Part #7600-161AReplaced by #SK-A1
Manufacturer substitutionThis part replaces 7600-161A. Substitute parts can look different from the original.In Stock$130.88QtyFunctional replacement parts diagram
Compressor
Part #8000-311Replaced by #703854
Manufacturer substitutionThis part replaces 8000-311. Substitute parts can look different from the original.In Stock$216.40QtyFunctional replacement parts diagram
Motor 1/4 Hp
Part #8101-280Replaced by #45461
Manufacturer substitutionThis part replaces 8101-280. Substitute parts can look different from the original.In Stock$301.96Qty#NI
All parts diagram
Guarantee
Part #F642-13771A
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Housing
Part #5371-706-02
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Partition
Part #7003-840
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Rating Plate
Part #5252-699
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Lock Washer
Part #100055
The manufacturer no longer makes this part, and there's no substitute part
Functional replacement parts diagram
Condenser
Part #5051-205
The manufacturer no longer makes this part, and there's no substitute part
