Kenmore
Space Heater

Model # 155463020 Official Kenmore vented gas space heater

Here are the diagrams and repair parts for Official Kenmore 155463020 vented gas space heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 66 parts  |
Thermocouple K13730
#22

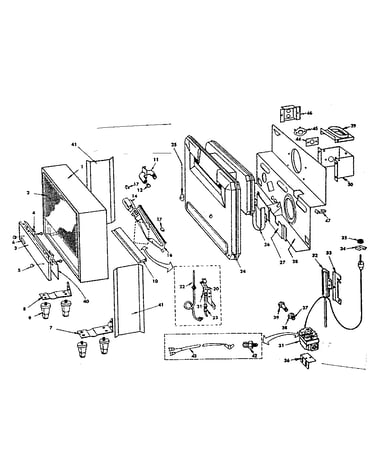

Cabinet and valve diagram

Thermocouple

Part #K13730

The manufacturer no longer makes this part, and there's no substitute part

Natural Valve K15709
#31A

Cabinet and valve diagram

Natural valve

Part #K15709

The manufacturer no longer makes this part, and there's no substitute part

Space Heater Blower Wheel K10900
#12

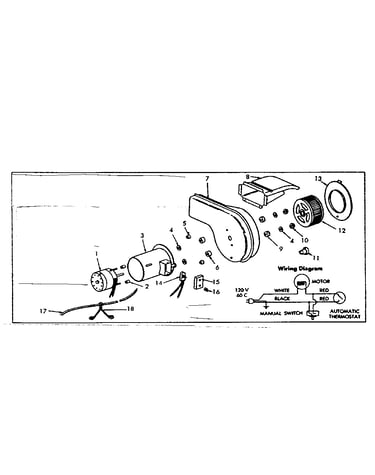

Blower assembly diagram

Space heater blower wheel

Part #K10900

The manufacturer no longer makes this part, and there's no substitute part

Natural Gas Pilot K13726
#20

Cabinet and valve diagram

Natural gas pilot

Part #K13726

The manufacturer no longer makes this part, and there's no substitute part

Cord K9541
#17

Blower assembly diagram

Cord

Part #K9541

The manufacturer no longer makes this part, and there's no substitute part

Housing Y11729
#3

Blower assembly diagram

Housing

Part #Y11729

The manufacturer no longer makes this part, and there's no substitute part

Bulb Shield T15769
#32

Cabinet and valve diagram

Bulb shield

Part #T15769

The manufacturer no longer makes this part, and there's no substitute part

Connector K12600
#23

Cabinet and valve diagram

Connector

Part #K12600

The manufacturer no longer makes this part, and there's no substitute part

Inlet Ring T15874
#13

Blower assembly diagram

Inlet ring

Part #T15874

The manufacturer no longer makes this part, and there's no substitute part

Adapter K17992
#42

Cabinet and valve diagram

Adapter

Part #K17992

The manufacturer no longer makes this part, and there's no substitute part
