Horizon E52 elliptical machine Parts
Here are the diagrams and repair parts for Horizon E52 elliptical machine, as well as links to manuals and error code tables, if available.
Owner’s manual
By Schematic
SELECT DIAGRAM
Browse Parts for E52 Fitness & Exercise

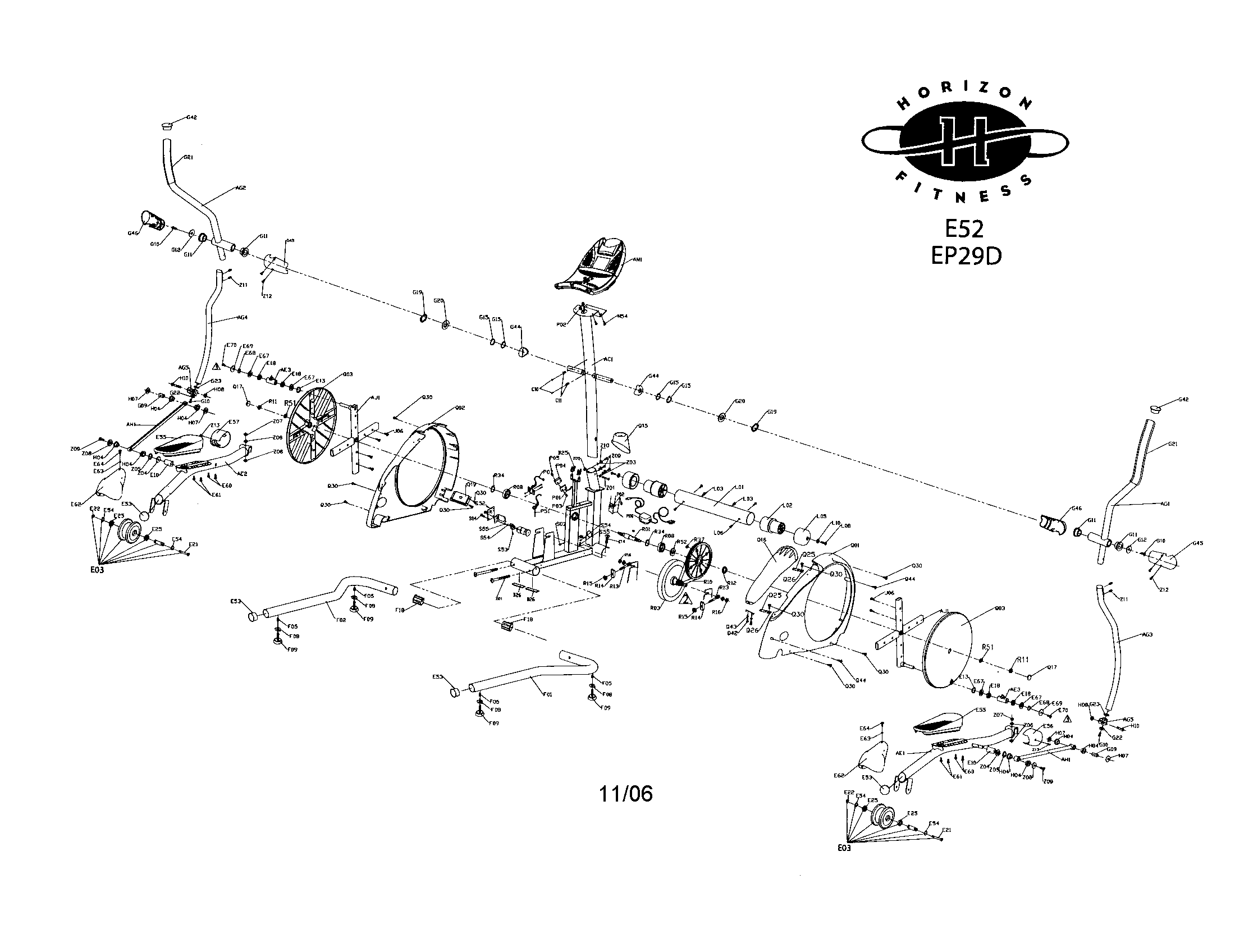

Elliptical assembly diagram
Pedal Arm Set, Right Ep28d (1 Set)
Part #SZEP29EPAM
The manufacturer no longer makes this part, and there's no substitute part
Elliptical assembly diagram
Screw M2 X 0.4p X 16.0l (2 Pcs)
Part #ME0104136
The manufacturer no longer makes this part, and there's no substitute part
Elliptical assembly diagram
Pedal Arm Set, Right Ep29d (1 Set)
Part #SZEP29DPAM-
The manufacturer no longer makes this part, and there's no substitute part
Elliptical assembly diagram
Power Socket (1 Pcs)(abs)
Part #MB0624006C
The manufacturer no longer makes this part, and there's no substitute part
Elliptical assembly diagram
Guide Rail Set, Left Ep28d (1 Set)
Part #SZEP28DRAL-L
The manufacturer no longer makes this part, and there's no substitute part
Elliptical assembly diagram
Washer
Part #MZE0505042A
The manufacturer no longer makes this part, and there's no substitute part
Elliptical assembly diagram
End Cap
Part #MB0629020B
The manufacturer no longer makes this part, and there's no substitute part
Elliptical assembly diagram
Washer
Part #MZE0502138
The manufacturer no longer makes this part, and there's no substitute part
Elliptical assembly diagram
Link Arm
Part #SZEP28LLA
The manufacturer no longer makes this part, and there's no substitute part
Elliptical assembly diagram
Owner's Manual/assembly Ep28d-v31a (1 Pcs)
Part #MH0207139A
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your fitness & exercise
Choose a symptom to see related elliptical repairs.
Main causes: bad resistance motor, faulty control console, wiring failure…
Main causes: dead batteries, power supply failure, bad wiring connections, faulty control console…
Repair guides for elliptical machines
These step-by-step repair guides will help you safely fix what’s broken on your elliptical.
How to replace an elliptical resistance motor
If the resistance motor is not changing the resistance on your elliptical, replace it using these steps.…
Repair time and Difficulty
15 minutes or less
How to adjust an elliptical reed switch
If the console doesn't display the correct speed on your elliptical, adjust the reed switch using these steps.…
Repair time and Difficulty
15 minutes or less
How to replace an elliptical console
If the console on your elliptical doesn't work, replace it by following these 3 easy steps.…
Repair time and Difficulty
15 minutes or less
Effective articles & videos to help repair your fitness & exercise
Use the advice and tips in these articles and videos to get the most out of your elliptical.
