Microwave/Hood Combo

Model # R-1380 Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-1380 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

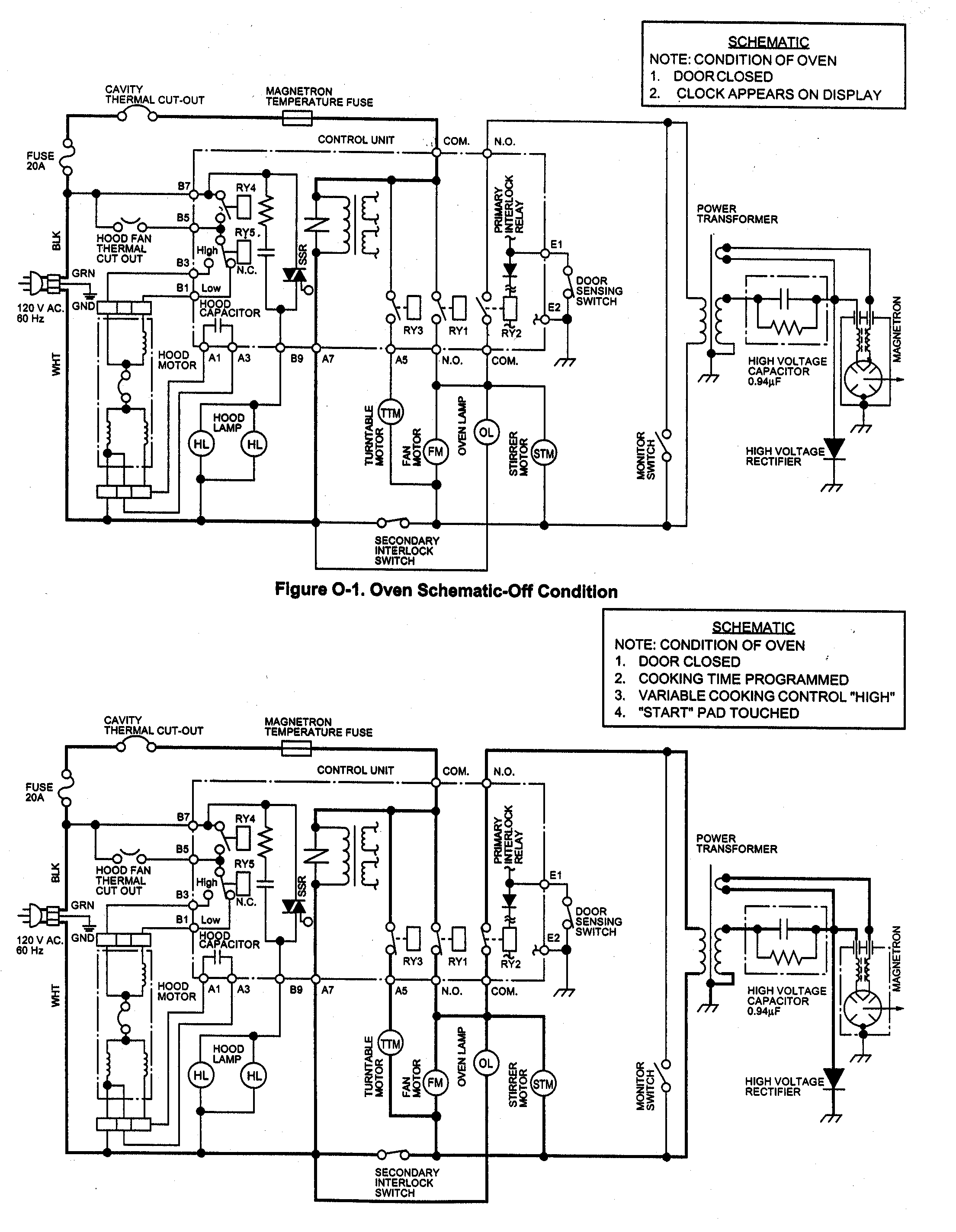

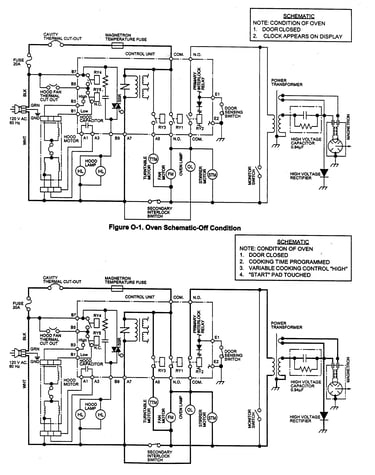

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Switch QSW-MA110WRE0
#1-10

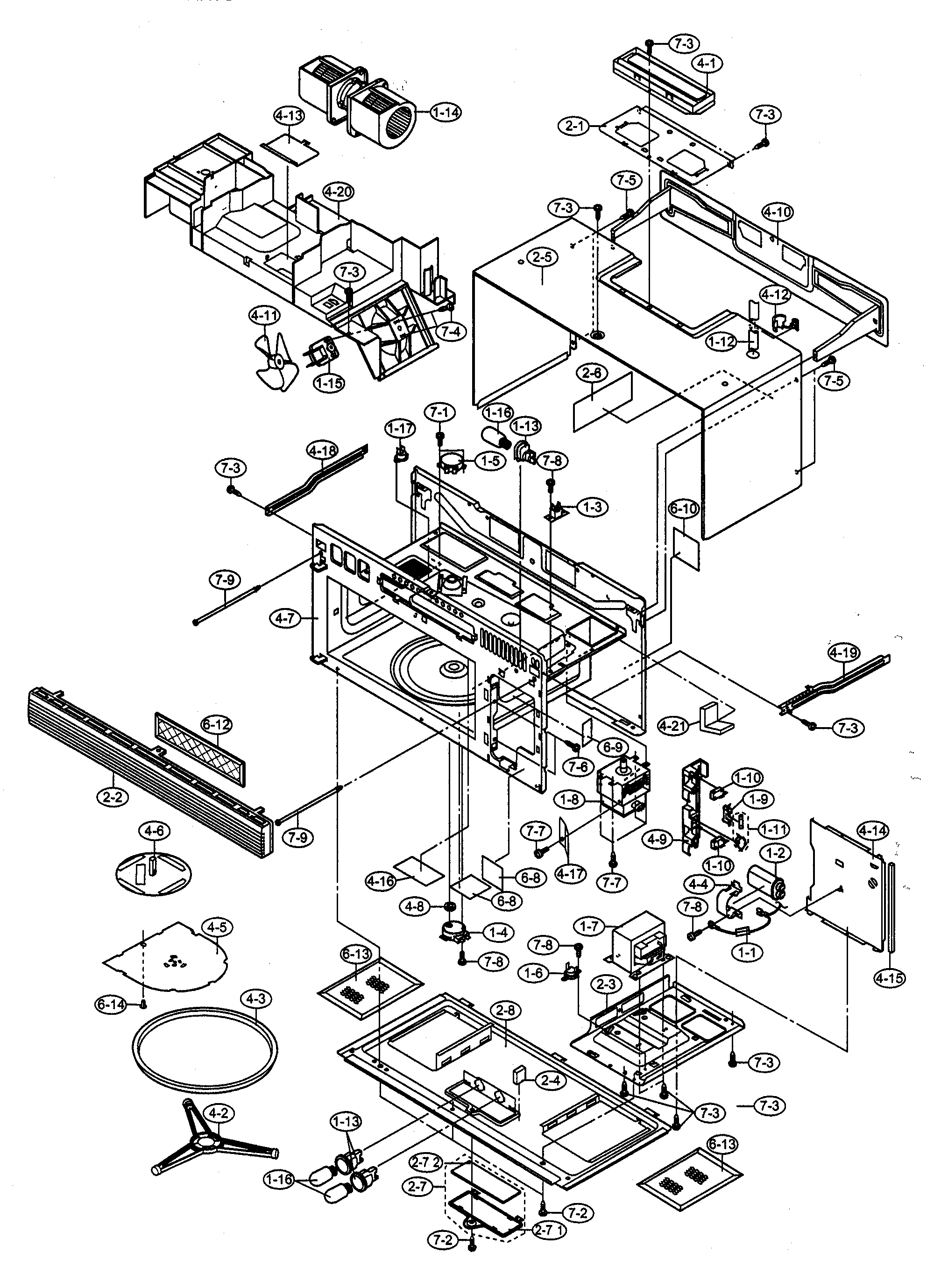

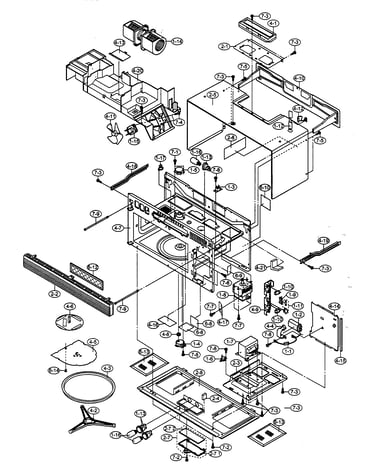

Oven/cabinet parts diagram

Switch

Part #QSW-MA110WRE0

The manufacturer no longer makes this part, and there's no substitute part

Out Cabinet GCABUB084MRP0
#2-5

Oven/cabinet parts diagram

Out cabinet

Part #GCABUB084MRP0

The manufacturer no longer makes this part, and there's no substitute part

Latch Hook PHOK-B017MRF0
#4-9

Oven/cabinet parts diagram

Latch hook

Part #PHOK-B017MRF0

The manufacturer no longer makes this part, and there's no substitute part

Installation Paper CFZK-B131MRK0
#6-1

Oven/cabinet parts diagram

Installation paper

Part #CFZK-B131MRK0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch LSTPPB030MRF0
#5-22

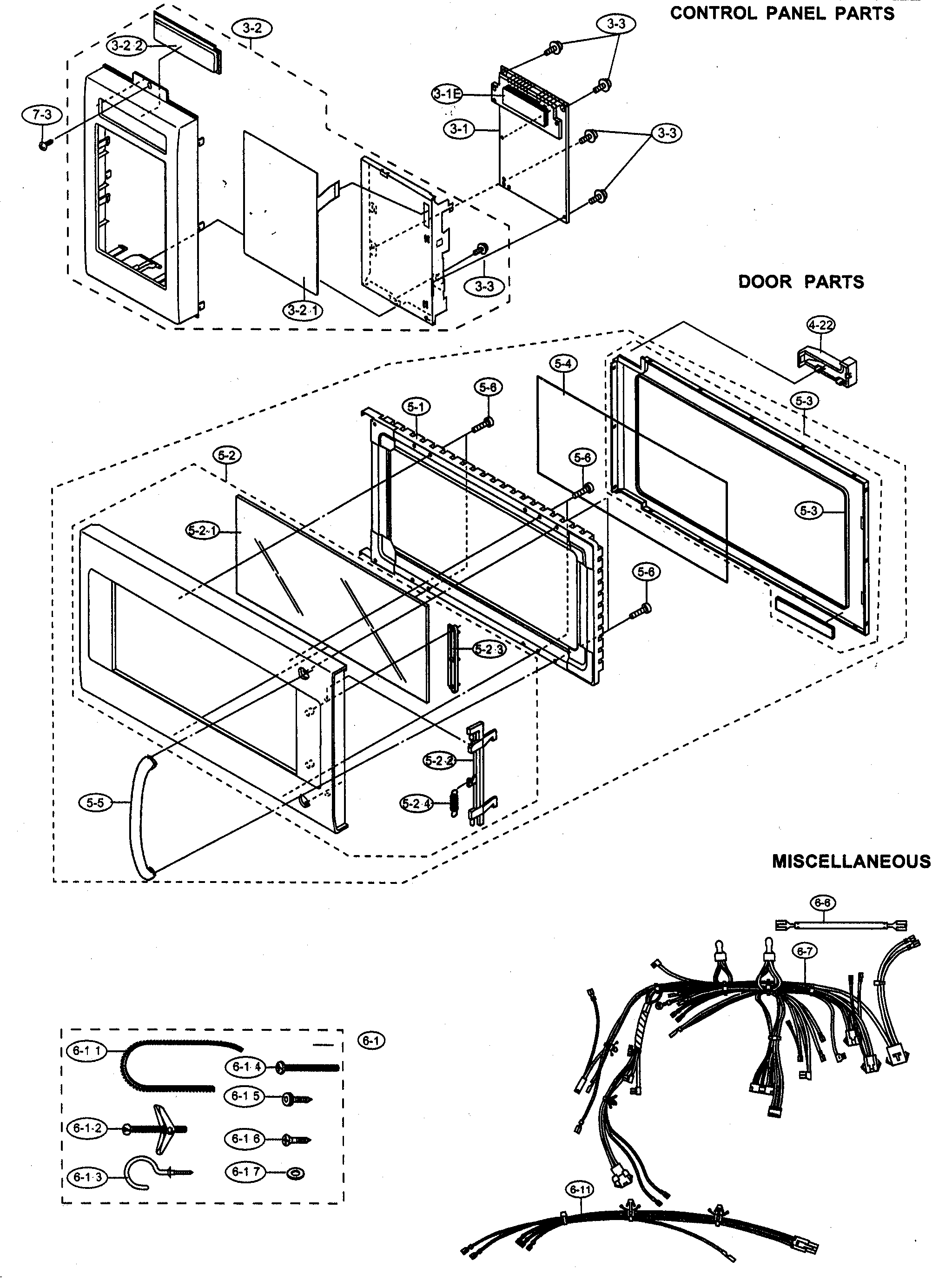

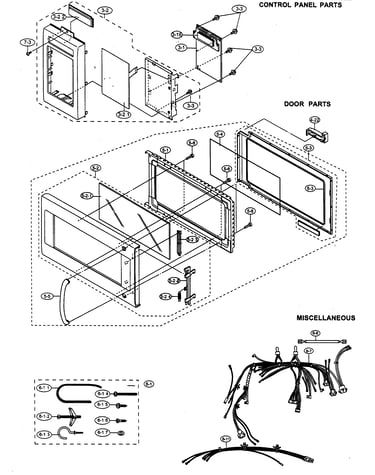

Control panel/door parts diagram

Microwave door latch

Part #LSTPPB030MRF0

The manufacturer no longer makes this part, and there's no substitute part

Cord Bushing LBSHC0037WRE0
#4-12

Oven/cabinet parts diagram

Cord bushing

Part #LBSHC0037WRE0

The manufacturer no longer makes this part, and there's no substitute part

Display Window GMADIB030MRF0
#3-22

Control panel/door parts diagram

Display window

Part #GMADIB030MRF0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Surface Light Lens PGLSPB004MRE0
#2-72

Oven/cabinet parts diagram

Microwave surface light lens

Part #PGLSPB004MRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Surface Light Lens FANGKB009MRY0
#2-7

Oven/cabinet parts diagram

Microwave surface light lens

Part #FANGKB009MRY0

The manufacturer no longer makes this part, and there's no substitute part

Sealer Film PSHEPB024MRE0
#5-4

Control panel/door parts diagram

Sealer film

Part #PSHEPB024MRE0

The manufacturer no longer makes this part, and there's no substitute part
