Kenmore
Microwave/Hood Combo

Model # 72185032011 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72185032011 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

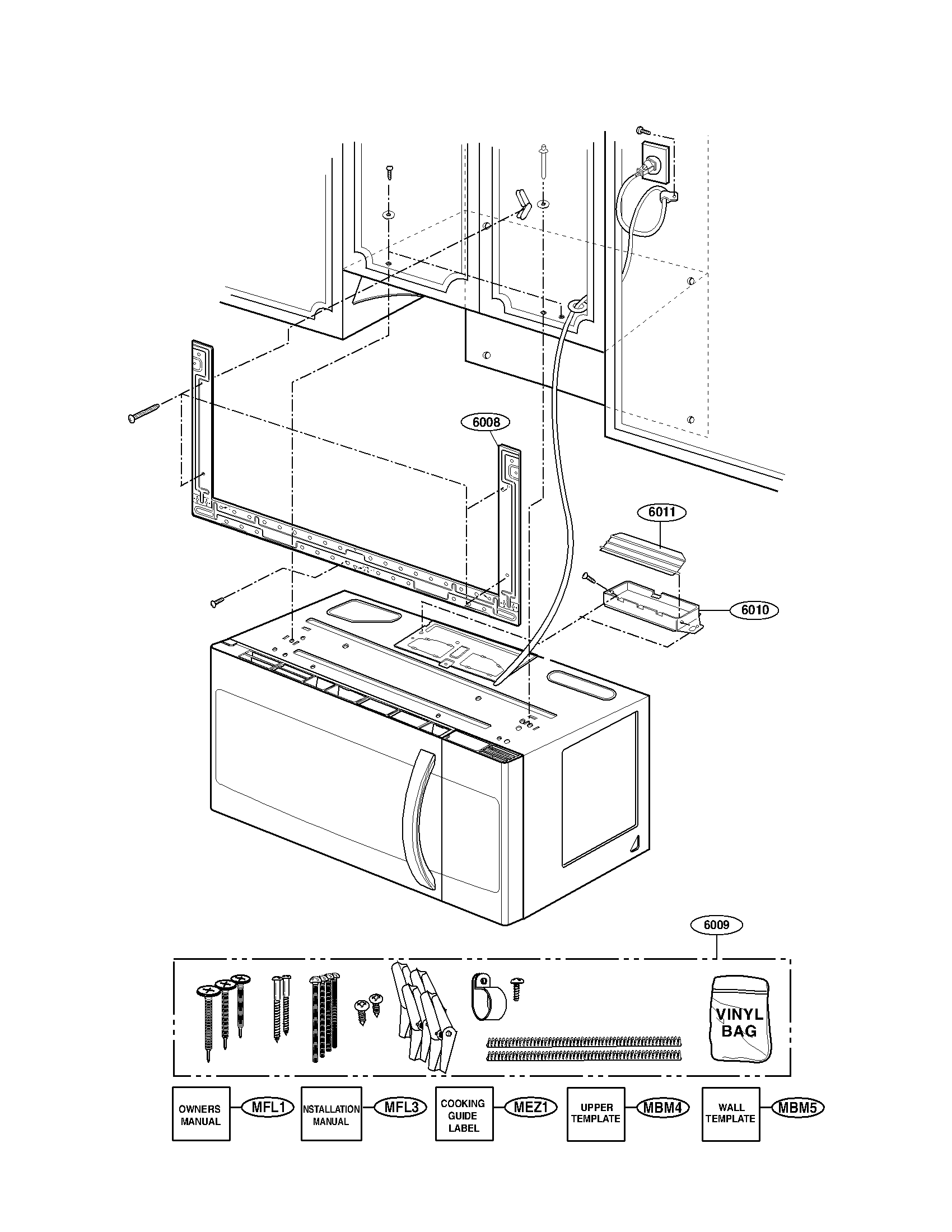

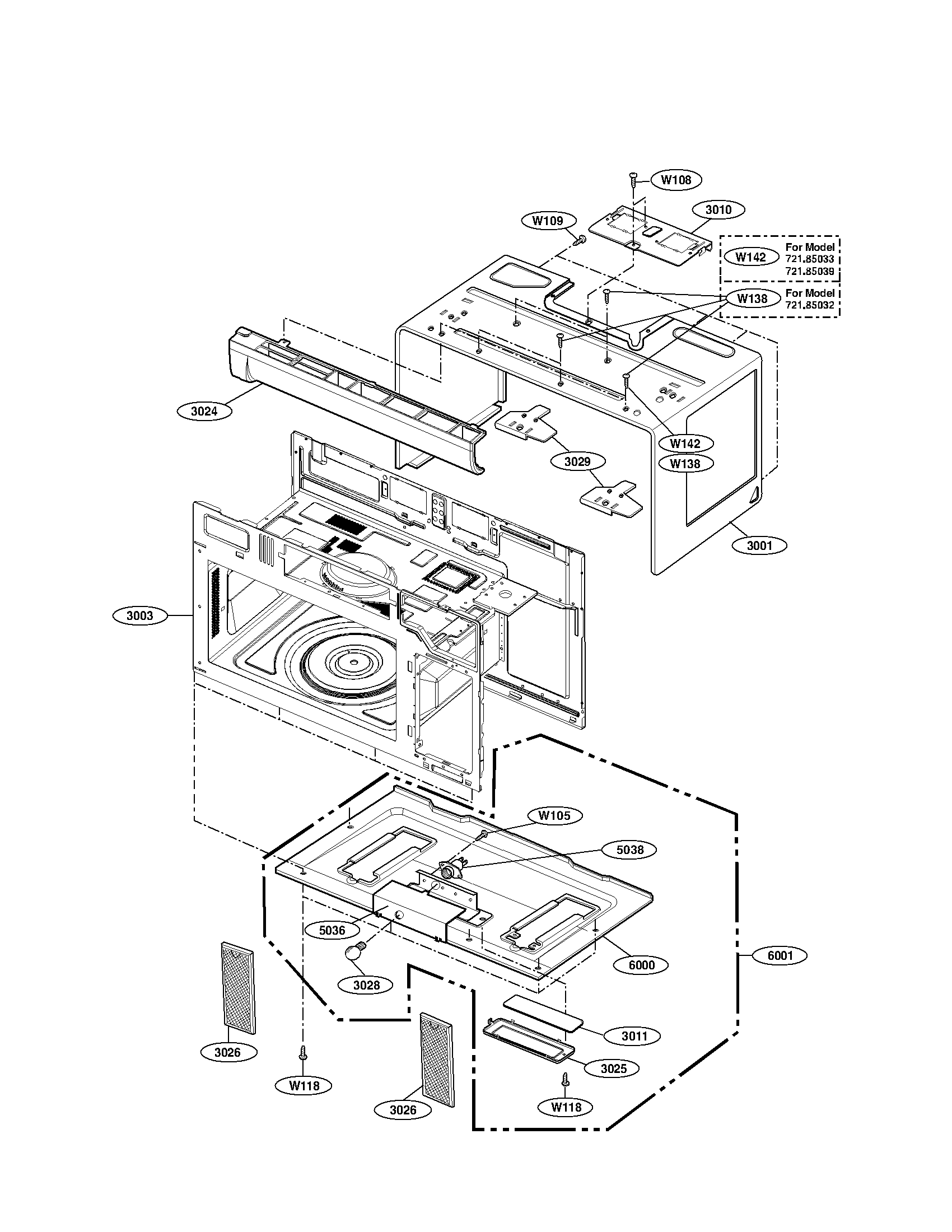

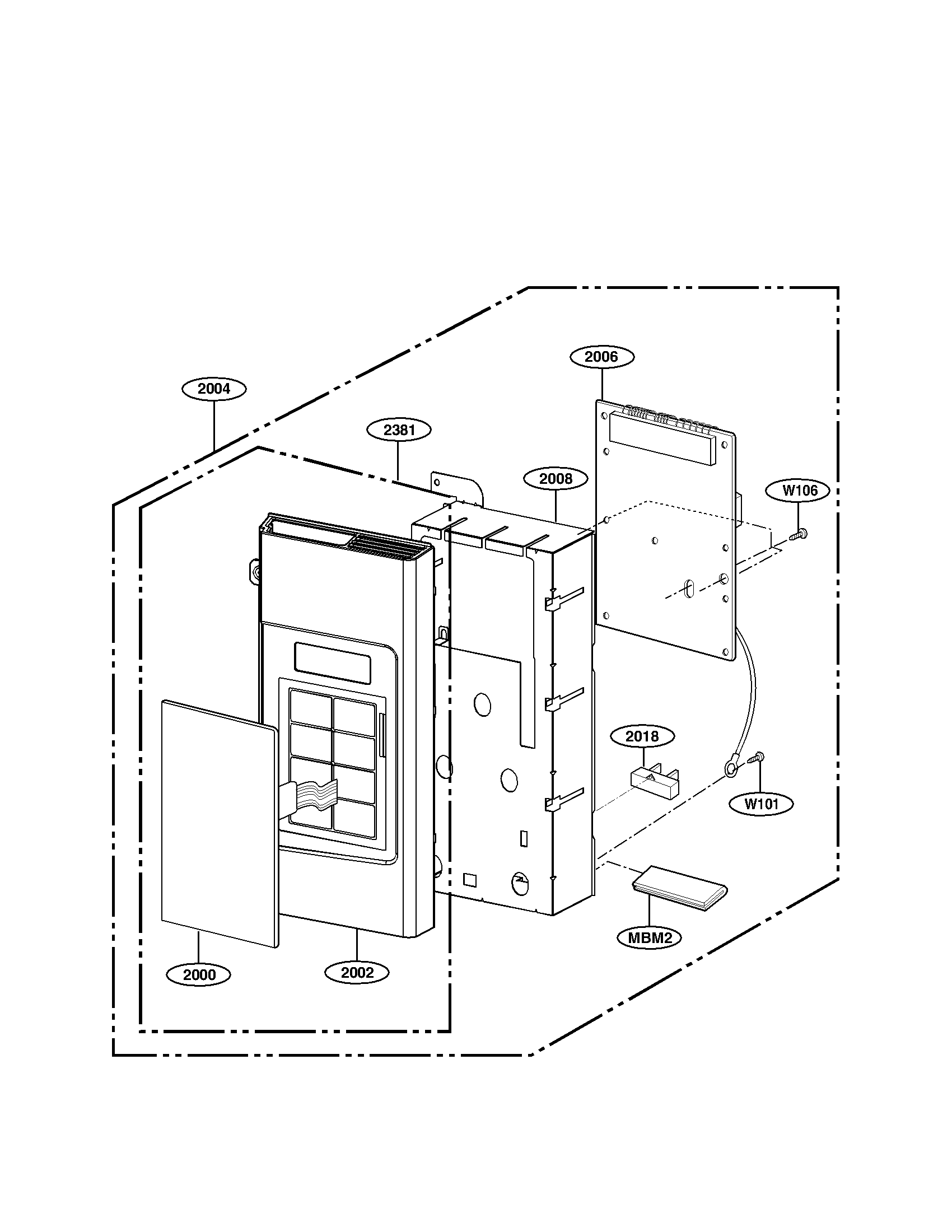

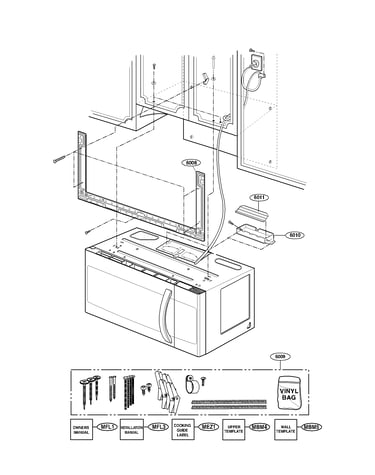

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Magnetron 2B71165P
#5009

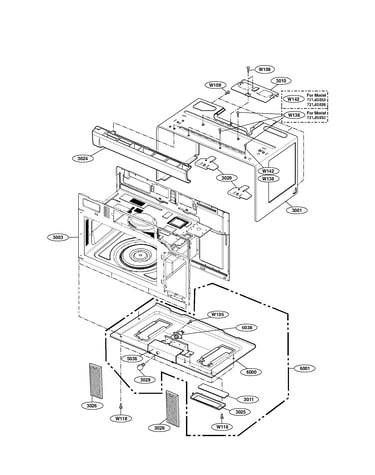

Interior parts diagram

Magnetron

Part #2B71165P

The manufacturer no longer makes this part, and there's no substitute part

Microwave High-voltage Diode (replaces 6021w3b001n, 6021w3b001q, 6021w3b001r, 6851w1a002b) 6021W3B001V
#5018

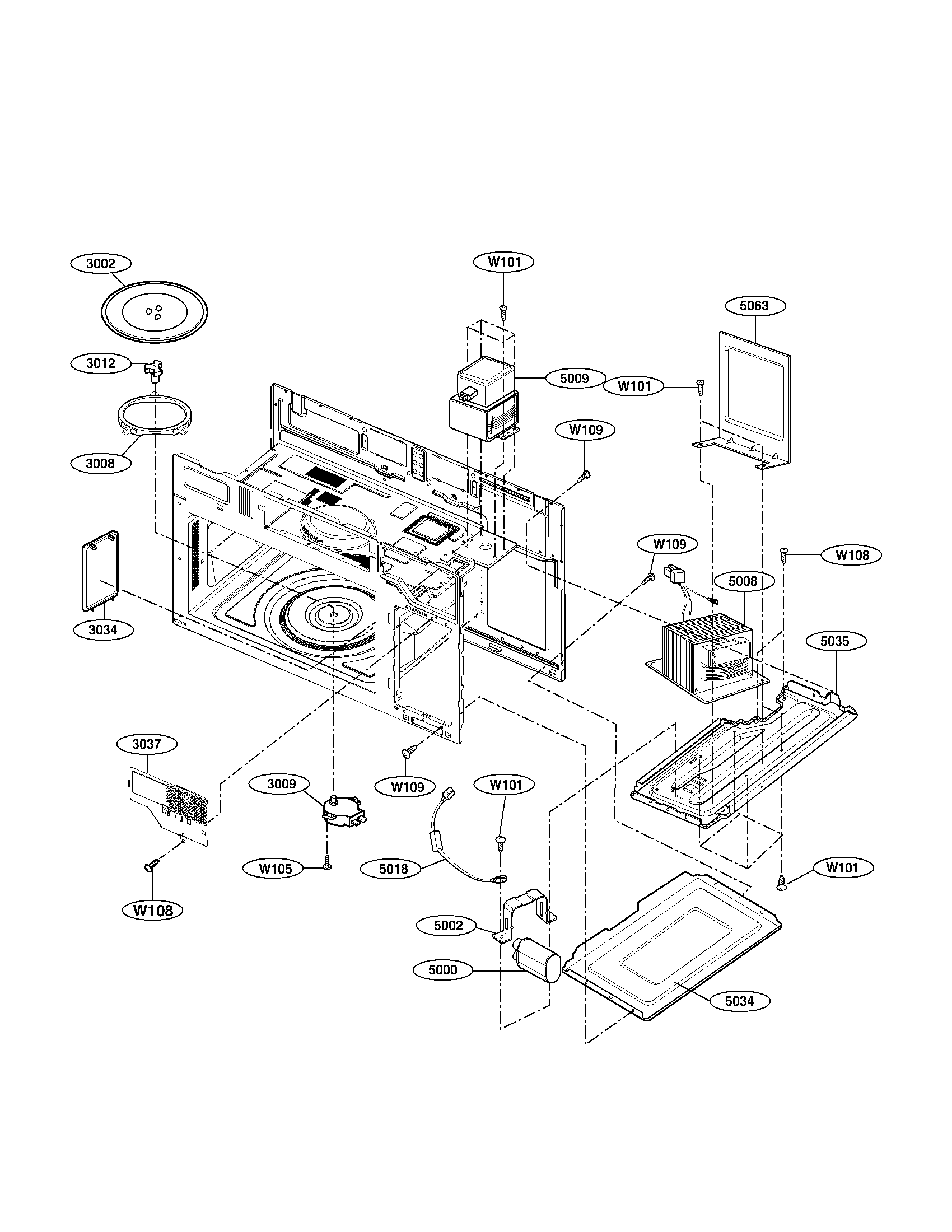

Interior parts diagram

Microwave high-voltage diode (replaces 6021w3b001n, 6021w3b001q, 6021w3b001r, 6851w1a002b)

Part #6021W3B001V

BEST SELLER
$8.73 |
10% OFF Phone Price : $9.73
In Stock
Microwave Glass Turntable Tray (replaces 1b71961f) 1B71961H
#3002

Interior parts diagram

Microwave glass turntable tray (replaces 1b71961f)

Part #1B71961H

BEST SELLER
$32.53 |
13% OFF Phone Price : $37.53
In Stock
High-voltage Capacitor EAE61082101
#5000

Interior parts diagram

High-voltage capacitor

Part #EAE61082101

Replaced by #0CZZW1H004B

?
Manufacturer substitution
This part replaces EAE61082101. Substitute parts can look different from the original.
BEST SELLER
$28.54 |
15% OFF Phone Price : $33.54
In Stock
Microwave Door Latch Housing And Interlock Switch Assembly 3501W1A019D
#4001

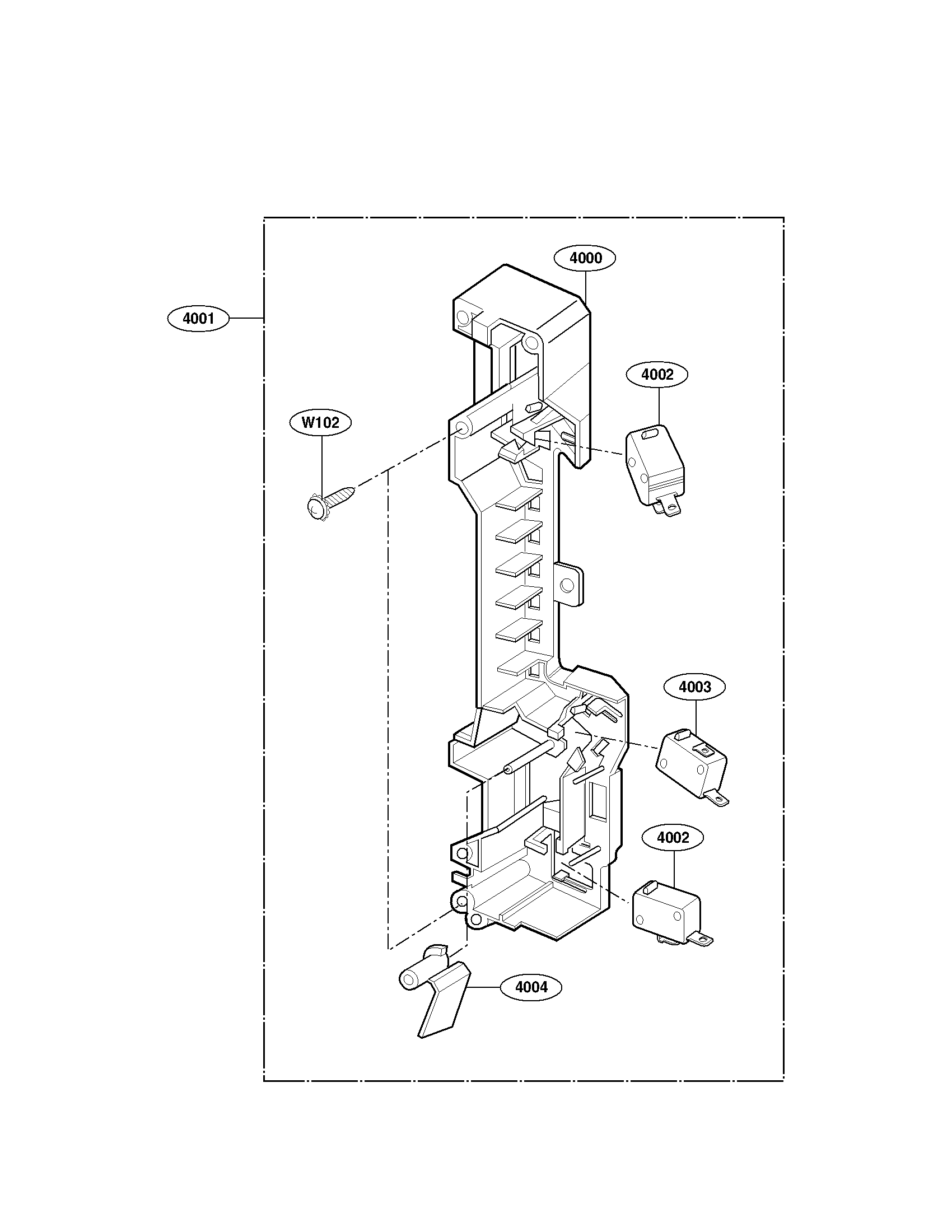

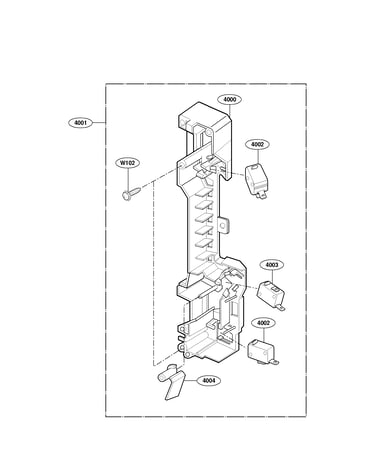

Latch board parts diagram

Microwave door latch housing and interlock switch assembly

Part #3501W1A019D

The manufacturer no longer makes this part, and there's no substitute part

Microwave Door Latch Spring 4970WRA001G
#1007

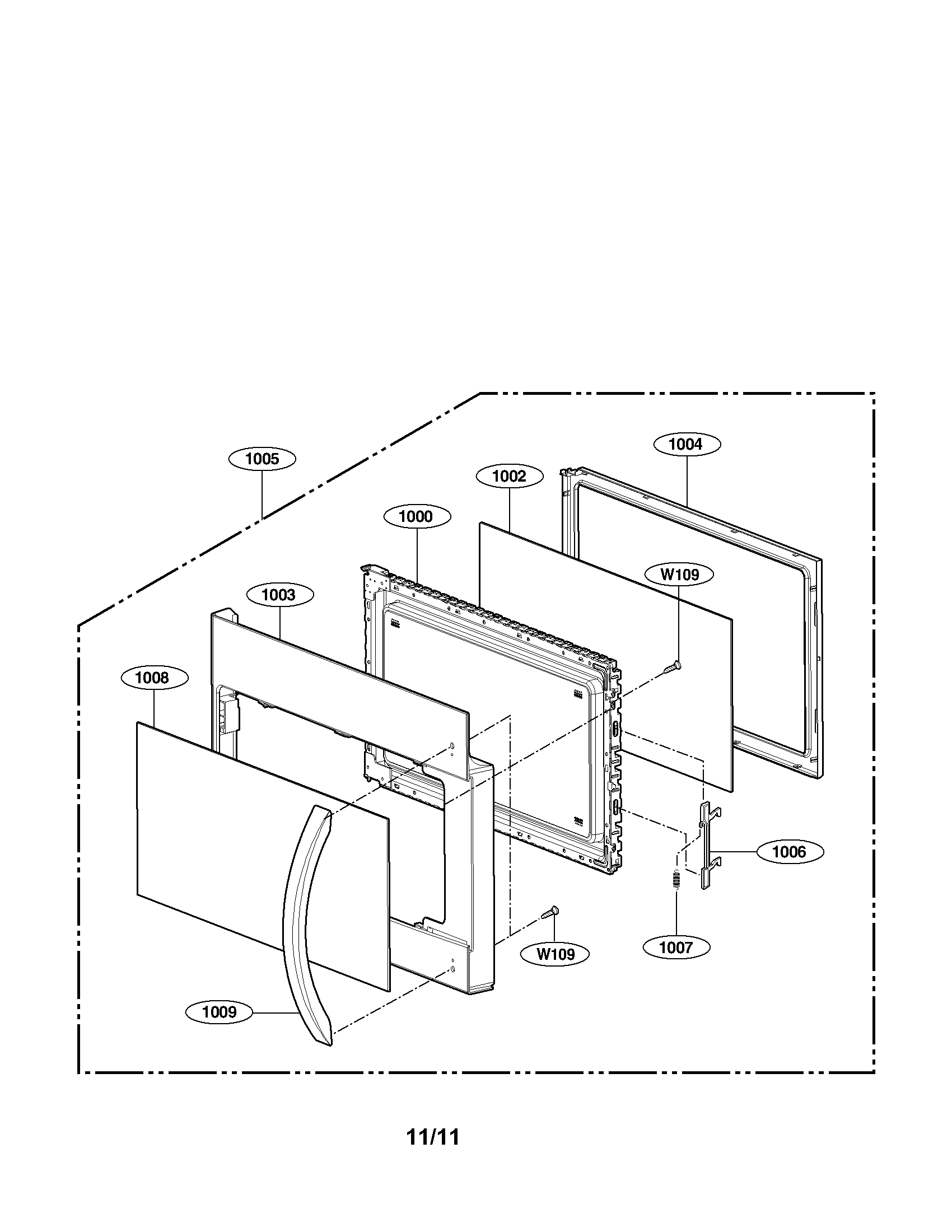

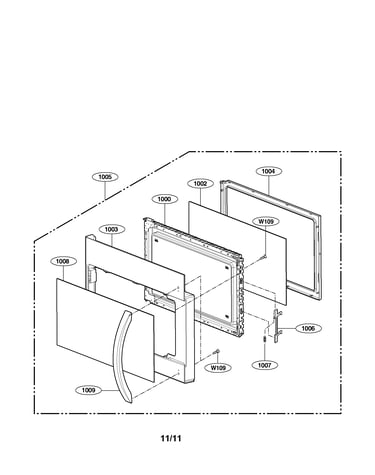

Door parts diagram

Microwave door latch spring

Part #4970WRA001G

BEST SELLER
This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#3004

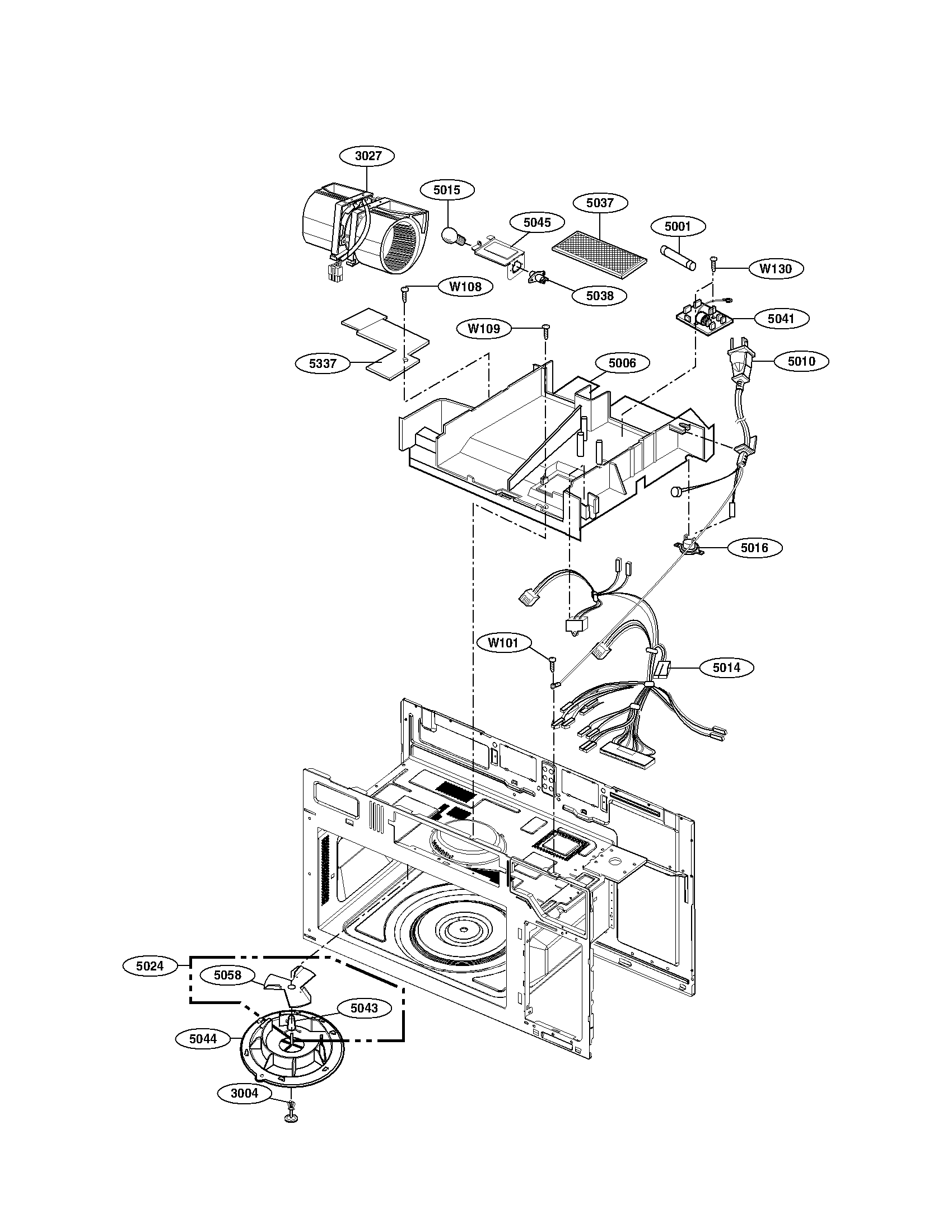

Interior parts 2 diagram

Microwave waveguide cover rivet

Part #4051W3A001A

BEST SELLER
This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
Microwave Turntable Motor 6549W1S013K
#3009

Interior parts diagram

Microwave turntable motor

Part #6549W1S013K

$23.98 |
17% OFF Phone Price : $28.98
In Stock
Microwave Thermostat 6930W1A003E
#5016

Interior parts 2 diagram

Microwave thermostat

Part #6930W1A003E

This item is not returnable
$9.76 |
9% OFF Phone Price : $10.76
In Stock
Microwave Door Choke Cover 3552W1A032J
#1004

Door parts diagram

Microwave door choke cover

Part #3552W1A032J

This item is not returnable
$10.03 |
17% OFF Phone Price : $12.03
In Stock
