Model #620656306 Kenmore 15" frying pan

Here are the diagrams and repair parts for Kenmore 620656306 15" frying pan, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

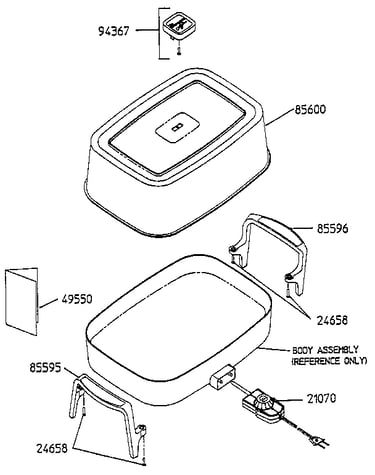

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

    Showing 7 of 7 parts

    Knob

    #7

    Replacement parts Diagram

    Knob

    Part #94367

    The manufacturer no longer makes this part, and there's no substitute part

    Screw

    #2

    Replacement parts Diagram

    Screw

    Part #24658

    The manufacturer no longer makes this part, and there's no substitute part

    Cover

    #6

    Replacement parts Diagram

    Cover

    Part #85600

    The manufacturer no longer makes this part, and there's no substitute part

    Hdl/cook Gde

    #5

    Replacement parts Diagram

    Hdl/cook gde

    Part #85596

    The manufacturer no longer makes this part, and there's no substitute part

    Heat Control

    #1

    Replacement parts Diagram

    Heat control

    Part #21070

    The manufacturer no longer makes this part, and there's no substitute part

    Instruction Sheet

    #3

    Replacement parts Diagram

    Instruction sheet

    Part #49550

    The manufacturer no longer makes this part, and there's no substitute part

    Hndl W/plate

    #4

    Replacement parts Diagram

    Hndl w/plate

    Part #85595

    The manufacturer no longer makes this part, and there's no substitute part
