Model # PV-DV953 Official Panasonic digital camcorder

Here are the diagrams and repair parts for Official Panasonic PV-DV953 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

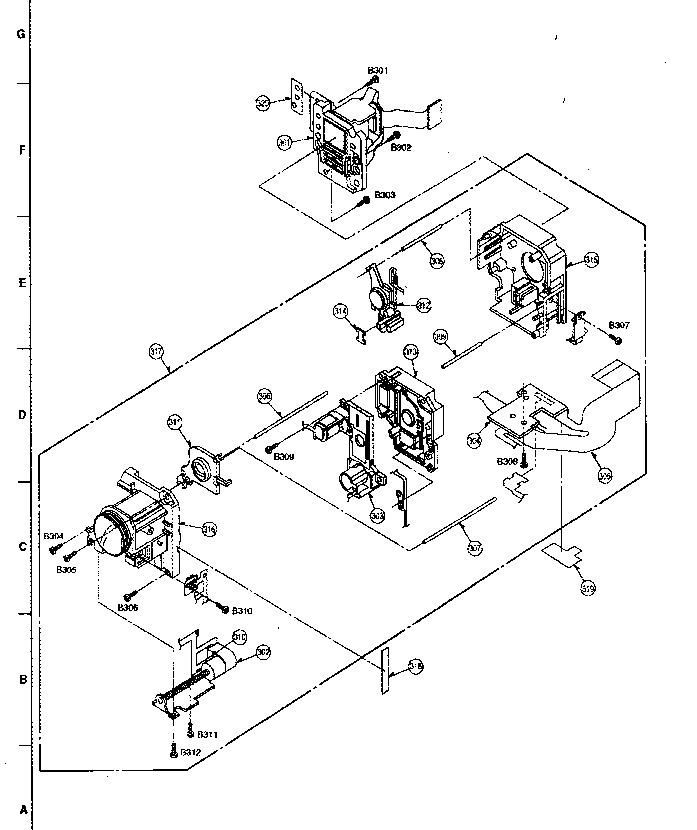

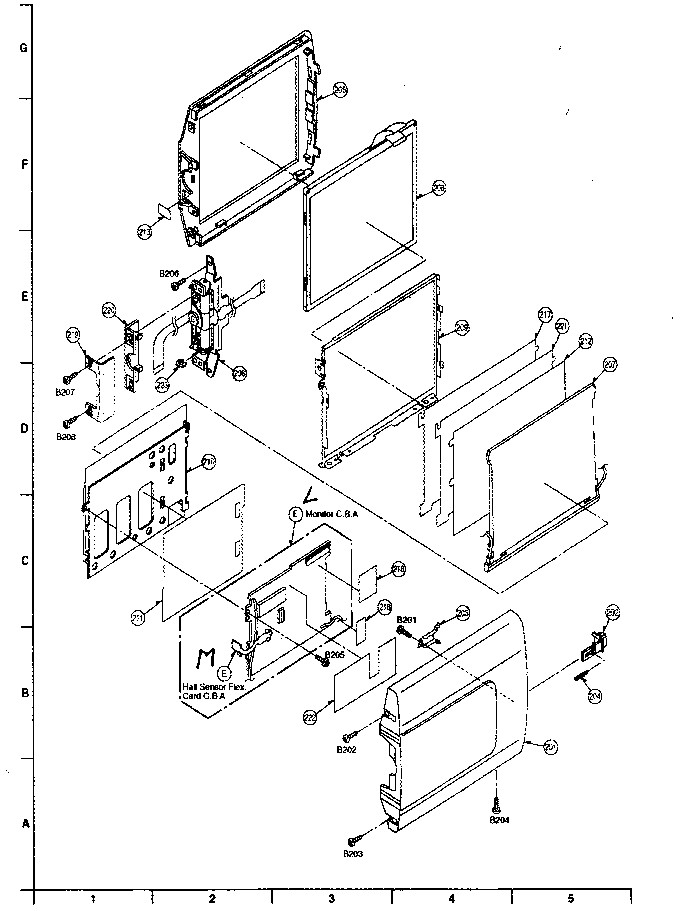

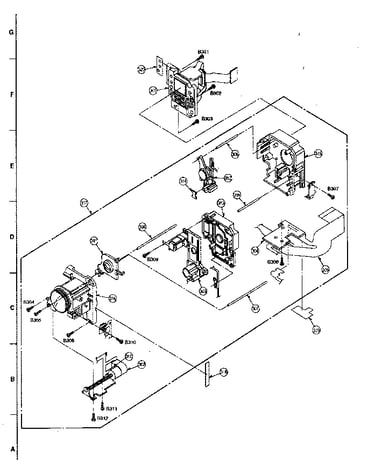

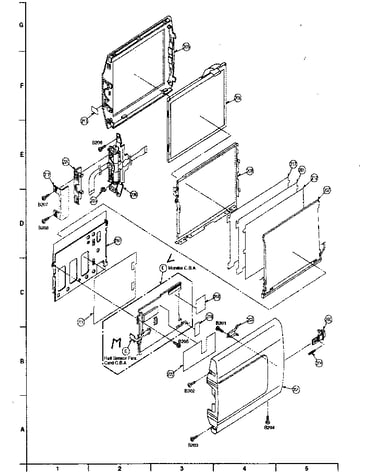

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 176 parts  |
Evf Case VKM6020
#27

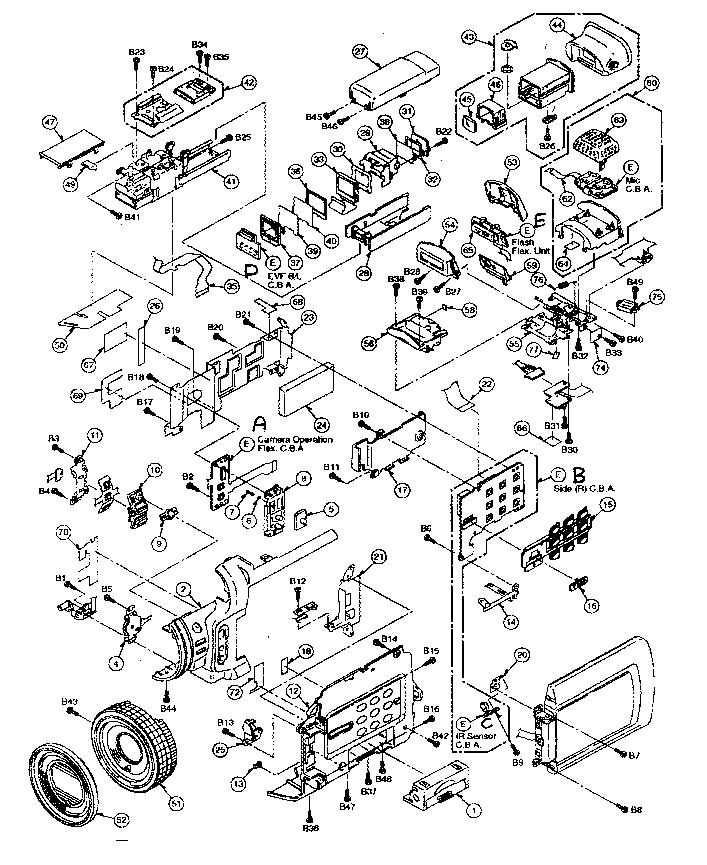

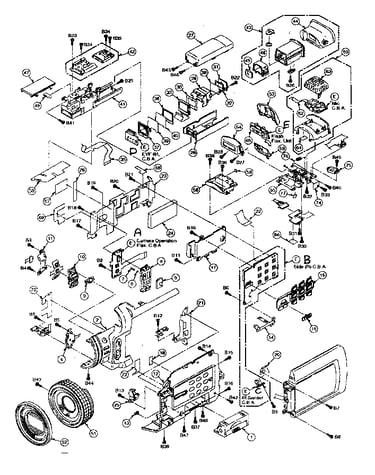

Cabinet parts 1 diagram

Evf case

Part #VKM6020

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0FBZH000013
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #C0FBZH000013

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C3EBHC000015
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #C3EBHC000015

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit MN5773
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #MN5773

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit AN3732FJMEFV
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #AN3732FJMEFV

The manufacturer no longer makes this part, and there's no substitute part

Jack Cover VKF3523
#122

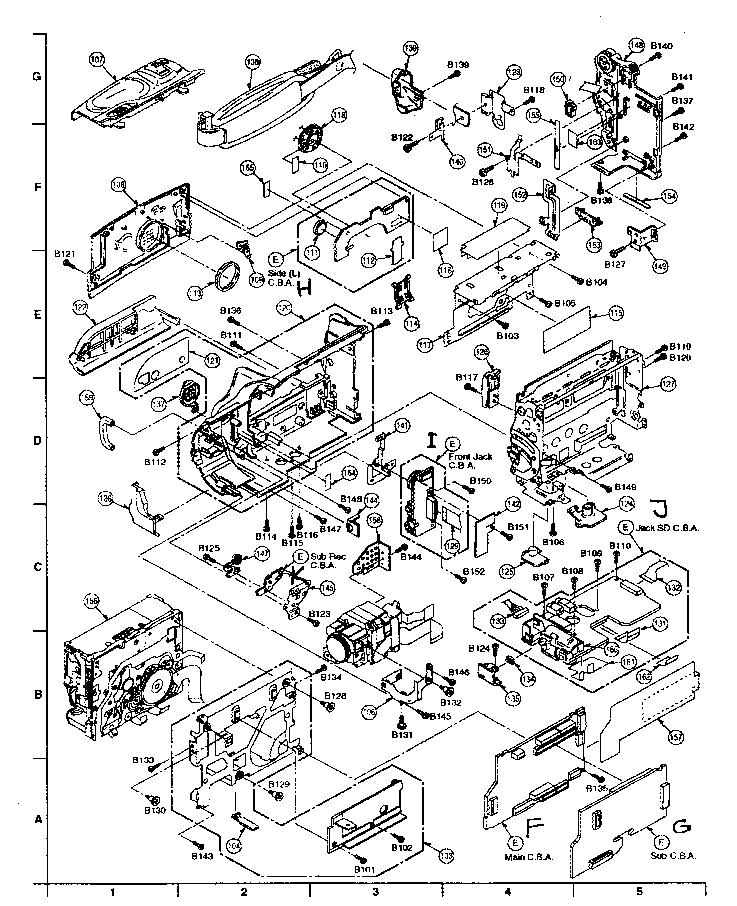

Cabinet parts 2 diagram

Jack cover

Part #VKF3523

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C1AB00001280
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #C1AB00001280

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C0JBAA000246
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #C0JBAA000246

The manufacturer no longer makes this part, and there's no substitute part

Transformer EFTU21R203
#NI

Cabinet parts 1 diagram

Transformer

Part #EFTU21R203

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit C1AB00001132
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #C1AB00001132

The manufacturer no longer makes this part, and there's no substitute part
