Model # MV-1525W Official Goldstar microwave

Here are the diagrams and repair parts for Official Goldstar MV-1525W microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

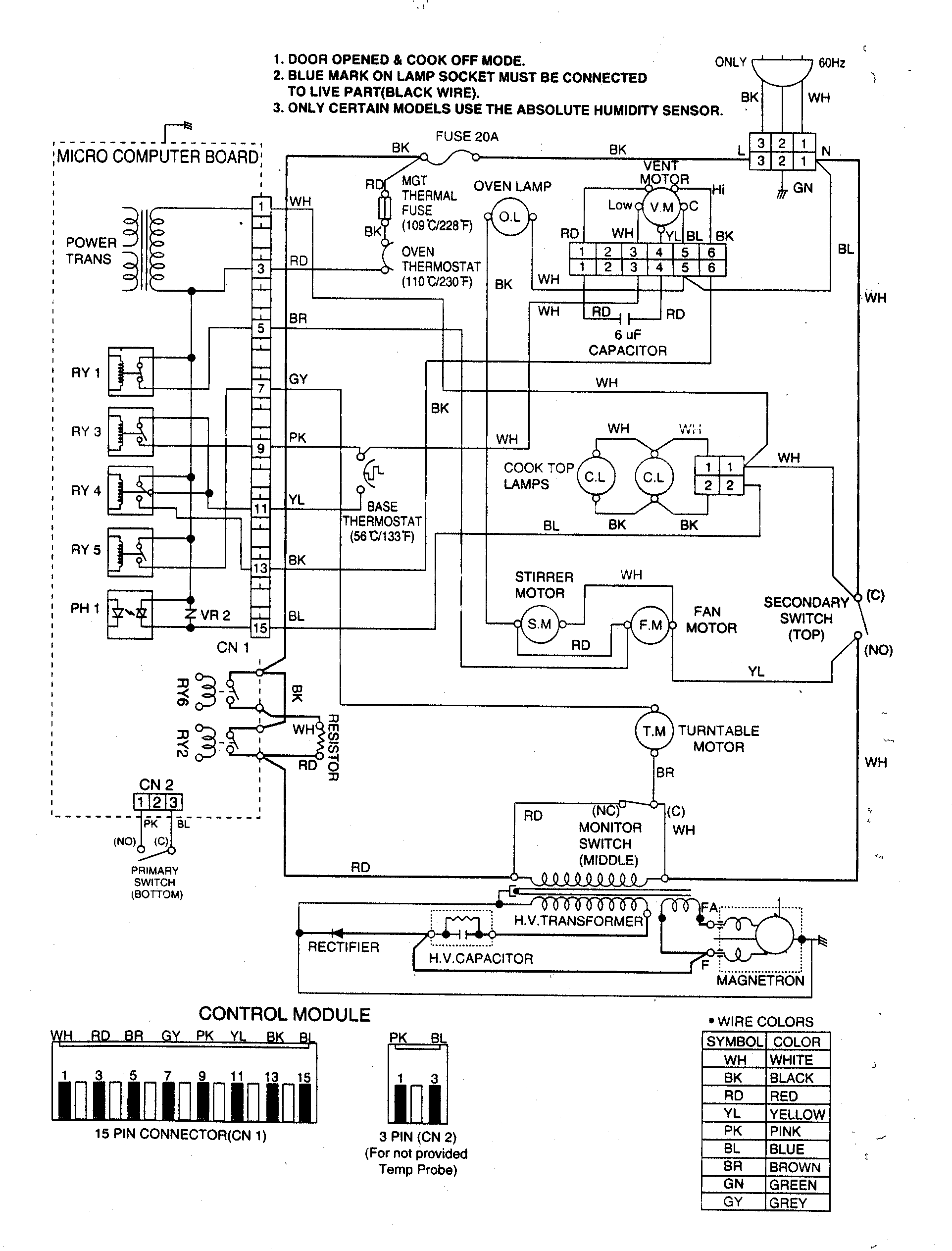

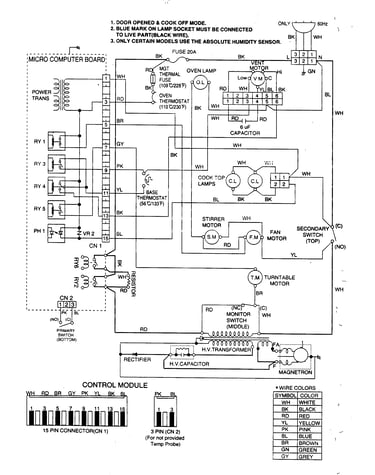

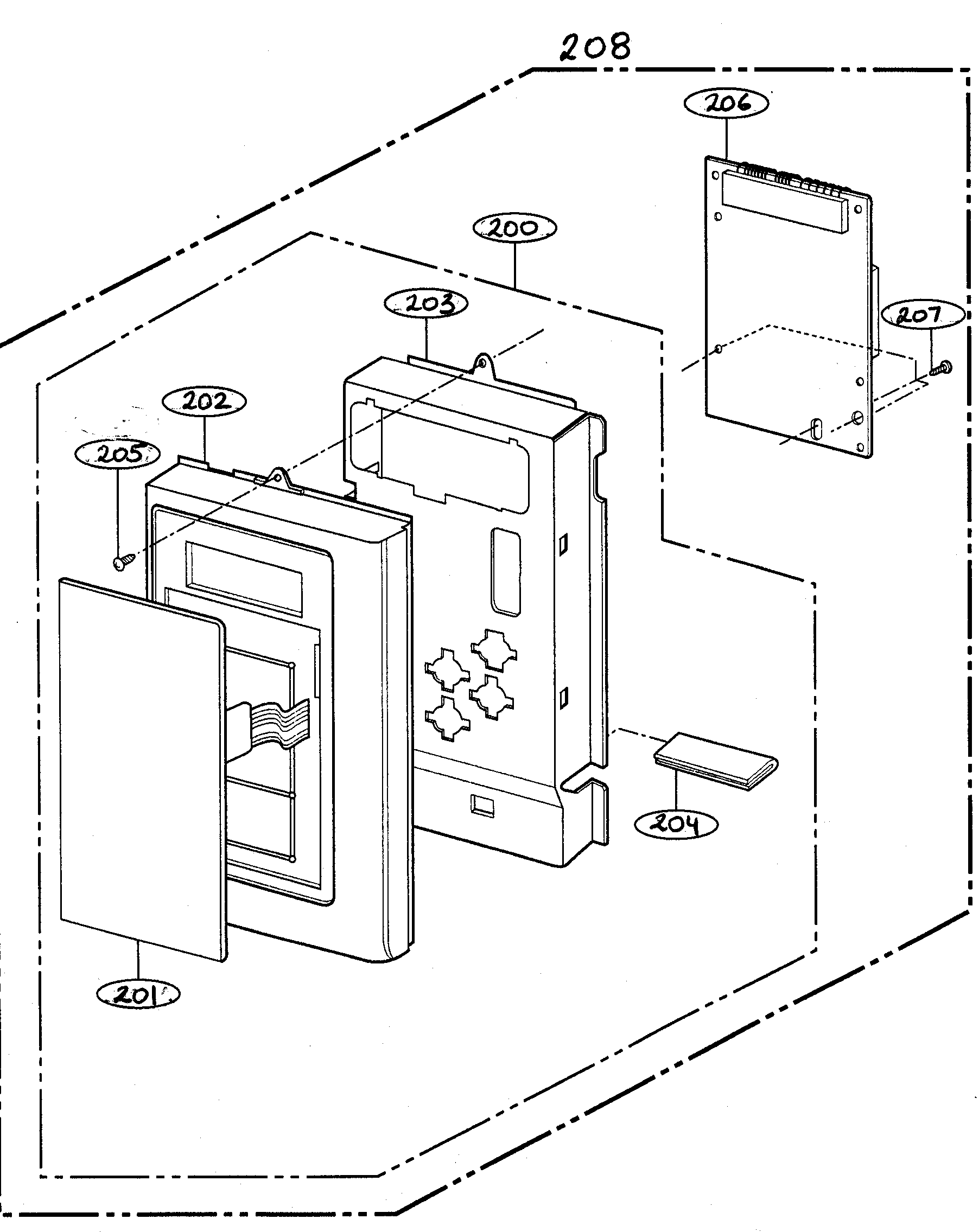

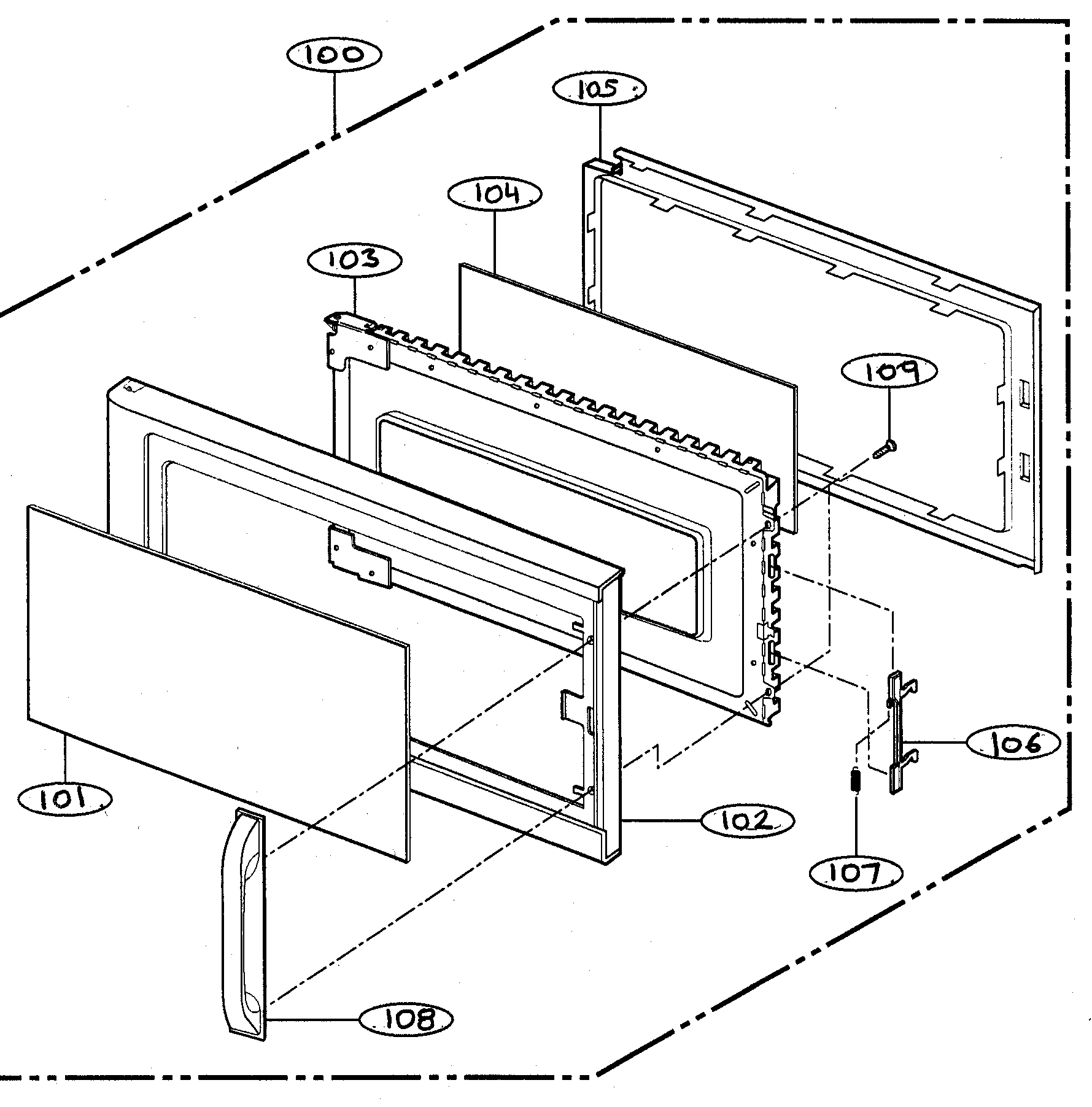

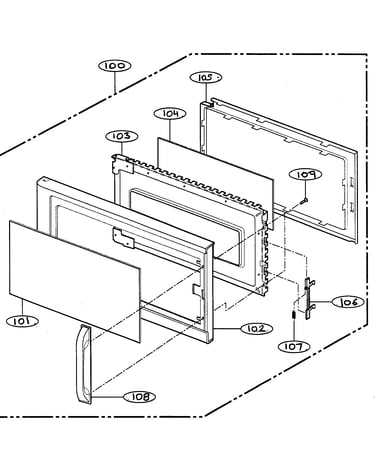

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Grease Filter 2B72705B
#313

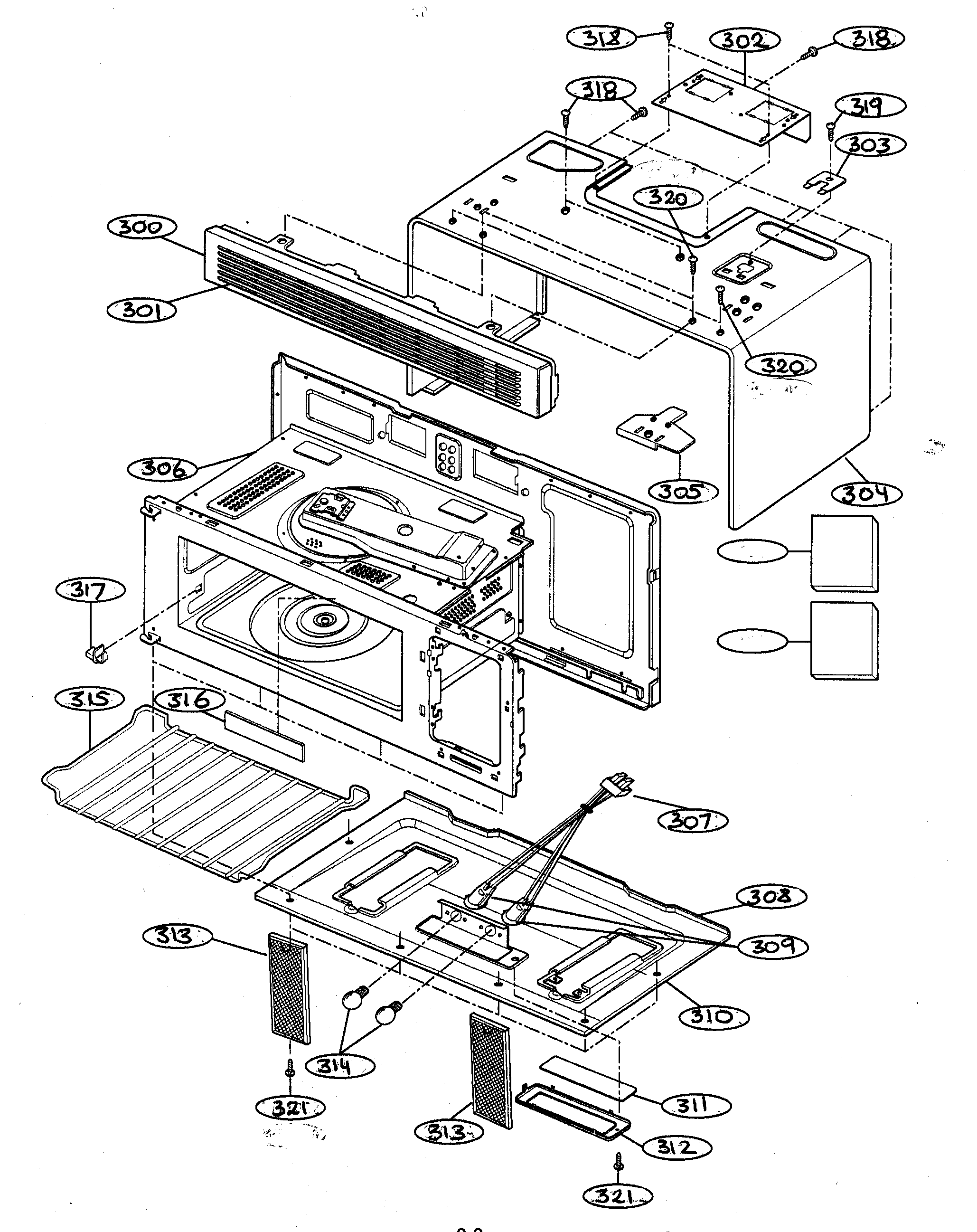

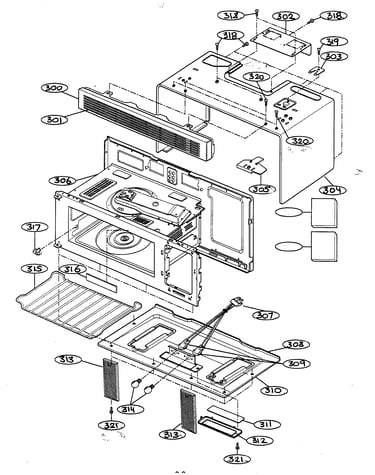

Oven cavity diagram

Grease filter

Part #2B72705B

Replaced by #5230W1A012B

?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
BEST SELLER
$12.00 |
14% OFF Phone Price : $14.00
In Stock
Oven Lamp 6912W3Q001A
#314

Oven cavity diagram

Oven lamp

Part #6912W3Q001A

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001A. Substitute parts can look different from the original.
BEST SELLER
$9.42 |
10% OFF Phone Price : $10.42
In Stock
Microwave Glass Turntable Tray 1B71961A
#500

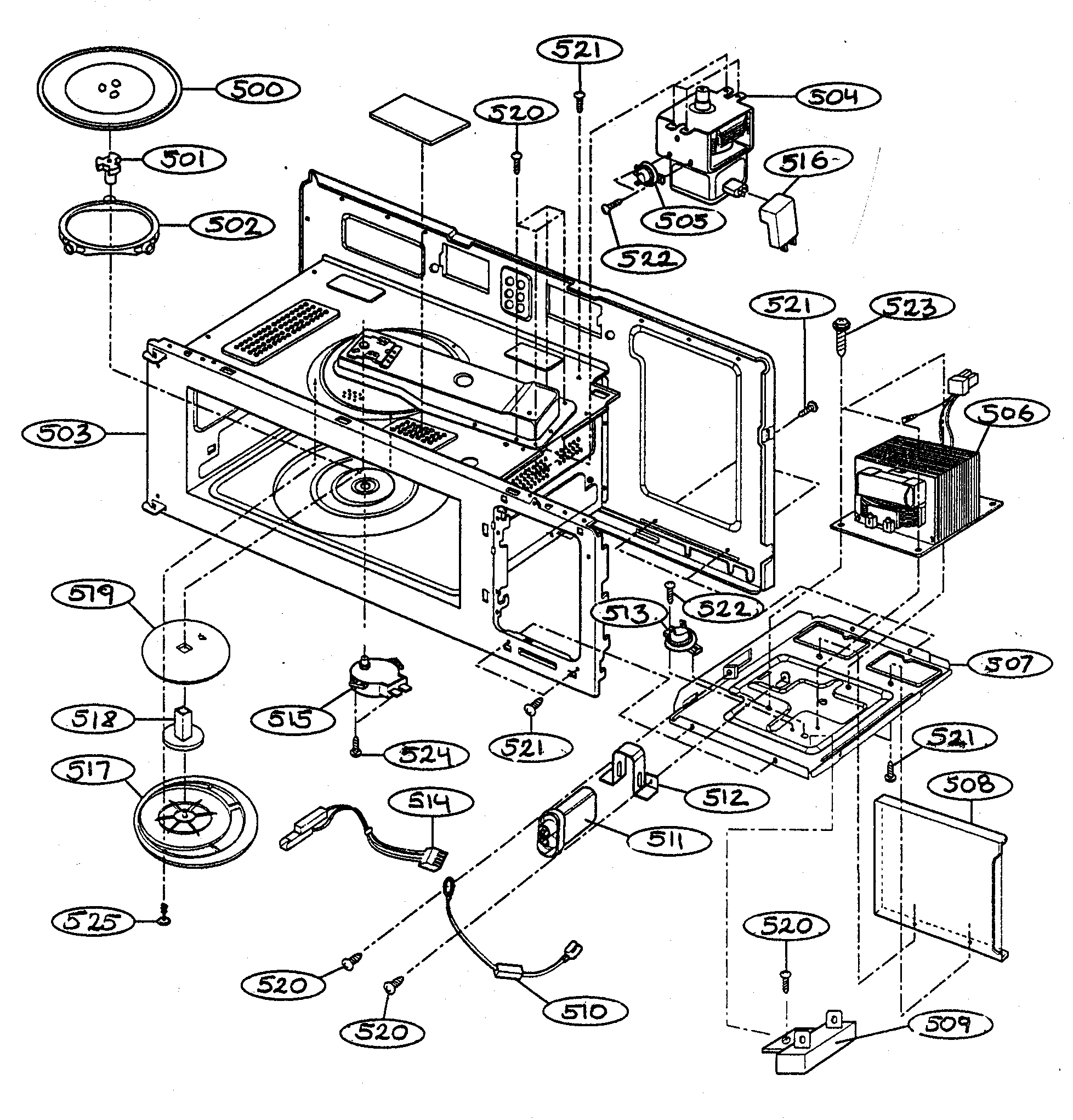

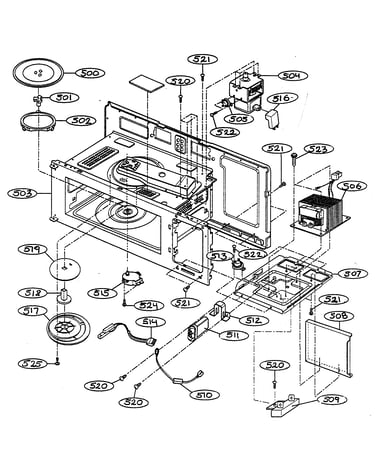

Interior parts 1 diagram

Microwave glass turntable tray

Part #1B71961A

Replaced by #1B71961H

?
Manufacturer substitution
This part replaces 1B71961A. Substitute parts can look different from the original.
BEST SELLER
$32.53 |
13% OFF Phone Price : $37.53
In Stock
Micro-switch 3B73361D
#403

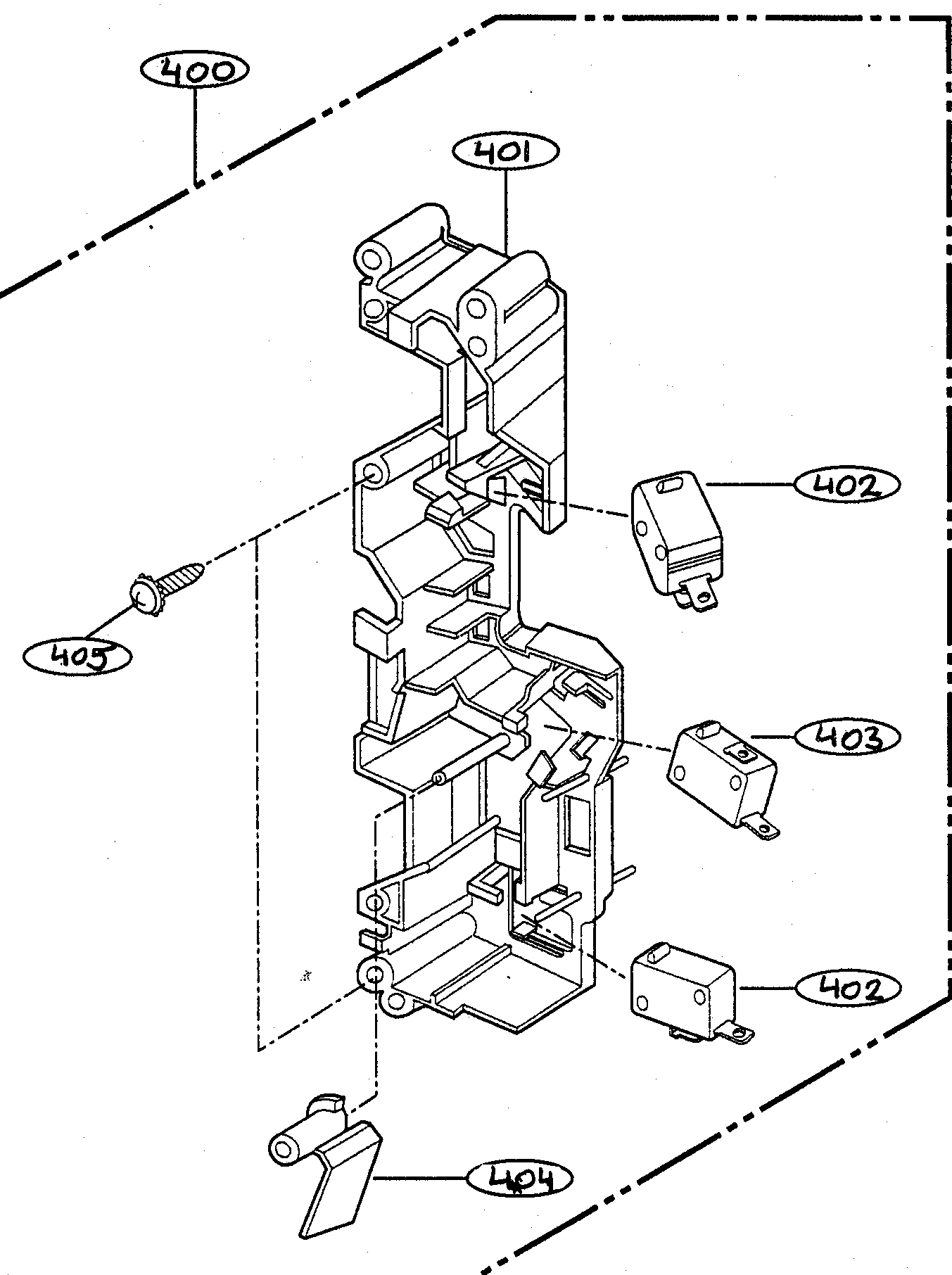

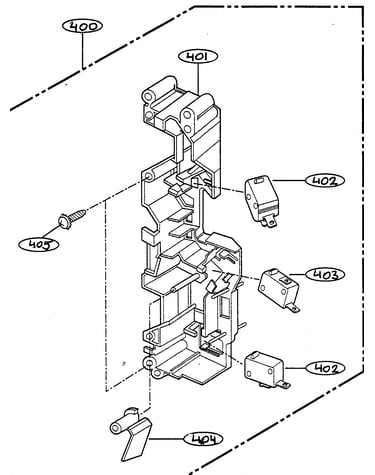

Latch board parts diagram

Micro-switch

Part #3B73361D

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361D. Substitute parts can look different from the original.
BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave Door Interlock Switch 3B73361E
#403A

Latch board parts diagram

Microwave door interlock switch

Part #3B73361E

Replaced by #6600W1K001C

?
Manufacturer substitution
This part replaces 3B73361E. Substitute parts can look different from the original.
BEST SELLER
$12.16 |
14% OFF Phone Price : $14.16
In Stock
Microwave High-voltage Capacitor 0CZZW1H002H
#511

Interior parts 1 diagram

Microwave high-voltage capacitor

Part #0CZZW1H002H

Replaced by #0CZZW1H004C

?
Manufacturer substitution
This part replaces 0CZZW1H002H. Substitute parts can look different from the original.
BEST SELLER
$17.81 |
10% OFF Phone Price : $19.81
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#704

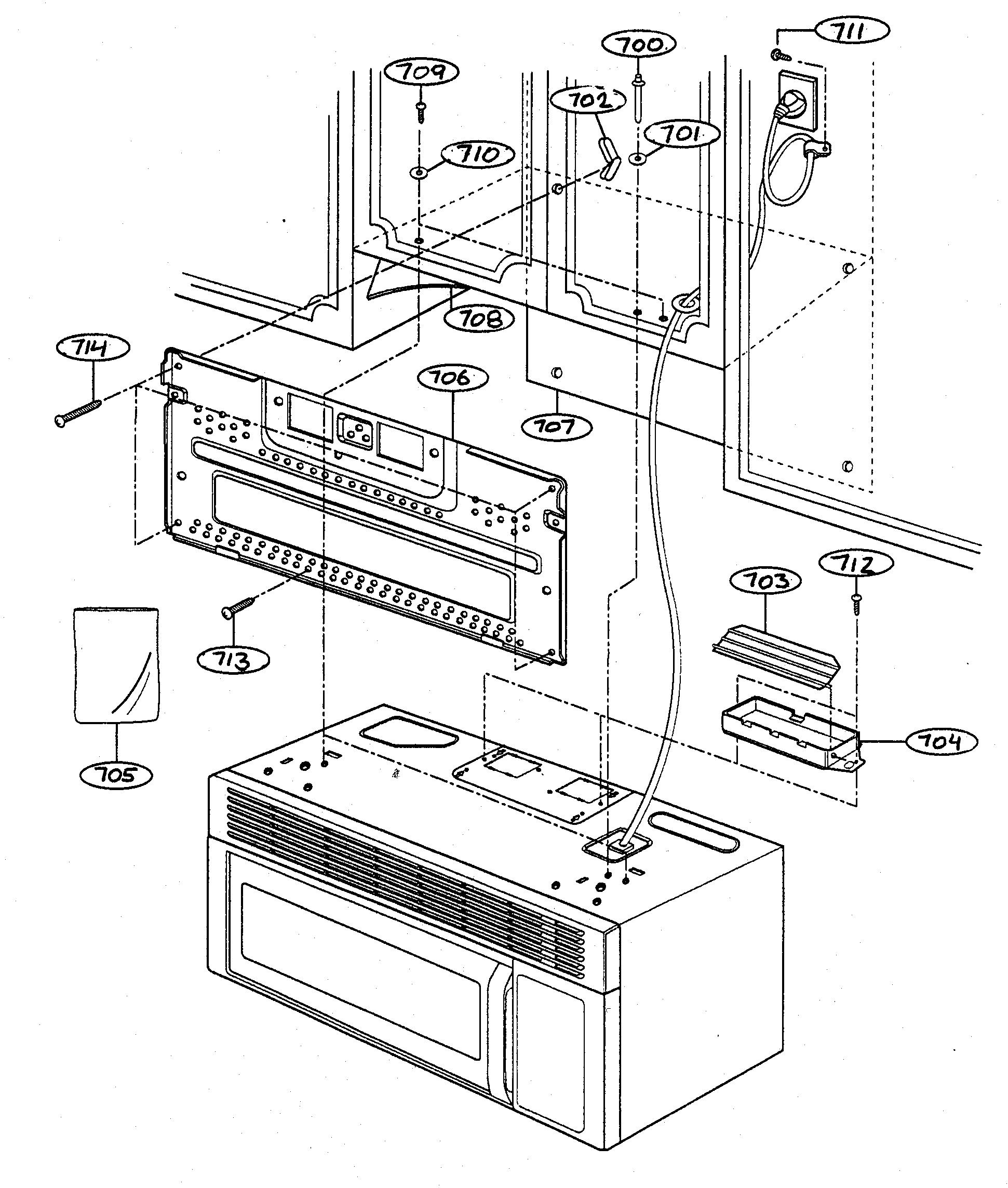

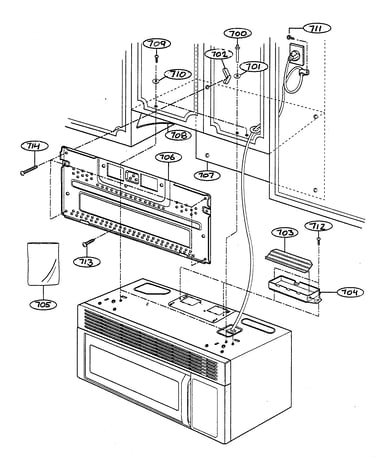

Installation parts diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43 |
14% OFF Phone Price : $14.43
In Stock
Damper 3B71432A
#703

Installation parts diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52 |
11% OFF Phone Price : $9.52
In Stock
Microwave Thermostat 6930WRT003C
#613

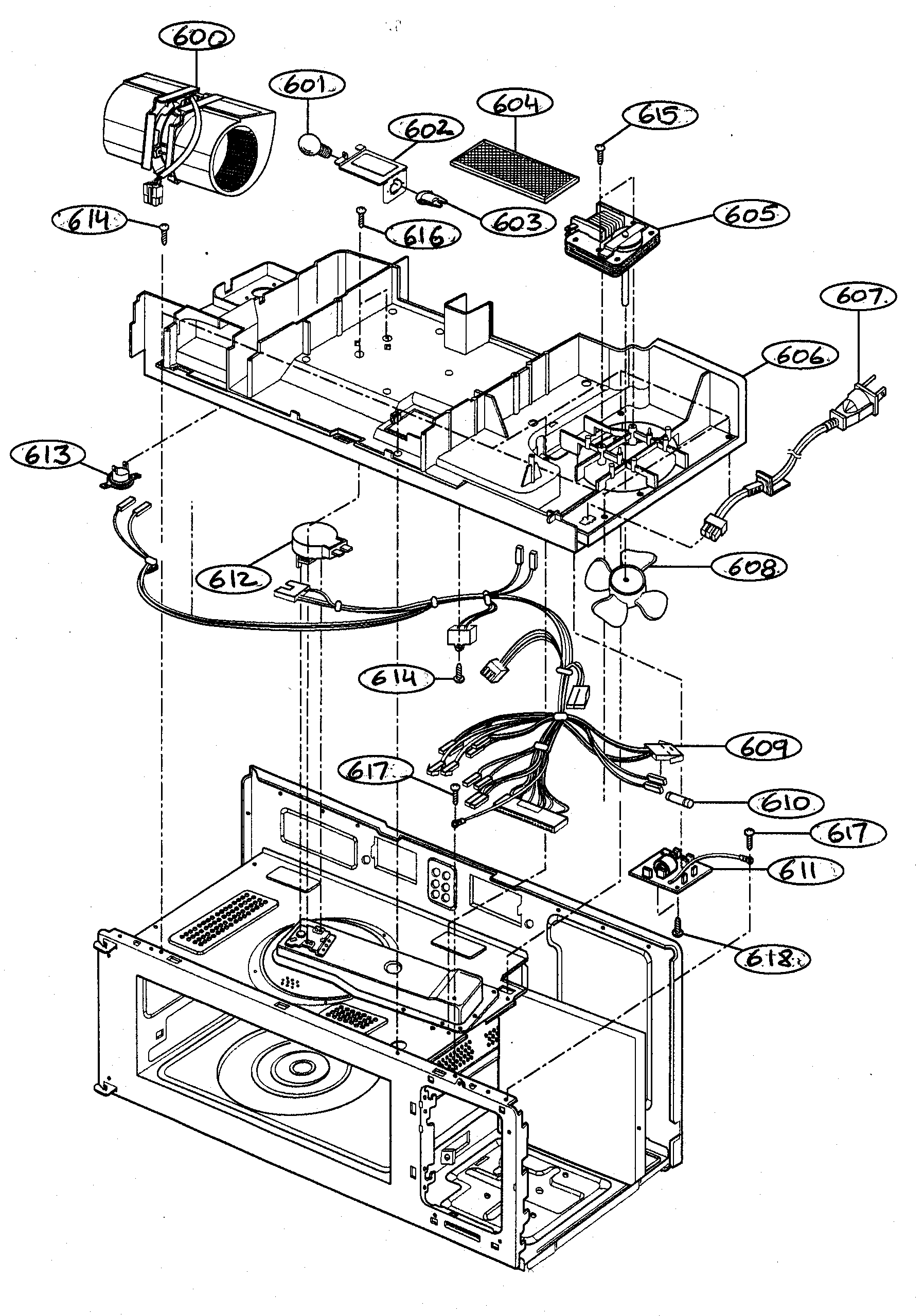

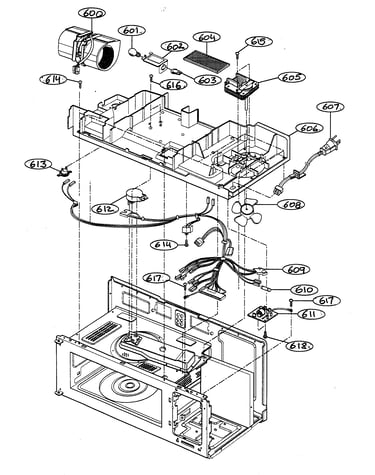

Interior parts 2 diagram

Microwave thermostat

Part #6930WRT003C

Replaced by #6930W1A003J

?
Manufacturer substitution
This part replaces 6930WRT003C. Substitute parts can look different from the original.
BEST SELLER
$10.03 |
17% OFF Phone Price : $12.03
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#525

Interior parts 1 diagram

Microwave waveguide cover rivet

Part #4051W3A001A

BEST SELLER
This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
