Amana
Countertop Microwave

Model # ML-1/P72909-1M Official Amana countertop microwave

Here are the diagrams and repair parts for Official Amana ML-1-P72909-1M countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Bulb A3167501
#8

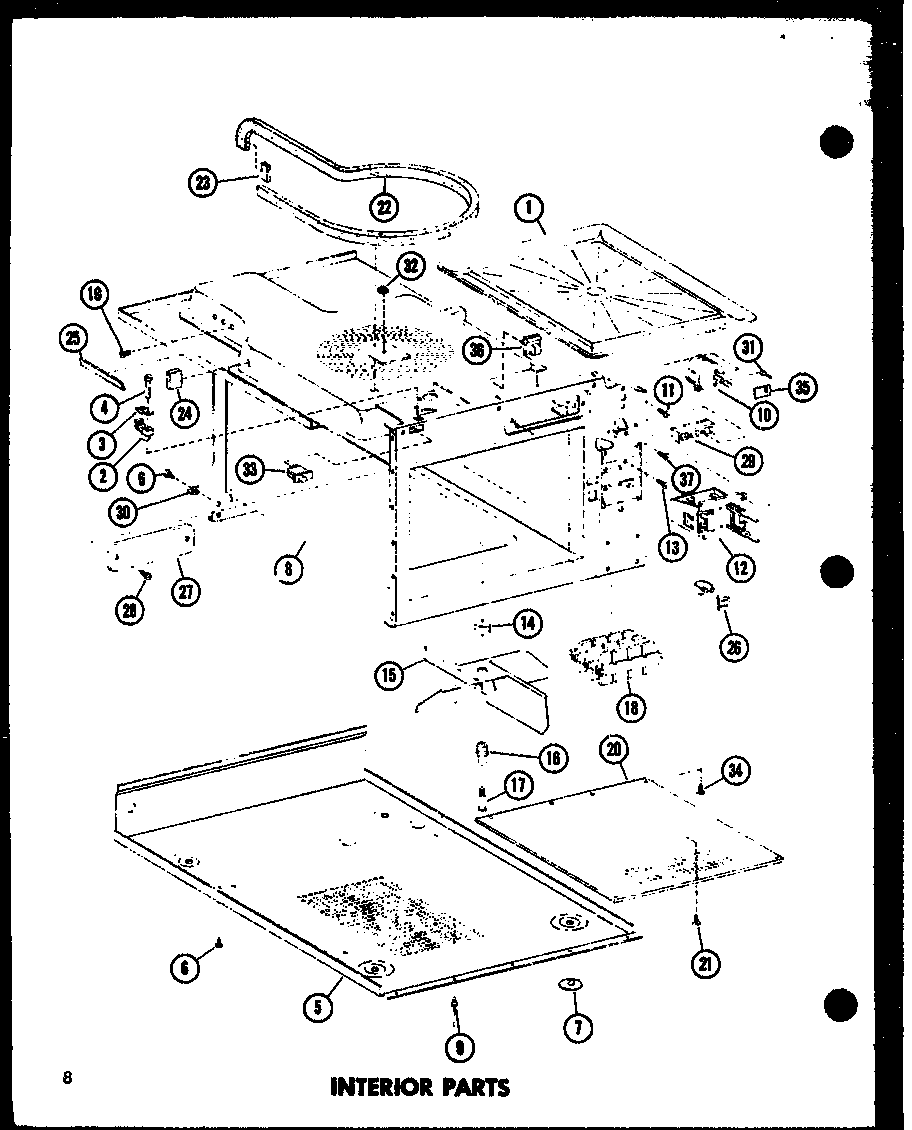

Interior parts diagram

Bulb

Part #A3167501

Replaced by #WPA3167501

?
Manufacturer substitution
This part replaces A3167501. Substitute parts can look different from the original.
$30.98 |
14% OFF Phone Price : $35.98
In Stock
Torx Screw M0216616
#45

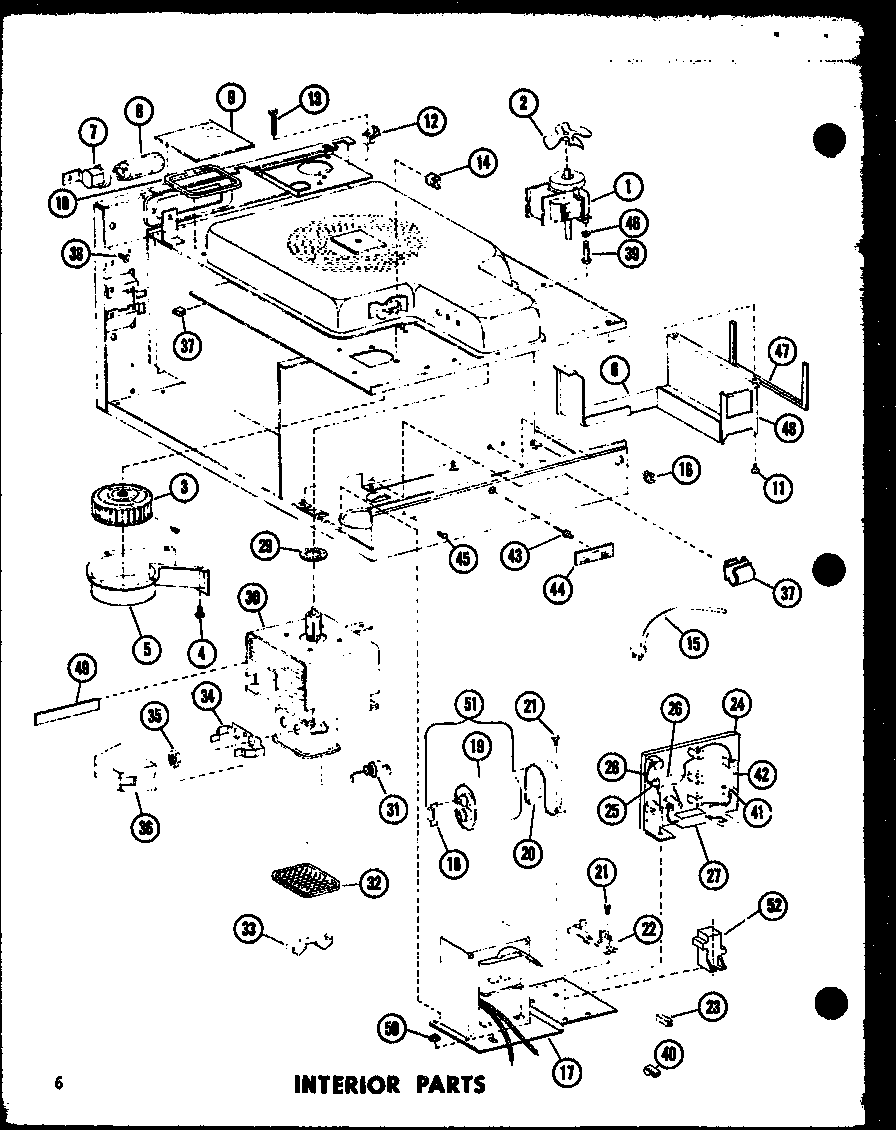

Interior parts diagram

Torx screw

Part #M0216616

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces M0216616. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Terminal Block B5677203
#29

Interior parts diagram

Terminal block

Part #B5677203

Replaced by #B5677203

?
Manufacturer substitution
This part replaces B5677203. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Diode B5685802
#22

Interior parts diagram

Diode

Part #B5685802

The manufacturer no longer makes this part, and there's no substitute part

Outlet Duct D7191802
#6B

Interior parts diagram

Outlet duct

Part #D7191802

The manufacturer no longer makes this part, and there's no substitute part

Grounding Screw, Power Cord M0218116
Grounding screw, power cord

Part #M0218116

The manufacturer no longer makes this part, and there's no substitute part

Door Hinge B5742301
#10

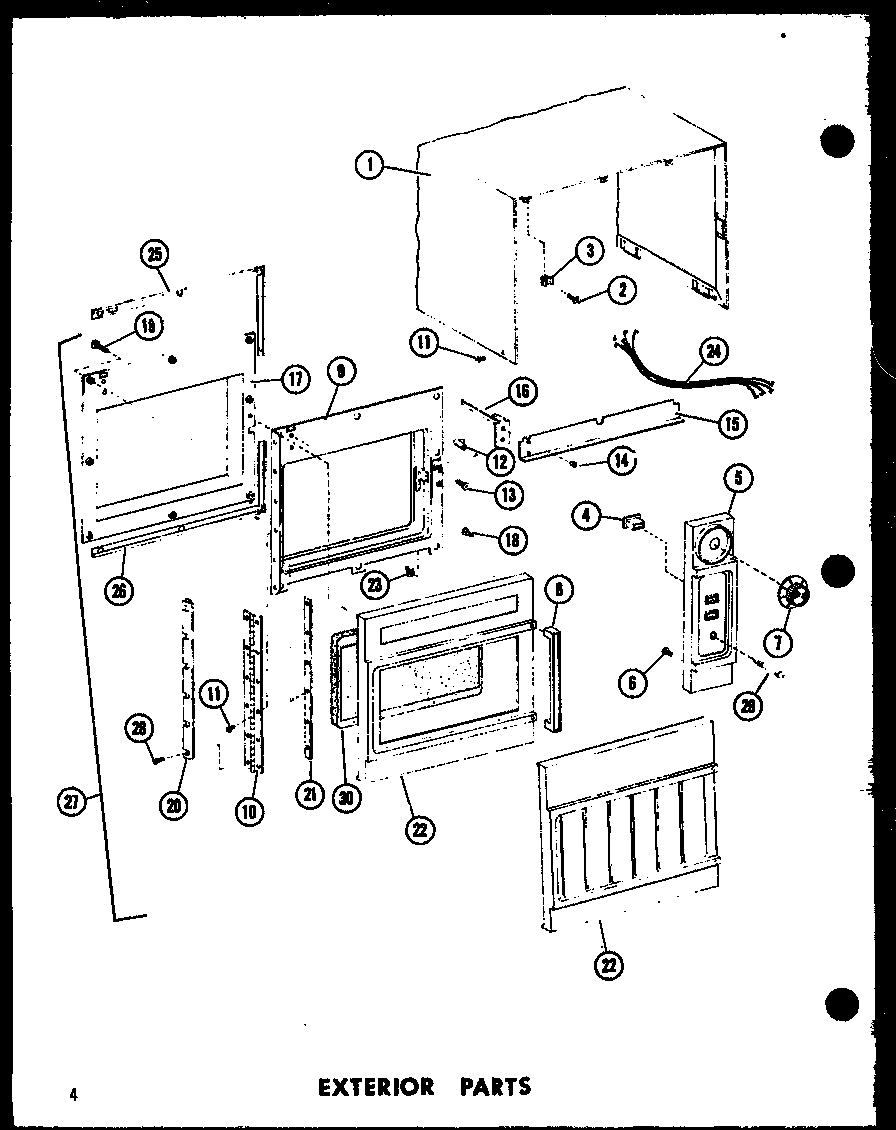

Exterior parts diagram

Door hinge

Part #B5742301

The manufacturer no longer makes this part, and there's no substitute part

Insulator Pod M0325501
#40

Interior parts diagram

Insulator pod

Part #M0325501

The manufacturer no longer makes this part, and there's no substitute part

Resistor M0305009
#26

Interior parts diagram

Resistor

Part #M0305009

The manufacturer no longer makes this part, and there's no substitute part

Fuse M0308101
#41

Interior parts diagram

Fuse

Part #M0308101

The manufacturer no longer makes this part, and there's no substitute part
