Model # 217585861 Official Craftsman 7.0-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 217585861 7.0-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

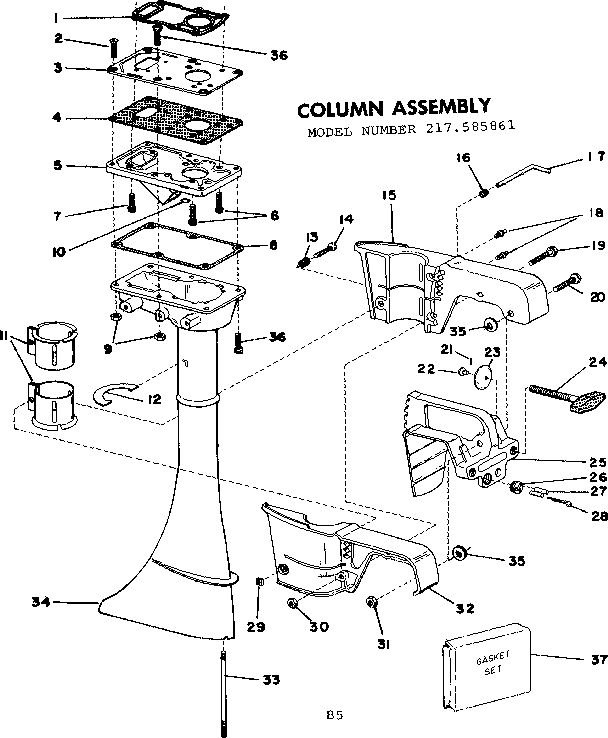

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 243 parts  |
Float 631023
#14

Carburetor assembly diagram

Float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

Cover 610118
#43

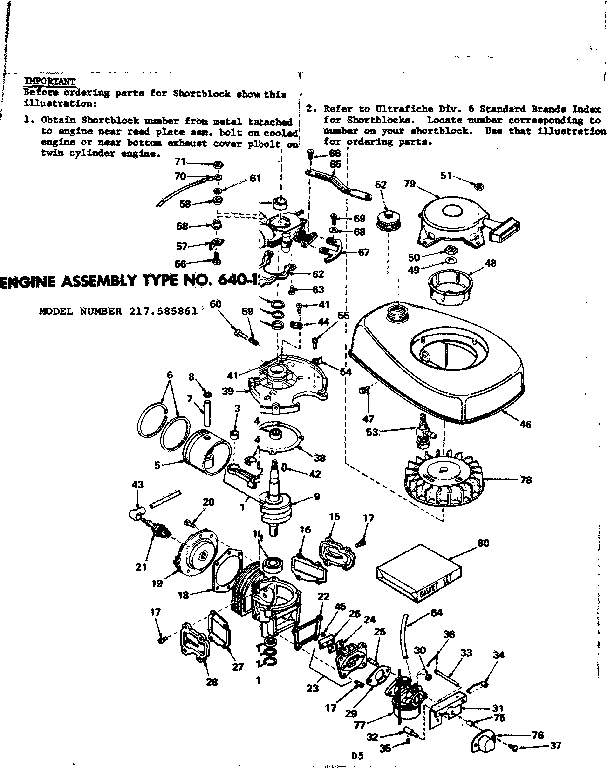

Engine assm type no. 640-12 diagram

Cover

Part #610118

The manufacturer no longer makes this part, and there's no substitute part

Spring 630766
#59

Engine assm type no. 640-12 diagram

Spring

Part #630766

The manufacturer no longer makes this part, and there's no substitute part

Screw 650506
Screw

Part #650506

The manufacturer no longer makes this part, and there's no substitute part

Gasket 631334
#21

Carburetor assembly diagram

Gasket

Part #631334

The manufacturer no longer makes this part, and there's no substitute part

Fuel Fitting 29683
#53

Engine assm type no. 640-12 diagram

Fuel fitting

Part #29683

The manufacturer no longer makes this part, and there's no substitute part

Starter 590420
Starter

Part #590420

The manufacturer no longer makes this part, and there's no substitute part

Washer 4432
#26

Power head assembly diagram

Washer

Part #4432

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Gear Housing Gasket 26364
#36

Gear housing assm diagram

Boat motor gear housing gasket

Part #26364

The manufacturer no longer makes this part, and there's no substitute part

Boat Motor Oil Seal 96009
#9

Gear housing assm diagram

Boat motor oil seal

Part #96009

The manufacturer no longer makes this part, and there's no substitute part
