Model # 3638174 Official Kenmore panel kit

Here are the diagrams and repair parts for Official Kenmore 3638174 panel kit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |
Refrigerator Installation Instructions SR1130
#1

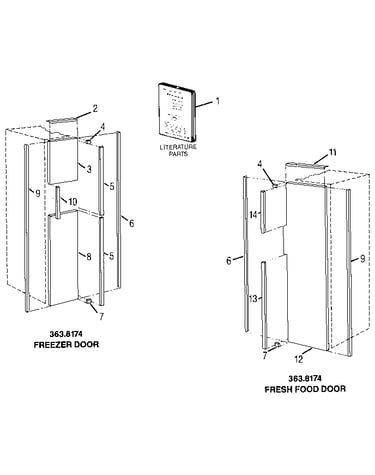

Trim kit diagram

Refrigerator installation instructions

Part #SR1130

This item is not returnable
$2.99
In Stock
Refrigerator Parts List SR3385
#1A

Trim kit diagram

Refrigerator parts list

Part #SR3385

This item is not returnable
$4.49
In Stock
Panel Blk Ff WR99X0153
#12

Trim kit diagram

Panel blk ff

Part #WR99X0153

Replaced by #WR99X153

?
Manufacturer substitution
This part replaces WR99X0153. Substitute parts can look different from the original.
$114.49
In Stock
Bar B;ack Ff WR99X0155
#13

Trim kit diagram

Bar b;ack ff

Part #WR99X0155

The manufacturer no longer makes this part, and there's no substitute part

Refrigerator Drive Hinge Trim WR99X0080
#9

Trim kit diagram

Refrigerator drive hinge trim

Part #WR99X0080

The manufacturer no longer makes this part, and there's no substitute part

Drive Freezer Trim WR99X0078
#2

Trim kit diagram

Drive freezer trim

Part #WR99X0078

The manufacturer no longer makes this part, and there's no substitute part

Bar Black Ff WR99X0154
#14

Trim kit diagram

Bar black ff

Part #WR99X0154

The manufacturer no longer makes this part, and there's no substitute part

Pn Bk Fz Top WR99X0136
#3

Trim kit diagram

Pn bk fz top

Part #WR99X0136

The manufacturer no longer makes this part, and there's no substitute part

Bar Black Fz WR99X0150
#5

Trim kit diagram

Bar black fz

Part #WR99X0150

The manufacturer no longer makes this part, and there's no substitute part

Pn Bk Fz Btm WR99X0137
#8

Trim kit diagram

Pn bk fz btm

Part #WR99X0137

The manufacturer no longer makes this part, and there's no substitute part
