Amana
Countertop Microwave

Model # 70/40.10 Official Amana countertop microwave

Here are the diagrams and repair parts for Official Amana 70-4010 countertop microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

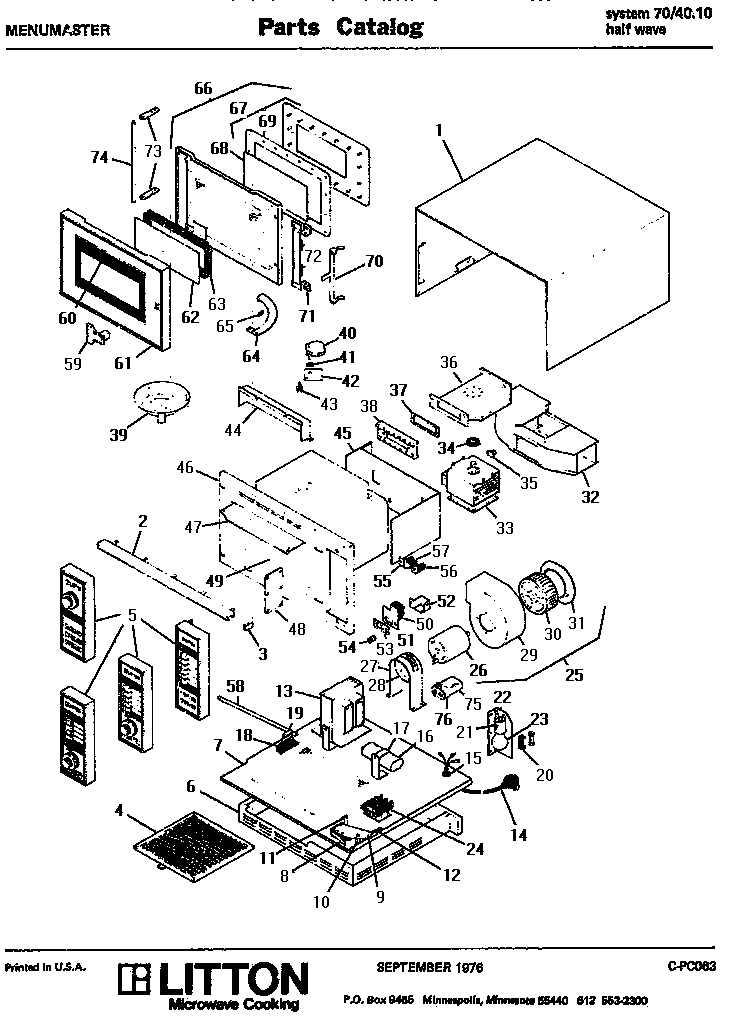

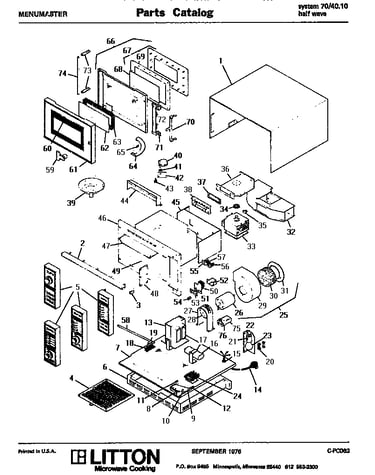

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |
Cavity And Sheft Assembly M77D52
#46A

(70/40.10) diagram

Cavity and sheft assembly

Part #M77D52

The manufacturer no longer makes this part, and there's no substitute part

Timer Buton - Dark Gray, S.s. M6D34
#5G

(70/40.10) diagram

Timer buton - dark gray, s.s.

Part #M6D34

The manufacturer no longer makes this part, and there's no substitute part

Screw Holder Mtg. M1D329
#40B

(70/40.10) diagram

Screw holder mtg.

Part #M1D329

The manufacturer no longer makes this part, and there's no substitute part

Spring Latch Bar M2D198
#72

(70/40.10) diagram

Spring latch bar

Part #M2D198

The manufacturer no longer makes this part, and there's no substitute part

Comb. Timer/wrap Intlk. Switch (s2) M14D47
#8A

(70/40.10) diagram

Comb. timer/wrap intlk. switch (s2)

Part #M14D47

The manufacturer no longer makes this part, and there's no substitute part

H.v. Capacitor (c1) M10D39
#16A

(70/40.10) diagram

H.v. capacitor (c1)

Part #M10D39

The manufacturer no longer makes this part, and there's no substitute part

Harness Retainer M2D12
#76E

(70/40.10) diagram

Harness retainer

Part #M2D12

The manufacturer no longer makes this part, and there's no substitute part

Flag Terminal M1D297
#76I

(70/40.10) diagram

Flag terminal

Part #M1D297

The manufacturer no longer makes this part, and there's no substitute part

F.f. Gasket, Waveguide To Socket M2D36
#37A

(70/40.10) diagram

F.f. gasket, waveguide to socket

Part #M2D36

The manufacturer no longer makes this part, and there's no substitute part

Screw - Brace Mtg M1D102
#58B

(70/40.10) diagram

Screw - brace mtg

Part #M1D102

The manufacturer no longer makes this part, and there's no substitute part
