Water Pump

Model # 3902557 Official Sears jet pump

Here are the diagrams and repair parts for Official Sears 3902557 jet pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |
Rotary Seal U9-6
Rotary seal

Part #U9-6

Replaced by #U109-6B

?
Manufacturer substitution
This part replaces U9-6. Substitute parts can look different from the original.
$106.69 |
10% OFF Phone Price : $118.69
In Stock
Check Valve U212-10P
#18

Shallow well jet pump diagram

Check valve

Part #U212-10P

Replaced by #N212-12P

?
Manufacturer substitution
This part replaces U212-10P. Substitute parts can look different from the original.
$118.69 |
9% OFF Phone Price : $130.69
In Stock
Complete Valve N212-10P
#48

Jet package 42-2560 diagram

Complete valve

Part #N212-10P

Replaced by #N212-12P

?
Manufacturer substitution
This part replaces N212-10P. Substitute parts can look different from the original.
$118.69 |
9% OFF Phone Price : $130.69
In Stock
Pump Jet Body Leather Seal, 2-in J57-1
#7

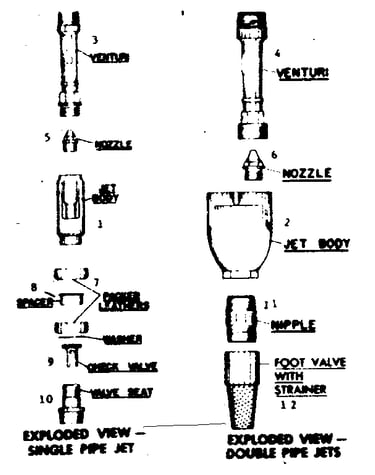

Single pipe jet & double pipe jets diagram

Pump jet body leather seal, 2-in

Part #J57-1

$63.99 |
9% OFF Phone Price : $69.99
In Stock
Pump Nozzle N34P-17
Pump nozzle

Part #N34P-17

$28.33
In Stock
Nozzle N34-17
#47

Jet package 42-2560 diagram

Nozzle

Part #N34-17

Replaced by #N34P-17

?
Manufacturer substitution
This part replaces N34-17. Substitute parts can look different from the original.
$28.33
In Stock
Regulator L262-4P
#10

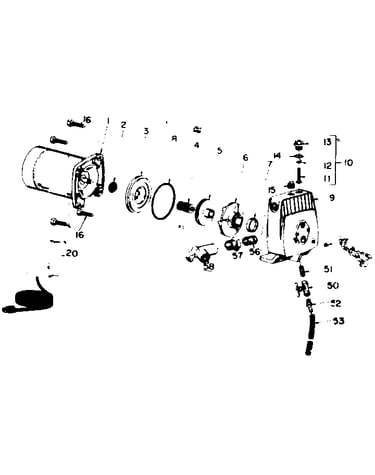

Convertible jet pump diagram

Regulator

Part #L262-4P

Replaced by #01322

?
Manufacturer substitution
This part replaces L262-4P. Substitute parts can look different from the original.
$42.81 |
12% OFF Phone Price : $48.81
Back Order
Gasket L20-39
#14

Convertible jet pump diagram

Gasket

Part #L20-39

$8.19 |
11% OFF Phone Price : $9.19
In Stock
Pump Impeller J105-40P
Pump impeller

Part #J105-40P

$149.07 |
7% OFF Phone Price : $161.07
In Stock
Pump Diffuser L1-25P
Pump diffuser

Part #L1-25P

This item is not returnable
$71.80
In Stock
