Model # A08LH5L2 Official Frigidaire room air conditioner - 599595768

Here are the diagrams and repair parts for Official Frigidaire A08LH5L2 room air conditioner - 599595768, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

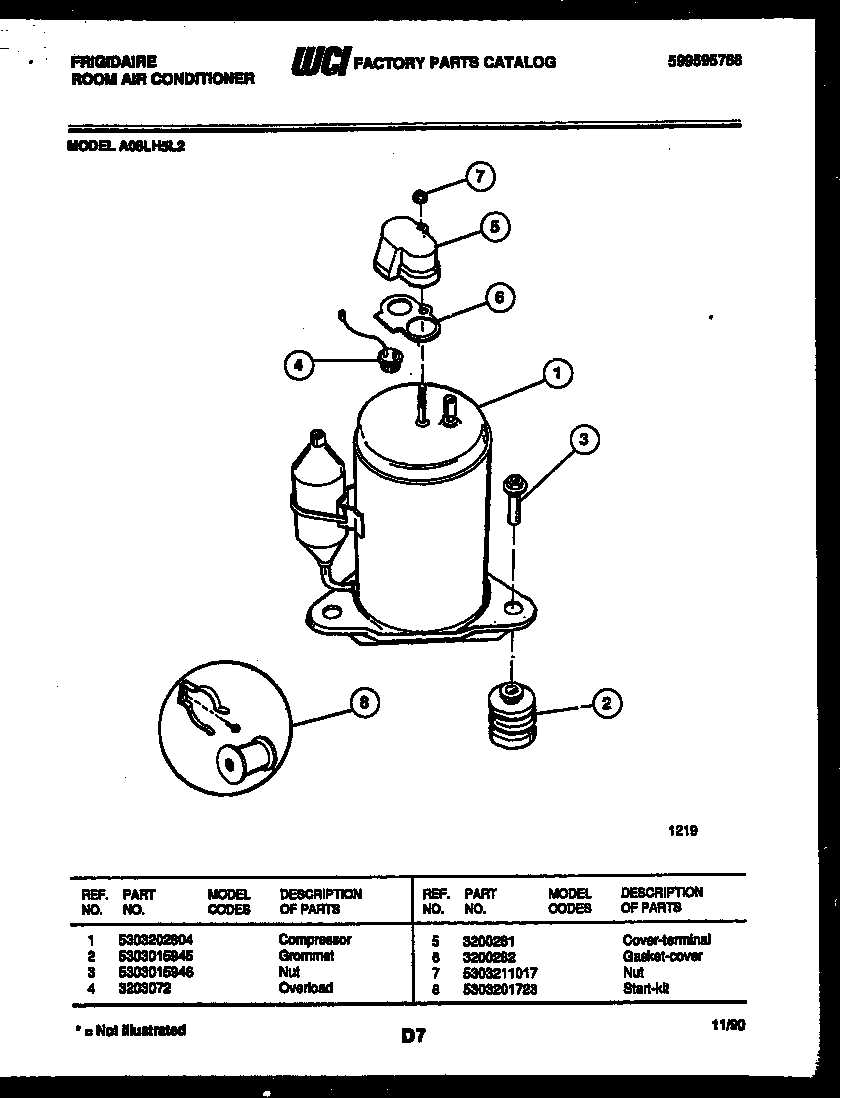

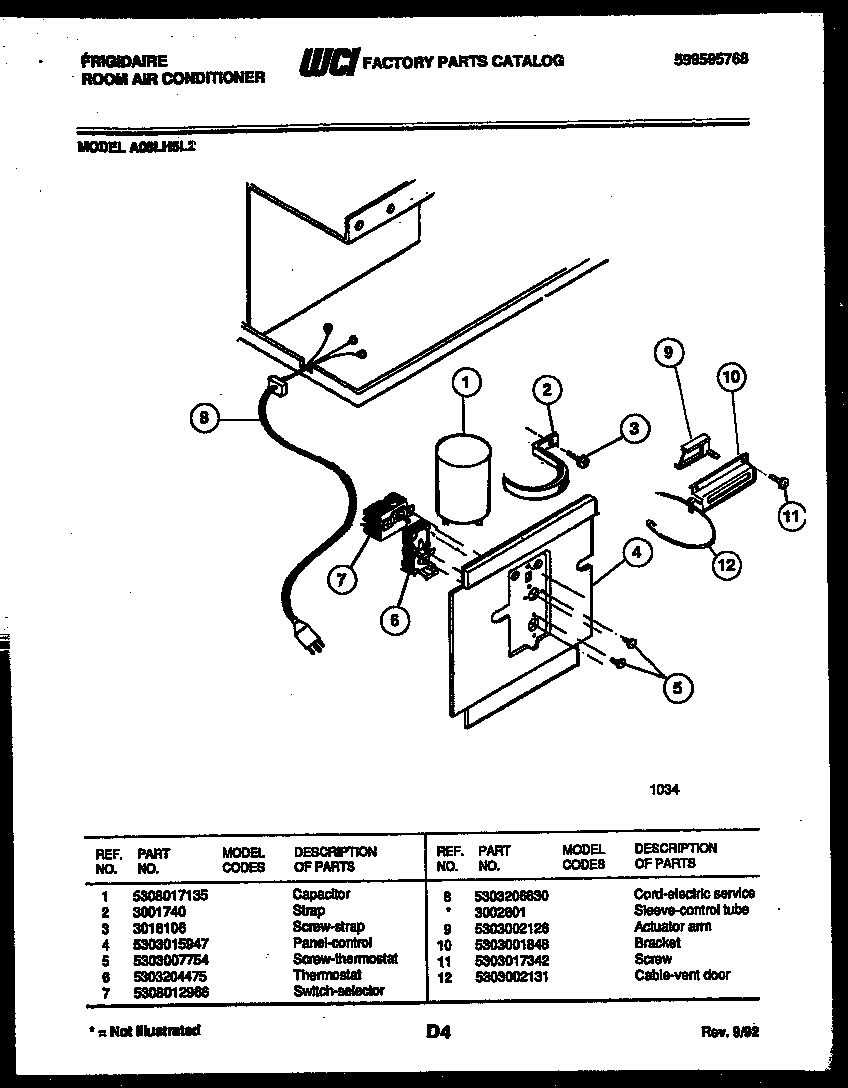

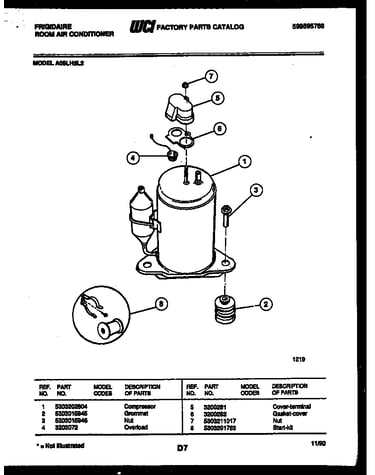

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |

Nut 08016090
#8

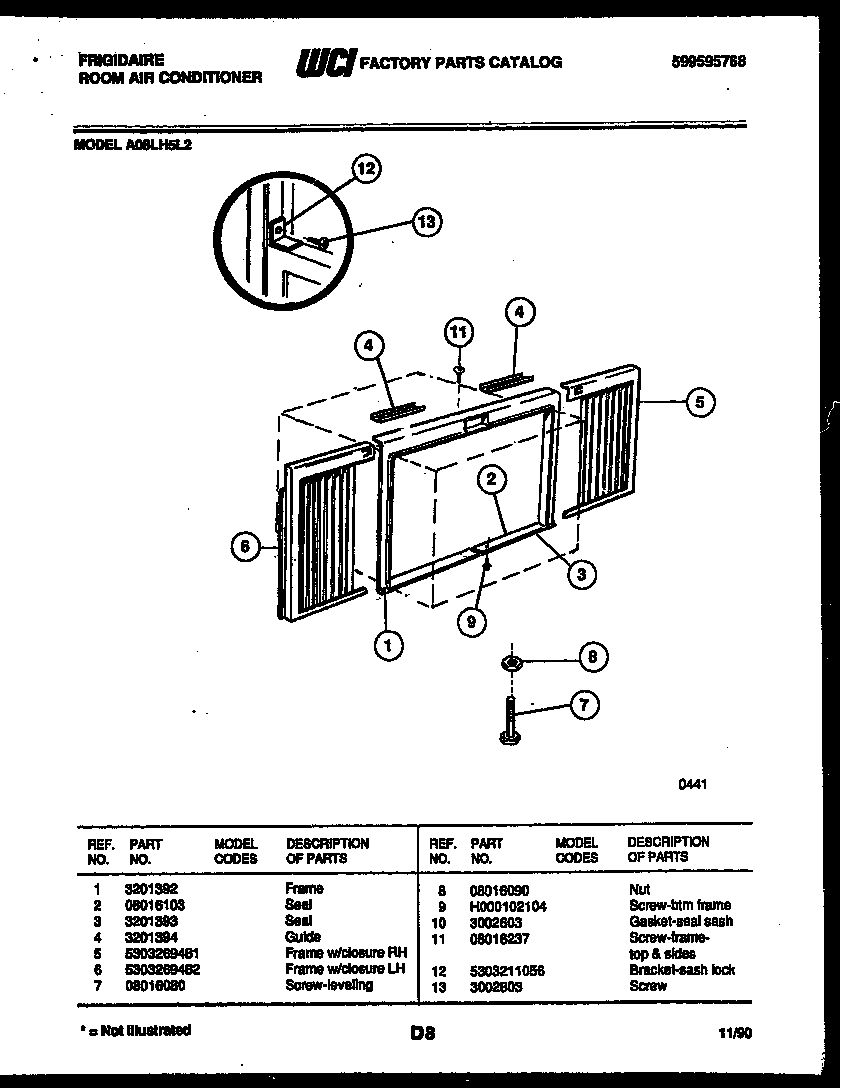

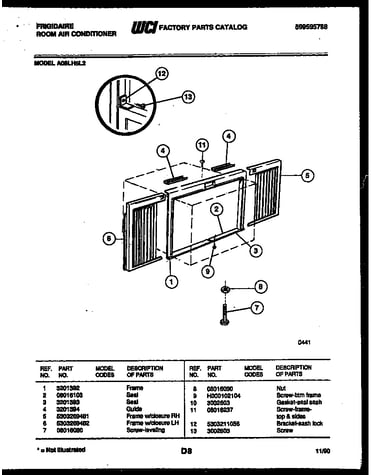

Window mounting parts diagram

Nut

Part #08016090

This item is not returnable
In Stock
Louver 08017364
#4

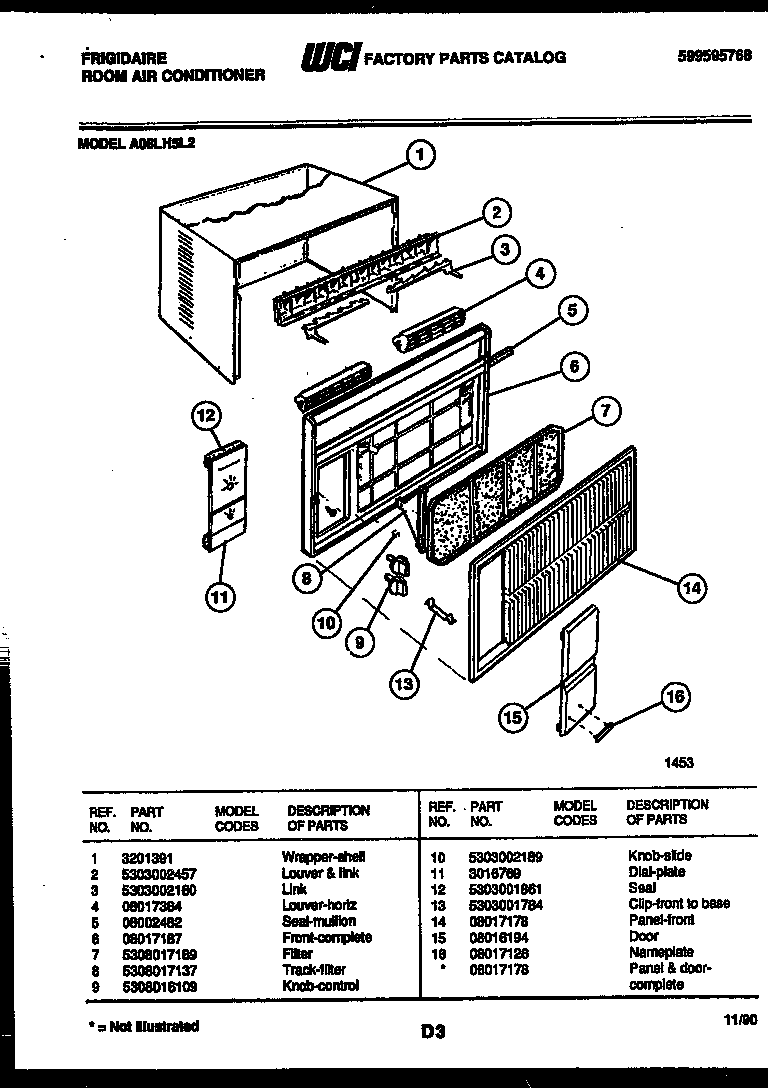

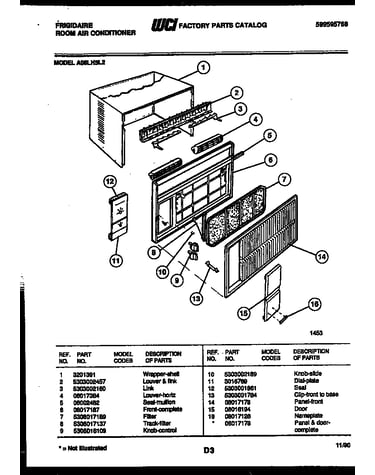

Cabinet parts diagram

Louver

Part #08017364

This item is not returnable
In Stock
Door 5303012455
#15

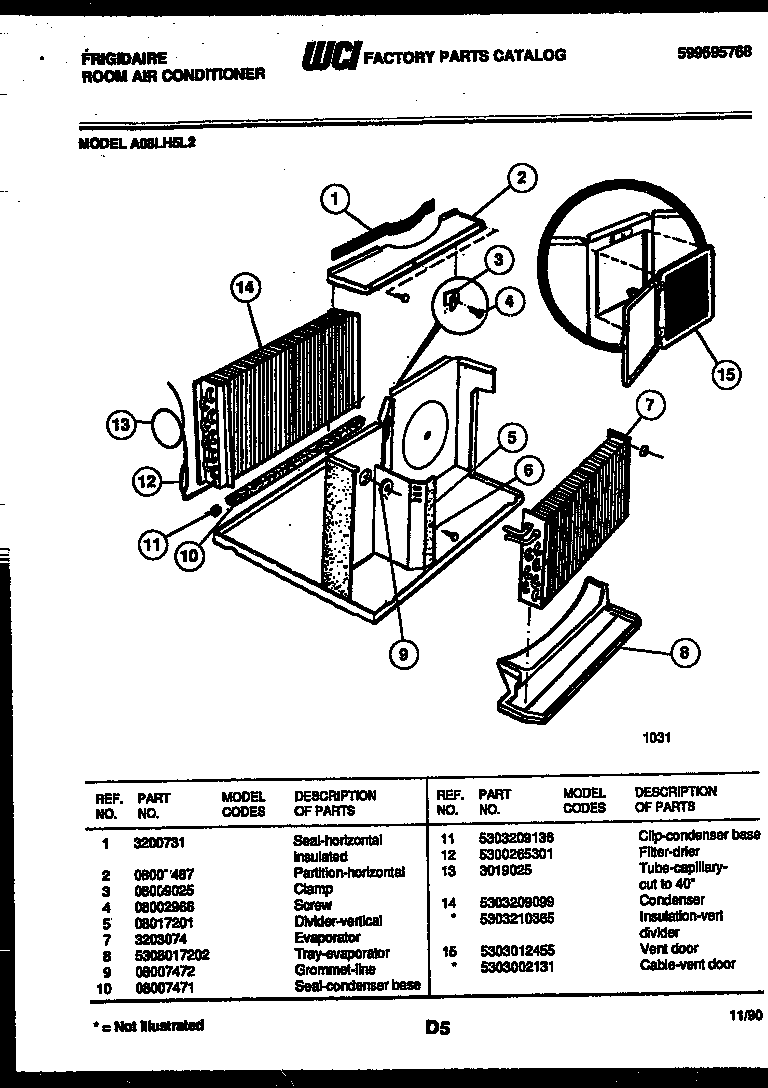

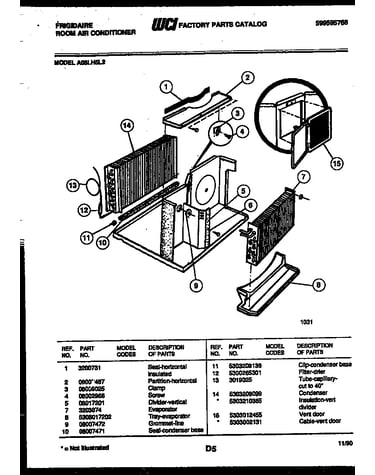

Unit parts diagram

Door

Part #5303012455

This item is not returnable
In Stock
Room Air Conditioner Filter Dryer 5300265301
#12

Unit parts diagram

Room air conditioner filter dryer

Part #5300265301

In Stock
Screw 5308007473
#5

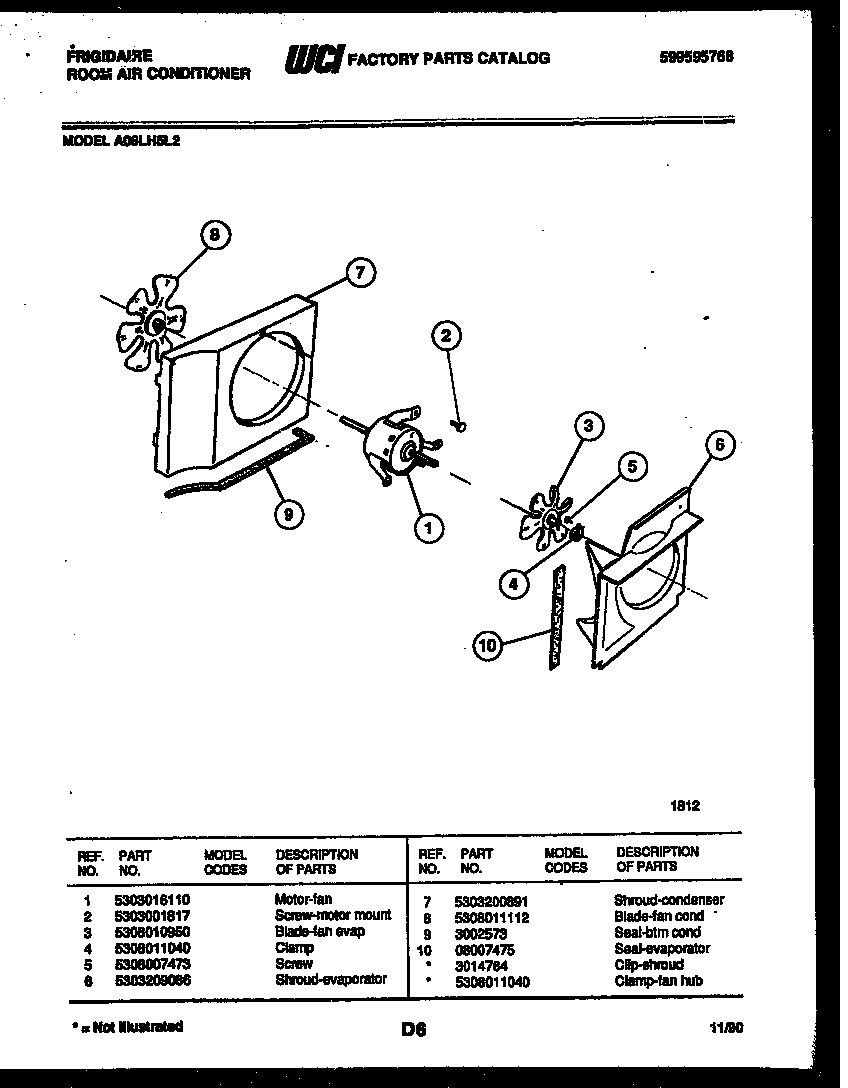

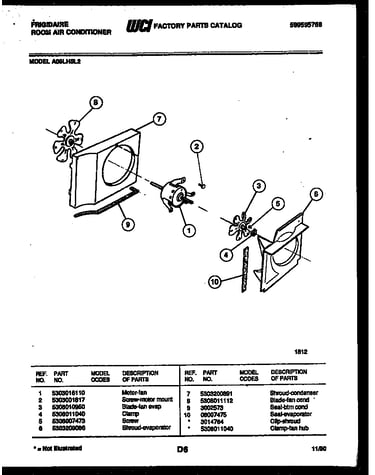

Air handling parts diagram

Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
In Stock
Gasket 3002603
#10

Window mounting parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
In Stock
Insulation 3200731
#1

Unit parts diagram

Insulation

Part #3200731

The manufacturer no longer makes this part, and there's no substitute part

Condenser 5303200891
#7

Air handling parts diagram

Condenser

Part #5303200891

The manufacturer no longer makes this part, and there's no substitute part

Clip 5303001784
#13

Cabinet parts diagram

Clip

Part #5303001784

The manufacturer no longer makes this part, and there's no substitute part

Grommet 08007472
#9

Unit parts diagram

Grommet

Part #08007472

The manufacturer no longer makes this part, and there's no substitute part
