Craftsman
Electric Line Trimmer

Model #13864830 Craftsman trimmer

Here are the diagrams and repair parts for Craftsman 13864830 trimmer, as well as links to manuals and error code tables, if available.


There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Save to my profile

Showing 10 of 11 parts

Line Trimmer Guard Mounting Screw

#11

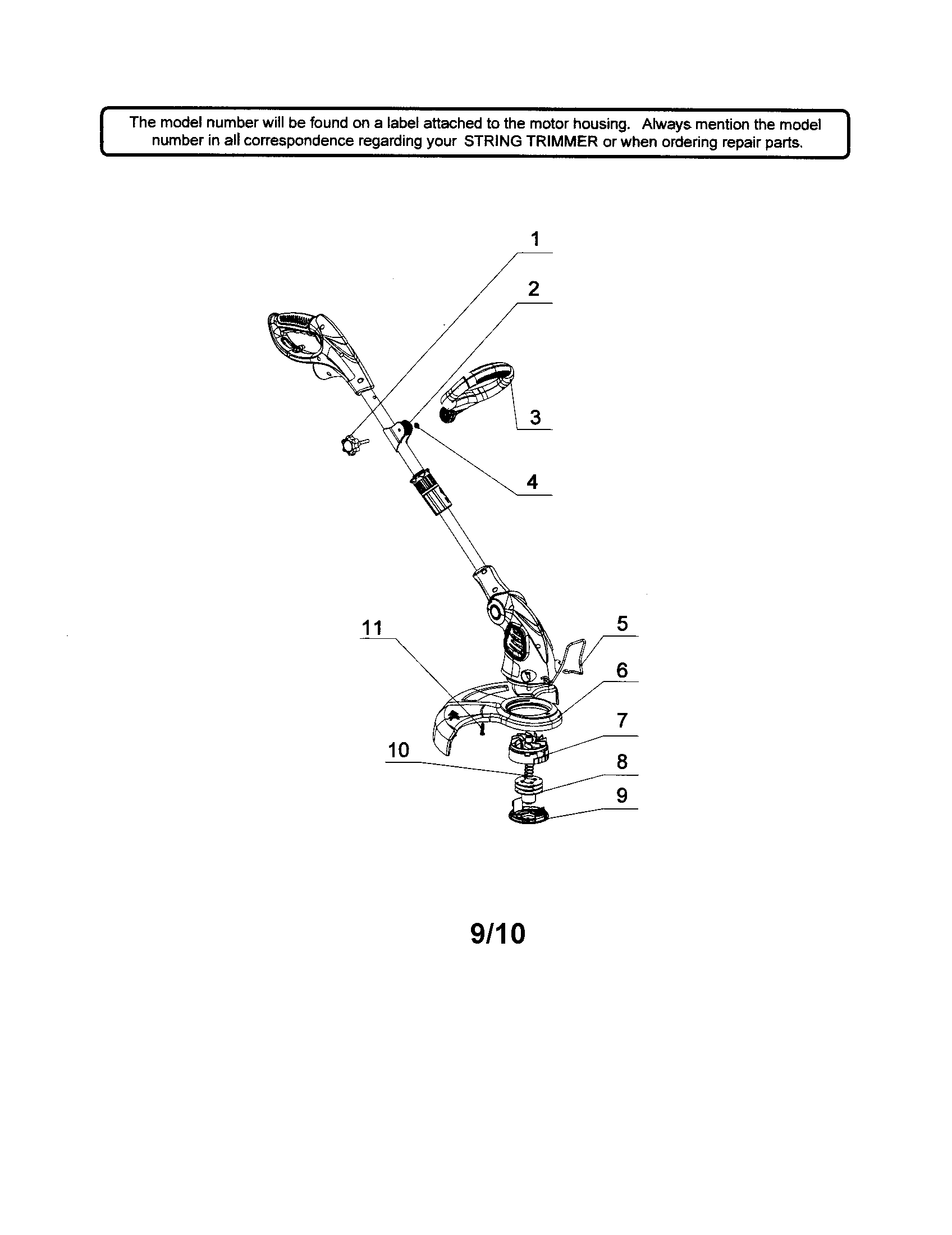

Trimmer Diagram

Line trimmer guard mounting screw

Part #3220811
This item is not returnable
$2.16

In Stock

M6 Nut

#4

Trimmer Diagram

M6 nut

Part #3290205
This item is not returnable
$2.16

In Stock

Line Trimmer Handle Knob

#1

Trimmer Diagram

Line trimmer handle knob

Part #3110282-9
This item is not returnable
$2.49

In Stock

Line Trimmer Front Handle

#3

Trimmer Diagram

$10.09

In Stock

Edging Guide

#5

Trimmer Diagram

Edging guide

Part #33300346
This item is not returnable
$2.55

In Stock

Clamp

#2

Trimmer Diagram

Clamp

Part #3110482
?
Manufacturer substitution
This part replaces 3110482-2. Substitute parts can look different from the original.
This part replaces 3110482-2
This item is not returnable
$3.45

In Stock

B&f Housing

#7

Trimmer Diagram

B&f housing

Part #31101510

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Spool Assembly

#8

Trimmer Diagram

Line trimmer spool assembly

Part #31102510

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Spool Cap

#9

Trimmer Diagram

Line trimmer spool cap

Part #34103510

The manufacturer no longer makes this part, and there's no substitute part

Line Trimmer Spool Spring

#10

Trimmer Diagram

Line trimmer spool spring

Part #33901510

The manufacturer no longer makes this part, and there's no substitute part
