Kenmore 86771313 oil-fired floor furnace Parts

Here are the diagrams and repair parts for Kenmore 86771313 oil-fired floor furnace, as well as links to manuals and error code tables, if available.

Kenmore 86771313 oil-fired floor furnace
By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for 86771313 Oil-Fired Floor Furnace

  • Primary for Kenmore 86771313 - Part 9211

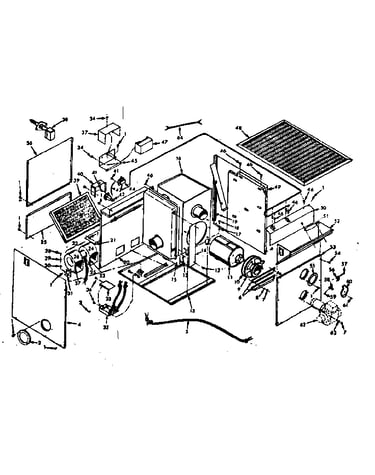

    Furnace assembly diagram

    Primary

    Part #9211

    The manufacturer no longer makes this part, and there's no substitute part

  • Coupling for Kenmore 86771313 - Part 68091

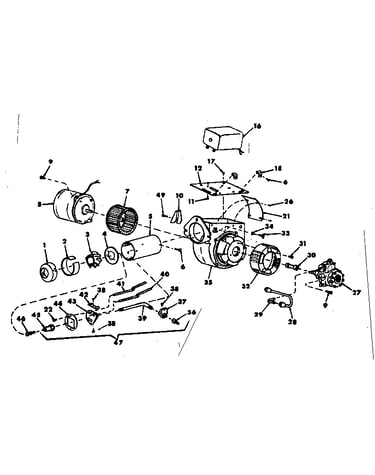

    Oil burner assembly diagram

    Coupling

    Part #68091

    The manufacturer no longer makes this part, and there's no substitute part

  • Chamber Comb for Kenmore 86771313 - Part 74674

    Furnace assembly diagram

    Chamber Comb

    Part #74674

    Replaced by #74674

    Info Icon
    Manufacturer substitution
    This part replaces 74674. Substitute parts can look different from the original.
    In Stock
    $116.02
    Minus Item
    Qty
    Plus Item
  • Fuel Pump for Kenmore 86771313 - Part 64554

    Oil burner assembly diagram

    Fuel Pump

    Part #64554

    Replaced by #64554

    Info Icon
    Manufacturer substitution
    This part replaces 64554. Substitute parts can look different from the original.
    In Stock
    $66.51
    Minus Item
    Qty
    Plus Item
  • Rope for Kenmore 86771313 - Part 39675

    Furnace assembly diagram

    Gasket Rope

    Part #75295

    Replaced by #39675

    Info Icon
    Manufacturer substitution
    This part replaces 75295. Substitute parts can look different from the original.
    In Stock
    $679.04
    Minus Item
    Qty
    Plus Item
  • Electrode for Kenmore 86771313 - Part 2187002

    Oil burner assembly diagram

    Electrode Rh

    Part #68120

    Replaced by #2187002

    Info Icon
    Manufacturer substitution
    This part replaces 68120. Substitute parts can look different from the original.
    In Stock
    $55.51
    10% OFF Phone Price : $61.51Info Icon
    Minus Item
    Qty
    Plus Item
  • Door Hatch for Kenmore 86771313 - Part 64467

    Furnace assembly diagram

    Door Hatch

    Part #64467

    Replaced by #64467

    Info Icon
    Manufacturer substitution
    This part replaces 64467. Substitute parts can look different from the original.
    In Stock
    $268.21
    Minus Item
    Qty
    Plus Item
  • Electrode for Kenmore 86771313 - Part 2187002

    Oil burner assembly diagram

    Electrode Lh

    Part #68125

    Replaced by #2187002

    Info Icon
    Manufacturer substitution
    This part replaces 68125. Substitute parts can look different from the original.
    In Stock
    $55.51
    10% OFF Phone Price : $61.51Info Icon
    Minus Item
    Qty
    Plus Item
  • Cover for Kenmore 86771313 - Part 68884

    Furnace assembly diagram

    Cover

    Part #68884

    Replaced by #68884

    Info Icon
    Manufacturer substitution
    This part replaces 68884. Substitute parts can look different from the original.
    In Stock
    $295.60
    Minus Item
    Qty
    Plus Item
  • Air Filter for Kenmore 86771313 - Part 64487

    Furnace assembly diagram

    Air Filter

    Part #64487

    The manufacturer no longer makes this part, and there's no substitute part
