Model # 131973114 Official Craftsman 22" power-propelled lawn mower

Here are the diagrams and repair parts for Official Craftsman 131973114 22" power-propelled lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |

Blade 69334
#32

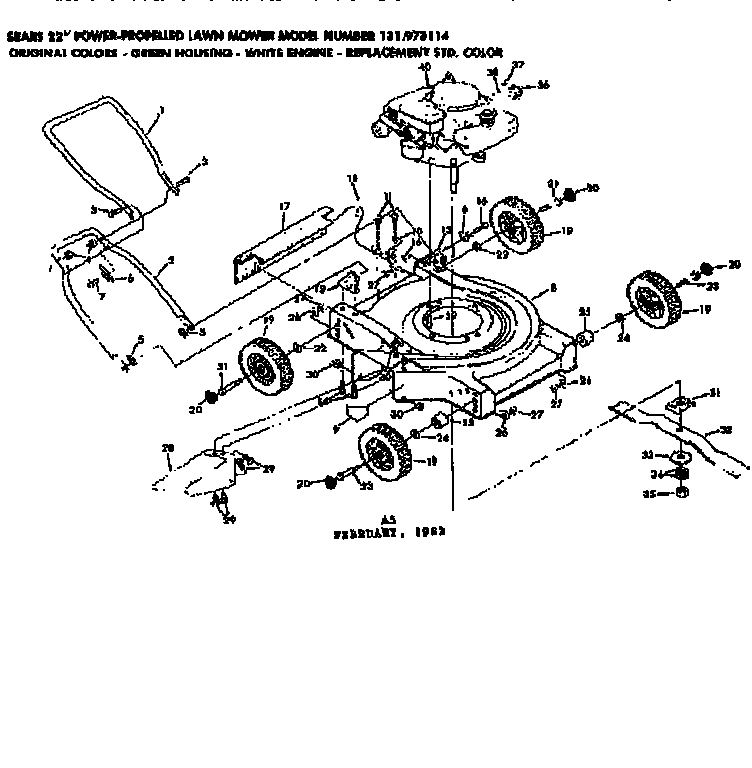

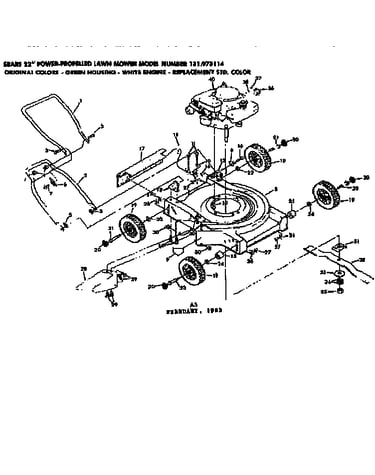

Mower deck diagram

Blade

Part #69334

Replaced by #406713

?
Manufacturer substitution
This part replaces 69334. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

In Stock
Wheel And Tire Assembly 78890
#19

Mower deck diagram

Wheel and tire assembly

Part #78890

Replaced by #33781

?
Manufacturer substitution
This part replaces 78890. Substitute parts can look different from the original.
$13.19
13% OFF Phone Price : $15.19
In Stock
Decal 78850
#9

Mower deck diagram

Decal

Part #78850

Replaced by #539913010

?
Manufacturer substitution
This part replaces 78850. Substitute parts can look different from the original.
This item is not returnable
In Stock
Lock Nut, #10-24 STD541410
Lock nut, #10-24

Part #STD541410

The manufacturer no longer makes this part, and there's no substitute part

Repair Link Kit STD316659
#34

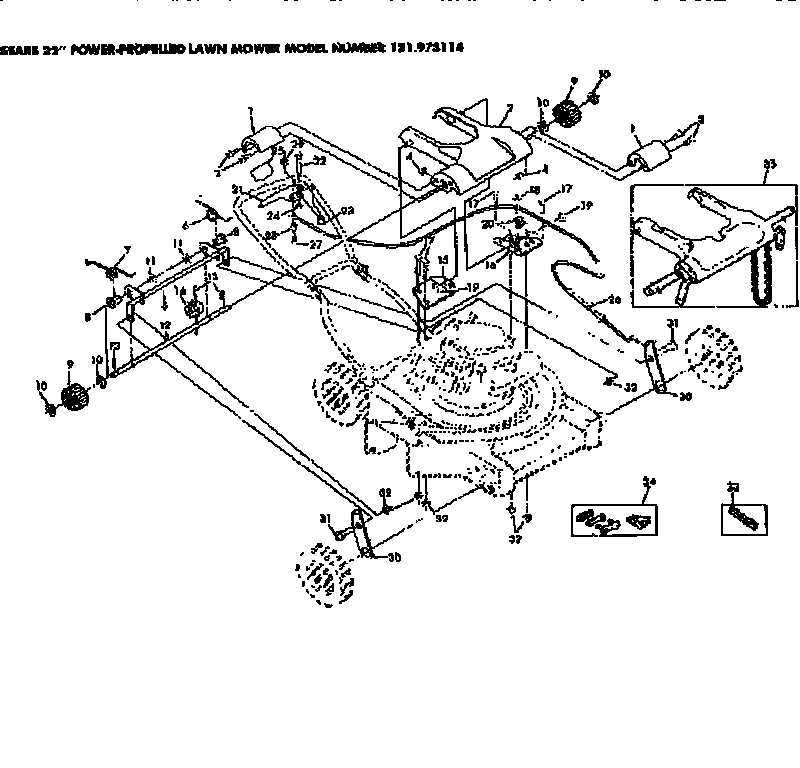

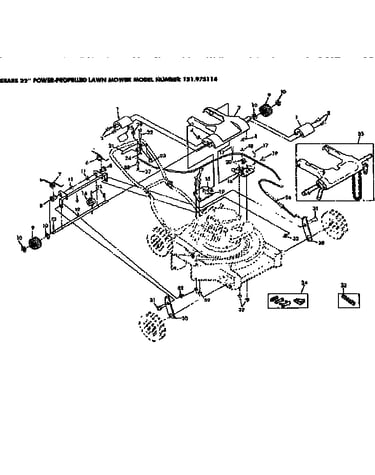

Handle assembly diagram

Repair link kit

Part #STD316659

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 74218
#18

Handle assembly diagram

Lock nut

Part #74218

The manufacturer no longer makes this part, and there's no substitute part

Bolt STD522507
#15

Mower deck diagram

Bolt

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut, 1/4-20 STD541425
Lock nut, 1/4-20

Part #STD541425

The manufacturer no longer makes this part, and there's no substitute part

Screw 75136
#3

Handle assembly diagram

Screw

Part #75136

The manufacturer no longer makes this part, and there's no substitute part

Nut 74399
#4

Mower deck diagram

Nut

Part #74399

The manufacturer no longer makes this part, and there's no substitute part
