Model # 113213830 Official Craftsman 10" drill press

Here are the diagrams and repair parts for Official Craftsman 113213830 10" drill press, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

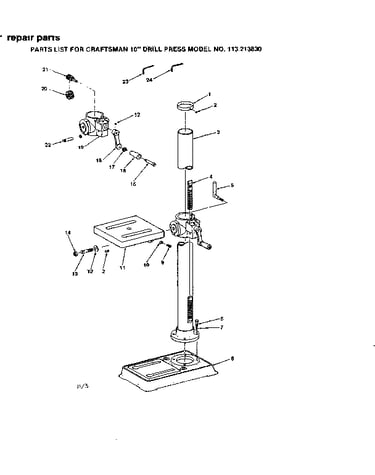

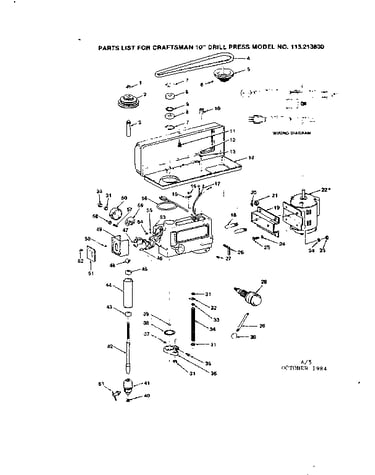

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Lock Washer, 5/16-in, 8-pack STD551131
#13

Unit diagram

Lock washer, 5/16-in, 8-pack

Part #STD551131

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Bolt, 5/16-18 X 3/4-in, 5-pack STD523107
#25

Unit diagram

Hex head bolt, 5/16-18 x 3/4-in, 5-pack

Part #STD523107

The manufacturer no longer makes this part, and there's no substitute part

Screw 805517
#12

Unit diagram

Screw

Part #805517

The manufacturer no longer makes this part, and there's no substitute part

Drill Press Spring And Seat 71292
Drill press spring and seat

Part #71292

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 60484
#1

Unit diagram

Hex nut

Part #60484

The manufacturer no longer makes this part, and there's no substitute part

Flat Head Screw 60523
#40

Unit diagram

Flat head screw

Part #60523

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 120238
Hex nut

Part #120238

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 71401
#61

Unit diagram

Chuck key

Part #71401

The manufacturer no longer makes this part, and there's no substitute part

Cap Spring 71246
#60

Unit diagram

Cap spring

Part #71246

The manufacturer no longer makes this part, and there's no substitute part

Plain Washer STD551031
#24

Unit diagram

Plain washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part
