Model # 11655813505 Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 11655813505 powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |

Vacuum Beater Bar 8192535
#5

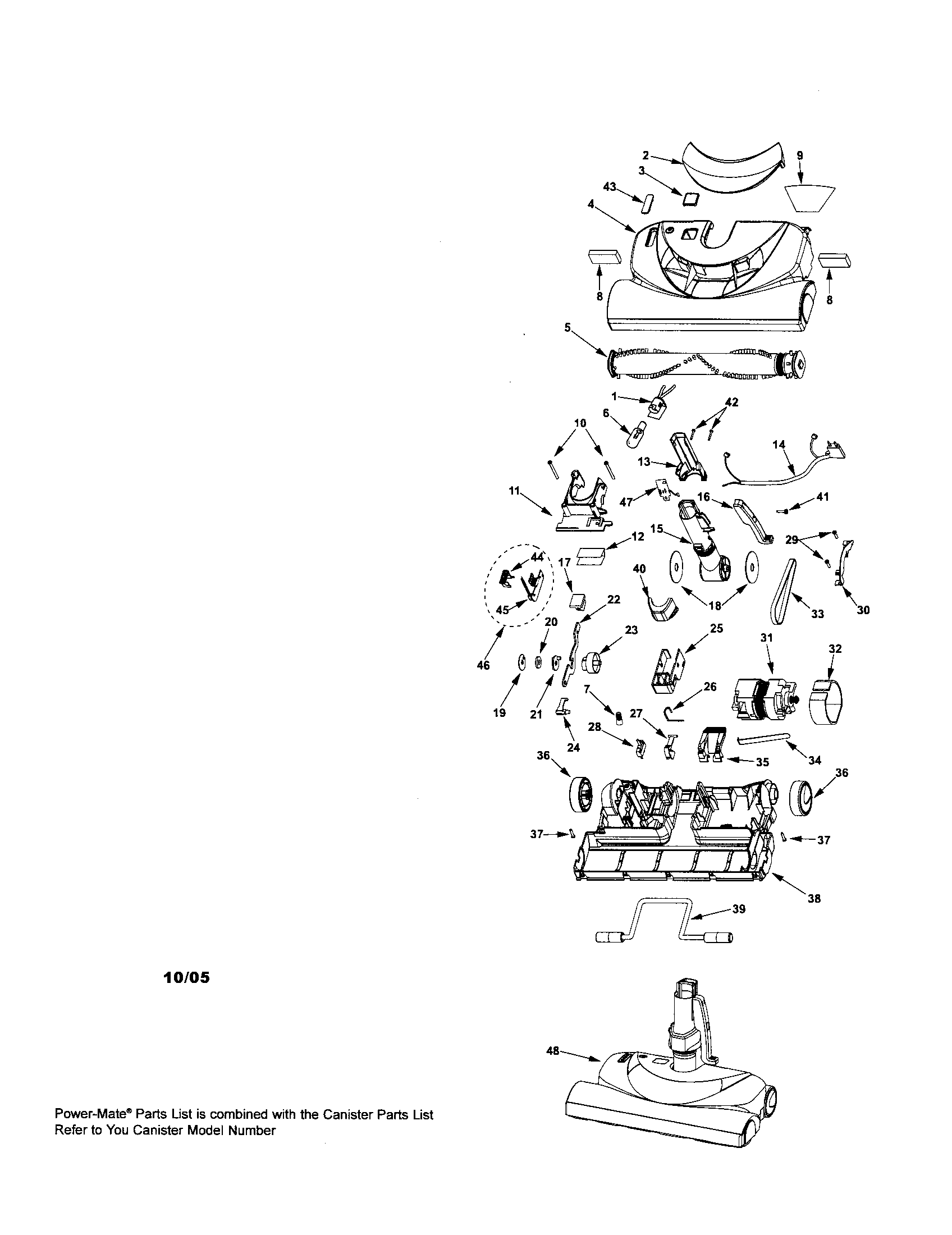

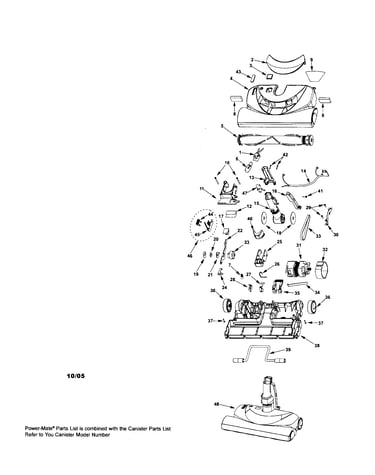

Power-mate diagram

Vacuum beater bar

Part #8192535

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Foam Filter 4370713
#8

Power-mate diagram

Vacuum foam filter

Part #4370713

This item is not returnable

Get free shipping with Automatic Reorder

In Stock
Vacuum Beater Bar Belt KC28SBZTZ000
#33

Power-mate diagram

Vacuum beater bar belt

Part #KC28SBZTZ000

$14.89
12% OFF Phone Price : $16.89
In Stock
Vacuum Screw 4368563
Vacuum screw

Part #4368563

The manufacturer no longer makes this part, and there's no substitute part

Wiring Label LITKC30ZAENZ000

#NI

All parts diagram

Wiring label

Part #LITKC30ZAENZ000

Replaced by #LITKC30ZAENZ000

?
Manufacturer substitution
This part replaces LITKC30ZAENZ000. Substitute parts can look different from the original.
This item is not returnable
Back Order
Vacuum Powermate Swivel Seal KS742019
#18

Power-mate diagram

Vacuum powermate swivel seal

Part #KS742019

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 4368522
#7

Power-mate diagram

Twist-on wire connector

Part #4368522

The manufacturer no longer makes this part, and there's no substitute part

Swivel KC92PBEY1V06
#15

Power-mate diagram

Swivel

Part #KC92PBEY1V06

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Powermate Base Plate KC03RBZT1V07
#38

Power-mate diagram

Vacuum powermate base plate

Part #KC03RBZT1V07

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Light Bulb Socket 4370721
#1

Power-mate diagram

Vacuum light bulb socket

Part #4370721

The manufacturer no longer makes this part, and there's no substitute part
