For your KitchenAid KMHS120ESS10 microwave/hood combo, “size” usually means two things: the outside dimensions (to fit the cabinet space) and the inside cooking capacity (how much food fits). Measure the exterior first for fit, then confirm capacity from the model specs when ordering parts or planning a replacement.

Use a tape measure and record in inches:

• Width: measure the front edge left-to-right (this is the most important fit number)
• Height: bottom of the microwave to the top of the cabinet
• Depth: front face to the back (note if the door handle sticks out)
• Clearance: space above the unit and around the vent area so airflow is not blocked

If you are replacing an over-the-range unit, also note the cabinet opening width (commonly 30 inches) and the distance from the cooktop to the bottom of the microwave.

Interior capacity is not measured from the outside. It is typically listed in the model’s specifications and helps you compare cooking space between microwaves.

• Smaller capacity: better for basic reheating
• Larger capacity: better for larger plates and casserole dishes
• Same exterior width can still have different interior capacity depending on design

Getting the size right prevents installation surprises and helps you choose compatible replacement components (like a vent grille, mounting hardware, or door parts) that match how your KMHS120ESS10 is configured.

If you are checking size because something is missing, damaged, or you are re-mounting the unit, these model-matched parts are commonly involved:

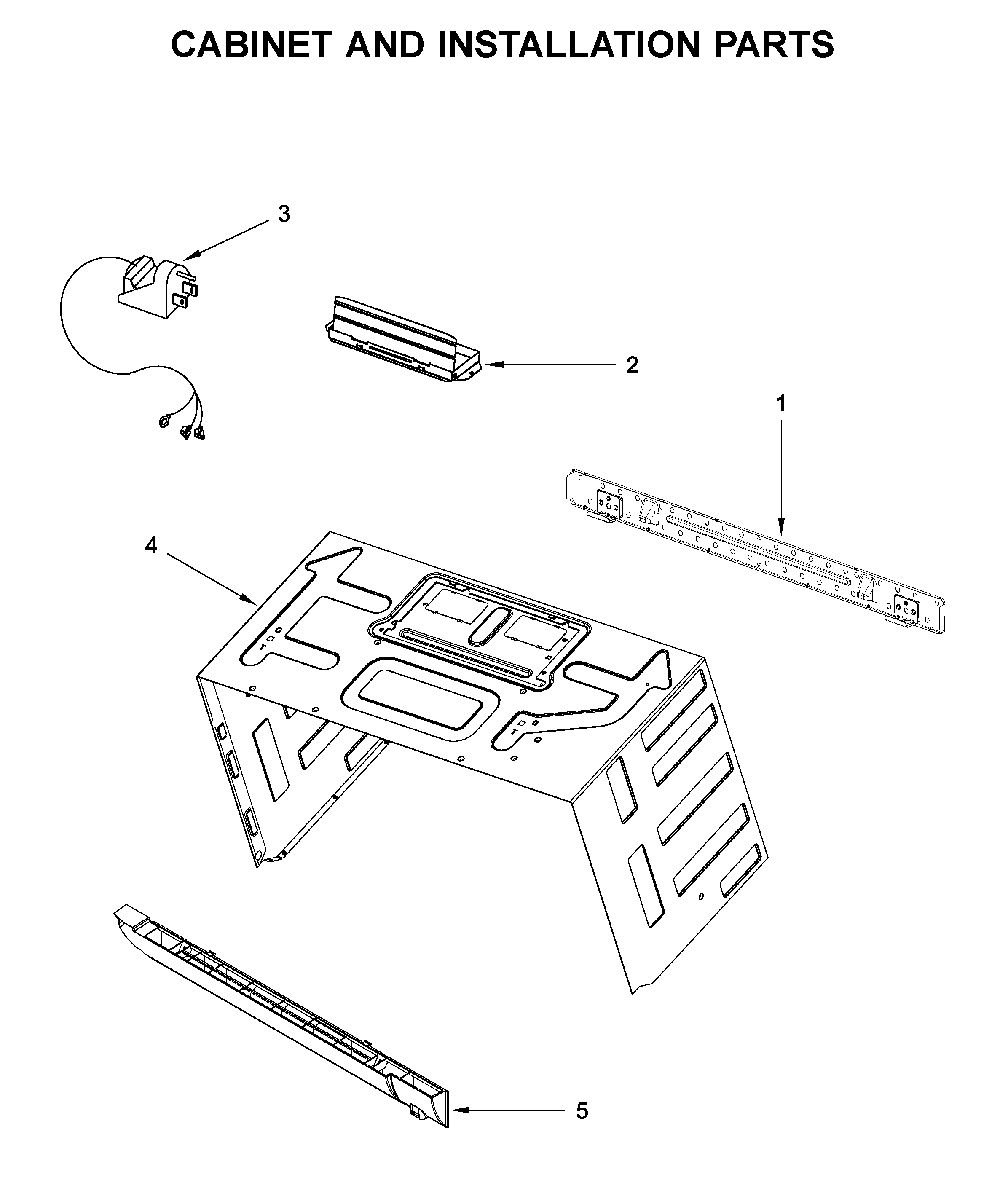

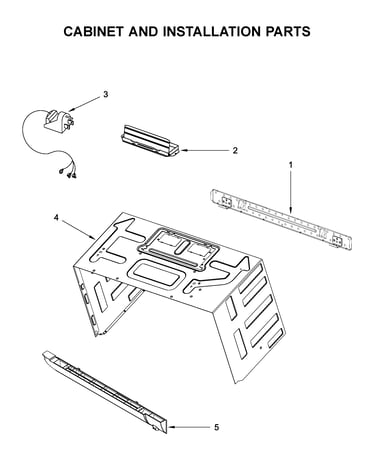

• Microwave mounting plate W11025649 (helps secure the unit to the wall)
• Microwave vent grille (black) W10701697 (covers the top vent area)

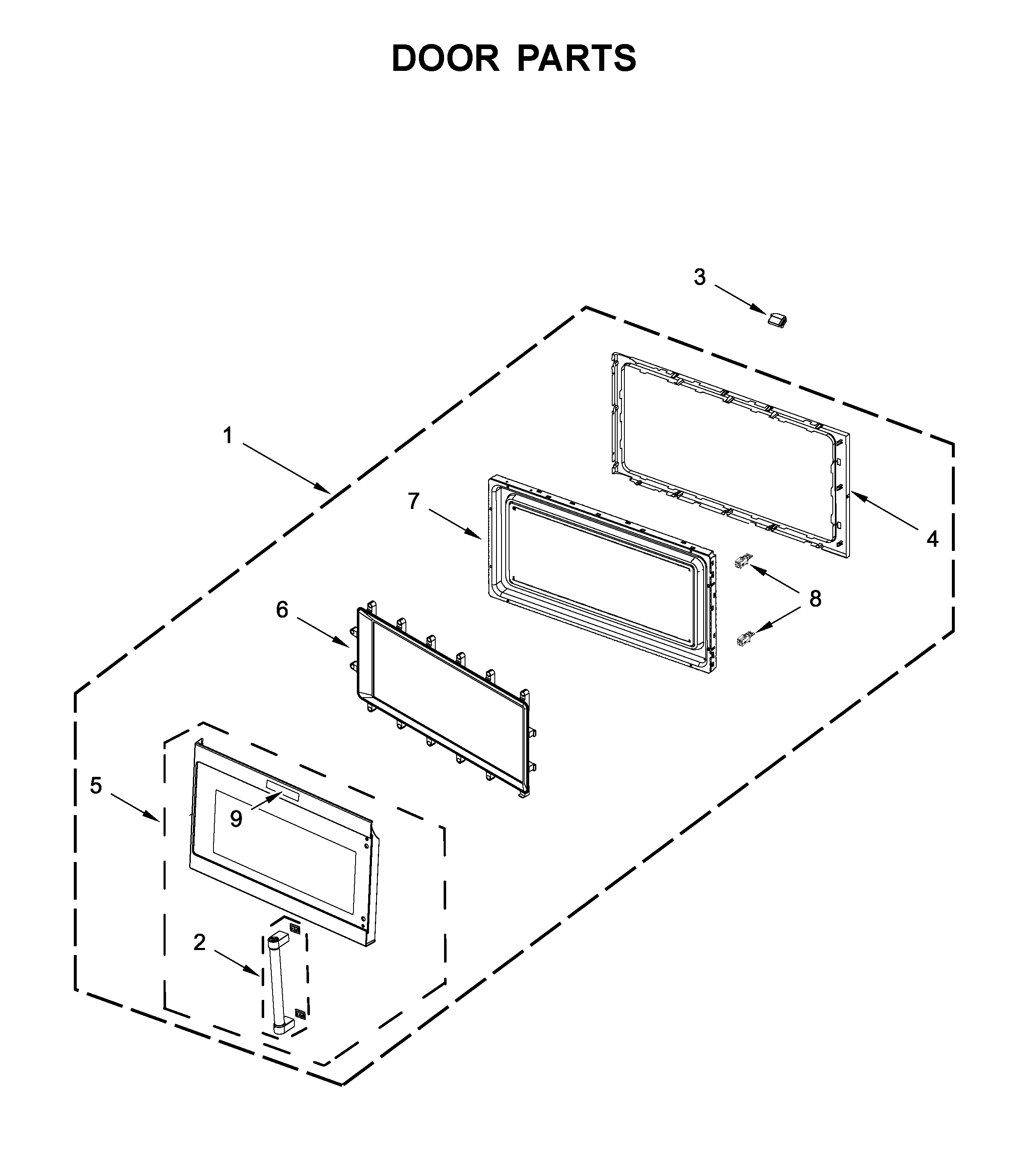

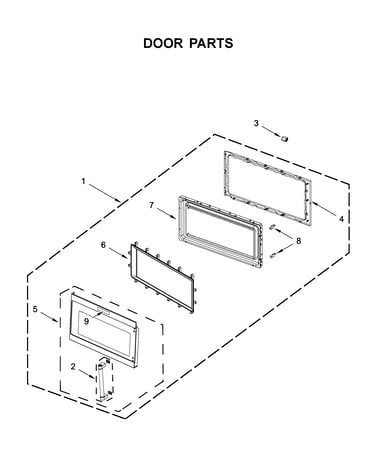

• Microwave door assembly (stainless) W10893437 (affects front projection and door closure)

To order replacement parts for KMHS120ESS10, use the parts list for this model or search by model number on Sears PartsDirect.

Last updated: February 2026

Yes. A 1000-watt microwave cooks about 10% faster than a 900-watt model, so you typically reduce cook time slightly for the same food and container size. For everyday reheating and defrosting, both work well; 1000W just finishes sooner.

• Speed: 1000W usually needs less time for the same result.
• Time adjustments: If a recipe is written for 1000W, add about 10% time on 900W.
• Large or dense foods: The difference shows more on casseroles, potatoes, and frozen meals.
• Small portions: The difference is minor for a cup of coffee or a single plate.
• Defrosting: 900W may need slightly longer or more frequent turning/stirring.

Use this as a practical starting point; then fine-tune based on results.

Wattage is the microwave’s cooking power. A 100W gap changes how quickly energy is delivered, which affects convenience and consistency, especially when you are heating thicker foods or multiple servings.

If your microwave runs but does not heat, the issue is not wattage; it is typically a failed high-voltage component or a safety interlock problem. We commonly see checks involving parts like the microwave fuse W11707984 or the assembly, interlock (includes switches) W11197766. For step-by-step troubleshooting, use our why is my microwave not heating guide.

You can order replacement parts for your KitchenAid KMHS120ESS10 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

No, not all microwaves are 1200 watts. Microwave cooking power varies widely (most commonly about 600 to 1,200+ watts), and the exact wattage for your KitchenAid KMHS120ESS10 depends on its rating label and specifications, not the fact that it is an over-the-range microwave/hood combo.

Most countertop and over-the-range microwaves fall into these general ranges:

• 600 to 800 watts: basic reheating, smaller units
• 900 to 1,100 watts: common “everyday” cooking performance
• 1,200 watts and up: faster cooking and better performance with larger portions

Higher wattage usually means faster heating and more consistent cooking, especially for:

• Frozen meals and dense foods
• Larger portions
• Recipes with short cook times (less room for timing error)
• Sensor cooking features (when equipped)

Lower wattage can still work well, but you typically need to:

• Add cook time
• Stir or rotate food more often
• Use lower power levels for longer to avoid hot spots

For the KMHS120ESS10, the most reliable way is to check the unit’s rating information:

• Look for a rating label (often inside the door opening or on the frame)
• Note the output wattage (cooking power), not just input amps/volts
• If you are comparing models, use output wattage as the apples-to-apples number

If cook times suddenly get much longer, that is usually a component issue, not “normal wattage.” Common suspects include high-voltage parts and safety devices. For this model, examples of related replacement parts include the microwave fuse W11707984 and the gaoxin-hvd c W11256462. For step-by-step troubleshooting, use our guide why is my microwave not heating.

You can order replacement parts for your KitchenAid KMHS120ESS10 from the parts list for this model, or search by model number on Sears PartsDirect.

Last updated: February 2026

Yes. KitchenAid microwave/hood combos like model KMHS120ESS10 are a solid choice when you want a built-in look, dependable venting and lighting over the range, and a premium fit and finish. Overall performance is typically strong, but long-term satisfaction depends most on correct installation, clean airflow, and keeping door and interlock parts in good shape.

• Consistent everyday cooking performance for reheating and standard microwave tasks
• Good fit and finish (especially on stainless models) and a built-in, over-the-range design
• Useful hood features (cooktop light, vent fan, grease filtration)
• Widely available replacement parts for common wear items

Many “not good” experiences come from a few repeat issues that are fixable with maintenance or targeted parts replacement:

• Not heating or weak heating: often tied to high-voltage components or safety cutouts
• Dead display or no power: can be a blown fuse or control issue
• Door won’t close, won’t start, or stops when running: commonly door latch or interlock switch problems
• Loud buzzing or arcing: can be internal damage or a waveguide cover issue
• Poor venting or greasy buildup: usually a dirty or missing grease filter

If your KMHS120ESS10 starts acting up, these are some of the most common parts involved:

• Microwave fuse W11707984
• Assembly, interlock (includes switches) W11197766
• Microwave door latch W10740455
• Filter W10208631A
• Jenn-air microwave waveguide cover W11193296

A microwave/hood combo is both a cooking appliance and a ventilation system. When airflow is restricted (grease filter clogged) or the door safety system is worn (interlock/latch), performance drops fast and the microwave can seem “bad” even though the core unit is still in good shape.

We list model-specific replacement parts for KMHS120ESS10 on this page; for broader model lookups and ordering, use Sears PartsDirect.
