Kenmore
Room Air Conditioner

Model # 25372115200 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 25372115200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

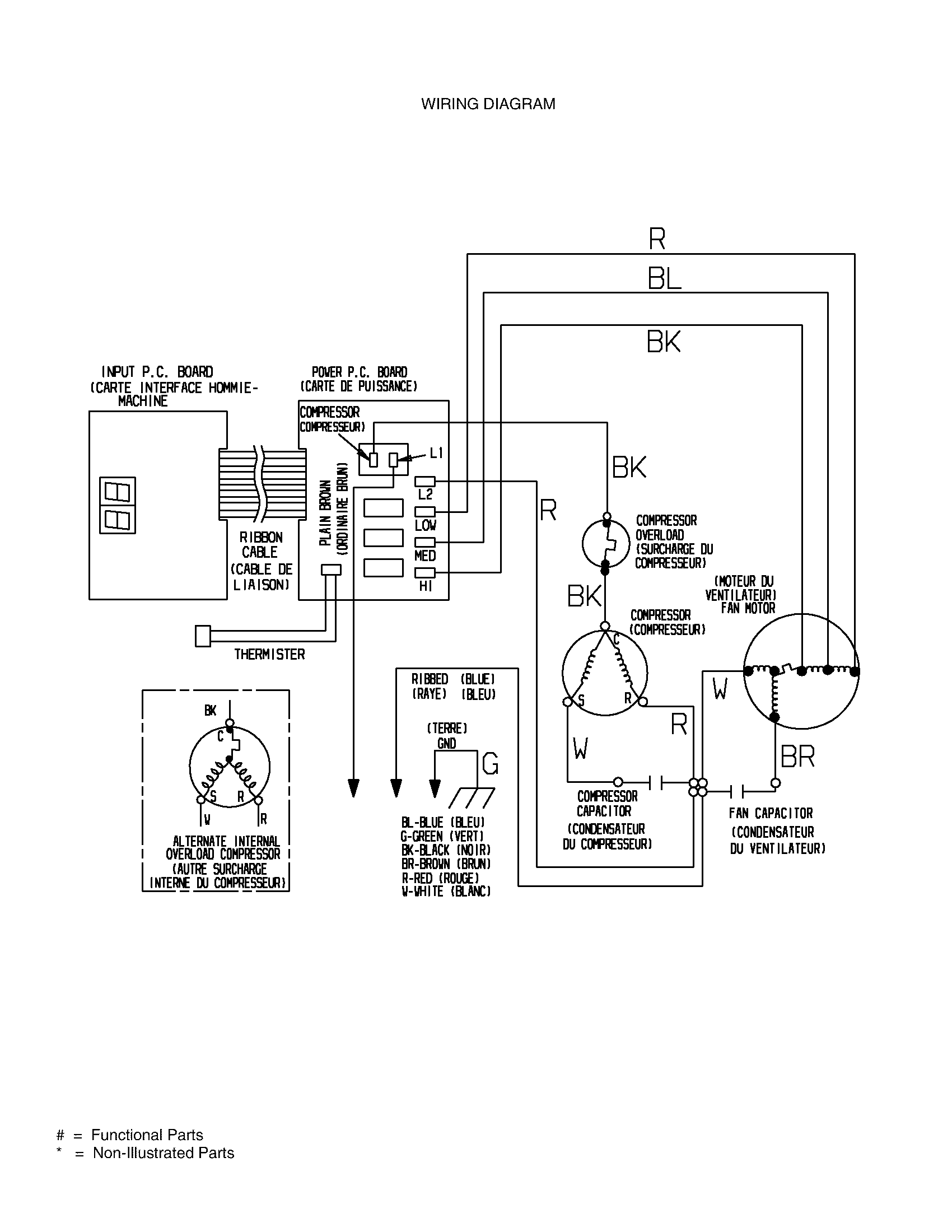

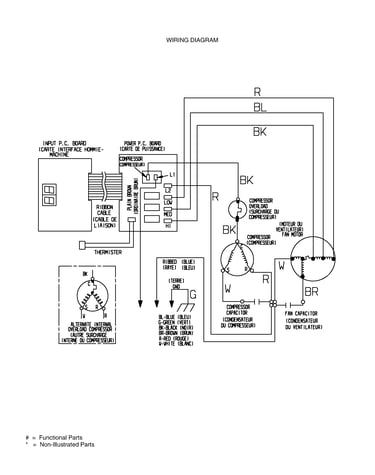

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |

Bracket Screw 5303301590
#74

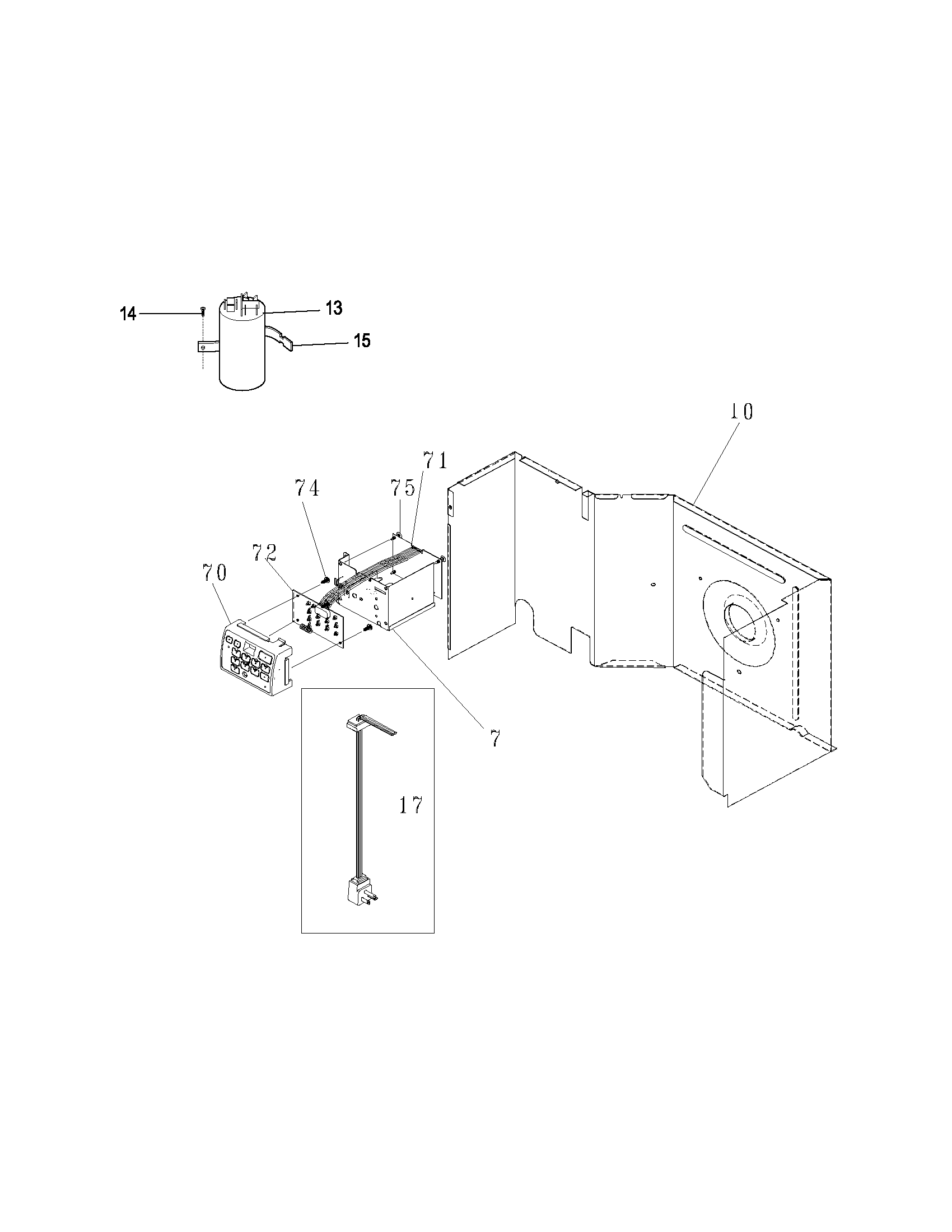

Control parts diagram

Bracket screw

Part #5303301590

This item is not returnable
In Stock
Room Air Conditioner Filter Dryer 5300265301
#17

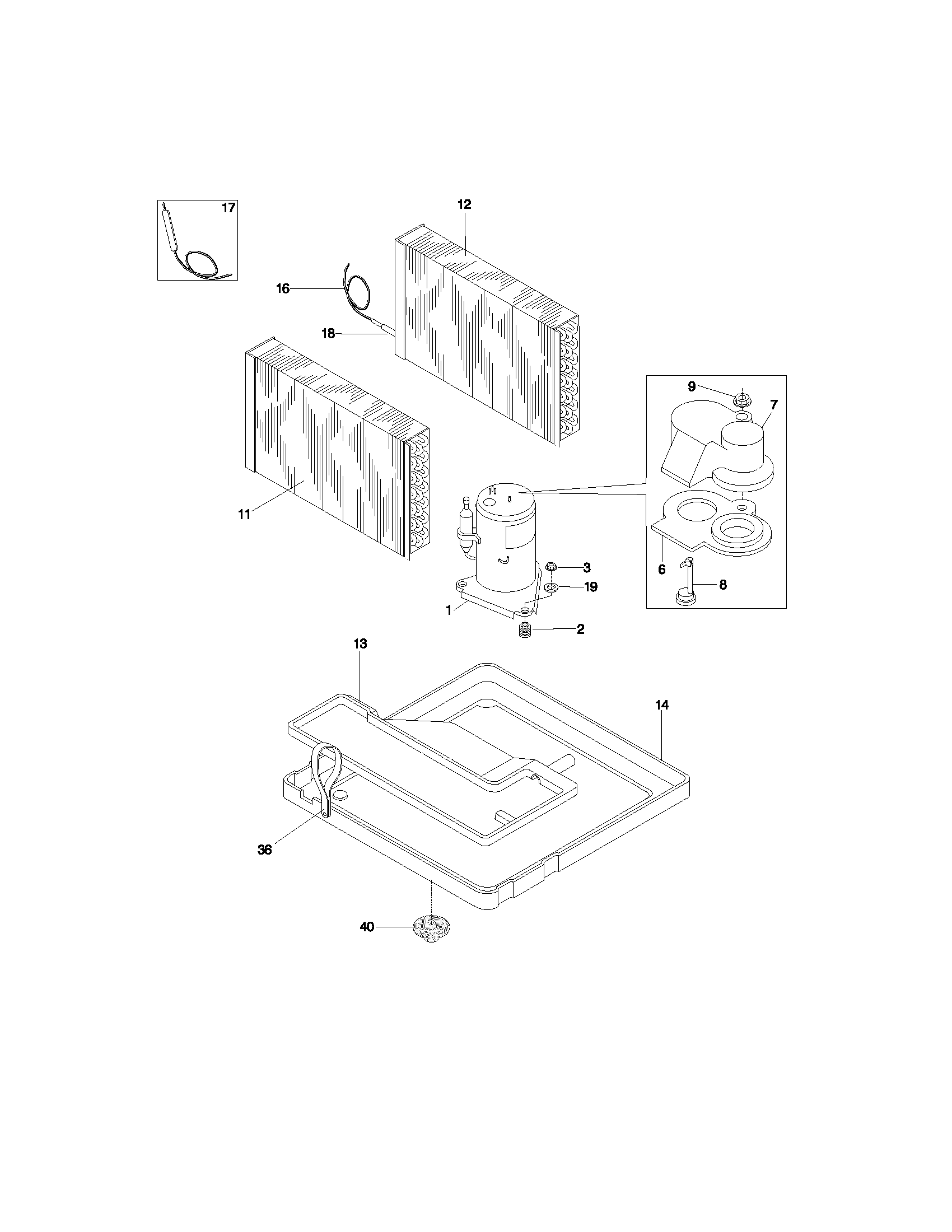

Compressor parts diagram

Room air conditioner filter dryer

Part #5300265301

In Stock
Foam Strip 5304407729
#1

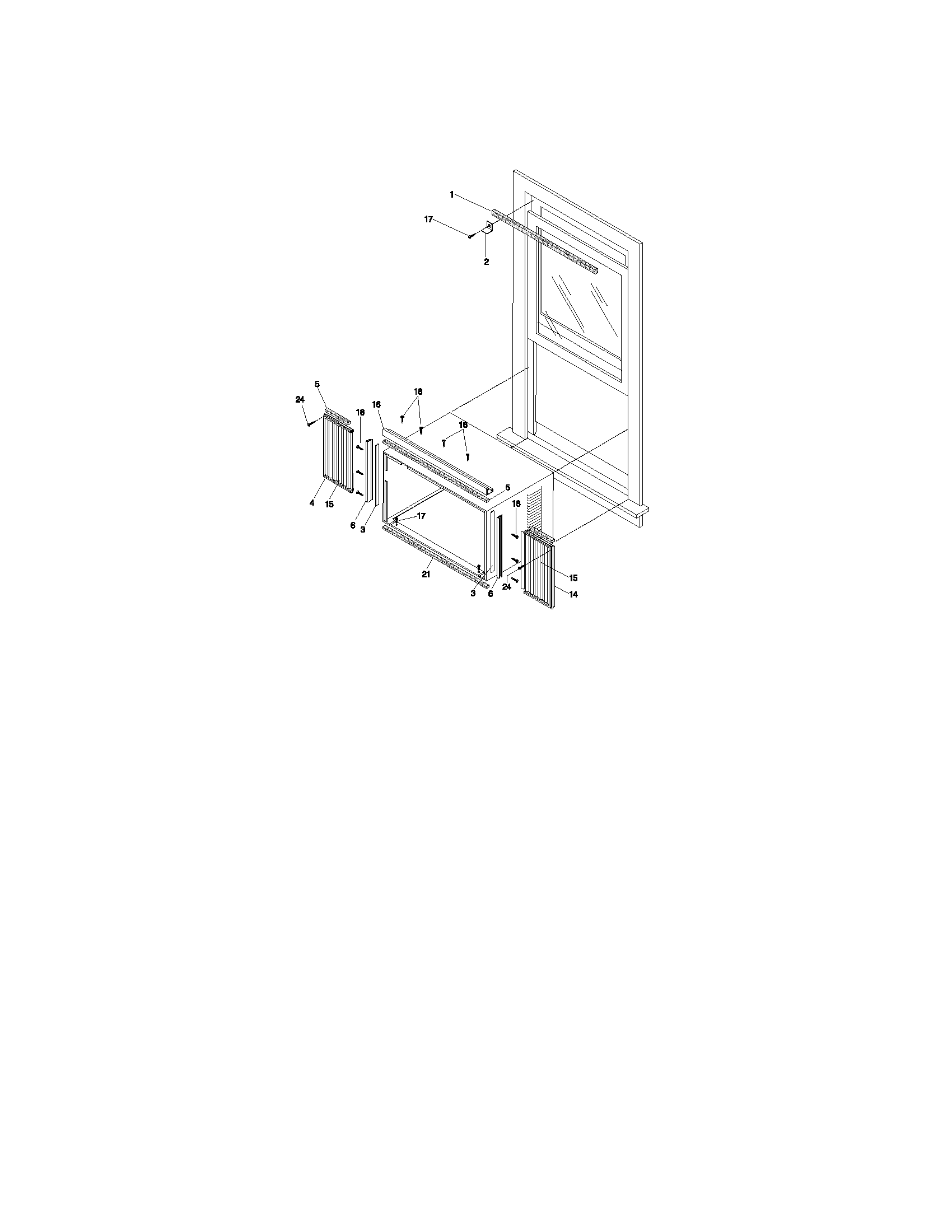

Window mounting parts diagram

Foam strip

Part #5304407729

In Stock
Bracket Screw 3015312
#NI

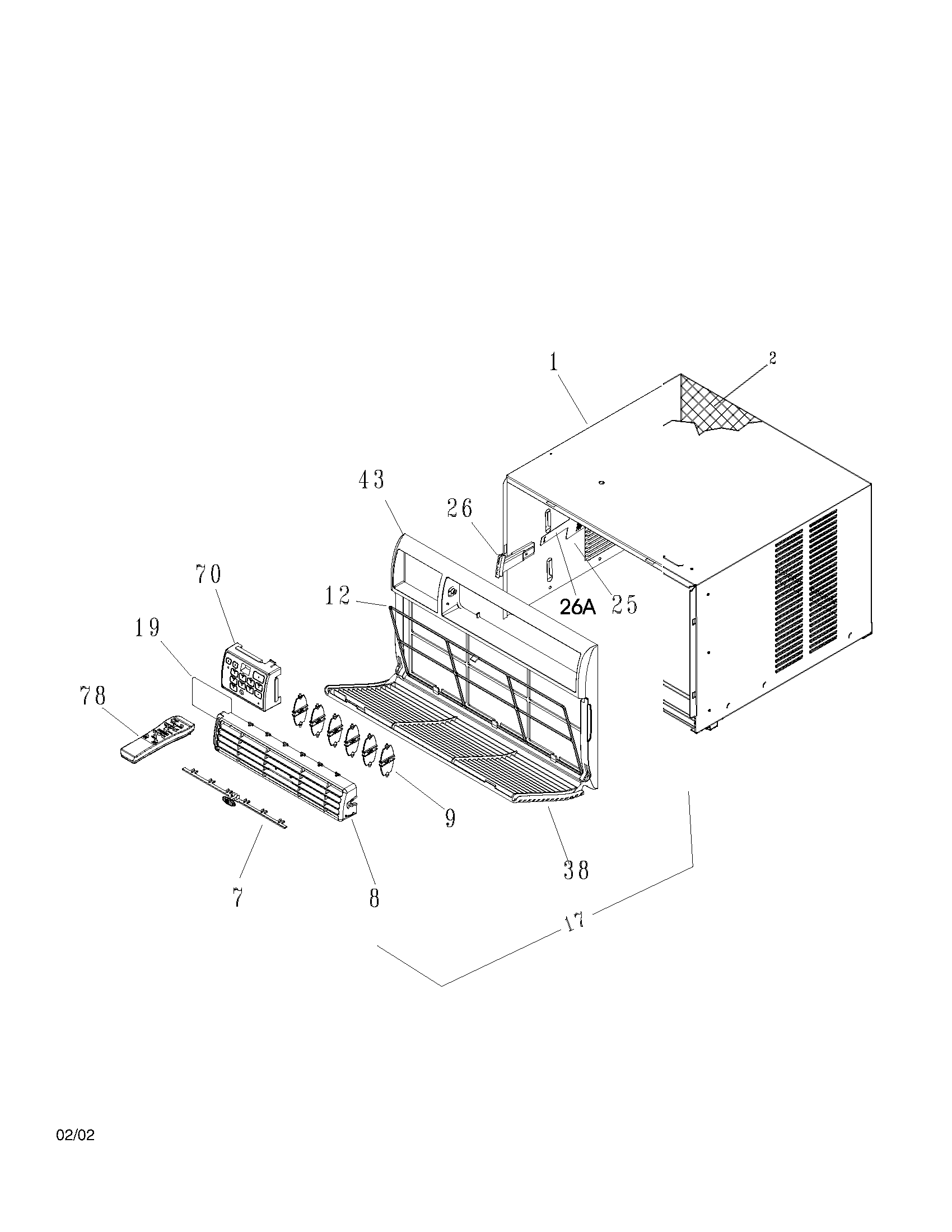

Cabinet front and wrapper diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
In Stock
Screw 3202975
#2

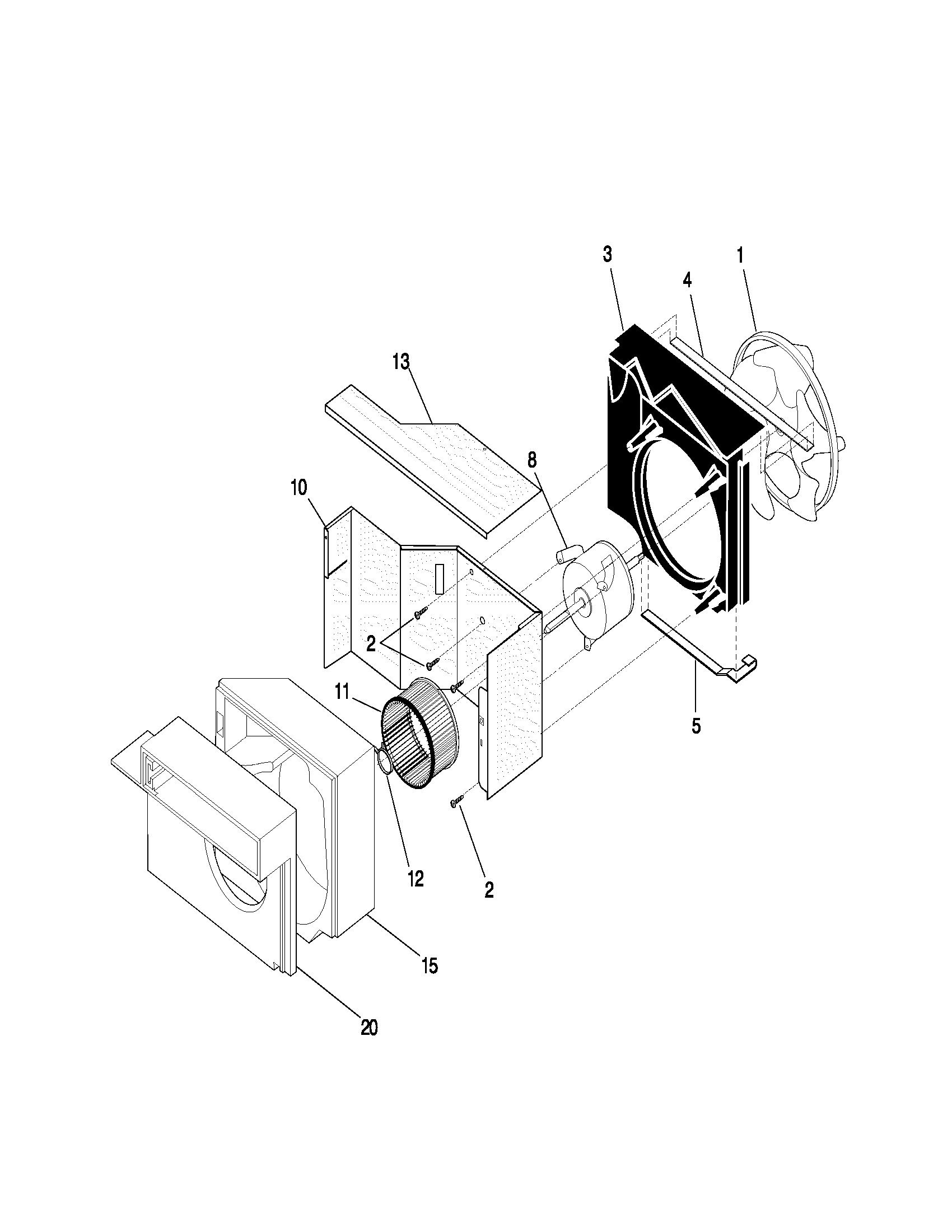

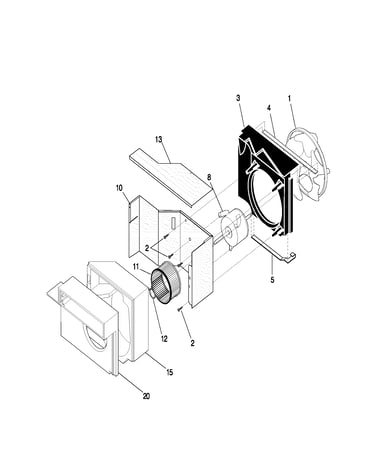

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Room Air Conditioner Front Louver Link 309638601
#7

Cabinet front and wrapper diagram

Room air conditioner front louver link

Part #309638601

The manufacturer no longer makes this part, and there's no substitute part

Horizontal Louver 309638501
#8

Cabinet front and wrapper diagram

Horizontal louver

Part #309638501

The manufacturer no longer makes this part, and there's no substitute part

Strap Base 5303303558
#36

Compressor parts diagram

Strap base

Part #5303303558

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 309635503
#11

Compressor parts diagram

Evaporator

Part #309635503

The manufacturer no longer makes this part, and there's no substitute part
