KitchenAid
Garbage Disposal

Model # KCDC150K2 Official KitchenAid garbage disposal

Here are the diagrams and repair parts for Official KitchenAid KCDC150K2 garbage disposal, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Shell 8174341
#4

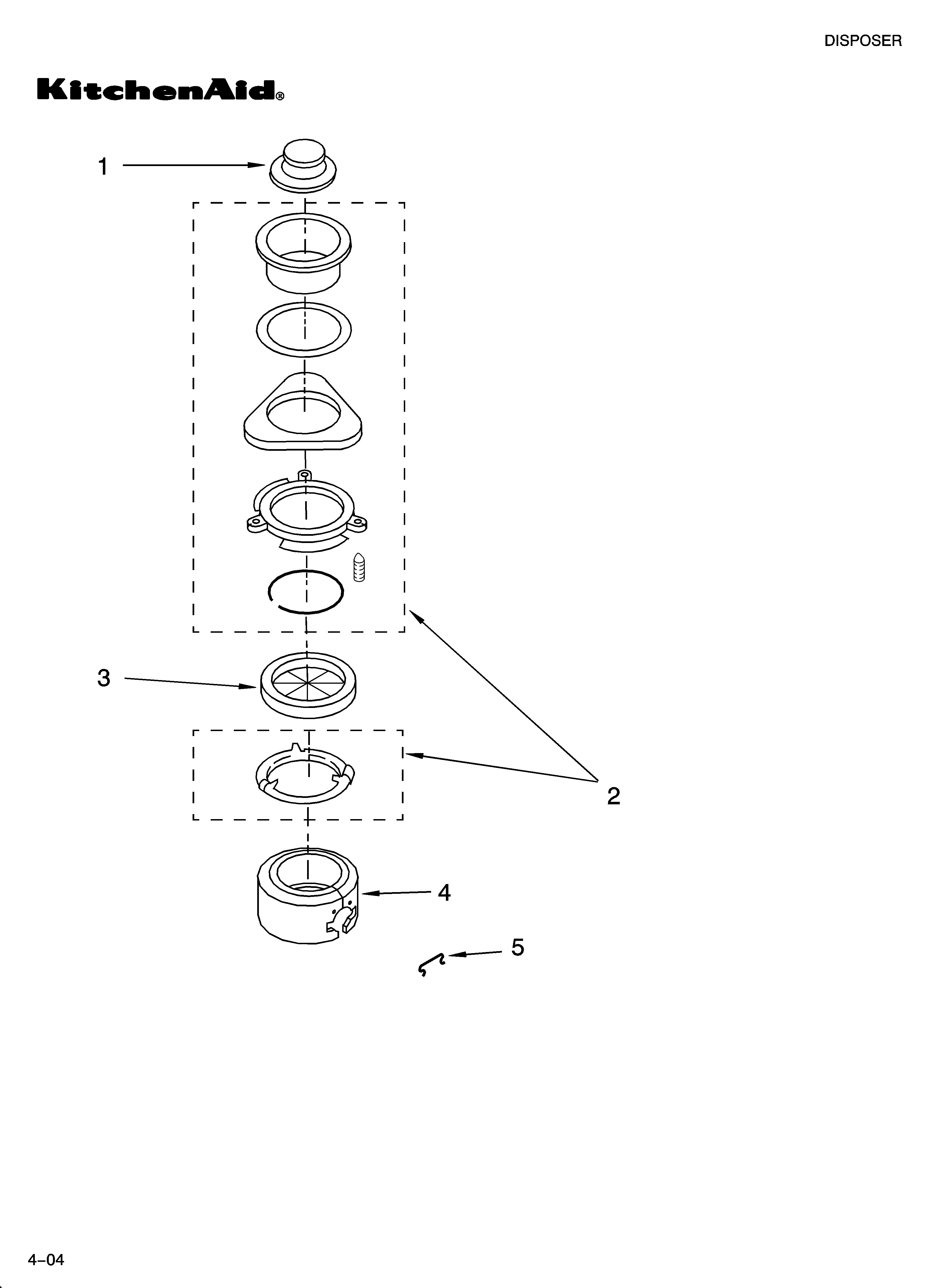

Upper housing and flange parts diagram

Shell

Part #8174341

$92.96
In Stock
Switch 8174312
#4

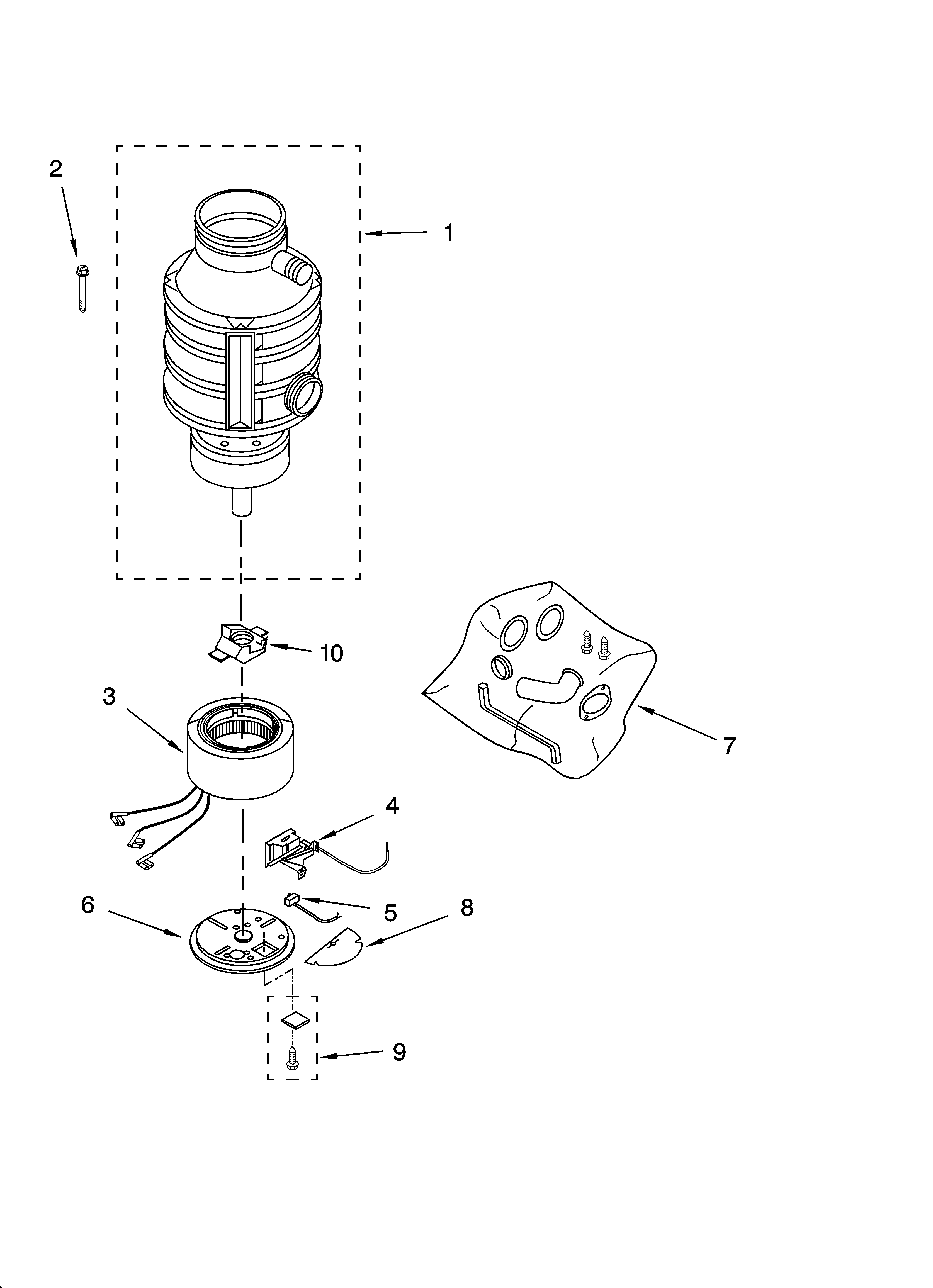

Lower housing and motor parts diagram

Switch

Part #8174312

$141.20
In Stock
Frame 8174345
#6

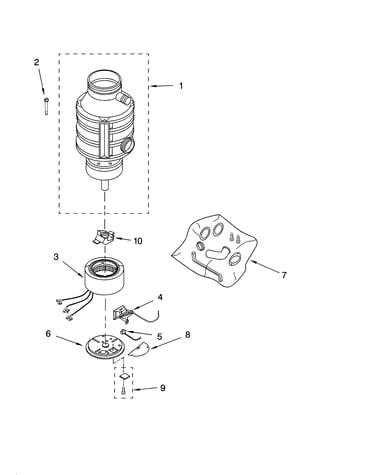

Lower housing and motor parts diagram

Frame

Part #8174345

$95.82
In Stock
Garbage Disposal Mounting Gasket And Splash Guard Assembly 4211615
#3

Upper housing and flange parts diagram

Garbage disposal mounting gasket and splash guard assembly

Part #4211615

This item is not returnable
$21.09 |
19% OFF Phone Price : $26.09
In Stock
Stopper 4211300
#1

Upper housing and flange parts diagram

Stopper

Part #4211300

$16.59 |
11% OFF Phone Price : $18.59
In Stock
Clip 8174342
#5

Upper housing and flange parts diagram

Clip

Part #8174342

$37.29
In Stock
Overload 882726
#5

Lower housing and motor parts diagram

Overload

Part #882726

$86.27
In Stock
Actuator 4211322
#10

Lower housing and motor parts diagram

Actuator

Part #4211322

$37.96
In Stock
Mntg-assy 8174306
#2

Upper housing and flange parts diagram

Mntg-assy

Part #8174306

Replaced by #WP4172173A

?
Manufacturer substitution
This part replaces 8174306. Substitute parts can look different from the original.
$30.96
In Stock
Installation Kit 4176802
#7

Lower housing and motor parts diagram

Installation kit

Part #4176802

The manufacturer no longer makes this part, and there's no substitute part
