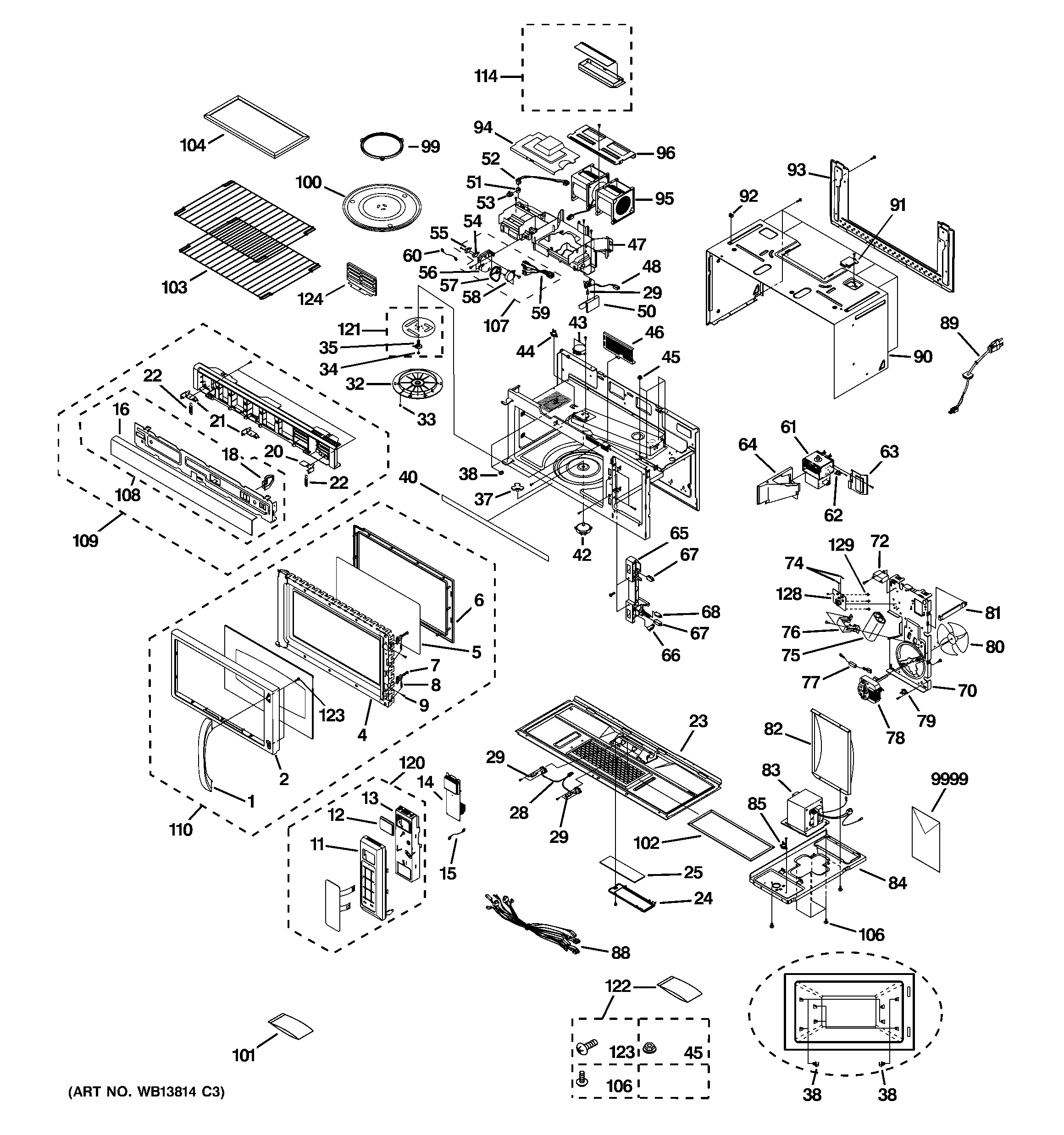

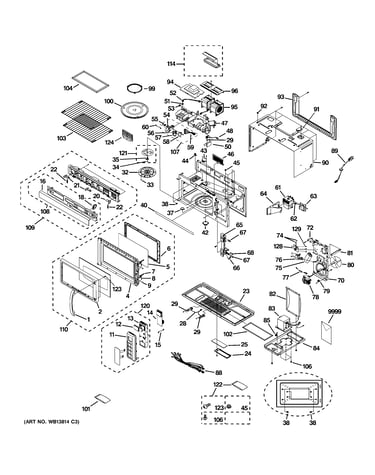

GE JVM1871SK04 microwave Parts

No. GE over-the-range microwaves do not all use the same mounting bracket; the wall plate hole pattern, cabinet template, and venting setup can vary by model. For GE model JVM1871SK04, install it using the bracket (mounting plate) and templates specified in the JVM1871SK04 installation guide.

What to expect when replacing a GE over-the-range microwave

Even when the new unit fits a standard 30-inch space, the mounting hardware is often model-specific.

• Wall plate (mounting bracket) hole locations can differ
• Top cabinet drilling template can differ
• Venting configuration (top exhaust, back exhaust, recirculating) can change the setup
• Cabinet bottom style (flat, recessed, or overhang) affects wall plate positioning
• You still need at least one fastener anchored into a wall stud for support

Model-specific installation details that affect bracket compatibility

The JVM1871SK04 installation instructions call out several bracket-related steps that must match your cabinet and wall conditions, including determining wall plate location under different cabinet bottoms and marking multiple mounting holes (A, B, C, D) with stud requirements. Use the JVM1871SK04 installation guide to match your cabinet type and venting method before drilling.

Common cabinet-bottom scenarios (from typical OTR installs)

Cabinet bottom style	What changes	Why it matters
Flat bottom	Plate tabs typically touch cabinet bottom	Keeps microwave level
Framed recessed	Tabs align to the back frame	Prevents tilt and gaps
Front overhang	Plate drops by the overhang depth	Avoids a nose-down install

Quick checks before you reuse an old bracket

• Confirm the new microwave’s wall plate matches your existing hole pattern
• Verify the top cabinet template holes line up (cord hole and mounting bolts)
• Confirm your venting choice: outside top, outside back, or recirculating
• Make sure the microwave will sit level once the plate is positioned
• Plan to hit a wall stud with at least one wood screw

Why it matters

The mounting plate carries most of the microwave’s weight. Using the correct bracket and templates helps the unit sit level, align with ductwork, and mount securely to studs, which prevents shifting, vibration, and cabinet damage.

Last updated: February 2026

Most GE microwaves last about 7 to 10 years with normal household use. For an over-the-range model like GE JVM1871SK04, keeping the venting and filters clean and following the care steps in the JVM1871SK04 owner’s manual helps you reach the full expected service life.

Typical lifespan and what affects it

A microwave’s life is driven more by heat, grease, and door wear than by the brand name alone.

• Daily run time (multiple long heat cycles per day shortens life)
• Ventilation and airflow (blocked vents make components run hotter)
• Grease and steam exposure (common on microwave/hood combos)
• Door closing habits (slamming stresses the latch and interlock system)
• Cleaning routine (spills and splatter can lead to odors, corrosion, and arcing)

What “end of life” usually looks like

These are the most common symptoms we see as microwaves age:

Symptom	Common cause area	Typical fix path
Runs but does not heat	High-voltage system	Diagnose heating circuit; repair or replace key components
Intermittent operation when door moves	Door latch or interlock switches	Inspect latch alignment and switch actuation
Loud hum, burning smell, or repeated shutdown	High-voltage or cooling/venting issue	Stop using and have it checked
Turntable stops turning	Turntable drive	Check coupler/motor and tray support

Maintenance that extends lifespan

We recommend these habits for JVM1871SK04:

• Wipe interior regularly; the manual notes to power off before cleaning and avoid abrasive cleaners.
• Keep the grease filter clean and replace the charcoal filter if you run in recirculating mode.
• Use proper venting setup and clear airflow; confirm the correct configuration in the JVM1871SK04 installation guide.
• Close the door gently to protect the latch and interlock system.
• If heating becomes weak or inconsistent, use a structured diagnostic approach like why is my microwave not heating.

Why it matters

A microwave/hood combo sits over the cooktop, so grease and heat load are higher than a countertop unit. Good venting and routine cleaning reduce internal temperatures and stress on parts like the magnetron, capacitor, and door interlocks.

Last updated: February 2026

A 1.9 cu. ft. microwave gives you about 0.2 cu. ft. more interior capacity than a 1.7 cu. ft. model, which mainly means a little more room for wider or taller cookware. For a built-in over-the-range unit like the GE JVM1871SK04, exterior fit is usually driven more by the installation opening than the capacity number; confirm clearances in the JVM1871SK04 installation guide.

What changes in real-world use

• Dish fit: 1.9 cu. ft. models typically handle slightly larger casserole dishes and taller containers.
• Usable space: The extra capacity is helpful when you reheat multiple plates or use a microwave-safe covered dish.
• Cooking results: Capacity alone does not make food heat faster; wattage, sensor cooking, and turntable design matter more.
• Vent hood performance: Some 1.9 cu. ft. over-the-range models are paired with higher CFM blowers, but that is model-specific.
• Installation fit: Many over-the-range microwaves still target a 30-inch cabinet opening and similar mounting height rules.

Installation and fit: what to compare

For over-the-range microwaves, we focus on cabinet opening and mounting clearances first, then capacity.

What you’re comparing	1.7 cu. ft.	1.9 cu. ft.	What to check before buying
Interior capacity	Smaller	Slightly larger	Largest dish you use most often
Exterior fit	Often similar	Often similar	Cabinet opening width and mounting height
Venting setup	Varies	Varies	Recirculating vs. outside venting

Why it matters

If your main frustration is “my dish barely fits,” moving from 1.7 to 1.9 cu. ft. can solve that. If your issue is “it does not heat well” or “venting is weak,” capacity is usually not the fix; features and condition are.

Model-specific tip for GE over-the-range installs

GE over-the-range installs commonly require a 30-inch wide space between cabinets and specific minimum heights above the cooking surface; those requirements affect whether a replacement will fit as much as the cu. ft. rating does. Use the JVM1871SK04 installation guide to match your cabinet opening, mounting height, and venting path.

Last updated: February 2026

The GE JVM1871SK04 microwave/hood combo is typically in the 900 to 1100 watt cooking-power range for over-the-range GE units of this style. For the exact cooking output and electrical ratings for your specific JVM1871SK04, confirm the specification label and the JVM1871SK04 owner’s manual.

What “watts” can mean on a microwave

Microwaves list more than one wattage; using the right one prevents confusion when comparing models.

• Cooking power (output watts): the heating performance used for recipes
• Input power (watts/amps): what the unit draws from the outlet (used for circuit planning)
• Light wattage: cooktop or cavity bulb rating (separate from cooking power)
• Vent fan power: motor load (also separate from cooking power)

Where to find the exact wattage for JVM1871SK04

Use these quick checks to get the exact number for your unit.

1. Check the rating label (commonly inside the door opening or on the oven frame); look for “Output” or “Microwave output.”
2. Check the specifications section in the JVM1871SK04 owner’s manual.
3. If you are matching parts for door or heating issues, use the model number JVM1871SK04 and the exact part ID.

Quick reference: common microwave wattage numbers

Item you’re checking	Typical range	Best use
Cooking output	900 to 1100 W	Adjusting cook times
Input draw	Higher than output	Circuit and breaker planning
Cooktop light bulb	20 to 40 W	Buying the correct bulb

Why it matters

Cooking output watts directly affect cook time. If a recipe is written for 1000 W and your microwave is higher or lower, you adjust time to avoid underheating or overcooking.

Related parts customers often ask about

If you are troubleshooting door-closed sensing (which can stop heating), these are common interlock-related parts for this model family:

• Micro-switch WB24X830 (door interlock switch)
• Microwave latch body WB06X10676 (door latch mechanism)
• Microwave door interlock switch lever WB06X10128 (actuates the switch)

Last updated: February 2026
