Model # 56424400150 Official LXI radio

Here are the diagrams and repair parts for Official LXI 56424400150 radio, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Spring 123-2-481R-10300
#37

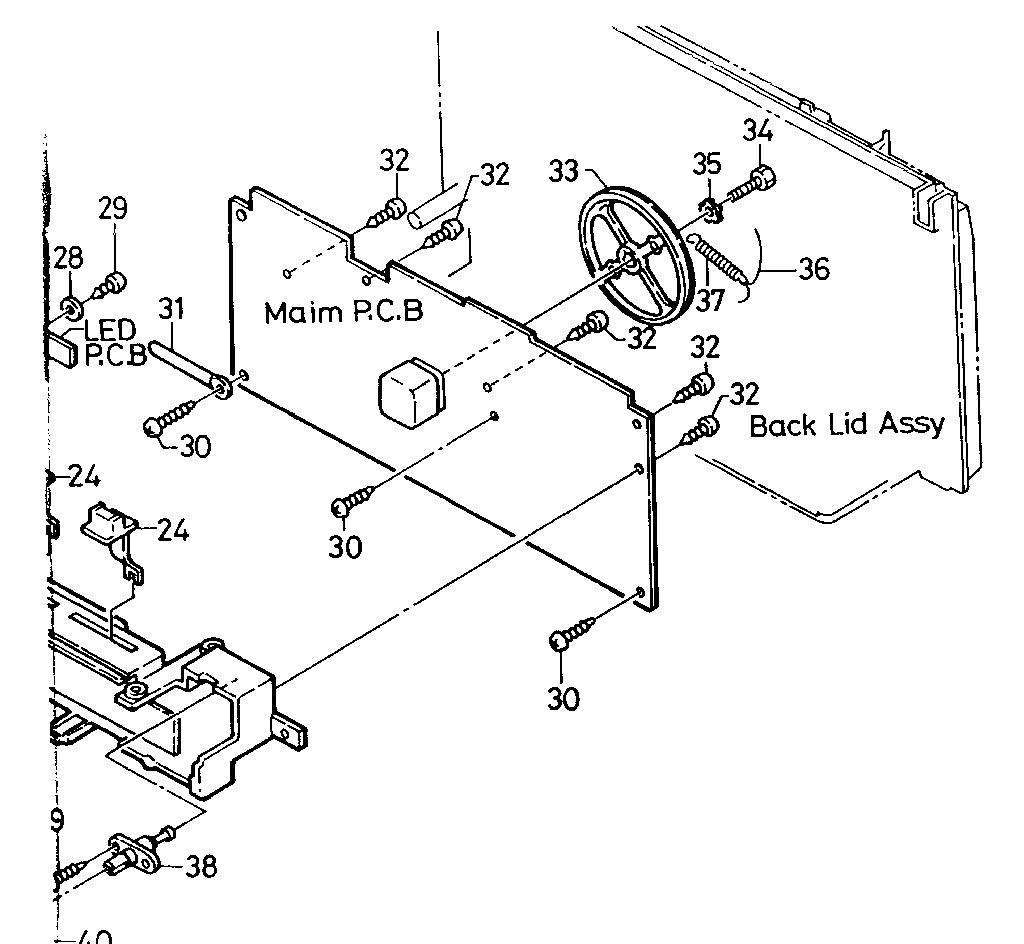

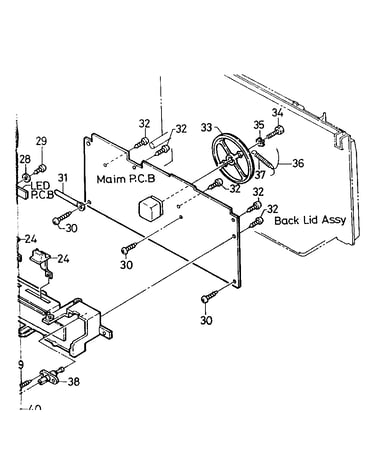

Drum diagram

Spring

Part #123-2-481R-10300

The manufacturer no longer makes this part, and there's no substitute part

Washer 141-2-453T-00800
Washer

Part #141-2-453T-00800

The manufacturer no longer makes this part, and there's no substitute part

Screw BJN-B-SXX3-X4XZ1
Screw

Part #BJN-B-SXX3-X4XZ1

The manufacturer no longer makes this part, and there's no substitute part

Bracket 141-2-310T-49900
#8

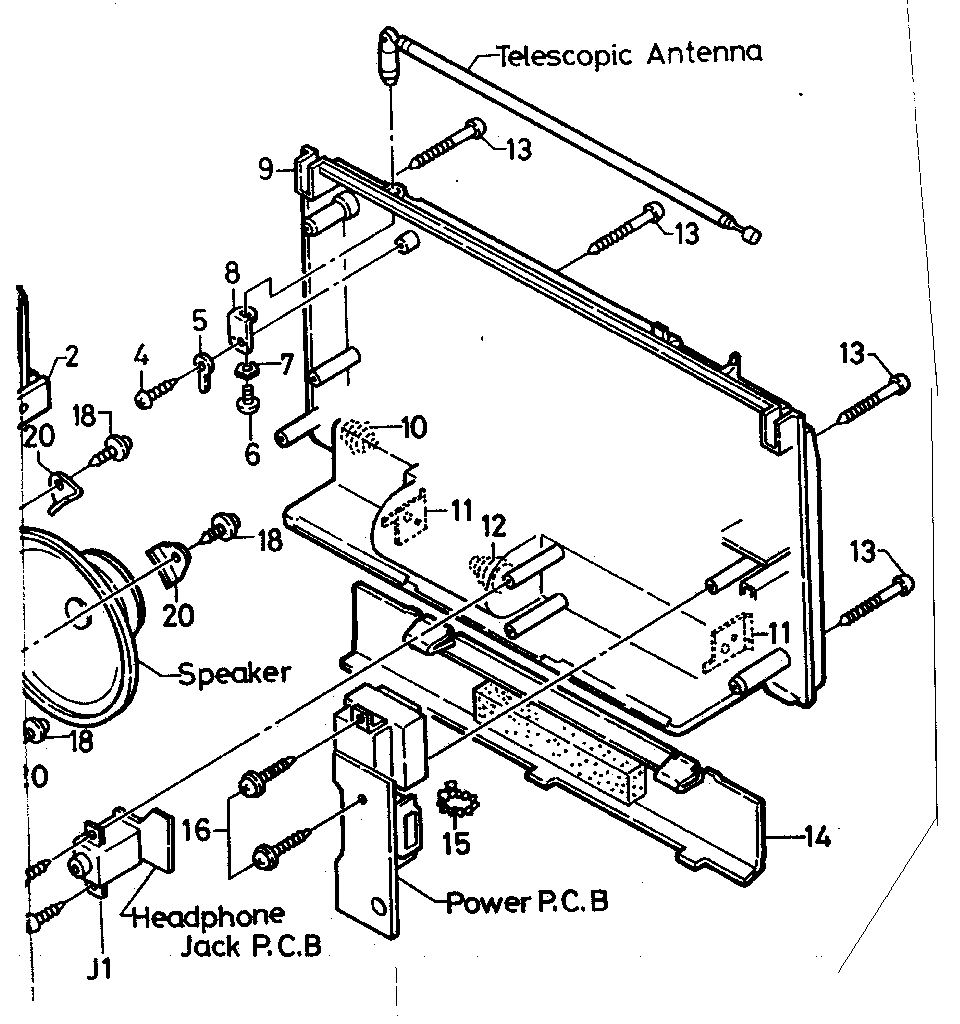

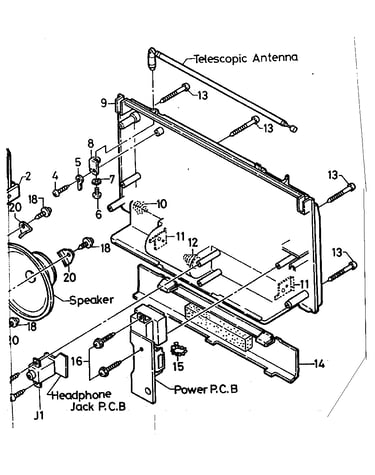

Cabinet back diagram

Bracket

Part #141-2-310T-49900

The manufacturer no longer makes this part, and there's no substitute part

(a-32) Lug, Motor (a31) Mtg. (not A Service Part) N/P
(a-32) lug, motor (a31) mtg. (not a service part)

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Pointer 141-0-511T-21700
#41

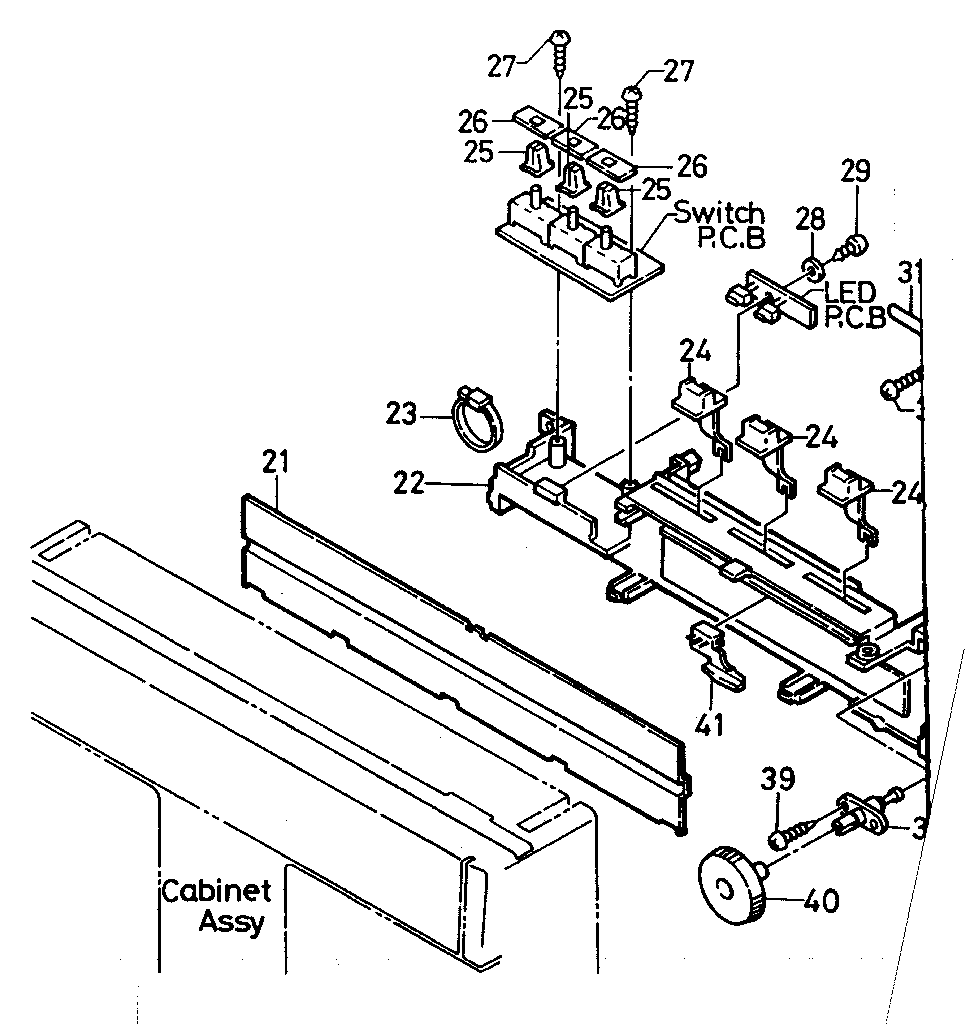

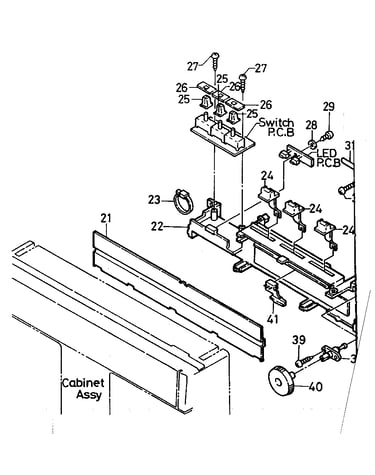

Chassis exploded view diagram

Pointer

Part #141-0-511T-21700

The manufacturer no longer makes this part, and there's no substitute part

Knob 141-2-162T-19500
#25

Chassis exploded view diagram

Knob

Part #141-2-162T-19500

The manufacturer no longer makes this part, and there's no substitute part

Battery Lid 141-0-128T-17400
#14

Cabinet back diagram

Battery lid

Part #141-0-128T-17400

The manufacturer no longer makes this part, and there's no substitute part

Screw BJX-6-SXX3-X8XZ1
Screw

Part #BJX-6-SXX3-X8XZ1

The manufacturer no longer makes this part, and there's no substitute part

Screw BJN-2-SXX3-55XZK
#13

Cabinet back diagram

Screw

Part #BJN-2-SXX3-55XZK

The manufacturer no longer makes this part, and there's no substitute part
