Model # 1725 Official Bissell portable deep cleaner

Here are the diagrams and repair parts for Official Bissell 1725 portable deep cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 29 parts |

#19

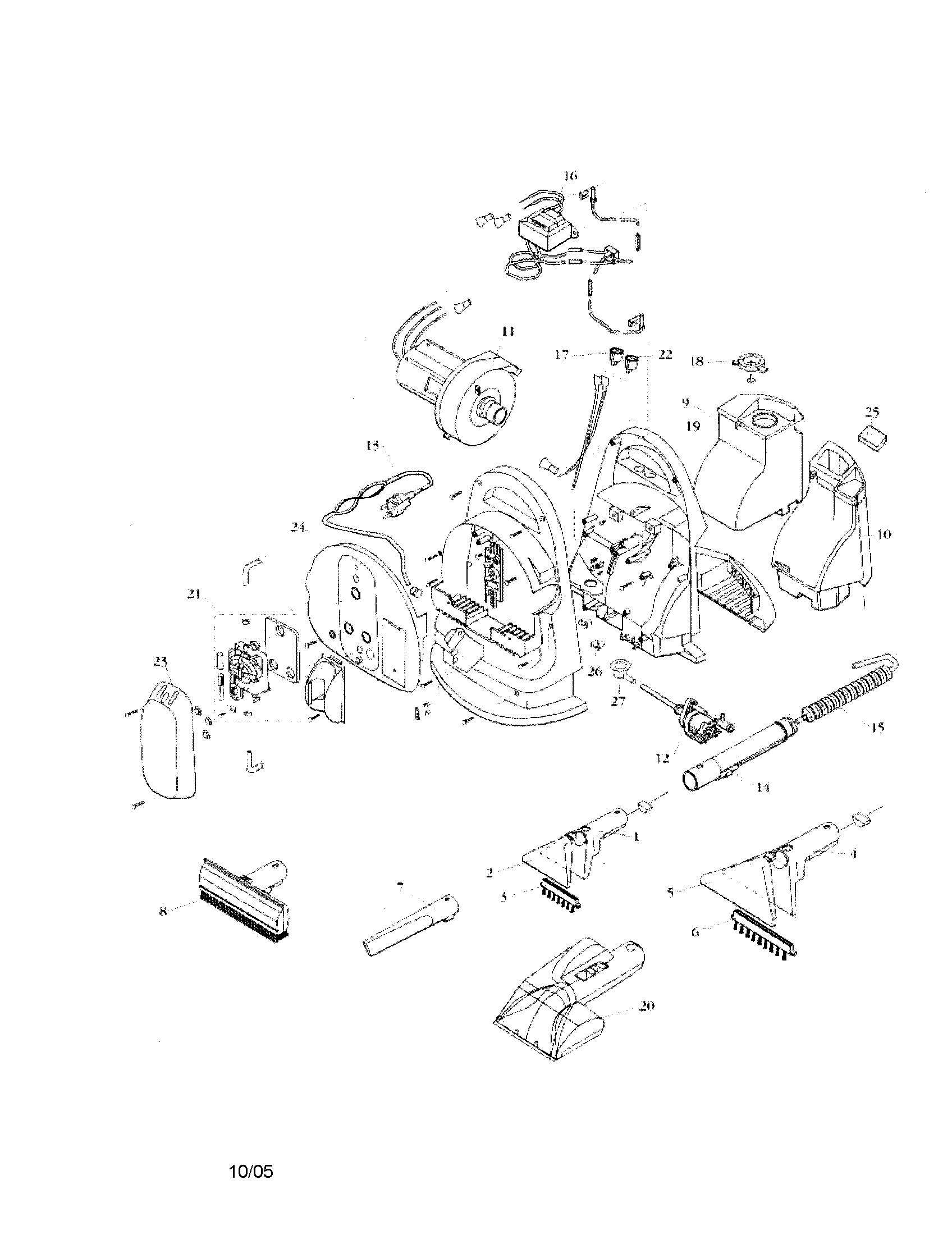

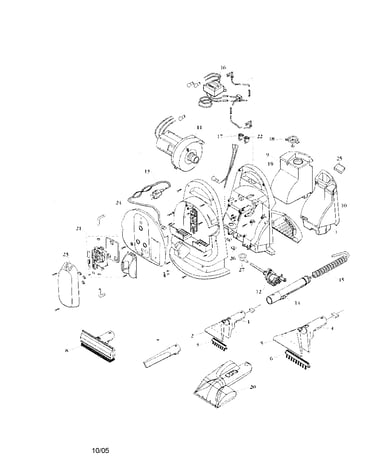

Little green proheat diagram

Frt.housng

Part #210-3120

The manufacturer no longer makes this part, and there's no substitute part

#19A

Little green proheat diagram

Housing

Part #210-3121

The manufacturer no longer makes this part, and there's no substitute part

#21

Little green proheat diagram

Heater

Part #603-0433

The manufacturer no longer makes this part, and there's no substitute part

Little green proheat diagram

Brush

Part #203-0984

The manufacturer no longer makes this part, and there's no substitute part

#20

Little green proheat diagram

Brush

Part #210-1197

The manufacturer no longer makes this part, and there's no substitute part

Little green proheat diagram

Nozzle

Part #203-0983

The manufacturer no longer makes this part, and there's no substitute part

Little green proheat diagram

Nozzle

Part #203-0985

The manufacturer no longer makes this part, and there's no substitute part

#22

Little green proheat diagram

Switch lgp

Part #210-4200

The manufacturer no longer makes this part, and there's no substitute part

4'' window -nla

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

#12

Little green proheat diagram

Pump

Part #203-7165

The manufacturer no longer makes this part, and there's no substitute part
