Lifestyler
Exercise Cycle

Model # 16628623 Official Lifestyler 20" wheel deluxe exercise cycle

Here are the diagrams and repair parts for Official Lifestyler 16628623 20" wheel deluxe exercise cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

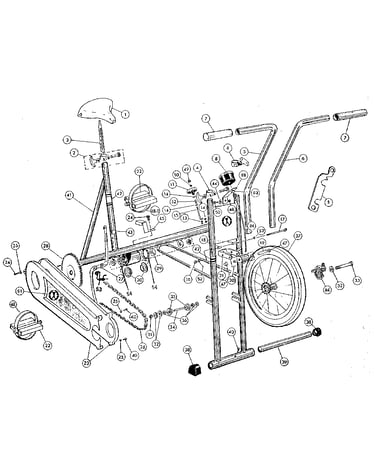

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Bearing 000884
#54

Unit parts diagram

Bearing

Part #000884

The manufacturer no longer makes this part, and there's no substitute part

Screw S Metl 7174
#40

Unit parts diagram

Screw s metl

Part #7174

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer STD551031
#52

Unit parts diagram

Flat washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Washer 7433
#14

Unit parts diagram

Washer

Part #7433

The manufacturer no longer makes this part, and there's no substitute part

Drive Unit 7421D
#8D

Unit parts diagram

Drive unit

Part #7421D

The manufacturer no longer makes this part, and there's no substitute part

Cable 7421C
#8C

Unit parts diagram

Cable

Part #7421C

The manufacturer no longer makes this part, and there's no substitute part

Spdmtr Hd As 7421
#8

Unit parts diagram

Spdmtr hd as

Part #7421

The manufacturer no longer makes this part, and there's no substitute part

Spacer F Hub E6023
#34

Unit parts diagram

Spacer f hub

Part #E6023

The manufacturer no longer makes this part, and there's no substitute part

Washer 7452
#36

Unit parts diagram

Washer

Part #7452

The manufacturer no longer makes this part, and there's no substitute part

Cup Btm Brkt SCD6033
#30

Unit parts diagram

Cup btm brkt

Part #SCD6033

The manufacturer no longer makes this part, and there's no substitute part
