Model # 53685639 Official Craftsman 9" edger/trimmer

Here are the diagrams and repair parts for Official Craftsman 53685639 9" edger/trimmer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Lock Nut 9413447
#18

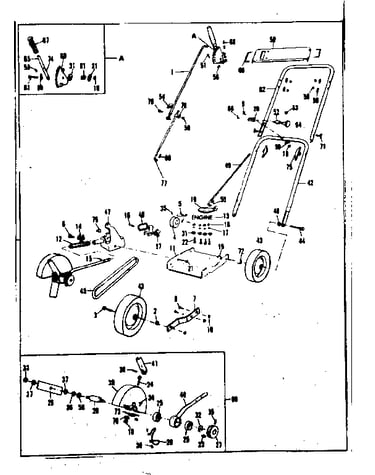

Unit parts diagram

Lock nut

Part #9413447

The manufacturer no longer makes this part, and there's no substitute part

Hex Hd Screw 122007
#8

Unit parts diagram

Hex hd screw

Part #122007

The manufacturer no longer makes this part, and there's no substitute part

Washer Blade 22265
#37

Unit parts diagram

Washer blade

Part #22265

The manufacturer no longer makes this part, and there's no substitute part

Hair Pin 36368
#68

Unit parts diagram

Hair pin

Part #36368

The manufacturer no longer makes this part, and there's no substitute part

Split Lockwr 120638
#17

Unit parts diagram

Split lockwr

Part #120638

The manufacturer no longer makes this part, and there's no substitute part

Wheel Tire 36330
#43

Unit parts diagram

Wheel tire

Part #36330

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 996407
#31

Unit parts diagram

Flat washer

Part #996407

The manufacturer no longer makes this part, and there's no substitute part

Washer 1/4 F 446188
#79

Unit parts diagram

Washer 1/4 f

Part #446188

The manufacturer no longer makes this part, and there's no substitute part

Lock Screw 35055
#38

Unit parts diagram

Lock screw

Part #35055

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 997314
#58

Unit parts diagram

Lock nut

Part #997314

The manufacturer no longer makes this part, and there's no substitute part
