Craftsman
Power Sander

Model # 17227696 Official Craftsman sander

Here are the diagrams and repair parts for Official Craftsman 17227696 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Screw SW55.21.0-00
#47

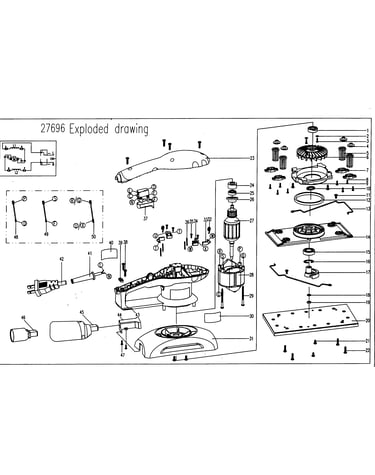

Sander diagram

Screw

Part #SW55.21.0-00

The manufacturer no longer makes this part, and there's no substitute part

Sander Trigger Switch SW02.48.00-00
#37

Sander diagram

Sander trigger switch

Part #SW02.48.00-00

The manufacturer no longer makes this part, and there's no substitute part

Bearing SW50.01.0-00
#25

Sander diagram

Bearing

Part #SW50.01.0-00

The manufacturer no longer makes this part, and there's no substitute part

Screw SW56.17.0-00
#11

Sander diagram

Screw

Part #SW56.17.0-00

The manufacturer no longer makes this part, and there's no substitute part

Holder Set SA28.P.01-00
#NI

Sander diagram

Holder set

Part #SA28.P.01-00

The manufacturer no longer makes this part, and there's no substitute part

Screw SW55.58.1-00
#22

Sander diagram

Screw

Part #SW55.58.1-00

The manufacturer no longer makes this part, and there's no substitute part

Brand SA28.0.01.0-00
#40

Sander diagram

Brand

Part #SA28.0.01.0-00

The manufacturer no longer makes this part, and there's no substitute part

Clasp SA23.4.01-00
#4

Sander diagram

Clasp

Part #SA23.4.01-00

The manufacturer no longer makes this part, and there's no substitute part

Up Cover SA28.0.03-00
#23

Sander diagram

Up cover

Part #SA28.0.03-00

The manufacturer no longer makes this part, and there's no substitute part

Sander Base Plate Spring Clamp SA28.3.11-00
#13

Sander diagram

Sander base plate spring clamp

Part #SA28.3.11-00

The manufacturer no longer makes this part, and there's no substitute part
