Kenmore
Central Air Conditioner

Model # 1067791490 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 1067791490 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

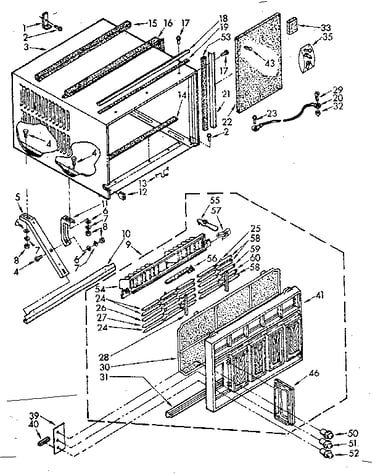

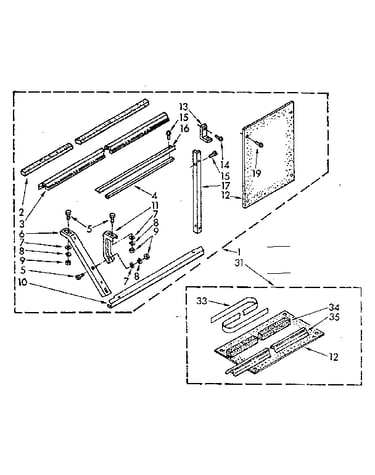

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |

Screw 487910
Screw

Part #487910

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 487910. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Screw 486194
#54

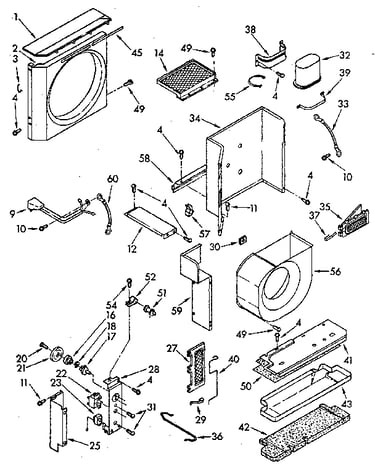

Air flow and control parts diagram

Screw

Part #486194

Replaced by #WP488729

?
Manufacturer substitution
This part replaces 486194. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Valve Kit 978027

#NI

All parts diagram

Valve kit

Part #978027

Replaced by #978027

?
Manufacturer substitution
This part replaces 978027. Substitute parts can look different from the original.
$38.69
11% OFF Phone Price : $43.69
In Stock
Valve Kit 978025

#NI

All parts diagram

Valve kit

Part #978025

Replaced by #WP978025

?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$18.97
64% OFF MSRP : $53.00
In Stock
Screw 488720
Screw

Part #488720

The manufacturer no longer makes this part, and there's no substitute part

Cover 950036
#60

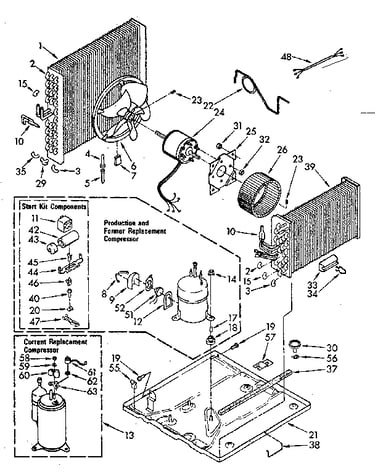

Unit parts diagram

Cover

Part #950036

Replaced by #WP950036

?
Manufacturer substitution
This part replaces 950036. Substitute parts can look different from the original.
This item is not returnable
In Stock
Capacitor 470168

#NI

All parts diagram

Capacitor

Part #470168

Replaced by #212643

?
Manufacturer substitution
This part replaces 470168. Substitute parts can look different from the original.
This item is not returnable
$50.09
9% OFF Phone Price : $55.09
In Stock
Screw, 8 X 1 488480
#4

Air flow and control parts diagram

Screw, 8 x 1

Part #488480

Replaced by #WP489069

?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.39
19% OFF Phone Price : $5.39
In Stock
Lock Nut 950035
#63

Unit parts diagram

Lock nut

Part #950035

Replaced by #WP950035

?
Manufacturer substitution
This part replaces 950035. Substitute parts can look different from the original.
In Stock
Screw 488017
Screw

Part #488017

Replaced by #WP965173

?
Manufacturer substitution
This part replaces 488017. Substitute parts can look different from the original.
This item is not returnable
In Stock
