Model # 867816861 Official Kenmore air conditioner condensing unit

Here are the diagrams and repair parts for Official Kenmore 867816861 air conditioner condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Motor 96798
#31

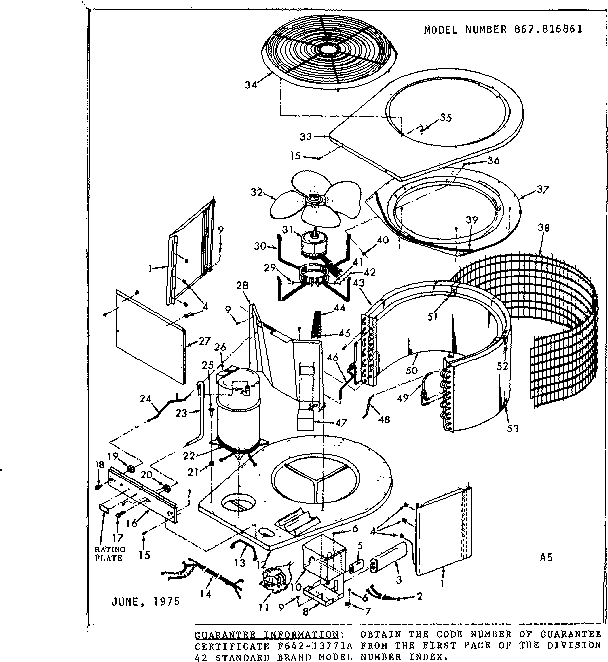

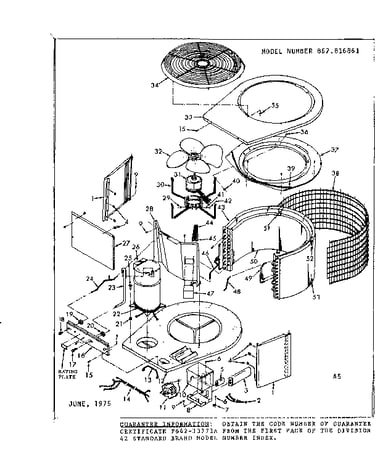

Unit parts diagram

Motor

Part #96798

Replaced by #WG840465

?
Manufacturer substitution
This part replaces 96798. Substitute parts can look different from the original.
BEST SELLER
$150.11
In Stock
Grille 94139
#34

Unit parts diagram

Grille

Part #94139

Replaced by #512848

?
Manufacturer substitution
This part replaces 94139. Substitute parts can look different from the original.
$164.46 |
6% OFF Phone Price : $174.46
In Stock
Capacitor 94149
#5

Unit parts diagram

Capacitor

Part #94149

Replaced by #12005

?
Manufacturer substitution
This part replaces 94149. Substitute parts can look different from the original.
$16.12 |
11% OFF Phone Price : $18.12
In Stock
Compressor 701770
#26

Unit parts diagram

Compressor

Part #701770

The manufacturer no longer makes this part, and there's no substitute part

Contactor 94083
#11

Unit parts diagram

Contactor

Part #94083

Replaced by #90-170

?
Manufacturer substitution
This part replaces 94083. Substitute parts can look different from the original.
$35.09 |
12% OFF Phone Price : $40.09
In Stock
Screw 85790
#9

Unit parts diagram

Screw

Part #85790

The manufacturer no longer makes this part, and there's no substitute part

Start Kit SKTDC-4248

#NI

All parts diagram

Start kit

Part #SKTDC-4248

The manufacturer no longer makes this part, and there's no substitute part

Guarantee F642-13771A

#NI

All parts diagram

Guarantee

Part #F642-13771A

The manufacturer no longer makes this part, and there's no substitute part

Screw 96541
#36

Unit parts diagram

Screw

Part #96541

The manufacturer no longer makes this part, and there's no substitute part

Fan Control 96397
#47

Unit parts diagram

Fan control

Part #96397

The manufacturer no longer makes this part, and there's no substitute part
